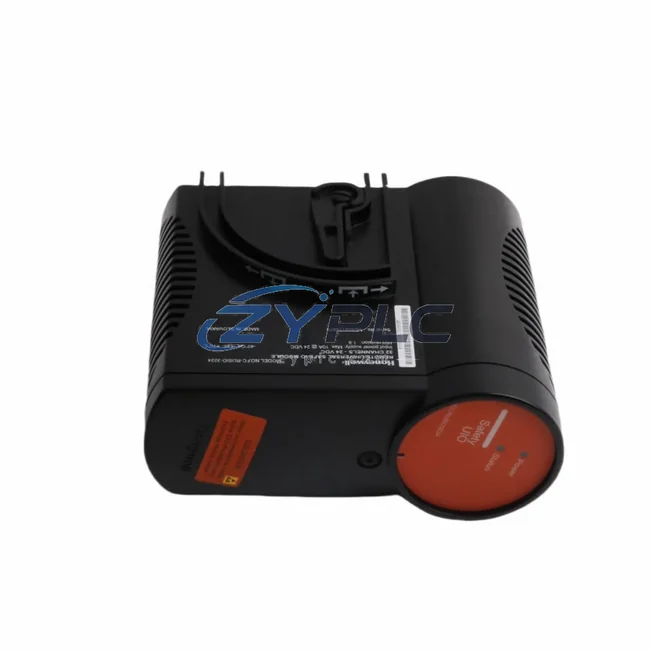

Honeywell FC-PDIO01 51454927-176 Safe Digital I/O for FSC

Honeywell FC-PDIO01 51454927-176 Safe Digital I/O for FSC

The Honeywell FC-PDIO01 (part number 51454927-176) is a SIL-certified Safe Digital I/O Module engineered for seamless integration within the Honeywell FSC (Fail Safe Controller) platform — one of the most widely deployed safety-rated control architectures in process industries worldwide. Rather than functioning as a standalone component, the FC-PDIO01 occupies a critical position within a layered automation hierarchy, bridging the field signal layer and the safety logic solver layer to ensure deterministic, fault-tolerant control across the entire system.

In a complete FSC-based safety instrumented system (SIS), the FC-PDIO01 works in close coordination with the FSC Central Processing Unit — such as the FC-CPU02 or FC-CPU03 — which executes the safety logic and manages system-wide diagnostics. The I/O module receives discrete field signals from sensors, emergency shutdown (ESD) devices, and final control elements, then transmits validated digital states to the CPU over the internal FSC backplane bus. This tight integration ensures that signal latency is minimized and that every channel is continuously monitored for open-circuit, short-circuit, and discrepancy faults.

The FC-PDIO01 is designed to be installed within the FSC rack system, sharing the same backplane infrastructure as companion modules such as the FC-TSDI01 terminal assembly, FC-TSDO01 output terminal board, and FC-PSHV01 power supply module. The modular rack architecture allows engineers to scale the I/O count incrementally — adding additional FC-PDIO01 modules as process requirements expand — without redesigning the control cabinet or interrupting existing wiring. This scalability is particularly valuable in phased plant expansions or when upgrading legacy relay-based shutdown systems to fully digital SIS architectures.

From a redundancy perspective, the FC-PDIO01 supports the FSC platform’s 1oo1, 1oo2, and 2oo3 voting configurations, enabling engineers to match the redundancy level to the Safety Integrity Level (SIL) requirements of each safety function. In high-demand applications such as burner management systems (BMS), high-integrity pressure protection systems (HIPPS), or turbine overspeed protection, dual or triple I/O channel configurations can be implemented using multiple FC-PDIO01 modules operating in parallel, with the FSC CPU performing real-time cross-channel comparison and fault annunciation.

Communication within the FSC architecture is handled through the proprietary FSC backplane protocol, which provides deterministic cycle times and built-in error detection. For plant-wide integration, the FSC system interfaces with DCS platforms — such as the Honeywell Experion PKS — via the FC-GATEWAY or dedicated Modbus/PROFIBUS communication modules, allowing the safety system status to be monitored from the operator workstation without compromising the integrity of the safety network. The FC-PDIO01’s channel data is thus available at every level of the automation hierarchy, from field device to control room HMI.

Installation and commissioning of the FC-PDIO01 follow the structured FSC engineering workflow: hardware configuration is performed in the FSC Workbench software environment, where each I/O channel is assigned a tag, a signal type, and a diagnostic mask. The module’s self-diagnostic routines run continuously during operation, reporting channel health to the FSC CPU and, by extension, to the plant’s safety management system. This reduces the burden on maintenance technicians during proof testing intervals and supports compliance with IEC 61511 functional safety lifecycle requirements.

For long-term asset management, the FC-PDIO01 51454927-176 is supplied with a warranty terms confirmed during quotation, covering manufacturing defects and ensuring that replacement units meet the same factory specifications as the original. Spare module inventory planning is simplified by the module’s backward compatibility across multiple FSC rack generations, reducing the number of unique part numbers that must be held in the maintenance store. Engineers responsible for multi-site FSC installations can standardize on the FC-PDIO01 as a common I/O module across different plant configurations, further reducing procurement complexity and training overhead.

In summary, the Honeywell FC-PDIO01 51454927-176 is not merely a digital I/O card — it is a system-architecture component that enables the FSC platform to deliver the signal integrity, redundancy, and diagnostic transparency required by modern functional safety standards. Its compatibility with the broader FSC ecosystem, including CPU modules, power supplies, terminal assemblies, communication gateways, and HMI integration layers, makes it an indispensable element of any safety-critical control system built on the Honeywell FSC platform.

Product Specification Table

System Compatibility Notes

The FC-PDIO01 achieves its full potential when deployed as part of a coordinated FSC system architecture. At the processing layer, the FC-CPU02 or FC-CPU03 safety CPU executes the application logic and manages all I/O module communication cycles. Power integrity is maintained by the FC-PSHV01 high-voltage power supply module, which provides regulated DC power to the backplane and all installed I/O modules, including the FC-PDIO01. For field wiring termination, the FC-TSDI01 digital input terminal assembly and FC-TSDO01 digital output terminal assembly connect directly to the FC-PDIO01, providing screw-terminal access for field cables without disturbing the module itself during maintenance.

At the network layer, the FC-GATEWAY communication module bridges the FSC safety network to the plant DCS or SCADA system, enabling operators to monitor I/O channel states, system health, and alarm conditions from the Honeywell Experion PKS operator workstation. For installations requiring PROFIBUS DP integration, the FC-PBDP01 PROFIBUS master module can be added to the FSC rack, extending the system’s connectivity to third-party field devices and remote I/O stations. In redundant architectures, a second FC-PDIO01 module is installed in a mirrored slot, with the FSC CPU performing continuous cross-channel comparison to detect and annunciate any discrepancy between the two I/O paths — a configuration commonly used in HIPPS and ESD applications where SIL 2 or SIL 3 integrity is required.

Industrial Application Notes

The FC-PDIO01 51454927-176 is deployed across a wide range of process industries where functional safety and system reliability are non-negotiable. In oil and gas processing and petrochemical plants, the module serves as the primary interface for emergency shutdown (ESD) logic, receiving discrete signals from pressure switches, temperature switches, and flame detectors, and commanding final control elements such as solenoid valves and motor starters through the FSC CPU’s safety logic. In power generation facilities — including gas turbine plants and combined-cycle power stations — the FC-PDIO01 is used in turbine protection systems, where its fast response time and continuous diagnostics are essential for overspeed and over-temperature protection.

In water and wastewater treatment plants, the module integrates with pump control and chemical dosing systems, providing the discrete I/O interface between field instrumentation and the FSC safety logic solver. Mining and minerals processing operations use the FC-PDIO01 in conveyor protection systems, crusher interlock circuits, and ventilation safety systems, where the module’s robust diagnostic capability reduces unplanned downtime and simplifies proof testing. In pharmaceutical and fine chemical manufacturing, the module supports batch reactor safety systems, where precise discrete signal management and full audit trail capability are required for regulatory compliance. Across all these applications, the FC-PDIO01’s compatibility with the FSC platform’s redundancy configurations and its support for IEC 61511 lifecycle documentation make it the preferred I/O module for safety engineers specifying new SIS installations or upgrading existing relay-based shutdown systems.

Product Compatibility FAQ

Q1: Is the FC-PDIO01 51454927-176 compatible with all FSC rack generations, and can it be mixed with other FSC I/O modules in the same rack?
A: The FC-PDIO01 is designed for the Honeywell FSC modular rack system and is compatible with standard FSC rack backplanes. It can be installed alongside other FSC I/O modules — including analog input, analog output, and communication modules — within the same rack, provided that the FSC CPU firmware version supports the module type. Always verify compatibility against the FSC Hardware Manual and the specific CPU firmware release notes before installation.

Q2: What commissioning steps are required when integrating the FC-PDIO01 into an existing FSC architecture?
A: Commissioning the FC-PDIO01 involves configuring each I/O channel in the FSC Workbench engineering software, assigning signal tags, diagnostic masks, and voting parameters. After hardware installation in the FSC rack, a channel-by-channel loop check should be performed to verify field wiring continuity and correct signal polarity. The FSC CPU will automatically detect the new module during the next configuration download, and the module’s self-diagnostic routines will begin running immediately upon power-up. Full functional testing in accordance with the site’s SIS validation plan should be completed before the system is placed in service.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims on the FC-PDIO01 51454927-176?
A: The warranty terms confirmed during quotation covers manufacturing defects and ensures that the FC-PDIO01 meets factory specifications at the time of delivery. If a module exhibits a fault attributable to a manufacturing defect within the warranty period, a replacement unit will be provided. To initiate a warranty claim, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com with the module’s part number, serial number, and a description of the observed fault. Warranty claims are processed promptly to minimize system downtime and support continuity of plant operations.
