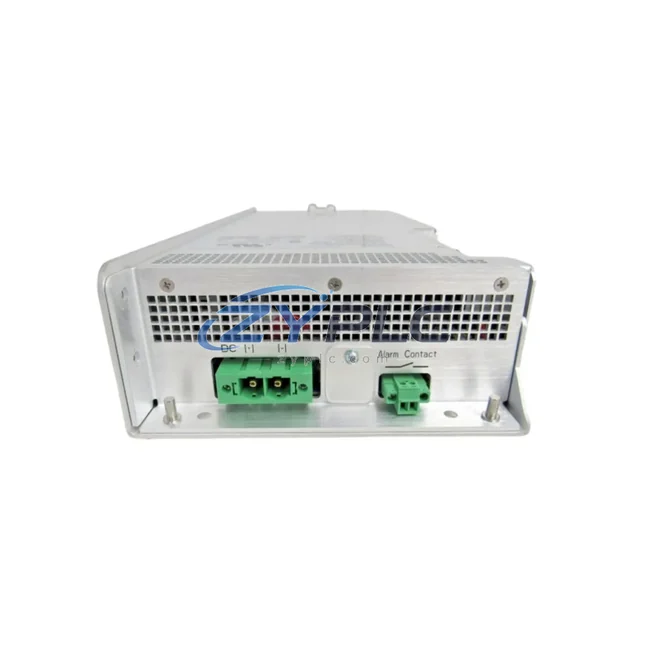

Honeywell FC-PSUNI2424 SPS6061-LF Power Supply for FSC

Honeywell FC-PSUNI2424 SPS6061-LF Power Supply for FSC: Control System Power Integrity and Upstream-Downstream Coordination

In safety-critical industrial automation, the power supply layer is not a peripheral concern — it is the architectural foundation upon which every other control system layer depends. The Honeywell FC-PSUNI2424 SPS6061-LF is a universal power supply module engineered specifically for the Honeywell FSC (Fail-Safe Controller) safety system platform, delivering stable, regulated DC power to the processor, I/O, and communication subsystems that form the backbone of process safety instrumented systems (SIS). This module is not simply a power converter; it is a system-level component whose reliability directly determines the availability and integrity of the entire safety loop — from field sensor inputs through the logic solver to final control elements.

The FSC platform is widely deployed in high-hazard industries including oil and gas, petrochemical refining, power generation, and chemical processing, where IEC 61511 and IEC 61508 compliance is mandatory. Within this architecture, the FC-PSUNI2424 SPS6061-LF occupies the power layer, supplying conditioned 24 VDC output to the FSC processor modules, I/O expansion racks, and communication gateway cards. Its universal input range accommodates both 24 VAC and 24 VDC source configurations, making it adaptable to diverse site power infrastructures without requiring additional conversion hardware. This flexibility is particularly valuable during system retrofits, where existing site power distribution may not conform to a single standard.

From a system architecture perspective, the FC-PSUNI2424 SPS6061-LF is designed to operate in parallel redundant power configurations. In high-availability FSC installations, two or more power supply modules are deployed in a load-sharing or hot-standby arrangement, ensuring that a single power supply failure does not interrupt the safety function. This redundancy design aligns with the FSC platform’s overall SIL 3 capability, where no single point of failure is permitted to compromise the safety instrumented function (SIF). The module’s output characteristics — including tight voltage regulation, low ripple, and current limiting — are matched to the electrical requirements of FSC processor cards such as the FC-CPU-01 and FC-CPU-02, as well as I/O modules including digital input cards, digital output cards, and analog input modules mounted on FSC expansion racks.

At the I/O layer, the power supply’s stable output directly affects the accuracy and repeatability of signal conditioning circuits. Analog input modules processing 4–20 mA signals from pressure transmitters, temperature sensors, and flow meters require a clean, regulated supply voltage to maintain measurement accuracy within the SIS loop. Any voltage fluctuation or ripple introduced by an undersized or degraded power supply can manifest as signal noise, false trips, or missed demand detections — all of which have direct safety and operational consequences. The FC-PSUNI2424 SPS6061-LF’s design addresses this by providing a tightly regulated output with built-in protection against overload, short circuit, and overvoltage conditions, ensuring that downstream I/O modules operate within their specified electrical envelope at all times.

At the network and communication layer, FSC systems typically interface with distributed control systems (DCS) or supervisory SCADA platforms via communication gateway modules such as the Honeywell FSC Gateway or Modbus/TCP interface cards. These communication modules also draw power from the FSC rack power bus, making the stability of the FC-PSUNI2424 SPS6061-LF directly relevant to communication link availability. In architectures where the FSC communicates with a Honeywell Experion PKS DCS or a third-party SCADA system, any power interruption to the communication gateway can result in loss of safety status visibility at the operator workstation — a condition that, while not directly affecting the safety function, significantly impacts operational awareness and emergency response capability.

For engineering teams responsible for FSC system commissioning and long-term maintenance, the FC-PSUNI2424 SPS6061-LF offers important practical advantages. Its plug-in module form factor allows hot-swap replacement in redundant configurations without requiring a system shutdown, minimizing maintenance downtime in continuous process environments. The module’s LED status indicators provide immediate visual feedback on power output status, simplifying fault diagnosis during commissioning and periodic proof testing. Compatibility with the standard FSC rack backplane eliminates the need for custom wiring or adapter hardware, reducing installation time and the risk of wiring errors during system build-out.

In layered automation architectures, the power supply module’s role extends beyond simply energizing the control system. It is a critical element of the system’s overall functional safety architecture, and its selection, installation, and maintenance must be treated with the same rigor applied to processor modules, I/O cards, and field instruments. Specifying the FC-PSUNI2424 SPS6061-LF as the power source for an FSC installation ensures that the power layer meets the same reliability and availability standards as the rest of the safety system, supporting the overall SIL verification and validation process required by IEC 61511.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are tested prior to shipment to verify output voltage, current capacity, and protection circuit functionality. Our inventory of Honeywell FSC components supports rapid deployment for both new system builds and emergency replacement scenarios, with global logistics capability to minimize lead times for critical maintenance situations.

Product Specification Table

System Compatibility Notes

The FC-PSUNI2424 SPS6061-LF functions as the power foundation for a coordinated FSC safety system architecture. At the processor layer, it supplies regulated 24 VDC to FSC CPU modules such as the FC-CPU-01 and FC-CPU-02, which execute the safety logic and manage I/O scanning cycles. These processor modules communicate with I/O expansion racks populated with FC-DI-16 digital input modules and FC-DO-16 digital output modules, all of which depend on the power supply’s stable output for correct signal acquisition and actuation command execution.

In redundant FSC configurations, a second FC-PSUNI2424 SPS6061-LF unit is installed in parallel, with both modules sharing the load and providing automatic failover in the event of a single module failure. This redundant power architecture is coordinated with the FSC rack backplane, which distributes power to all installed modules without requiring individual power connections to each card. The backplane’s power bus design ensures that even during a power supply module swap, the remaining unit maintains uninterrupted power delivery to the processor and I/O subsystems.

At the communication layer, the power supply supports FSC Gateway modules that bridge the FSC safety network to plant-level DCS platforms such as Honeywell Experion PKS, enabling real-time safety status reporting and alarm management at the operator workstation. In installations where the FSC interfaces with a Modbus RTU or Modbus/TCP network, the communication interface cards mounted in the FSC rack also draw power from the same regulated bus, making the FC-PSUNI2424 SPS6061-LF’s output stability directly relevant to communication link reliability.

For installations requiring field-level power distribution, the FSC system’s output relay modules — including FC-RLY-08 relay output cards — interface with solenoid valves, motor starters, and other final control elements in the execution layer. The power supply’s current capacity must be sized to accommodate the combined load of all installed modules, including the inrush current demands of relay coils during simultaneous actuation events. ZYPLC’s engineering team can assist with power budget calculations to ensure the selected power supply configuration meets the total system load requirements.

At the human-machine interface layer, operator workstations and engineering terminals connected to the FSC system via the FSC Engineering Tool (FSC ET) software interface rely on the communication gateway’s availability, which in turn depends on the power supply’s continuous operation. In some installations, a dedicated Honeywell HC900 HMI or third-party SCADA terminal provides the operator interface, with the FSC system reporting safety status via OPC or Modbus protocol. Maintaining power supply integrity is therefore essential not only for the safety function itself but also for the operator’s ability to monitor and respond to process conditions in real time.

Industrial Application Notes

The Honeywell FC-PSUNI2424 SPS6061-LF is deployed across a wide range of high-hazard industrial applications where safety instrumented systems are required by regulation and engineering best practice.

In oil and gas processing facilities, FSC systems equipped with this power supply module protect critical process units including compressor trains, separator vessels, and gas injection systems. The power supply’s redundant configuration ensures that emergency shutdown (ESD) functions remain available even during planned maintenance activities on the power supply itself, supporting the facility’s proof test schedule without requiring a full system shutdown.

In petrochemical and chemical plants, FSC systems manage burner management (BMS) and high-integrity pressure protection (HIPPS) functions, where SIL 2 and SIL 3 requirements demand the highest levels of power supply reliability. The FC-PSUNI2424 SPS6061-LF’s compliance with the FSC platform’s SIL 3 capability makes it the appropriate choice for these demanding applications.

In power generation facilities — including thermal, combined-cycle, and nuclear auxiliary systems — FSC-based safety systems protect turbine-generator units, boiler systems, and auxiliary cooling circuits. The power supply’s wide input voltage range accommodates the diverse AC and DC power distribution systems found in power plant environments, simplifying integration into existing electrical infrastructure.

In water and wastewater treatment plants, FSC systems provide safety interlocking for chemical dosing systems, high-pressure pump protection, and chlorination process control. The power supply’s robust protection features — including short-circuit and overload protection — are particularly valuable in these environments, where electrical faults in field wiring can occur due to moisture ingress and corrosive atmospheres.

In mining and minerals processing operations, FSC systems protect conveyor systems, crusher circuits, and flotation plant equipment. The power supply’s industrial-grade construction and wide operating temperature range support reliable operation in the harsh environmental conditions typical of mining facilities, including high ambient temperatures, dust, and vibration.

Product Compatibility FAQ

Q1: Is the FC-PSUNI2424 SPS6061-LF compatible with all FSC rack configurations, and can it be used in both new installations and system expansions?
A: Yes. The FC-PSUNI2424 SPS6061-LF is designed for the standard FSC rack backplane and is compatible with all FSC rack sizes and configurations, including single-rack and multi-rack FSC installations. It can be used in new system builds as well as expansion projects where additional I/O racks are being added to an existing FSC architecture. For multi-rack systems, each rack requires its own power supply module (or redundant pair), and the power budget for each rack must be calculated based on the total load of the installed I/O and communication modules. ZYPLC can provide power budget support as part of our pre-sales engineering service.

Q2: How does the redundant power supply configuration work in an FSC system, and what happens during a power supply module failure?
A: In a redundant FSC power supply configuration, two FC-PSUNI2424 SPS6061-LF modules are installed in the same rack in a parallel load-sharing arrangement. Both modules share the total rack load equally under normal operating conditions. If one module fails, the remaining module automatically assumes the full rack load without interruption to the safety function. The failed module can be replaced while the system remains in operation (hot-swap), provided the remaining module has sufficient capacity to carry the full load. The FSC system’s diagnostic functions detect the power supply fault and generate an alarm at the operator workstation, prompting maintenance action. All replacement modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are tested prior to shipment.

Q3: What are the long-term maintenance requirements for the FC-PSUNI2424 SPS6061-LF, and how does ZYPLC support ongoing spare parts availability?
A: The FC-PSUNI2424 SPS6061-LF is a solid-state power supply module with no user-serviceable internal components. Long-term maintenance consists primarily of periodic visual inspection, output voltage verification during proof testing, and replacement of aging units as part of the facility’s lifecycle management program. Honeywell FSC systems are designed for long service lives, and ZYPLC maintains a dedicated inventory of FSC power supply modules and related components — including CPU modules, I/O cards, communication gateways, and rack backplanes — to support both planned maintenance and emergency replacement requirements. Our warranty terms confirmed during quotation covers all supplied units, and our global logistics network ensures rapid delivery to minimize system downtime in critical maintenance situations. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for availability and lead time information.
