Honeywell FC-SAI-1620M FC-SD0-0824 FC-SDI-1624 Safety I/O Module FSC Series

Honeywell FC-SAI-1620M FC-SD0-0824 FC-SDI-1624: Industrial Data Link for FSC Safety Systems

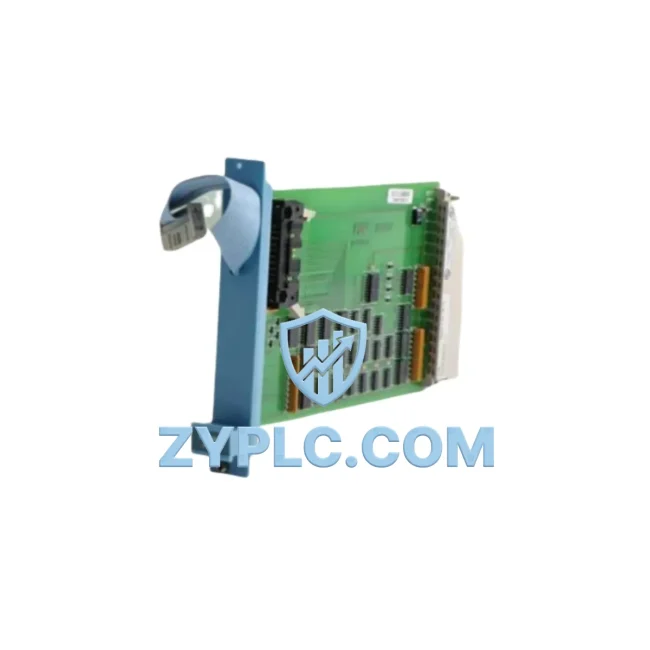

The Honeywell FC-SAI-1620M, FC-SD0-0824, and FC-SDI-1624 are SIL3-certified Safety I/O Modules from the FSC (Fail-Safe Controller) Series, engineered to serve as the critical data acquisition and signal interface layer in high-integrity industrial automation networks. These modules bridge field-level safety instrumented devices with the FSC safety controller platform, enabling deterministic, real-time data flow across the entire safety loop — from sensor signal capture through protocol-level transmission to SCADA visualization and remote diagnostic systems.

In modern smart factory environments, safety I/O modules are no longer passive signal conditioners. They are active nodes in the industrial communication architecture, responsible for acquiring analog and digital signals from field transmitters, pressure sensors, flame detectors, and emergency shutdown valves, then delivering structured process data upstream to the FSC controller via the internal safety bus. The FC-SAI-1620M handles analog signal input with high-resolution conversion, while the FC-SD0-0824 manages digital output channels for actuator control, and the FC-SDI-1624 processes digital input signals from field safety devices — together forming a complete I/O subsystem for SIL2/SIL3 safety loops.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical safety instrumented system (SIS) deployment, the FC-SAI-1620M receives 4–20 mA analog signals from field-mounted HART-compatible transmitters — including pressure, temperature, and flow sensors — and converts them into digital process values that are passed to the Honeywell FSC Central Processing Unit (CPU) module, such as the FC-CPU-0702 or FC-CPU-0702H, via the redundant internal safety bus. This deterministic data path ensures that process deviations are detected within the required response time defined by the safety function.

The FC-SDI-1624 digital input module simultaneously monitors the status of field safety devices — emergency stop buttons, position switches, and gas detection relays — feeding binary state data into the FSC logic solver. When a safety condition is triggered, the FSC CPU evaluates the safety logic and commands the FC-SD0-0824 digital output module to de-energize solenoid valves, isolate process sections, or activate alarm systems, completing the safety loop from detection to action.

For integration with plant-wide SCADA and DCS platforms, the FSC system communicates upstream via the Honeywell FSC Communication Module (FC-COM-0202 or equivalent), which supports Modbus TCP/IP and Profibus DP protocols. This allows real-time safety data — including I/O module diagnostics, channel health status, and process variable values — to be transmitted to Honeywell Experion PKS, Yokogawa CENTUM VP, or third-party SCADA systems running on OPC-DA/UA servers. HMI panels connected via Ethernet can display live safety loop status, enabling operators to monitor SIL-rated functions without interrupting the safety execution cycle.

In distributed plant architectures, the FSC I/O modules are often deployed in remote marshalling cabinets alongside Honeywell FSC Power Supply modules (FC-PSU-0024) and FSC Termination Assemblies, reducing field wiring complexity while maintaining full diagnostic transparency. Edge gateway devices installed at the cabinet level can aggregate I/O data and forward it to cloud-based asset management platforms, supporting predictive maintenance workflows and remote engineering access.

For applications requiring protocol bridging between legacy serial networks and modern Ethernet-based control systems, the FSC platform can be paired with industrial protocol converters supporting Modbus RTU-to-Modbus TCP translation, enabling older field devices to participate in the smart factory data ecosystem without hardware replacement. Variable frequency drives (VFDs) and motor control centers connected via Profibus DP can also be monitored through the FSC gateway layer, providing a unified data view across both safety and operational technology (OT) networks.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in process industry automation is the coexistence of multiple communication protocols across different generations of equipment. Legacy 4–20 mA field devices, HART-enabled smart transmitters, Profibus DP networks, and modern Ethernet/IP systems often operate in isolation, creating data silos that prevent plant-wide visibility and slow down incident response.

The Honeywell FSC Safety I/O Modules — FC-SAI-1620M, FC-SD0-0824, and FC-SDI-1624 — address this fragmentation by serving as the standardized signal interface layer within the FSC safety controller architecture. By consolidating analog and digital field signals into a single, diagnostics-rich safety bus, these modules eliminate the need for separate signal conditioning hardware and reduce the risk of data loss between field and control layers.

Remote monitoring is a critical requirement for offshore platforms, pipeline stations, and unmanned substations where physical access is limited. The FSC system’s built-in diagnostic capabilities — including channel-level fault detection, module health reporting, and redundancy status monitoring — allow maintenance engineers to identify failing I/O channels, degraded sensor signals, or communication faults from a central control room or remote engineering workstation, without dispatching field personnel.

Production line transparency is achieved by mapping FSC safety data into the plant historian and MES (Manufacturing Execution System) via OPC-UA interfaces, enabling real-time KPI tracking, safety loop performance analysis, and regulatory compliance reporting. As plant capacity grows, additional FSC I/O modules can be added to the existing rack without modifying the safety logic, supporting modular system expansion aligned with IEC 61511 lifecycle requirements.

All modules are shipped after full functional testing, including channel accuracy verification, communication integrity checks, and SIL validation testing, ensuring that each unit arrives ready for installation and commissioning. Stock is maintained for immediate dispatch, with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Industrial Connectivity FAQ

Q1: What communication protocols do the FC-SAI-1620M, FC-SD0-0824, and FC-SDI-1624 support for SCADA integration?
These FSC Safety I/O Modules communicate natively via the Honeywell FSC internal safety bus. For SCADA and DCS integration, the FSC system uses communication gateway modules supporting Modbus RTU, Modbus TCP/IP, and Profibus DP. OPC-DA and OPC-UA server interfaces are available for historian and MES connectivity, ensuring compatibility with major SCADA platforms including Honeywell Experion PKS, Siemens WinCC, and Wonderware System Platform.

Q2: How is network stability and communication latency managed in SIL3 safety loops?
The FSC internal safety bus is a deterministic, time-triggered communication architecture designed to meet the response time requirements of SIL2 and SIL3 safety functions. Redundant communication paths and watchdog monitoring ensure that any bus fault is detected within the diagnostic test interval, triggering a safe state without compromising the safety function. Communication latency is bounded and validated as part of the SIL verification process.

Q3: Can these modules be integrated into existing Profibus DP or Ethernet/IP networks without replacing field devices?
Yes. The FSC platform supports protocol gateway modules that bridge the FSC safety bus to Profibus DP and Ethernet/IP networks, allowing existing field devices and control systems to exchange data with the FSC safety controller without hardware replacement. HART pass-through capability on the FC-SAI-1620M also allows smart transmitter configuration and diagnostics to be accessed from the control room via HART-over-Modbus or dedicated HART multiplexers.

Q4: What does the 12-month warranty cover, and how are modules tested before shipment?
Each FC-SAI-1620M, FC-SD0-0824, and FC-SDI-1624 module undergoes full functional testing prior to shipment, including analog channel accuracy verification (±0.1% FS), digital I/O channel switching tests, internal bus communication integrity checks, and power supply margin testing. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions as defined in the Honeywell FSC hardware manual. Warranty claims are supported with replacement unit dispatch and technical engineering assistance.
