Honeywell FC-SAO-0220m Safety AO Module FSC

Honeywell FC-SAO-0220m Safety AO Module for FSC Automation

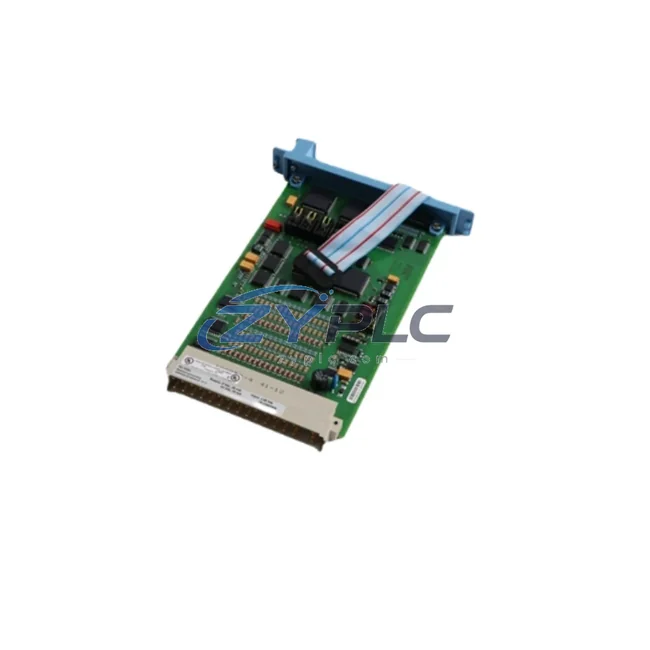

The Honeywell FC-SAO-0220m is a high-precision Safety Analog Output (SAO) module engineered for the Honeywell FSC (Fail-Safe Controller) and Safety Manager platform. Designed to meet the rigorous demands of industrial safety instrumented systems (SIS), this module delivers accurate, low-latency analog signal output while minimizing power draw across the control loop. In modern process plants where energy accountability is increasingly tied to operational KPIs, the FC-SAO-0220m plays a direct role in reducing unnecessary actuator cycling, stabilizing control valve positioning, and eliminating the unplanned downtime associated with signal drift or output instability.

Each unit is sourced from verified inventory, undergoes pre-shipment functional testing, and is backed by a warranty terms confirmed during quotation. Whether you are replacing a failed module in a live SIS loop or building out a new FSC rack for a greenfield project, the FC-SAO-0220m offers a reliable, cost-effective solution with fast lead times.

Product Specification Table

System Compatibility and Application

The FC-SAO-0220m does not operate in isolation — it is one precision node within a broader industrial control architecture. In a typical FSC-based safety system, the module receives setpoint commands from the Honeywell FC-CPU-0222 Safety CPU, which coordinates logic execution across the entire safety rack. The CPU’s deterministic scan cycle ensures that analog output updates are issued only when process conditions genuinely require a change, avoiding the unnecessary actuator movement that drives up operating load in poorly tuned loops.

On the input side, field transmitters feed process variables — pressure, temperature, flow — into the system via Honeywell FC-SAI-0220m Safety Analog Input modules, which share the same FSC backplane as the FC-SAO-0220m. This tight integration between input acquisition and output actuation shortens the control loop response time, reducing the energy penalty of delayed corrections. For digital field devices, the FC-SDI-0220m Safety Digital Input module and FC-SDO-0220m Safety Digital Output module complement the analog layer, enabling hybrid control strategies that further optimize energy use across mixed actuator types.

Communication between the FSC rack and the plant DCS or historian is typically handled through the Honeywell Safety Manager Communication Module or via standard Modbus/PROFIBUS interfaces supported by the FSC platform. This connectivity allows maintenance planning systems to pull real-time output data from the FC-SAO-0220m, correlating analog output values with actuator power draw and identifying inefficiencies at the loop level. When integrated with a Honeywell Experion PKS or equivalent process historian, operators gain visibility into output utilization trends, enabling data-driven decisions about setpoint optimization and maintenance scheduling.

For drive-level energy control, the FC-SAO-0220m’s 4–20 mA output is commonly wired to variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS S120, where the analog signal directly governs motor speed. By delivering a stable, noise-free output signal, the module prevents the speed hunting that causes VFDs to draw abnormal load during transient conditions. In pump and compressor applications, this translates to measurable reductions in kWh consumption per unit of throughput. The Honeywell FC-PSU-0220m Power Supply Unit within the FSC rack ensures that the AO module receives clean, regulated power, further protecting signal integrity and output stability.

For plants running Honeywell Safety Manager R210 or later firmware, the FC-SAO-0220m supports hot-swap replacement without de-energizing the rack, minimizing production downtime during maintenance windows and preserving the energy efficiency gains achieved through continuous operation.

Maintenance and Replacement Notes

In refinery and petrochemical applications, control valve positioning accounts for a significant share of auxiliary operating load. When an analog output module produces a drifting or noisy signal, the downstream I/P transducer and actuator respond with continuous micro-corrections — a phenomenon known as valve hunting — that wastes both pneumatic energy and actuator service life. The FC-SAO-0220m’s high-resolution, stable 4–20 mA output eliminates this problem at the source, allowing control valves to hold position accurately and reducing compressor load on instrument air systems.

In batch chemical processes, the module’s fast output update rate supports tighter temperature and pressure control, reducing the duration of energy-intensive heating and cooling phases. Shorter batch cycles mean higher equipment utilization rates and lower energy cost per unit of production — a direct contribution to the plant’s overall energy intensity KPI.

Predictive maintenance is another dimension of maintenance planning enabled by the FC-SAO-0220m. Because the module’s output is continuously monitored by the FSC CPU and reported to the plant historian, maintenance teams can detect early signs of loop degradation — such as increasing output variance or unexpected setpoint deviation — before they escalate into unplanned shutdowns. Avoiding emergency shutdowns and cold restarts eliminates the energy spikes associated with bringing process equipment back to operating temperature and pressure from a cold state.

From a supply chain perspective, ZYPLC maintains ready stock of the FC-SAO-0220m, ensuring that replacement modules can be dispatched within 24–48 hours of order confirmation. Every unit shipped has passed a functional output test across the full 4–20 mA range, verifying linearity, channel isolation, and loop compliance before leaving the warehouse. This pre-shipment testing protocol reduces the risk of installing a defective module into a live SIS loop — a scenario that could trigger a spurious trip, force an unplanned shutdown, and generate the kind of energy-intensive restart sequence that erases weeks of efficiency gains.

Product Sourcing FAQ

Q1: How does the FC-SAO-0220m contribute to operational stability in a process plant?
The module delivers a stable, high-accuracy 4–20 mA output that minimizes actuator hunting and unnecessary valve movement. In applications where the AO signal drives a VFD or control valve, output stability directly reduces motor load and instrument air demand, lowering the plant’s overall auxiliary power load.

Q2: Is the FC-SAO-0220m compatible with both FSC and Safety Manager platforms?
Yes. The FC-SAO-0220m is designed for the Honeywell FSC platform and is also compatible with Safety Manager configurations that use FSC I/O racks. Always verify the firmware revision of your Safety CPU against Honeywell’s compatibility matrix before installation to ensure full functional support.

Q3: What is the recommended replacement procedure to avoid production disruption?
For systems running Safety Manager R210 or later, the FC-SAO-0220m supports hot-swap replacement. Power down the individual module slot per the FSC maintenance procedure, remove the faulty module, insert the replacement, and allow the CPU to re-initialize the channel. No full rack power cycle is required, minimizing downtime and avoiding the energy cost of a cold process restart.

Q4: What warranty and testing assurance comes with this module?
Every FC-SAO-0220m supplied by ZYPLC carries a warranty terms confirmed during quotation covering functional defects under normal operating conditions. Prior to shipment, each unit is tested across the full analog output range (4–20 mA) for linearity, channel isolation, and loop compliance. Test records are available upon request for quality documentation purposes.
