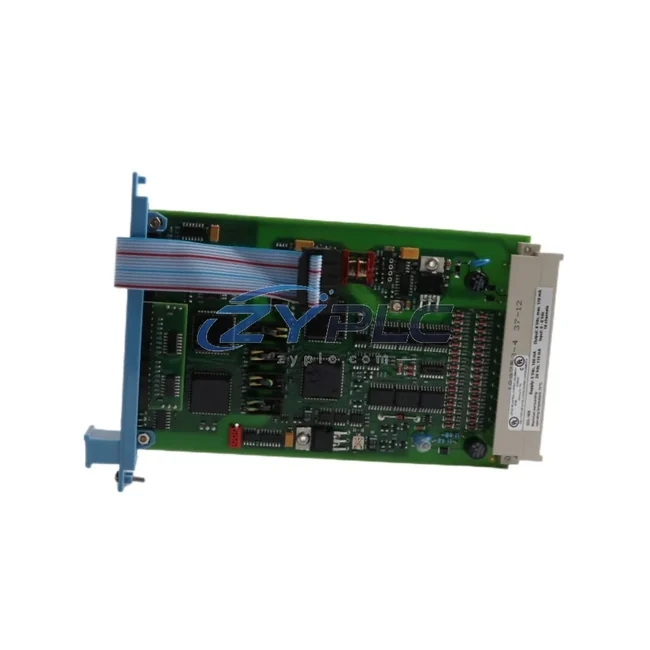

Honeywell FC-SDIL-1608 Digital Input for FSC

Honeywell FC-SDIL-1608 Digital Input for FSC Safety

The Honeywell FC-SDIL-1608 is a 16-channel digital input module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) Safety Manager platform — one of the most widely adopted safety-rated control architectures in process industries worldwide. Rather than functioning as a standalone component, the FC-SDIL-1608 is designed from the ground up to operate as an integrated node within a layered, redundant safety instrumented system (SIS). Its role spans the I/O acquisition layer, where it collects discrete field signals and passes them through the FSC backplane to the central processing unit for logic evaluation, alarm management, and safety function execution.

In a complete FSC-based control architecture, the FC-SDIL-1608 works in close coordination with multiple system layers. At the control layer, the module interfaces directly with the FSC CPU — such as the FC-CPU-0702 or FC-CPU-0802 — which executes the safety logic and manages the overall system scan cycle. The module’s 16 digital input channels are mapped into the CPU’s I/O table via the FSC rack backplane, ensuring deterministic signal delivery with no additional fieldbus latency. This tight coupling between the I/O layer and the processing layer is fundamental to achieving the response times required under IEC 61511 and IEC 61508 safety standards.

At the power layer, the FC-SDIL-1608 relies on the FSC power supply modules — typically the FC-PSU-0800 series — which provide regulated, redundant DC power to the rack. Redundant power configurations ensure that a single power supply failure does not interrupt the digital input acquisition function, maintaining continuous signal monitoring across all 16 channels. This is particularly critical in applications such as emergency shutdown (ESD) systems, where uninterrupted input monitoring is a core safety requirement.

The module’s integration into the network and communication layer is achieved through the FSC system’s internal backplane bus, which connects all I/O modules to the CPU without requiring external cabling or protocol conversion. For systems that require remote I/O expansion or integration with distributed control systems (DCS), the FC-SDIL-1608 can coexist in racks alongside communication gateway modules such as the FC-GATEWAY series, enabling data exchange over PROFIBUS DP, Modbus RTU, or OPC-based supervisory networks. This multi-protocol capability allows the safety layer to share process data with the DCS or SCADA layer without compromising the integrity of the safety function.

Within the I/O layer itself, the FC-SDIL-1608 is typically installed alongside complementary modules including digital output modules such as the FC-SDOL-0808, analog input modules such as the FC-SAIC-0808, and analog output modules for final element control. Terminal modules and marshalling panels connected to the FC-SDIL-1608’s field wiring connectors provide the physical interface between the module and field instruments — including pressure switches, level switches, temperature switches, and position feedback sensors. Proper selection of terminal modules ensures correct signal conditioning and loop integrity verification during commissioning.

From a redundancy design perspective, the FC-SDIL-1608 supports hot-standby and fault-tolerant configurations when deployed in dual-redundant FSC rack architectures. In these configurations, two FC-SDIL-1608 modules may be installed in parallel racks, with the FSC CPU performing continuous cross-comparison of input states. Any discrepancy between the two input channels triggers a diagnostic alarm, allowing maintenance teams to identify and replace a faulty module without interrupting the safety function — a key requirement for high-availability SIS applications in oil and gas, petrochemical, and power generation facilities.

The HMI and supervisory layer interfaces with the FC-SDIL-1608’s data indirectly through the FSC CPU’s communication ports. Operator workstations running Honeywell’s Safety Manager configuration and monitoring software can display real-time channel status, diagnostic information, and historical input logs for all 16 channels. This visibility supports both operational monitoring and post-incident analysis, reducing the time required for root cause investigation after a safety event.

Product Specification Table

System Compatibility Notes

The FC-SDIL-1608 achieves its full value only when considered as part of a coordinated FSC system architecture. A typical FSC-based safety system integrating this module includes the following components working in concert:

The FC-CPU-0702 or FC-CPU-0802 safety CPU serves as the central logic solver, executing the safety program and managing all I/O module communications via the backplane. The FC-SDIL-1608’s 16 input channels are directly mapped into the CPU’s process image, ensuring that every field signal state change is captured within the system scan cycle.

Redundant FC-PSU-0800 power supply modules provide the regulated DC power required by the FC-SDIL-1608 and all other rack-mounted modules. In high-availability architectures, dual power supplies are installed in parallel, with automatic switchover in the event of a supply failure.

Digital output modules such as the FC-SDOL-0808 work alongside the FC-SDIL-1608 to complete the input-to-output signal chain. While the FC-SDIL-1608 acquires field status signals, the FC-SDOL-0808 drives final elements such as solenoid valves, motor contactors, and relay coils based on the CPU’s safety logic evaluation.

Analog input modules including the FC-SAIC-0808 complement the digital input layer by providing continuous process variable monitoring — pressure, temperature, flow, and level — alongside the discrete signals handled by the FC-SDIL-1608. Together, these modules provide the CPU with a complete picture of process conditions.

Communication gateway modules in the FC-GATEWAY series enable the FSC system to exchange data with the plant DCS or SCADA system over PROFIBUS DP or Modbus RTU, allowing supervisory systems to monitor the status of all FC-SDIL-1608 input channels in real time without interfering with the safety function.

FSC rack backplanes and chassis provide the physical and electrical infrastructure that connects the FC-SDIL-1608 to the CPU and power supply. Proper backplane selection — including the number of slots and rack depth — determines the maximum I/O capacity of the FSC system and must be specified during the system design phase.

Terminal modules and marshalling panels connected to the FC-SDIL-1608’s field wiring interface provide the physical termination points for field instrument cables. Correct terminal module selection ensures proper signal conditioning, loop resistance compliance, and ease of maintenance during the operational life of the system.

Industrial Application Notes

The FC-SDIL-1608 is deployed across a wide range of process industries where safety-rated digital input acquisition is required as part of a certified SIS architecture.

In oil and gas production and refining facilities, the FC-SDIL-1608 monitors discrete signals from wellhead safety valves, high-pressure switches, gas detection systems, and emergency shutdown (ESD) pushbuttons. Its SIL 2/3 capability makes it suitable for use in safety functions that protect against blowout, fire, and explosion hazards.

In petrochemical and chemical processing plants, the module acquires status signals from reactor interlock systems, high-temperature switches, and agitator run-confirmation contacts. The FSC system’s ability to perform continuous diagnostics on the FC-SDIL-1608’s input channels ensures that any wiring fault or module failure is detected and alarmed before it can compromise the safety function.

In power generation applications — including thermal, nuclear, and combined-cycle plants — the FC-SDIL-1608 is used to monitor turbine protection signals, generator breaker status, and cooling system interlocks. The module’s hot-standby redundancy support is particularly valuable in these applications, where unplanned shutdowns carry significant economic and operational consequences.

In water and wastewater treatment facilities, the FC-SDIL-1608 monitors pump run-status signals, valve position feedback, and high-level switch inputs across multiple treatment stages. Its wide operating temperature range and industrial-grade construction make it suitable for installation in outdoor control cabinets and harsh environmental conditions.

In mining and metallurgical operations, the module is used to monitor conveyor belt safety switches, crusher interlock signals, and ventilation system status inputs. The FSC system’s redundant architecture ensures that a single module failure does not result in a loss of safety function, maintaining continuous protection for personnel and equipment.

Product Compatibility FAQ

Q1: Is the FC-SDIL-1608 compatible with all FSC Safety Manager rack configurations, and can it be mixed with other I/O module types in the same rack?
A: Yes. The FC-SDIL-1608 is designed for use in standard FSC rack configurations and can be installed in any available I/O slot within the FSC chassis. It is fully compatible with mixed-module rack configurations, allowing digital input, digital output, analog input, and analog output modules to coexist in the same rack. The FSC CPU automatically identifies each module’s type and channel count during system initialization, and the Safety Manager configuration software assigns I/O addresses accordingly. No hardware jumpers or manual address configuration are required.

Q2: How does the FC-SDIL-1608 support long-term maintenance and module replacement in a live FSC system?
A: The FC-SDIL-1608 supports hot-swap replacement in FSC systems configured for redundant I/O operation. In redundant architectures, the standby module continues to acquire field signals while the faulty module is removed and replaced, ensuring no interruption to the safety function. The FSC CPU performs automatic re-synchronization of the replacement module upon reinsertion, and the Safety Manager software logs the replacement event for audit trail purposes. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are tested prior to shipment to verify channel-by-channel functionality.

Q3: What commissioning steps are required to integrate the FC-SDIL-1608 into an existing FSC architecture, and how is system integration achieved?
A: Integration of the FC-SDIL-1608 into an existing FSC system requires the following steps: (1) Physical installation into the FSC rack with correct slot assignment; (2) Configuration of I/O addresses and channel parameters in the Honeywell Safety Manager engineering workstation software; (3) Loop check of all 16 input channels against field instruments to verify wiring continuity and signal polarity; (4) Functional test of each input channel by simulating field signal states and verifying correct CPU response; (5) Documentation of as-built I/O assignments for future maintenance reference. system integration — the alignment of the FC-SDIL-1608’s I/O mapping with the surrounding control architecture, including CPU logic, HMI displays, and DCS data exchange — is achieved through the Safety Manager configuration tool, which provides a unified engineering environment for all FSC system components.
