Honeywell FC-SDIL-1608 V1.1 Industrial Network Interface for Experion PKS Systems

Honeywell FC-SDIL-1608 V1.1: Industrial Data Link for Smart Factory Connectivity

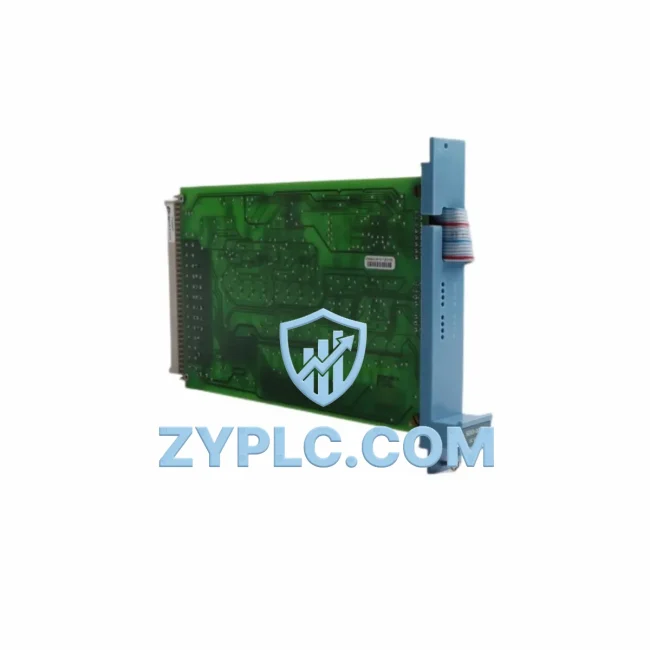

The Honeywell FC-SDIL-1608 V1.1 is a 16-channel Digital Input Module engineered for the Experion PKS (Process Knowledge System) Distributed Control System platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level discrete signals — from limit switches, proximity sensors, push-button stations, and digital transmitters — directly into the Experion PKS controller backbone, enabling real-time process visibility, alarm management, and SCADA-level data transparency across the entire plant network.

In modern smart factory environments, the integrity of the signal acquisition layer determines the reliability of every upstream decision. The FC-SDIL-1608 V1.1 ensures that 16 independent digital input channels are continuously scanned, status-validated, and transmitted to the Experion PKS C300 or C200E process controllers with deterministic cycle times. This eliminates data latency at the field edge and provides the foundation for closed-loop automation, predictive maintenance triggers, and real-time OEE (Overall Equipment Effectiveness) monitoring.

Network Communication Table

Connected Automation Data Flow

The FC-SDIL-1608 V1.1 sits at the heart of a layered industrial communication architecture. At the field level, discrete signals from Honeywell STT850 Smart Temperature Transmitters, pressure switches, and motor run-status contacts are wired directly into the module’s 16 input channels. These signals are then aggregated and transmitted over the Series C I/O Bus (SCIO Bus) to the Honeywell C300 Controller — the primary process controller in the Experion PKS platform — where they are processed against control logic and alarm setpoints in real time.

Within the Experion PKS network, the C300 communicates over the Fault Tolerant Ethernet (FTE) backbone — a dual-redundant 100 Mbps switched Ethernet network — ensuring that digital input data from the FC-SDIL-1608 V1.1 reaches the Experion PKS Server and the Experion Station HMI without interruption, even in the event of a single network path failure. Operators at the HMI workstation receive live status updates for all 16 channels, with channel-level fault annunciation displayed on the process graphic displays.

For SCADA integration, the Experion PKS platform supports OPC DA and OPC UA data export, allowing the digital input states captured by the FC-SDIL-1608 V1.1 to be published to third-party SCADA systems such as Wonderware System Platform or iFIX, as well as to Honeywell Uniformance PHD historian for long-term process data archiving and analytics. This data pathway supports production reporting, regulatory compliance logging, and energy management dashboards.

In multi-cabinet or geographically distributed installations, the FC-SDIL-1608 V1.1 can be deployed alongside Honeywell IOLIM (I/O Link Interface Module) and Remote I/O Cabinets connected via fiber-optic FTE extensions, extending the digital input acquisition reach to remote field junction boxes up to several kilometers from the main control room. This architecture is particularly valuable in oil and gas, chemical processing, and power generation plants where field devices are widely distributed.

When integrated with Honeywell Safety Manager or FSC (Fail Safe Controller) systems in Safety Instrumented System (SIS) architectures, the digital input data from the FC-SDIL-1608 V1.1 can be cross-referenced against safety logic to trigger Emergency Shutdown (ESD) sequences, providing an additional layer of process protection. The module’s channel-level diagnostics also feed into the Experion PKS Asset Manager, enabling predictive maintenance workflows and reducing unplanned downtime.

For drive and motor control integration, digital run/stop/fault status signals from Honeywell SmartVFD HVAC Variable Frequency Drives and third-party motor control centers are commonly wired into the FC-SDIL-1608 V1.1, providing the DCS with real-time motor status visibility without requiring additional communication gateways. This simplifies the network topology and reduces the total number of protocol conversion nodes in the system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the condition where field devices, subsystems, and control platforms operate in silos, unable to share process data in real time. The FC-SDIL-1608 V1.1 directly addresses this challenge within the Experion PKS ecosystem by providing a standardized, high-integrity digital input acquisition layer that feeds into the unified Experion data highway.

In plants where older relay-logic panels or standalone PLCs previously handled discrete input monitoring, migrating those signals to the FC-SDIL-1608 V1.1 and the Experion PKS platform eliminates the need for manual data transcription, reduces operator response time to field events, and enables automatic alarm escalation through the Experion Alarm Management system. Protocol inconsistencies between legacy fieldbus devices and modern Ethernet-based control networks are resolved at the controller level, with the FC-SDIL-1608 V1.1 serving as the clean digital input interface that requires no additional protocol conversion hardware.

For production line transparency, the 16-channel capacity of the FC-SDIL-1608 V1.1 allows a single module to monitor an entire production cell — capturing conveyor run status, valve open/close confirmation, safety gate interlocks, and equipment fault signals simultaneously. This data is immediately available to the Experion Station HMI, the SCADA historian, and remote monitoring dashboards, giving plant managers and maintenance engineers full visibility into production line status from any networked workstation or mobile device.

System expansion is straightforward within the Experion PKS architecture. Additional FC-SDIL-1608 V1.1 modules can be added to existing I/O cabinets on the SCIO Bus without requiring controller reconfiguration, supporting phased plant expansions and capacity upgrades with minimal engineering effort. Each module is hot-swappable in redundant configurations, ensuring zero-downtime maintenance during production operations.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying channel integrity, bus communication, and diagnostic reporting before dispatch. Stock is maintained for immediate availability, supporting urgent MRO (Maintenance, Repair, and Operations) requirements and planned shutdown restocking.

Industrial Connectivity FAQ

Q1: What communication protocol does the FC-SDIL-1608 V1.1 use, and is it compatible with third-party SCADA systems?
The FC-SDIL-1608 V1.1 communicates over the Honeywell Series C SCIO Bus to the Experion PKS controller, which then publishes data over the Fault Tolerant Ethernet (FTE) network. The Experion PKS platform supports OPC DA and OPC UA, enabling seamless integration with third-party SCADA systems including Wonderware, iFIX, and Citect, as well as data historians such as Honeywell Uniformance PHD and OSIsoft PI.

Q2: How does the FC-SDIL-1608 V1.1 ensure network stability and minimize communication latency?
The module operates on the deterministic SCIO Bus with fixed scan cycle times, ensuring consistent digital input data delivery to the C300 controller regardless of network load. The FTE dual-redundant Ethernet backbone provides automatic failover in under 1 second, maintaining uninterrupted data flow to HMI and SCADA systems even during network path failures.

Q3: Can the FC-SDIL-1608 V1.1 be added to an existing Experion PKS system without a full shutdown?
Yes. In redundant I/O configurations, the FC-SDIL-1608 V1.1 supports hot-swap replacement and online addition to the SCIO Bus. New modules can be recognized and configured by the Experion PKS Control Builder software without requiring a controller restart, supporting zero-downtime system expansion and module replacement during live production.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the FC-SDIL-1608 V1.1?
Every FC-SDIL-1608 V1.1 unit supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing including channel-level input scanning, SCIO Bus communication validation, and diagnostic self-test confirmation. Units are shipped with original packaging and documentation where available, and expedited shipping options are offered for urgent MRO and shutdown requirements.
