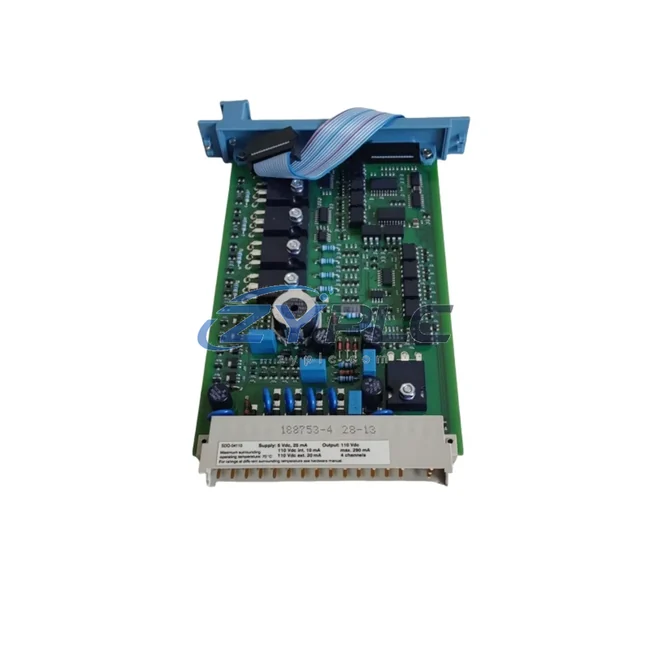

Honeywell FC-SDO-04110 Digital Output for Safety Manager

Honeywell FC-SDO-04110: Digital Output Data Link for Safety Manager

In modern safety-critical automation environments, the integrity of the output signal chain is as important as the logic that generates it. The Honeywell FC-SDO-04110 is a SIL3-rated digital output module engineered for the Honeywell Safety Manager FC Series platform, delivering deterministic, high-reliability output switching across the full control architecture — from the safety CPU through field-level actuators, solenoid valves, and emergency shutdown devices. Its role is not simply to switch outputs; it is to serve as the final, verified link in a safety instrumented function (SIF), ensuring that every command issued by the safety logic controller reaches the field device with full diagnostic coverage and architectural integrity.

The FC-SDO-04110 integrates directly into the Safety Manager backplane, communicating with the FC-CPU-0702 or FC-CPU-0702R redundant safety CPU modules via the internal safety bus. This tight coupling eliminates the latency and uncertainty associated with external communication gateways, allowing the safety PLC to maintain sub-100ms response times across the output layer. In redundant architectures, the module operates in conjunction with the FC-SDO-04110 on the redundant chassis, with the FC-PSHM-0001 power supply health monitor continuously verifying rail integrity across both racks. The FC-PSIO-0001 I/O power supply module provides isolated 24VDC to the output field terminals, ensuring that field-side faults do not propagate into the safety logic layer.

Within the broader Safety Manager system, the FC-SDO-04110 sits at the execution layer — the point where digital logic becomes physical action. Above it, the FC-CPU processes safety logic compiled in IEC 61511-compliant function blocks. Alongside it, the FC-TSDI-16UNI safety digital input FTA collects field signals and feeds them back into the diagnostic loop, enabling the system to verify actuator response and confirm that output commands have been executed correctly. This closed-loop architecture is fundamental to achieving SIL3 performance in process safety applications such as emergency shutdown systems (ESD), burner management systems (BMS), and high-integrity pressure protection systems (HIPPS).

The module’s output channels are individually supervised, with internal diagnostics continuously checking for open-circuit, short-circuit, and cross-wiring faults. Fault data is reported back to the FC-CPU in real time and surfaced through the Honeywell Safety Manager Engineering Workstation (EWS), where maintenance engineers can isolate faults to the channel level without interrupting the broader safety function. This diagnostic transparency dramatically reduces mean time to repair (MTTR) and supports the proof test interval requirements defined in the safety requirements specification (SRS).

For SCADA and HMI integration, the Safety Manager communicates upstream via the FC-EIMM-0001 Ethernet interface module, which bridges the safety network to the plant DCS or SCADA system — typically a Honeywell Experion PKS or a third-party system via OPC-DA/UA. Operators at the HMI level can monitor output channel status, acknowledge alarms, and review diagnostic logs without direct access to the safety logic, maintaining the required separation between the safety layer and the process control layer. This architecture supports IEC 61511 requirements for independence between the safety instrumented system (SIS) and the basic process control system (BPCS).

In large-scale installations — such as LNG terminals, offshore platforms, petrochemical complexes, and power generation facilities — the FC-SDO-04110 is deployed across multiple Safety Manager racks, each managing a defined zone of the safety architecture. The FC-RRIO-0001 remote I/O interface extends the system’s reach to field junction boxes located hundreds of meters from the main control room, maintaining the same diagnostic coverage and SIL3 integrity across the extended I/O network. This scalability allows a single Safety Manager system to manage thousands of I/O points across a large process unit without compromising response time or diagnostic performance.

Every FC-SDO-04110 unit supplied by ZYPLC undergoes pre-shipment functional verification, including output channel switching tests, diagnostic self-test confirmation, and backplane communication checks. Units are shipped with full traceability documentation and are covered by a warranty terms confirmed during quotation, ensuring that your safety system remains operational and supported throughout the commissioning phase and beyond. Global logistics via DHL and FedEx ensure rapid delivery to project sites worldwide, with typical lead times of 3–7 business days from order confirmation.

Compatibility & Integration Notes

Connected Automation Data Flow

The FC-SDO-04110 does not operate in isolation — it is one node in a carefully engineered safety data flow that spans from field sensors to the control room. At the input layer, the FC-TSDI-16UNI universal digital input FTA collects signals from pressure switches, level switches, and flame detectors, converting them into safety-qualified digital inputs for the FC-CPU. The FC-CPU-0702R redundant CPU processes these inputs against the safety logic matrix and, when a trip condition is confirmed, issues output commands to the FC-SDO-04110 to de-energize solenoid valves, trip motor starters, or activate ESD actuators.

The FC-PSHM-0001 power supply health monitor continuously supervises the 24VDC rails feeding both the logic and field sides of the system, generating alarms if voltage deviates beyond tolerance. The FC-RRIO-0001 remote I/O module extends this data flow to field marshalling panels, where the FC-SDO-04110’s output signals are distributed to terminal blocks and then to field devices via armored cable. At the network layer, the FC-EIMM-0001 Ethernet interface module transmits real-time output status and diagnostic data to the Honeywell Experion PKS DCS, where operators monitor the safety system from the process control HMI without crossing the SIS/BPCS boundary.

For sites using third-party SCADA platforms, a Modbus TCP gateway bridges the Safety Manager network to OSIsoft PI historians or Wonderware InTouch HMI systems, enabling long-term trend analysis of output channel health and trip frequency. Edge computing nodes deployed at the control room level can aggregate diagnostic data from multiple Safety Manager racks, providing plant-wide visibility into SIS performance and supporting predictive maintenance programs aligned with IEC 61511 proof test requirements.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in safety system engineering is the isolation of the SIS from the broader plant data infrastructure. Legacy safety PLCs often lack the communication interfaces needed to surface diagnostic data to SCADA or historian systems without compromising the safety layer’s independence. The FC-SDO-04110, as part of the Safety Manager FC Series architecture, addresses this through a layered communication design: the safety bus remains isolated from the process network, while the FC-EIMM-0001 provides a controlled, read-only data path to the BPCS layer.

This architecture eliminates the data silos that plague older SIS installations, where maintenance teams had no visibility into output channel health between proof tests. With the FC-SDO-04110’s per-channel diagnostics surfaced in real time through the EWS and SCADA integration, engineers can identify degrading output channels before they cause spurious trips or fail-to-function events. For multi-unit plants with dozens of Safety Manager racks, this transparency scales linearly — each additional rack adds its diagnostic data to the same SCADA view, without requiring additional engineering effort or custom integration work.

Remote sites — offshore platforms, pipeline compressor stations, remote wellheads — benefit particularly from this architecture. The FC-RRIO-0001 remote I/O interface maintains SIL3 diagnostic coverage across long cable runs, while the Ethernet uplink to the SCADA system allows control room engineers to monitor output channel status from hundreds of kilometers away. This remote diagnostic capability reduces the frequency of on-site proof tests and supports the risk-based inspection programs required by process safety management (PSM) regulations in the oil and gas industry.

Industrial Connectivity FAQ

Q1: Is the FC-SDO-04110 compatible with both the standard and redundant Safety Manager FC Series configurations?
Yes. The FC-SDO-04110 is designed for use in both simplex and redundant Safety Manager architectures. In redundant configurations, paired modules in the primary and secondary racks operate in lock-step, with the FC-CPU-0702R managing output voting logic to ensure that a single module failure does not result in a loss of safety function. The module’s backplane interface supports hot-swap replacement in maintained redundant systems, minimizing downtime during corrective maintenance.

Q2: What communication protocols does the Safety Manager FC Series support for SCADA integration?
The Safety Manager FC Series communicates with SCADA and DCS systems via the FC-EIMM-0001 Ethernet interface module, supporting OPC-DA, OPC-UA, and Modbus TCP protocols. This allows integration with Honeywell Experion PKS, Emerson DeltaV, Yokogawa CENTUM, and third-party SCADA platforms including Wonderware and iFIX. The safety bus itself remains isolated from the process network, maintaining IEC 61511 independence requirements between the SIS and BPCS layers.

Q3: How does the warranty terms confirmed during quotation apply to the FC-SDO-04110, and what does pre-shipment testing cover?
Every FC-SDO-04110 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Pre-shipment testing includes output channel switching verification across all four channels, diagnostic self-test confirmation (open-circuit and short-circuit detection), backplane communication integrity checks, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped. Warranty claims are processed within 5 business days, with replacement units dispatched via express courier to minimize impact on project schedules.

Q4: Can the FC-SDO-04110 be used in ATEX Zone 1 hazardous area installations?
The FC-SDO-04110 is rated for installation in Zone 2 hazardous areas when used with appropriate certified barriers and enclosures. For Zone 1 applications, the module must be installed in a purged and pressurized enclosure (Ex p) or in a safe area with field wiring routed through certified Zener barriers or galvanic isolators. ZYPLC can advise on appropriate barrier selection and enclosure specifications for specific Zone 1 installation requirements — contact our technical team at plc.sales@zyplc.com for project-specific guidance.
