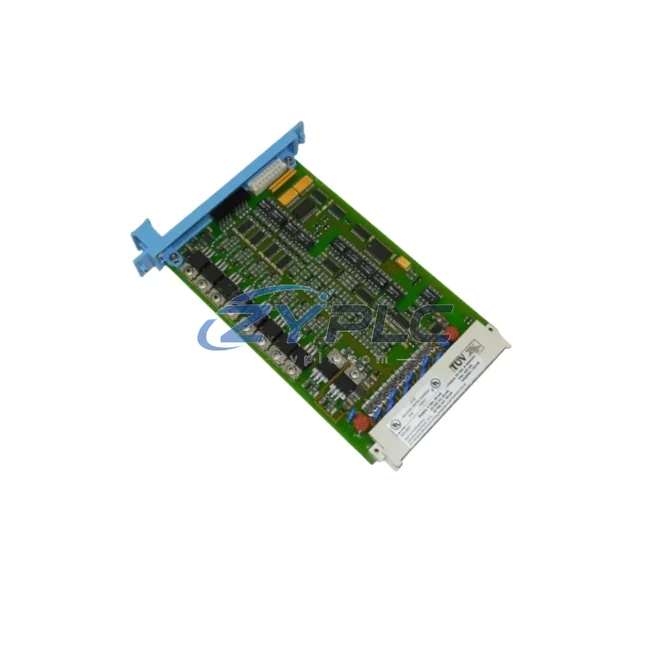

Honeywell FC-SDO-0424 Digital Output for Safety Manager FC

Honeywell FC-SDO-0424 Digital Output for Safety Manager FC

The Honeywell FC-SDO-0424 is a 24-channel digital output module engineered specifically for the Safety Manager FC series — Honeywell’s dedicated safety instrumented system (SIS) platform designed to meet IEC 61508 and IEC 61511 functional safety standards. Within a layered automation architecture, this module occupies the critical output layer, translating safety logic decisions from the FC-CPU into discrete actuator commands across field devices such as solenoid valves, motor starters, and emergency shutdown relays. Its role is not isolated; it is deeply embedded in the signal flow that connects the control layer to the execution layer, ensuring that every safety function is executed with the precision and speed demanded by process-critical environments.

In modern industrial control system design, the FC-SDO-0424 is deployed alongside complementary modules within the same FC-series rack chassis. A complete safety loop typically begins at the sensor level, where digital input modules such as the FC-SDI-0424 collect field signals and pass them to the FC-CPU safety controller for logic evaluation. The FC-SDO-0424 then receives the processed output commands and drives the final control elements. This tight integration within the FC rack backplane ensures deterministic signal propagation with minimal latency — a non-negotiable requirement in safety-critical applications such as emergency shutdown (ESD) systems, fire and gas (F&G) detection, and burner management systems (BMS).

The module’s architecture supports redundant output configurations, which is essential for high-availability safety systems operating in SIL 2 and SIL 3 environments. When paired with a redundant FC-CPU and a redundant power supply module such as the FC-PSU-0024, the FC-SDO-0424 participates in a fully fault-tolerant control loop. Should a primary output channel fail, the redundant path maintains actuator control without interrupting the safety function — a design principle that underpins the reliability of Honeywell’s Safety Manager platform across oil and gas, petrochemical, and power generation facilities.

From a network and communications perspective, the FC-SDO-0424 communicates over the FC-series internal backplane bus, which interfaces with the FC-CPU’s communication processors. The Safety Manager FC platform supports integration with higher-level DCS systems via standard industrial protocols including Modbus TCP, PROFIBUS DP, and OPC DA/UA through dedicated communication gateway modules. This allows the FC-SDO-0424’s output status to be monitored in real time from operator workstations and historian systems, supporting both operational visibility and regulatory compliance reporting.

Installation and commissioning of the FC-SDO-0424 follow Honeywell’s standard FC-series procedures. The module is hot-swappable within a powered FC rack, enabling maintenance without system shutdown — a significant advantage in continuous process industries where unplanned downtime carries substantial operational and safety risk. Field wiring connects via the module’s front-panel terminal block, and channel diagnostics are accessible through the Safety Manager engineering workstation software, which provides loop-level fault isolation and channel-by-channel status monitoring.

For long-term maintenance planning, the FC-SDO-0424 is supported by Honeywell’s global spare parts network. ZYPLC maintains availability subject to RFQ confirmation of this module with full functional testing prior to shipment, backed by a warranty terms confirmed during quotation. Each unit undergoes pre-shipment verification to confirm output channel integrity, backplane connector condition, and firmware compatibility with current FC-CPU revisions. This ensures that replacement modules integrate seamlessly into existing Safety Manager FC architectures without requiring additional configuration or calibration effort.

Product Specification Table

System Compatibility Notes

The FC-SDO-0424 achieves its full potential when deployed as part of a coordinated Safety Manager FC system architecture. A typical SIS panel built around this module includes the FC-CPU safety controller as the central logic solver, supported by a FC-PSU-0024 redundant power supply to ensure uninterrupted operation during grid disturbances. On the input side, the FC-SDI-0424 digital input module collects field signals from pressure switches, level sensors, and flame detectors, feeding the CPU with real-time process data. Analog process variables are handled by the FC-SAI-0420 analog input module, which interfaces with 4–20 mA transmitters across the process boundary.

For applications requiring analog output control — such as modulating control valves in partial stroke testing — the FC-SAO-0420 analog output module complements the FC-SDO-0424 within the same rack, providing a complete I/O solution within a single chassis. The FC-series rack backplane itself, available in 4-slot and 8-slot configurations, provides the physical and electrical backbone for all module interconnections, eliminating the need for external wiring between I/O modules and the CPU.

At the network layer, the FC-COMM communication module bridges the Safety Manager FC system to the plant DCS or SCADA network, enabling supervisory monitoring of all FC-SDO-0424 output states without compromising the safety network’s isolation. For human-machine interface requirements, Honeywell’s Experion PKS operator stations or third-party HMI panels connected via OPC UA provide operators with real-time output status visualization and alarm management. In redundant architectures, a secondary FC-CPU and mirrored I/O configuration ensure that the FC-SDO-0424’s output functions remain available even during a primary controller fault, supporting the continuous operation requirements of SIL 3 safety functions.

Industrial Application Notes

The FC-SDO-0424 is deployed across a wide range of process industries where functional safety and output reliability are paramount. In oil and gas production facilities, this module drives the solenoid valves and shutdown actuators that form the final elements of emergency shutdown (ESD) systems, responding to high-pressure or high-temperature exceedances detected by the FC-SDI-0424 input layer. In petrochemical and refinery applications, it controls the discrete outputs of fire and gas suppression systems, ensuring that deluge valves and foam injection systems activate within the required response time defined by the safety requirements specification (SRS).

In power generation plants — including thermal, combined-cycle, and nuclear auxiliary systems — the FC-SDO-0424 participates in turbine protection and boiler management systems, where output response time and channel diagnostics are subject to regulatory audit. Water and wastewater treatment facilities use this module to control pump motor starters and valve actuators within their SCADA-integrated safety systems, benefiting from the module’s hot-swap capability to maintain continuous operation during scheduled maintenance windows. In mining and metallurgical operations, the FC-SDO-0424 manages conveyor interlocks, crusher protection outputs, and ventilation control in underground environments where safety system availability directly impacts personnel safety.

For packaging and discrete manufacturing lines that incorporate safety-rated control systems, the FC-SDO-0424 provides the output layer for light curtain bypass control, robot cell safety gates, and emergency stop relay circuits, integrating seamlessly with the broader Safety Manager FC architecture to deliver a unified safety solution across mixed process and discrete control environments.

Product Compatibility FAQ

Q1: Is the FC-SDO-0424 compatible with all FC-series rack configurations, and can it be mixed with analog I/O modules in the same chassis?
Yes. The FC-SDO-0424 is fully compatible with all standard FC-series rack backplanes, including 4-slot and 8-slot configurations. It can be installed in any I/O slot alongside other FC-series modules — including the FC-SAI-0420 analog input and FC-SAO-0420 analog output — without slot restrictions. The FC-CPU automatically recognizes the module during system initialization and assigns it within the I/O map. Mixed I/O configurations are standard practice in Safety Manager FC architectures and are fully supported by Honeywell’s Safety Manager engineering software.

Q2: How does the FC-SDO-0424 support redundant output architectures, and what is required to implement a 1oo2 output voting configuration?
The FC-SDO-0424 supports redundant output configurations through the Safety Manager FC’s built-in redundancy management. To implement a 1oo2 (one-out-of-two) output voting architecture, two FC-SDO-0424 modules are configured in parallel, with each module driving an independent output channel connected to the same field actuator. The FC-CPU manages the voting logic and monitors both output paths for diagnostic faults. This configuration requires a redundant FC-CPU pair and a redundant FC-PSU-0024 power supply to achieve full system redundancy. Honeywell’s Safety Manager engineering workstation software provides the configuration tools and diagnostic visibility needed to commission and validate this architecture.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and how is module replacement handled for installed systems?
The warranty terms confirmed during quotation provided by ZYPLC covers functional defects in the FC-SDO-0424 module under normal operating conditions, including output channel failures, backplane connector faults, and firmware-related issues identified during operation. Each module is tested prior to shipment to verify channel integrity and compatibility with current FC-CPU firmware revisions. In the event of a warranty claim, ZYPLC provides a replacement module with equivalent firmware and configuration documentation to support seamless integration into the existing Safety Manager FC architecture. Because the FC-SDO-0424 supports hot-swap replacement, module exchange can be performed without system shutdown, minimizing the impact on safety system availability during the replacement process.
