Honeywell FC-SDO-0824 Safety Digital Output Module for FS Series Systems

Honeywell FC-SDO-0824 Industrial Network Interface: Bridging Safety I/O and Smart Factory Data Links

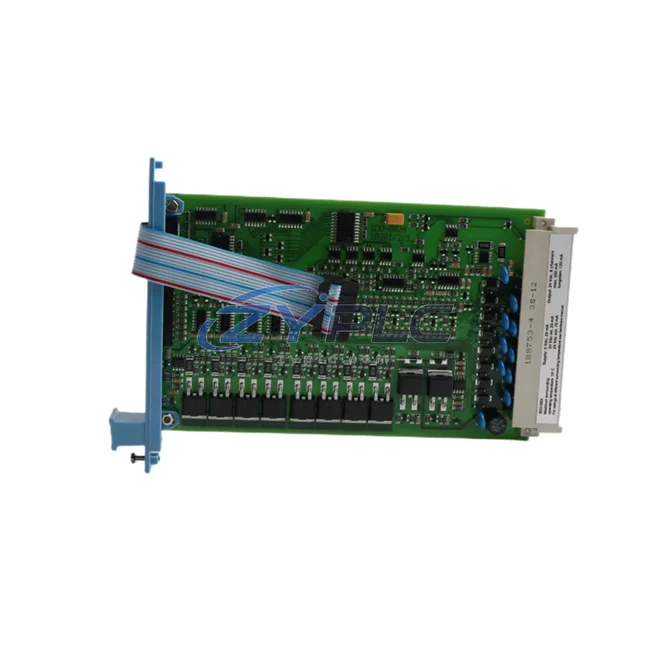

The Honeywell FC-SDO-0824 is an 8-channel 24VDC Safety Digital Output Module engineered for the Honeywell Safety Manager FS Series — a safety-rated control platform widely deployed in process industries, chemical plants, oil and gas facilities, and advanced manufacturing environments. Designed to meet SIL 2 and SIL 3 requirements under IEC 61508 and IEC 61511, the FC-SDO-0824 serves as a critical node in the industrial data chain, translating safety controller commands into precise field-level actuator signals while maintaining full network integrity across distributed control architectures.

In modern smart factory deployments, the FC-SDO-0824 does not operate in isolation. It functions as an active participant in a layered industrial communication network — receiving validated output commands from the Honeywell Safety Manager SC controller over the FS Series backplane bus, and driving field devices such as solenoid valves, motor starters, emergency shutdown actuators, and safety relays. Each output channel is individually monitored for open-circuit and short-circuit faults, with diagnostic data continuously fed back to the safety controller and surfaced through the Honeywell Safety Builder engineering workstation for real-time visibility.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the FC-SDO-0824’s role requires tracing the full industrial data flow from the field level to the enterprise layer. At the field level, process sensors — including pressure transmitters, temperature sensors, and gas detectors — feed analog and digital signals into companion input modules such as the Honeywell FC-SDI-1624 Safety Digital Input Module and the FC-SAI-1620 Safety Analog Input Module. These input modules reside in the same FS Series I/O chassis, sharing the backplane bus with the FC-SDO-0824 and delivering validated process data to the Honeywell Safety Manager SC controller.

The Safety Manager SC processes this data against configured safety logic and, upon detecting an out-of-range condition or safety demand, issues output commands to the FC-SDO-0824. The module then drives the appropriate field actuators — closing emergency shutdown valves, tripping motor starters, or activating fire suppression systems — within the response time required by the safety function. Throughout this sequence, the FC-SDO-0824 maintains continuous channel diagnostics, reporting fault states back through the backplane to the safety controller and onward to the Honeywell Experion PKS distributed control system via the Safety Data Highway (SDH) interface.

At the supervisory level, Experion PKS aggregates safety and process data, presenting operators with a unified SCADA view across both the safety instrumented system (SIS) and the basic process control system (BPCS). Alarm management, event logging, and safety function status are all visible from the Experion operator station, enabling rapid response to process deviations. For facilities requiring remote monitoring, an industrial edge gateway — such as those compatible with OPC UA — can bridge the Experion data layer to cloud-based analytics platforms or enterprise MES systems, extending the FC-SDO-0824’s data contribution beyond the plant floor.

In multi-zone safety architectures, the FC-SDO-0824 may be deployed alongside the Honeywell FC-SDOE-0824 Enhanced Safety Digital Output Module for applications requiring higher output current capacity, or paired with the FC-PSDI-24 Power Supply and Distribution Module to ensure stable 24VDC supply across the I/O chassis. Remote I/O expansion using Honeywell’s FS Series remote chassis allows the FC-SDO-0824 to serve field devices located hundreds of meters from the main control cabinet, with fiber-optic or redundant copper links maintaining communication integrity across the extended network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial safety system integration is protocol fragmentation — the coexistence of legacy serial protocols, proprietary backplane buses, and modern Ethernet-based standards within a single facility. The FC-SDO-0824, as part of the Honeywell FS Series ecosystem, addresses this by providing a standardized, validated output interface that can be integrated into broader network architectures through protocol gateway solutions.

Facilities running mixed-vendor environments — where Siemens SIMATIC S7 PLCs, Rockwell Automation ControlLogix controllers, or Schneider Electric Modicon systems operate alongside Honeywell safety controllers — can leverage OPC UA gateways to normalize data from the FC-SDO-0824’s host Safety Manager SC into a vendor-neutral format accessible to any SCADA or MES platform. This eliminates data silos between the safety layer and the process control layer, enabling production transparency across the entire plant.

Remote diagnostics represent another critical capability enabled by the FC-SDO-0824’s channel-level fault reporting. Rather than requiring on-site technicians to physically inspect output modules during a safety demand, maintenance teams can access real-time channel status through the Safety Builder workstation or Experion PKS, identifying open-circuit faults, short-circuit conditions, or output discrepancies before they escalate into unplanned shutdowns. This capability directly supports predictive maintenance strategies and reduces mean time to repair (MTTR) across safety-critical production lines.

System scalability is equally well-served by the FS Series modular architecture. As production capacity expands or new process units are commissioned, additional FC-SDO-0824 modules can be added to existing I/O chassis or new remote chassis without requiring changes to the safety controller configuration — provided the safety application logic is updated through the Safety Builder tool. This plug-and-play expandability, combined with the module’s SIL 3 rating, makes the FC-SDO-0824 a long-term investment for facilities planning phased automation upgrades.

Every FC-SDO-0824 unit supplied by ZYPLC undergoes pre-shipment functional verification, including output channel continuity checks and diagnostic response testing, ensuring that modules arrive ready for installation. Stock availability is maintained for rapid dispatch, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Industrial Connectivity FAQ

Q1: What communication protocols does the FC-SDO-0824 support for SCADA integration?
The FC-SDO-0824 communicates natively over the Honeywell FS Series backplane bus to the Safety Manager SC controller. SCADA integration is achieved through the Safety Manager’s Safety Data Highway (SDH) interface to Experion PKS, which supports OPC DA and OPC UA for third-party SCADA connectivity. Direct Modbus or PROFIBUS integration requires an appropriate protocol gateway at the controller level.

Q2: Is the FC-SDO-0824 compatible with third-party PLCs or DCS platforms?
The FC-SDO-0824 is designed exclusively for the Honeywell Safety Manager FS Series I/O chassis and is not directly compatible with third-party PLC backplanes. However, the safety controller’s output data can be shared with third-party systems via OPC UA gateways or hardwired interlock signals, enabling cross-platform safety integration without compromising SIL certification.

Q3: How does the FC-SDO-0824 ensure network stability and minimize communication latency in safety applications?
The FS Series backplane bus is a deterministic, high-speed communication medium optimized for safety I/O. The FC-SDO-0824 delivers output updates within the safety controller’s configured task cycle time — typically 100ms to 500ms for SIL 2/3 applications — ensuring that safety functions respond to process demands within the required safety instrumented function (SIF) response time. Redundant power supply configurations further eliminate single points of failure in the communication path.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the FC-SDO-0824?
All FC-SDO-0824 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing, including output channel verification and diagnostic response checks, to confirm operational integrity before dispatch. Expedited shipping options are available for urgent project requirements.
