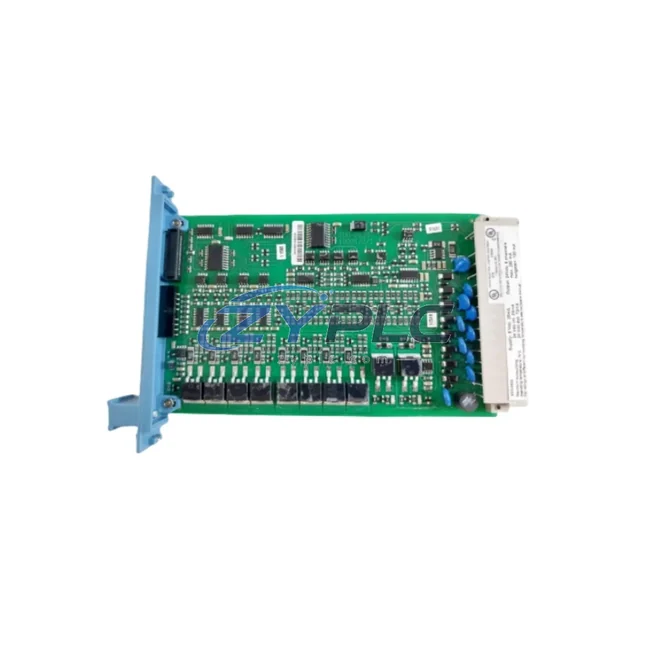

Honeywell FC-SDO-0824 V1.2 Safe Digital Output for Safety Manager

Honeywell FC-SDO-0824 V1.2 Safe Digital Output for Safety Manager

The Honeywell FC-SDO-0824 V1.2 is a SIL 2-rated safe digital output module engineered for seamless integration within the Honeywell Safety Manager (SM) safety instrumented system (SIS) platform. Designed to operate as a critical node in the output layer of a layered safety architecture, this module delivers eight channels of 24 VDC fail-safe digital output, enabling reliable actuation of solenoid valves, motor starters, shutdown relays, and other field-side safety actuators. Its role extends far beyond a standalone component — the FC-SDO-0824 V1.2 is a system-level building block that defines how the Safety Manager platform communicates final control elements in high-integrity process environments.

Within a complete Safety Manager control architecture, the FC-SDO-0824 V1.2 occupies the output execution layer, receiving validated commands from the SM CPU module — typically the FC-CPU-0014 or FC-CPU-0024 — and translating logic-level safety decisions into physical field actions. This signal flow is tightly governed by the SM’s internal diagnostics engine, which continuously monitors output channel integrity, load current, and short-circuit conditions. The module’s hardware-enforced de-energize-to-trip (DTT) design ensures that any detected fault results in a safe-state output, consistent with IEC 61511 functional safety requirements for SIL 2 loops.

System architects integrating the FC-SDO-0824 V1.2 into a broader control hierarchy will find it fully compatible with the SM’s modular backplane infrastructure. The module slots directly into the FC-PSIO-0008 or FC-PSIO-0016 I/O carrier assemblies, sharing a common backplane bus with safe digital input modules such as the FC-SDI-1624, analog input modules like the FC-SAI-1620, and analog output modules including the FC-SAO-0822. This co-location on a shared carrier enables compact panel designs while maintaining strict channel isolation and diagnostic coverage across all I/O types.

Power architecture is equally important in a safety-rated system. The FC-SDO-0824 V1.2 draws its operating power from the SM’s redundant power supply modules — such as the FC-PSU-0024 — which provide dual-feed 24 VDC rails with automatic switchover. This power redundancy ensures that a single power supply failure does not interrupt output channel availability, a critical requirement in continuous process industries such as oil and gas, petrochemical refining, and offshore platform control. Engineers specifying the FC-SDO-0824 V1.2 should account for the module’s per-channel current draw when sizing the power supply configuration for the full I/O chassis.

From a network and communications perspective, the FC-SDO-0824 V1.2 participates in the Safety Manager’s internal high-speed backplane communication protocol, which synchronizes I/O data with the CPU’s safety logic execution cycle. For systems requiring integration with Honeywell’s Experion PKS distributed control system, the Safety Manager communicates over the FTE (Fault Tolerant Ethernet) network, enabling supervisory visibility of output channel states, diagnostic alarms, and safety function status from the Experion operator station. This system integration capability allows operations teams to monitor SIS output health alongside process control data in a unified HMI environment — a significant advantage for alarm management and safety lifecycle documentation.

Redundancy design is a defining characteristic of Safety Manager deployments, and the FC-SDO-0824 V1.2 supports voted output architectures. In 1oo2 or 2oo3 output voting configurations, multiple FC-SDO-0824 modules can be configured to drive the same field actuator through independent output channels, with the SM CPU managing the voting logic. This architecture eliminates single points of failure in the output path and is commonly specified in emergency shutdown (ESD) systems, fire and gas (F&G) detection panels, and high-integrity pressure protection systems (HIPPS) where output reliability is non-negotiable.

Installation and commissioning of the FC-SDO-0824 V1.2 follows Honeywell’s SM engineering guidelines, with module insertion into a powered carrier supported by the SM’s hot-swap capability — minimizing planned downtime during maintenance windows. Field wiring connects to the module’s terminal block interface, with each output channel individually fused and diagnostically supervised. During commissioning, the SM’s engineering workstation software provides channel-by-channel force and bypass functions, enabling loop testing without requiring physical jumpers or temporary wiring changes. This capability significantly reduces commissioning time in large SIS installations with hundreds of output channels.

Long-term maintenance efficiency is a key value proposition of the FC-SDO-0824 V1.2 within an established Safety Manager infrastructure. Because the module shares a common form factor and firmware ecosystem with other SM I/O modules, spare parts management is simplified — a single module type covers multiple output channel requirements across different safety loops. Facilities maintaining a standardized SM platform benefit from reduced spare inventory costs and faster mean time to repair (MTTR) when field replacements are required. All FC-SDO-0824 V1.2 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring post-installation confidence and supply chain continuity for long-lifecycle safety system projects.

Product Specification Table

System Compatibility Notes

The FC-SDO-0824 V1.2 achieves its full architectural value when deployed alongside the complete Safety Manager module ecosystem. At the processing core, the FC-CPU-0014 or FC-CPU-0024 safety CPU executes the certified safety logic and issues output commands to the FC-SDO-0824 over the SM backplane at each logic scan cycle. Redundant CPU configurations — using a paired CPU module in hot-standby — ensure that a CPU fault does not interrupt output channel availability, with bumpless switchover maintaining field actuator states during the transition.

On the input side, the FC-SDI-1624 safe digital input module monitors field device feedback signals — valve position switches, motor run contacts, and emergency stop pushbuttons — providing the CPU with the process state data needed to determine when the FC-SDO-0824 should assert or de-assert its output channels. Analog process variables are handled by the FC-SAI-1620 safe analog input module, which feeds pressure, temperature, and flow transmitter signals into the safety logic for threshold comparison and trip initiation. Where analog output control is required — such as for modulating control valves in a HIPPS application — the FC-SAO-0822 safe analog output module works in parallel with the FC-SDO-0824 to provide both discrete shutdown and continuous control capability from the same SM chassis.

Power integrity across the I/O chassis is maintained by the FC-PSU-0024 redundant power supply module, which provides dual-feed 24 VDC to all installed I/O modules including the FC-SDO-0824. The carrier assembly — FC-PSIO-0016 — provides the physical backplane interconnect and terminal block wiring interface, supporting up to 16 I/O module slots in a single chassis. For large SIS installations requiring more than one chassis, the SM architecture supports multi-chassis expansion through the SM’s inter-chassis communication links, with the FC-SDO-0824 modules in remote chassis operating under the same CPU’s safety logic domain.

At the human-machine interface layer, Honeywell’s Experion PKS operator station provides real-time visibility of FC-SDO-0824 output channel states, diagnostic alarms, and safety function bypass status. The FTE network connecting the SM to Experion carries both safety status data and maintenance diagnostic information, enabling operations and maintenance teams to monitor SIS output health from the control room without requiring physical access to the safety panel. This integrated HMI capability supports the safety lifecycle documentation requirements of IEC 61511 and simplifies the management of proof test records and bypass logs.

Industrial Application Notes

The FC-SDO-0824 V1.2 is deployed across a wide range of process industries where functional safety and system architecture consistency are primary engineering requirements. In oil and gas production and pipeline applications, the module drives emergency shutdown valves (ESDVs) and blowdown valves in wellhead control panels and pipeline isolation systems, where SIL 2 output integrity is mandated by regulatory frameworks and operator safety cases. The module’s DTT output design ensures that a loss of power or a detected output fault results in valve closure — the safe state — without requiring CPU intervention.

In petrochemical and refinery environments, the FC-SDO-0824 V1.2 is commonly specified in HIPPS applications, where it actuates high-integrity isolation valves to protect downstream equipment from overpressure events. The module’s per-channel diagnostic supervision and SIL 2 certification satisfy the architectural constraints of IEC 61511 for HIPPS design, and its compatibility with voted output configurations supports the 1oo2 or 2oo3 actuator voting architectures typically required in these applications.

For power generation and utilities — including thermal power plants, combined-cycle facilities, and large industrial utilities — the FC-SDO-0824 V1.2 provides safe output control for turbine trip systems, boiler protection panels, and electrical switchgear interlock circuits. Its ability to operate within a redundant SM CPU architecture ensures that the safety output layer remains available even during planned CPU maintenance, supporting the high-availability requirements of continuous power generation operations.

In water and wastewater treatment facilities, the module controls pump shutdown relays, chemical dosing interlock outputs, and overflow prevention actuators within SIS panels designed to protect public health infrastructure. The FC-SDO-0824’s compact form factor and DIN rail-compatible carrier mounting make it well-suited for the space-constrained control panels typical of water utility installations, while its wide operating temperature range accommodates outdoor and semi-outdoor panel environments.

Across mining, metals, and minerals processing applications — including conveyor safety systems, crusher interlock panels, and flotation circuit protection — the FC-SDO-0824 V1.2 delivers the output channel reliability required for machinery safety functions rated to ISO 13849 and IEC 62061, complementing the Safety Manager’s SIL 2 process safety capability with machine safety output control in integrated plant-wide safety architectures.

Product Compatibility FAQ

Q1: Is the FC-SDO-0824 V1.2 compatible with both the FC-PSIO-0008 and FC-PSIO-0016 carrier assemblies, and can it be mixed with other SM I/O module types in the same chassis?
Yes. The FC-SDO-0824 V1.2 is fully compatible with both the 8-slot FC-PSIO-0008 and 16-slot FC-PSIO-0016 carrier assemblies and can be freely mixed with other Safety Manager I/O modules — including FC-SDI-1624, FC-SAI-1620, and FC-SAO-0822 — within the same chassis. The SM backplane automatically identifies each module type during system initialization, and the SM engineering workstation software assigns I/O addresses based on physical slot position. No hardware jumpers or DIP switch settings are required for module type identification.

Q2: Can the FC-SDO-0824 V1.2 be replaced online without shutting down the Safety Manager system, and what is the recommended procedure for hot-swap replacement?
The FC-SDO-0824 V1.2 supports online hot-swap replacement within a powered SM chassis, provided the associated safety functions are placed in bypass mode through the SM engineering workstation prior to module removal. The recommended procedure is: (1) place all safety functions associated with the module’s output channels into bypass via the SM workstation; (2) remove the module from the carrier slot; (3) insert the replacement FC-SDO-0824 V1.2 — the SM will automatically detect the new module and restore its configuration from the CPU’s resident database; (4) verify channel diagnostics in the SM workstation; (5) remove bypass. This procedure minimizes planned downtime and is fully documented in Honeywell’s SM maintenance manual.

Q3: What does the warranty terms confirmed during quotation cover for the FC-SDO-0824 V1.2, and what support is available for long-term spare parts supply?
All FC-SDO-0824 V1.2 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers module replacement or repair at no additional cost within the warranty period. For long-term spare parts supply, ZYPLC maintains dedicated inventory of Safety Manager I/O modules to support ongoing maintenance requirements for installed SM systems. Customers with multi-year maintenance contracts or large installed bases are encouraged to contact ZYPLC to discuss framework supply agreements that ensure consistent module availability throughout the safety system’s operational lifecycle.
