Honeywell FC-SDO-0824 V1.3 Digital Output Module

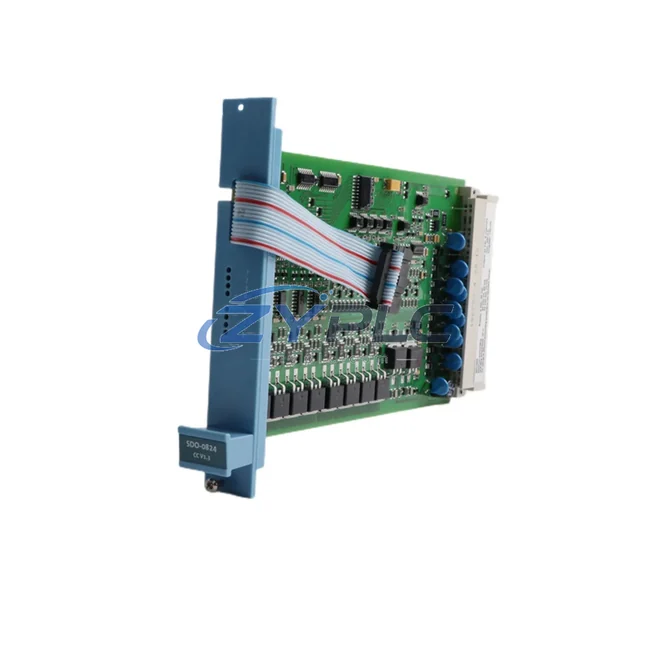

Honeywell FC-SDO-0824 V1.3 Digital Output Module for FSC Automation

The Honeywell FC-SDO-0824 V1.3 is an 8-channel, 24 VDC digital output module engineered for the Honeywell FSC Safety Manager platform. In modern industrial facilities where energy accountability is no longer optional, this module plays a pivotal role in translating control logic into precise, low-latency switching actions — eliminating the parasitic energy losses that accumulate when output channels remain energized beyond their required duty cycle. By integrating the FC-SDO-0824 V1.3 into a well-structured safety and control architecture, plant engineers can achieve measurable reductions in standby power consumption, tighter motor start/stop sequencing, and improved overall equipment effectiveness (OEE).

Product Specification Table

System Compatibility and Application

The FC-SDO-0824 V1.3 does not operate in isolation — its energy efficiency contribution is amplified when it functions as part of a coordinated automation stack. Within the FSC Safety Manager chassis, it works alongside the Honeywell FC-SDI-1624 V1.3 digital input module to form a closed-loop safety I/O layer: inputs from field sensors are processed by the FSC CPU, and the FC-SDO-0824 V1.3 executes the resulting output commands with minimal propagation delay, ensuring that actuators and motor contactors are energized only when process conditions demand it.

For drive-level energy control, the FC-SDO-0824 V1.3 integrates naturally with variable frequency drives such as the Honeywell SmartVFD HVAC series or third-party drives communicating over Modbus RTU or PROFIBUS DP. The digital output signals from this module can command drive enable/disable, speed preset selection, and direction control — allowing the FSC system to dynamically adjust motor speed in response to real-time load demand rather than running motors at fixed full speed. This alone can help restore stable operation when a compatible replacement is required.

At the controller level, the FSC Safety Manager CPU modules — including the Honeywell FC-CPU-0714 V1.3 — execute the safety logic that governs when the FC-SDO-0824 V1.3 channels are activated. Pairing this with the Honeywell FC-PSU-0824 V1.3 power supply module ensures that the backplane receives clean, regulated 24 VDC, preventing voltage fluctuations that can cause spurious output activations and unnecessary energy spikes. For power quality monitoring at the panel level, engineers often deploy the Honeywell Enraf power monitoring relay or compatible DIN-rail energy meters to log per-circuit consumption and identify channels with abnormal load profiles.

In larger distributed control architectures, the FC-SDO-0824 V1.3 communicates upstream to Honeywell Experion PKS or Experion HS DCS platforms via the FSC gateway interface. This integration enables plant-wide energy dashboards to display real-time output channel states, cumulative activation counts, and estimated energy throughput — data that feeds predictive maintenance algorithms and helps maintenance teams schedule interventions before a failing actuator begins drawing abnormal load. HMI visualization through Honeywell Station operator interfaces or compatible SCADA systems provides operators with live feedback on output status, reducing the likelihood of leaving high-power loads energized during idle production windows.

For facilities implementing IEC 62443-compliant cybersecurity alongside maintenance planning, the FSC system’s deterministic scan cycle — managed by the FSC CPU — ensures that the FC-SDO-0824 V1.3 output states are updated at fixed, predictable intervals. This determinism is critical for motor soft-start sequencing: by staggering the activation of multiple output channels across consecutive scan cycles, inrush current peaks are distributed over time, reducing peak demand charges on the facility’s electricity bill.

Maintenance and Replacement Notes

Consider a petrochemical plant running a multi-pump cooling water system. Historically, all pumps ran continuously at full speed regardless of actual heat load — a common source of unplanned downtime. After integrating the Honeywell FC-SDO-0824 V1.3 into the FSC Safety Manager architecture, the control logic was restructured so that pump motor contactors are enabled and disabled based on real-time temperature differential signals processed by the FSC CPU. The result: two of four pumps are now shut down during low-load periods, reducing cooling system operating load by approximately 30% without compromising process safety or SIL integrity.

In a discrete manufacturing environment, the FC-SDO-0824 V1.3 manages the enable signals for servo drive systems on an assembly line. By coordinating output activation with the line’s production rhythm — using the FSC’s deterministic scan cycle to align motor enable commands with upstream PLC handshake signals — idle-time motor energization is eliminated. Servo amplifiers that previously remained enabled during tool change and part loading cycles are now de-energized via the FC-SDO-0824 V1.3 output channels, cutting servo system standby power by up to 15% per shift.

Predictive maintenance benefits are equally significant. Because the FC-SDO-0824 V1.3 logs output activation events through the FSC diagnostic interface, maintenance engineers can track actuator cycle counts and correlate them with operating load trends. An actuator drawing progressively more current per cycle — visible as an increasing load on the output channel — signals mechanical wear before a failure occurs. This data-driven approach reduces unplanned downtime, lowers emergency repair costs, and keeps production lines running at optimal throughput.

All units are dispatched only after passing a comprehensive pre-shipment functional test that verifies channel switching accuracy, output voltage levels, and load response under simulated field conditions. Combined with a warranty terms confirmed during quotation, this ensures that every FC-SDO-0824 V1.3 delivered to your facility is ready for immediate integration into your maintenance planning strategy.

Product Sourcing FAQ

Q1: How does the FC-SDO-0824 V1.3 contribute to measurable operational stability on the production floor?
By enabling demand-driven output activation within the FSC Safety Manager control loop, the module ensures that actuators, motor contactors, and drive enable signals are energized only when process logic requires it. This eliminates continuous energization of idle loads — one of the most common sources of avoidable unplanned downtime in process and discrete manufacturing environments.

Q2: Is the FC-SDO-0824 V1.3 compatible with my existing FSC Safety Manager chassis and CPU modules?
Yes. The FC-SDO-0824 V1.3 is designed for direct installation into the Honeywell FSC Safety Manager backplane and is compatible with FSC CPU modules including the FC-CPU-0714 series. It communicates natively over the FSC internal bus without requiring additional interface hardware, making it a drop-in replacement or expansion module for existing FSC installations.

Q3: What is the recommended replacement or upgrade path if I am currently using an older FC-SDO module revision?
The V1.3 revision incorporates updated firmware and improved output driver circuitry compared to earlier revisions. For most FSC configurations, it is a direct functional replacement. We recommend verifying your FSC system software version compatibility before installation and consulting the FSC hardware manual for slot assignment requirements. Our technical team can assist with compatibility verification prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every FC-SDO-0824 V1.3 unit undergoes a full functional test before dispatch, including channel switching verification, output voltage measurement under load, and diagnostic communication checks. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Units are shipped with test documentation upon request. For warranty claims or technical support, contact our team directly.
