Honeywell FC-SDO-0824 V1.6 Digital Output Module

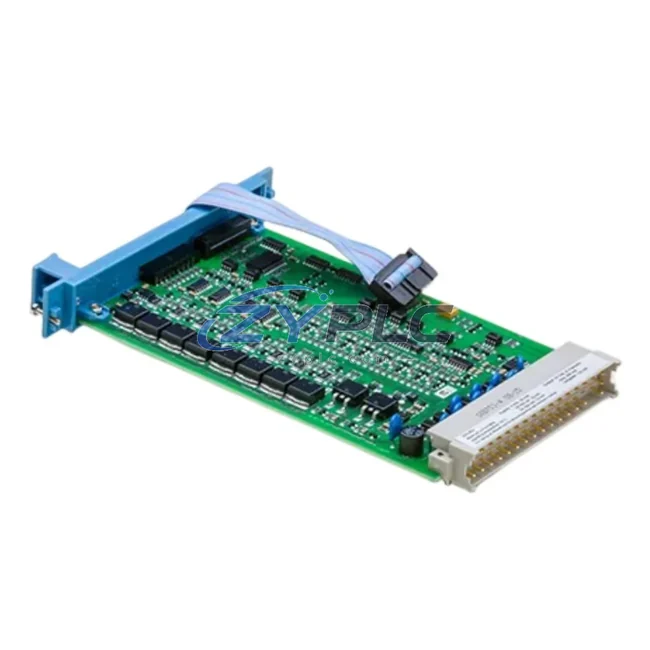

Honeywell FC-SDO-0824 V1.6 Digital Output Module for FSC Safety Manager

The Honeywell FC-SDO-0824 V1.6 is a high-efficiency digital output module engineered for the Honeywell FSC Safety Manager platform — one of the most widely deployed safety-rated control systems in process automation, oil & gas, and chemical manufacturing. Designed to minimize unnecessary switching losses and reduce standby power draw across output channels, the FC-SDO-0824 plays a direct role in lowering the energy footprint of safety-critical control loops without compromising response time or output reliability.

In modern industrial facilities where energy cost accountability extends to every control cabinet, the FC-SDO-0824 delivers measurable value. Its 8-channel, 24 VDC digital output architecture supports precise load switching with low internal dissipation, enabling plant engineers to maintain tight control over actuator activation cycles, solenoid valve timing, and relay-driven equipment — all of which directly affect production line energy consumption and equipment wear rates.

Product Specification Table

System Compatibility and Application

The FC-SDO-0824 does not operate in isolation — its energy efficiency contribution is amplified when integrated within a well-structured FSC-based automation architecture. In a typical FSC Safety Manager configuration, the FC-SDO-0824 works alongside the FC-SDI-1602 digital input module, which feeds real-time field status back to the controller, enabling the system to make smarter output decisions and avoid unnecessary actuator energization. The FC-TSDI-1600 terminal board provides the physical interface layer, ensuring clean signal routing with minimal resistive loss.

On the controller side, the FC-CPU-0714 central processing unit governs the logic execution cycle. When paired with the FC-SDO-0824, the CPU can implement output suppression strategies — holding outputs in de-energized states during safe process windows — which directly reduces solenoid and relay power draw across extended production runs. The FC-PDB-0100 power distribution board ensures stable, regulated 24 VDC supply to all output channels, preventing voltage sag that would otherwise cause inefficient partial-switching behavior.

For facilities running hybrid safety and process control architectures, the FC-SDO-0824 integrates with Honeywell’s Experion PKS distributed control system via the FSC gateway interface. This allows condition monitoring data from the FC-AI-0801 analog input module — capturing current draw from field devices — to be correlated with output activation logs, giving energy managers a complete picture of per-actuator consumption. The FC-AO-0402 analog output module complements this by enabling variable-speed drive commands to be issued from the same FSC rack, supporting coordinated motor speed reduction during low-demand periods.

Communication-wise, the FSC platform supports Modbus RTU and PROFIBUS DP protocols, allowing the FC-SDO-0824’s output state data to be transmitted to plant-level SCADA and maintenance planning systems in real time. This integration enables demand-response strategies where output channels are selectively disabled during peak tariff windows, reducing energy costs without interrupting safety logic execution.

Maintenance and Replacement Notes

In refinery and chemical plant environments, digital output modules like the FC-SDO-0824 are responsible for controlling emergency shutdown valves, blowdown systems, and interlock-driven actuators. Inefficient output modules that maintain high leakage current or exhibit slow de-energization can cause actuators to remain partially energized — a condition that wastes energy and accelerates valve seat wear, increasing maintenance frequency and unplanned downtime costs.

The FC-SDO-0824’s solid-state output design eliminates mechanical contact bounce and reduces the inrush current spikes associated with relay-based output modules. In a production line with 40–60 active output points, replacing legacy relay output cards with the FC-SDO-0824 can reduce output-stage power consumption by a meaningful margin while simultaneously extending the service life of connected field devices.

From a production rhythm perspective, the module’s fast output response time supports tighter interlock sequencing — allowing process steps to transition more quickly between states without extended hold periods. This directly improves line throughput and reduces the energy consumed during transition states, where equipment is running but not producing output.

Predictive maintenance integration is another key maintenance planning lever. By monitoring output channel load current via the FC-AI-0801 analog input module and correlating anomalies with the FC-SDO-0824’s output activation log, maintenance teams can identify failing actuators before they draw excessive current or cause nuisance trips — avoiding the unplanned downtime and production loss associated with unplanned shutdowns.

Every FC-SDO-0824 unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional output testing across all 8 channels prior to shipment, and backed by a warranty terms confirmed during quotation. Fast dispatch from RFQ-confirmed sourcing ensures minimal lead time for maintenance replacements and system expansions.

Product Sourcing FAQ

Q1: How does the FC-SDO-0824 contribute to operational stability in an FSC Safety Manager system?
The FC-SDO-0824 uses a low-dissipation solid-state output design that minimizes switching losses and leakage current across all 8 output channels. When combined with intelligent output scheduling at the FC-CPU-0714 controller level, it enables actuators to be de-energized during safe process windows, directly reducing standby power consumption across the control system.

Q2: Is the FC-SDO-0824 V1.6 compatible with all FSC Safety Manager rack configurations?
Yes. The FC-SDO-0824 V1.6 is designed for direct installation in standard FSC Safety Manager I/O racks and is compatible with the FC-TSDI-1600 terminal board and FC-PDB-0100 power distribution board. It supports both simplex and redundant FSC configurations. Always verify firmware compatibility with your FC-CPU-0714 version before installation.

Q3: What is the recommended replacement procedure for an existing digital output module?
Before replacement, confirm the output channel assignments in your FSC configuration tool and document the current wiring at the terminal board. Power down the affected I/O rack segment, remove the existing module, insert the FC-SDO-0824, and restore power. Perform a channel-by-channel output test using the FSC diagnostic interface to verify correct field device response before returning the system to automatic mode.

Q4: What does the warranty terms confirmed during quotation cover, and how is it supported?
