Honeywell FC-TDOL-0724 Analog Input Module | TotalPlant TPS

Honeywell FC-TDOL-0724 Industrial Data Link: Smart Factory Analog Signal Gateway for TotalPlant TPS Systems

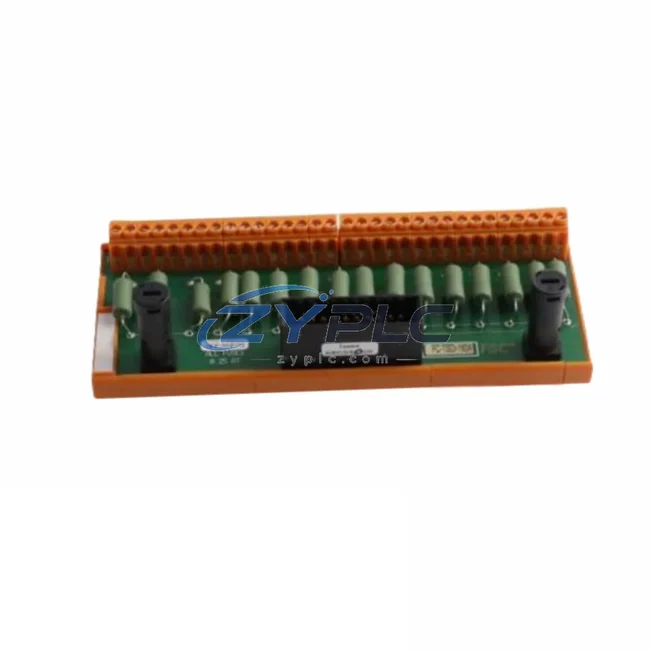

The Honeywell FC-TDOL-0724 (also referenced as FC-TDOL-0724P) is a high-performance Analog Input Module engineered for the TotalPlant Solution (TPS) Distributed Control System platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level analog signals — from transmitters, sensors, and actuators — into the structured digital data environment of the TPS DCS network. In smart factory deployments where real-time process visibility, protocol consistency, and network stability are non-negotiable, the FC-TDOL-0724 delivers the signal fidelity and communication reliability that modern industrial automation demands.

From signal acquisition at the field device layer through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, the FC-TDOL-0724 occupies a foundational role in the plant-wide data flow architecture. Its compatibility with the Honeywell TPS ecosystem ensures seamless integration with upstream SCADA platforms, HMI workstations, and historian servers, while its robust analog input handling supports a wide range of process variables including temperature, pressure, flow, and level.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory environment, the FC-TDOL-0724 sits at the intersection of field instrumentation and the plant control network. Analog signals sourced from Honeywell STT850 Smart Temperature Transmitters and pressure sensors are conditioned and digitized by the FC-TDOL-0724, then passed via the TPS backplane to the Honeywell HPM (High-Performance Process Manager) controller for real-time closed-loop control execution.

Within the TPS cabinet architecture, the FC-TDOL-0724 works in concert with Honeywell FC-TSDO-0824 Digital Output Modules and FC-TSAI-1620 Analog Input Modules to form a complete I/O subsystem. Data aggregated at the HPM controller level is then forwarded across the Honeywell LCN (Local Control Network) — a high-speed, deterministic plant network — to the Honeywell Universal Station (US) or GUS (Global User Station) HMI workstations, where operators monitor process trends, configure alarm thresholds, and execute supervisory commands.

For plants running hybrid architectures, the FC-TDOL-0724’s data can be bridged through a Honeywell TPS-to-OPC Gateway or a third-party OPC DA/UA Server to feed upstream Honeywell Experion PKS SCADA platforms or enterprise MES/ERP systems. Remote I/O expansion using Honeywell RHMUX Remote Multiplexer units further extends the reach of analog signal collection to distributed field locations without additional cabling infrastructure.

In drive and motor control applications, analog output signals derived from FC-TDOL-0724 input data are routed to variable frequency drives (VFDs) and servo controllers to regulate pump speeds, compressor loads, and conveyor rates — completing the feedback loop from sensor to actuator across the plant data network. Edge gateway devices can also subscribe to this data stream for local analytics, predictive maintenance triggers, and cloud-based remote diagnostics.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial facilities is data isolation — where field devices, controllers, and supervisory systems operate in disconnected silos due to protocol fragmentation, aging infrastructure, or proprietary communication barriers. The Honeywell FC-TDOL-0724 directly addresses this challenge within TPS-based environments.

By providing standardized analog signal acquisition that feeds directly into the TPS DCS data highway, the FC-TDOL-0724 eliminates the need for external signal converters or protocol translators at the field level. Process data that was previously trapped in standalone transmitters or local indicators is now continuously streamed into the plant-wide data fabric, enabling production line transparency, real-time KPI dashboards, and cross-system alarm correlation.

For facilities undergoing digital transformation, the FC-TDOL-0724 supports phased modernization strategies — allowing legacy TPS systems to coexist with newer Experion PKS or third-party SCADA platforms through OPC connectivity layers. Remote monitoring capabilities mean that maintenance engineers can diagnose signal anomalies, calibration drift, or module faults from a central control room or even off-site, dramatically reducing mean time to repair (MTTR) and unplanned downtime.

System scalability is another key advantage: additional FC-TDOL-0724 modules can be added to existing TPS I/O cabinets to expand analog input capacity as production lines grow or process complexity increases — without requiring a full system redesign. Every unit supplied by ZYPLC undergoes pre-shipment functional testing and ships with a warranty terms confirmed during quotation, ensuring confidence in both product quality and supply chain reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell FC-TDOL-0724 support?
The FC-TDOL-0724 is designed for the Honeywell TotalPlant Solution (TPS) DCS platform and communicates via the proprietary TPS backplane and LCN (Local Control Network) protocol. It supports HART signal pass-through for compatible field instruments, enabling device diagnostics and configuration data to be surfaced alongside process values within the TPS environment.

Q2: Can the FC-TDOL-0724 integrate with modern SCADA or Experion PKS systems?
Yes. While the FC-TDOL-0724 is native to the TPS DCS architecture, its data can be made available to Honeywell Experion PKS or third-party SCADA platforms through OPC DA/UA gateway solutions. This allows plants to leverage existing TPS I/O infrastructure while migrating supervisory layers to modern platforms — protecting capital investment during system upgrades.

Q3: How is network stability and signal integrity ensured in demanding plant environments?
The FC-TDOL-0724 is built to industrial-grade specifications, with robust EMI shielding and high-resolution A/D conversion to maintain signal accuracy in electrically noisy environments. The TPS LCN network architecture provides deterministic, high-speed data transmission with built-in redundancy options, ensuring that analog process data reaches the control layer reliably even under heavy network load or adverse plant conditions.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the FC-TDOL-0724?
Every Honeywell FC-TDOL-0724 unit supplied by ZYPLC is subject to pre-shipment functional verification testing to confirm module operability before dispatch. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability confirmed by RFQ inventory ensures fast order fulfillment, and our technical team is available to support installation, configuration, and compatibility queries.
