Honeywell FC-TSDI-1624C Digital Input Module

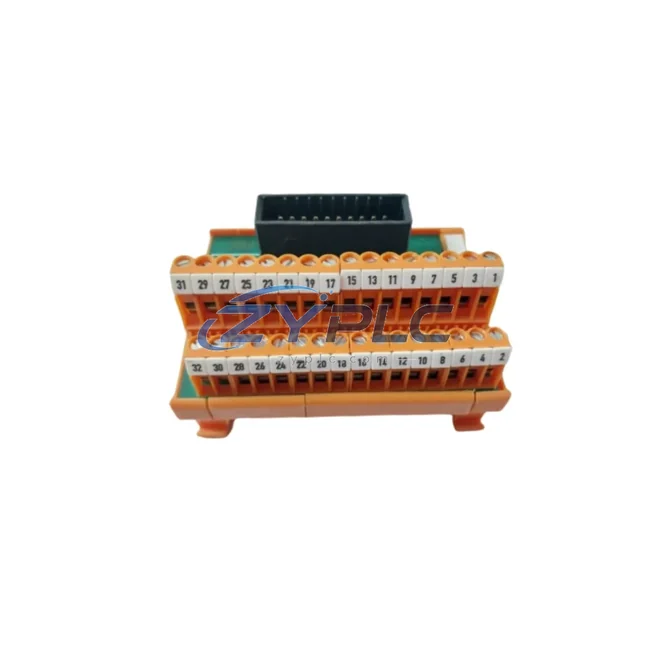

Honeywell FC-TSDI-1624C Digital Input Module for TDC 3000 Automation

In modern industrial facilities where energy accountability is no longer optional, the Honeywell FC-TSDI-1624C digital input module plays a foundational role in building a leaner, more responsive control architecture. As a core signal acquisition component within the TDC 3000 Distributed Control System, the FC-TSDI-1624C captures 16-channel discrete field signals with high-speed scan cycles, feeding real-time status data into the plant’s supervisory layer — enabling faster decisions, tighter loop control, and measurable reductions in idle operating load.

Maintenance planning in a production environment begins at the data layer. When field devices such as motor starters, valve actuators, and conveyor interlocks report their states accurately and without latency, the control system can respond with precision. The FC-TSDI-1624C ensures that the Honeywell TDC 3000 Universal Control Network (UCN) receives clean, debounced digital signals from the field, eliminating false triggers that cause unnecessary motor starts, pump cycling, or compressor surges — all of which translate directly into wasted operating-hours.

Product Specification Table

System Compatibility and Application

The FC-TSDI-1624C does not operate in isolation — its value multiplies when integrated into a well-structured industrial automation system. Within the TDC 3000 platform, it works alongside the Honeywell FC-TSDO-1624C digital output module to form a complete discrete I/O loop: inputs are read, logic is executed, and outputs are driven — all within a deterministic scan cycle that prevents energy-wasting control delays.

On the drive side, variable frequency drives such as the Honeywell SmartVFD HVAC series rely on accurate discrete status signals from modules like the FC-TSDI-1624C to determine when to ramp motor speed up or down. Without reliable input data, drives default to fixed-speed operation — consuming full power regardless of actual load demand. With the FC-TSDI-1624C in the loop, the control system can command the VFD to reduce speed during low-demand periods, cutting motor load by 20–50% in variable-torque applications.

For power monitoring, the Honeywell PM-TSPM-0001 power monitoring module integrates with the same TDC 3000 backplane, providing real-time kWh, kVAR, and power factor data that operators can correlate with the discrete field states captured by the FC-TSDI-1624C. This pairing enables energy engineers to identify which process steps consume disproportionate power and to implement demand-response strategies at the PLC/DCS level.

Communication integrity is maintained through the Honeywell UCN (Universal Control Network) coaxial highway, which connects the FC-TSDI-1624C’s host High-Performance Process Manager (HPPM) or Advanced Process Manager (APM) to the plant’s Local Control Network (LCN). Upstream, the Honeywell GUS (Global User Station) or Universal Station (US) HMI presents operators with a consolidated view of all discrete field states, allowing rapid identification of equipment faults before they escalate into unplanned downtime events that disrupt production rhythm and inflate energy-per-unit costs.

For facilities running hybrid architectures, the FC-TSDI-1624C can coexist with Honeywell Experion PKS migration nodes, allowing legacy TDC 3000 I/O to remain in service while the supervisory layer is modernized — protecting capital investment while extending the maintenance planning benefits of the existing field wiring infrastructure.

Maintenance and Replacement Notes

Consider a continuous process line in a petrochemical refinery where dozens of motor-driven pumps, agitators, and compressors operate in sequence. Each piece of equipment reports its run/stop status, fault condition, and interlock state through discrete field wiring connected to digital input modules. If those modules introduce scan delays, signal noise, or missed transitions, the control system compensates by adding conservative time buffers — keeping equipment running longer than necessary to avoid false shutdowns. Over a year, those extra run-hours accumulate into significant unplanned downtime.

The FC-TSDI-1624C eliminates this uncertainty. Its high-speed polling and hardware debounce filtering ensure that every field transition — a limit switch closing, a motor contactor energizing, a pressure switch tripping — is captured accurately on the first scan. The TDC 3000 APM can then execute tight sequence logic: start the next pump only when the upstream valve confirms open, stop the agitator the moment the batch timer expires, and release the compressor load as soon as downstream pressure reaches setpoint. Each of these precise handoffs reduces unnecessary motor run-time and the associated energy draw.

Predictive maintenance also benefits directly. By logging the transition frequency of field devices through the FC-TSDI-1624C’s input channels, maintenance teams can detect abnormal cycling patterns — a valve that opens and closes 40% more frequently than baseline, or a motor starter that chatters under load. These patterns, surfaced through the Honeywell PHD (Process Historian Database) or a connected SCADA layer, allow maintenance to be scheduled proactively rather than reactively, reducing both emergency repair costs and the energy penalty of running degraded equipment.

All units supplied by ZYPLC are sourced from verified industrial channels, subjected to full functional testing under simulated field conditions, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand for rapid dispatch, supporting both planned maintenance outages and emergency replacement scenarios where production continuity depends on same-week part availability.

Product Sourcing FAQ

Q1: How does the FC-TSDI-1624C contribute to measurable operational stability on a production line?
By providing accurate, low-latency discrete signal acquisition, the FC-TSDI-1624C enables the TDC 3000 control system to execute tighter sequence logic — starting and stopping equipment precisely when process conditions require it, rather than running on conservative fixed timers. This directly reduces unnecessary motor run-time, compressor cycling, and pump operation, translating into lower kWh consumption per production unit.

Q2: Is the FC-TSDI-1624C compatible with both legacy TDC 3000 and Experion PKS migration environments?
Yes. The FC-TSDI-1624C is designed for the TDC 3000 UCN/LCN architecture and is compatible with HPPM and APM process managers. In Experion PKS migration projects, legacy TDC 3000 I/O modules including the FC-TSDI-1624C can remain operational through Experion migration nodes, allowing a phased modernization without replacing field wiring or I/O hardware.

Q3: What is the recommended replacement or upgrade path if the FC-TSDI-1624C is no longer available new from the OEM?
ZYPLC maintains refurbished and tested FC-TSDI-1624C units sourced from decommissioned plant equipment and verified against OEM specifications. For facilities planning a full DCS migration, the equivalent function can be replicated using Experion PKS Series C I/O modules with appropriate marshalling panels. Our technical team can advise on direct replacements or migration-compatible alternatives based on your specific TDC 3000 configuration.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every FC-TSDI-1624C shipped by ZYPLC undergoes a full functional test that verifies all 16 input channels for correct signal detection, proper LED indication, and backplane communication integrity. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides advance replacement to minimize production downtime, with return logistics coordinated by our support team.
