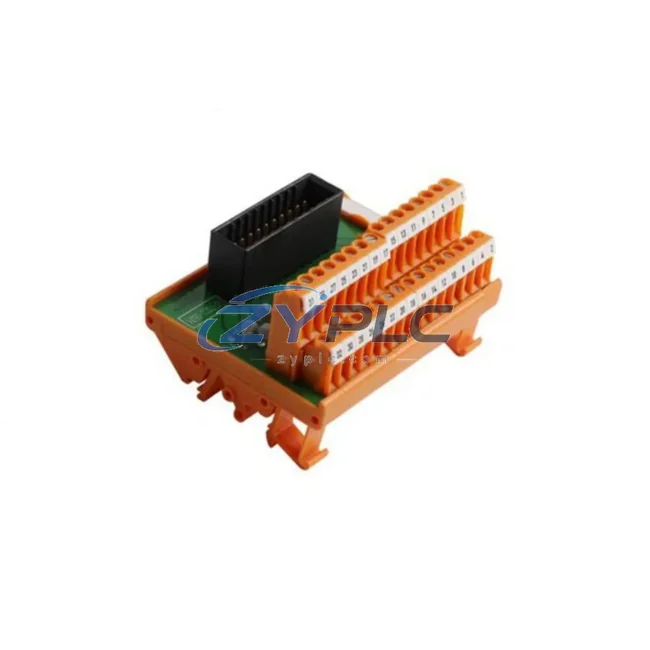

Honeywell FC-TSDO-04UNI Digital Output Module Safety Manager

Honeywell FC-TSDO-04UNI: Industrial Data Link for Safety Manager Digital Output Networks

The Honeywell FC-TSDO-04UNI is a 4-channel universal digital output module engineered for the Honeywell Safety Manager platform — a cornerstone of Safety Instrumented Systems (SIS) deployed across oil and gas, chemical processing, power generation, and advanced manufacturing environments. Designed to bridge the gap between the safety logic controller and field actuators, the FC-TSDO-04UNI delivers deterministic, SIL-rated output signals that drive solenoid valves, motor starters, shutdown relays, and other critical final elements with the precision and reliability that modern smart factories demand.

In today’s industrial landscape, the integrity of the data link between the safety controller and the physical process layer is non-negotiable. The FC-TSDO-04UNI occupies a pivotal position in this chain: it receives validated commands from the Safety Manager CPU — such as the FC-SDO-0824 or FC-SDIL-0824 logic solver modules — and translates them into hardwired output signals that actuate field devices in real time. This deterministic signal path ensures that emergency shutdown sequences, process interlocks, and safety-critical actuations are executed within the defined response time windows required by IEC 61511 and IEC 61508 functional safety standards.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the FC-TSDO-04UNI’s role requires tracing the full automation data flow from the field level to the enterprise layer. At the field level, process sensors — including pressure transmitters, temperature sensors, and flame detectors — feed real-time process values into the Safety Manager’s input modules such as the FC-TSAI-1620 analog input module or the FC-TSDI-1620 digital input module. These signals are processed by the Safety Manager logic solver, which evaluates the safety function and, when a trip condition is detected, issues a command to the FC-TSDO-04UNI to de-energize or energize the corresponding output channel.

The output command travels across the Safety Manager’s internal backplane bus — a high-speed, deterministic communication path that ensures zero-latency signal delivery between the CPU and I/O modules. The FC-TSDO-04UNI then drives field actuators: solenoid valves on emergency shutdown (ESD) headers, motor contactors on rotating equipment, or shutdown relays on fired heaters. In parallel, the Safety Manager communicates upward to the Honeywell Experion PKS distributed control system via a dedicated safety network gateway, enabling operators to monitor SIS status, acknowledge alarms, and review trip logs from the HMIWeb Station or a third-party SCADA platform via OPC-UA.

For facilities integrating the Safety Manager with broader plant automation, the FC-SCOM-0004 communication module enables Modbus TCP connectivity to remote I/O panels, variable frequency drives (VFDs), and edge gateways. This allows the FC-TSDO-04UNI’s output status to be reflected in the plant historian and made available to MES or ERP systems for production transparency and compliance reporting. In multi-loop safety architectures, the FC-TSDO-04UNI works alongside FC-TSDO-0824 high-density output modules and FC-TSAI-1620 analog input modules to form a complete, redundant SIS I/O subsystem capable of supporting complex cause-and-effect matrices across multiple process units.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial safety system integration is data isolation — the inability to share real-time SIS status data with the broader plant automation and monitoring infrastructure. Legacy safety systems often operate as isolated islands, with no visibility into SCADA dashboards, no integration with plant historians, and no remote diagnostic capability. The FC-TSDO-04UNI, as part of the Honeywell Safety Manager ecosystem, directly addresses this challenge.

By leveraging the Safety Manager’s native OPC-UA and Modbus TCP gateway capabilities, the FC-TSDO-04UNI’s output channel status — including energized/de-energized state, diagnostic faults, and trip history — can be surfaced in real time to Honeywell Experion PKS, third-party SCADA platforms, and remote monitoring centers. This eliminates the data silo between the safety layer and the process control layer, enabling true plant-wide transparency. Maintenance teams can perform remote diagnostics, identify channel faults before they escalate to spurious trips, and schedule predictive maintenance without requiring physical access to the marshalling cabinet.

For greenfield smart factory projects and brownfield upgrades alike, the FC-TSDO-04UNI supports system expansion through the Safety Manager’s modular rack architecture. Additional I/O modules can be added without disrupting the existing safety logic, and the system’s online diagnostic capabilities ensure that new modules are validated and commissioned with full functional safety documentation. Every FC-TSDO-04UNI unit supplied by ZYPLC undergoes pre-shipment functional testing, is backed by a warranty terms confirmed during quotation, and is available from availability subject to RFQ confirmation for fast global delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the FC-TSDO-04UNI support for SCADA integration?
The FC-TSDO-04UNI communicates via the Safety Manager’s internal backplane bus. For SCADA and HMI integration, the Safety Manager platform supports OPC-UA, Modbus TCP, and HART pass-through via dedicated communication modules such as the FC-SCOM-0004, enabling seamless connectivity to Honeywell Experion PKS, third-party SCADA systems, and plant historians without compromising SIL integrity.

Q2: How does the FC-TSDO-04UNI ensure network stability and deterministic output response?
The module operates on the Safety Manager’s dedicated backplane bus, which is isolated from the process control network and designed for deterministic, low-latency communication. Redundant CPU and power supply configurations further ensure that output commands are executed within the defined safety response time, even in the event of a single-point failure in the control infrastructure.

Q3: Can the FC-TSDO-04UNI be integrated into an existing Safety Manager system without a full shutdown?
Yes. The Safety Manager’s modular rack architecture supports online module insertion and hot-swap capability (subject to system configuration and safety validation requirements). New FC-TSDO-04UNI modules can be added to expand output capacity, and the system’s online diagnostic tools allow engineers to verify module health and channel status without interrupting the running safety function.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the FC-TSDO-04UNI?
Every FC-TSDO-04UNI supplied by ZYPLC is sourced from verified inventory, undergoes pre-shipment functional testing to confirm channel integrity and communication health, and is covered by a warranty terms confirmed during quotation. export shipping options available is available, and our technical team can provide full documentation support including datasheet, wiring diagrams, and compatibility confirmation for your Safety Manager configuration.
