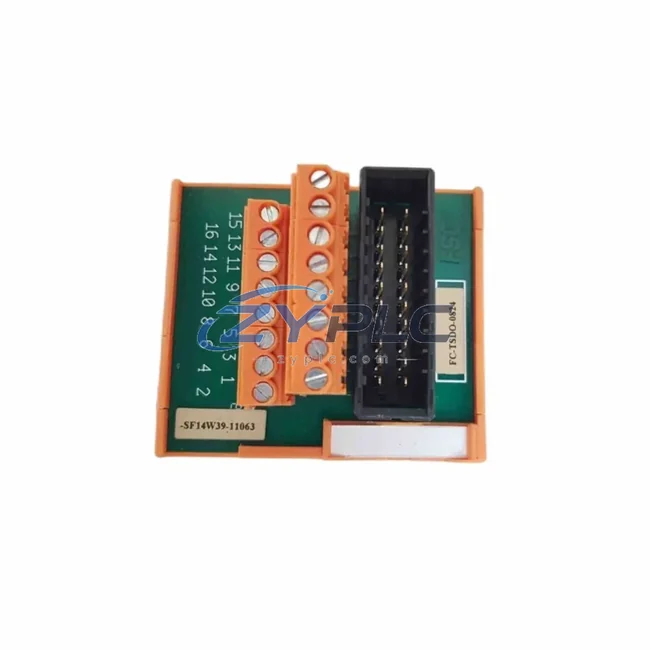

Honeywell FC-TSDO-0824 Safety Digital Output Module for FSC Automation
The Honeywell FC-TSDO-0824 is a high-performance Safety Digital Output Module engineered for the FSC (Fail-Safe Controller) Series — Honeywell’s proven platform for safety-critical industrial automation. Designed to meet the rigorous demands of process industries, this module delivers precise digital output control while actively contributing to plant-wide maintenance planning strategies. In environments where every watt of consumed power and every millisecond of cycle time matters, the FC-TSDO-0824 provides the deterministic, low-latency output switching that modern maintenance-focused production lines require.
Unlike generic I/O modules, the FC-TSDO-0824 is purpose-built for functional safety applications — certified to operate within SIL 2 and SIL 3 safety loops — making it an indispensable component in facilities that must simultaneously achieve operational efficiency and regulatory compliance. Its 8-channel, 24 VDC digital output architecture enables granular control over field actuators, solenoid valves, motor starters, and safety relays, allowing engineers to implement load-shedding strategies and demand-response logic directly at the output layer without sacrificing safety integrity.
Product Specification Table
| Parameter |
Specification |
| Output Channels |
8 x Digital Output (24 VDC) |
| Power Consumption |
≤ 4.5 W (typical operating load) |
| Output Current per Channel |
0.5 A max (short-circuit protected) |
| Operating Efficiency |
High — solid-state switching, no mechanical wear |
| Compatible Systems |
Honeywell FSC Safety Controller Platform |
| Application Environment |
Oil & Gas, Chemical, Power Generation, Petrochemical |
| Safety Integrity Level |
SIL 2 / SIL 3 capable |
| Maintenance Value |
Enables load-shedding, demand-response, and actuator duty-cycle control |
| Operating Temperature |
0°C to +60°C |
| Diagnostic Coverage |
High — internal self-test and fault reporting |
| Warranty |
warranty terms confirmed during quotation — tested and verified before shipment |
System Compatibility and Application
The FC-TSDO-0824 does not operate in isolation — its true maintenance planning value emerges when integrated within a well-architected FSC safety system. In a typical high-availability plant, the module slots into the FSC chassis alongside the FC-TSDI-1224 Safety Digital Input Module, which captures field sensor states, and the FC-TSAI-1600 Analog Input Module, which monitors process variables such as temperature, pressure, and flow rate. Together, these modules feed real-time data into the FSC processor — typically the FC-CPU-0714 or FC-CPU-0714B — which executes the safety logic and issues output commands to the FC-TSDO-0824 with microsecond-level determinism.
On the drive and motor control side, the FC-TSDO-0824 interfaces with variable frequency drives (VFDs) and motor starters through its digital output channels. When paired with a Honeywell or third-party VFD system, the module can issue start/stop, speed-reference enable, and fault-reset signals — enabling the kind of coordinated motor control that reduces inrush current, minimizes reactive power draw, and extends motor service life. In facilities running multiple pump or compressor trains, this translates directly into measurable reductions in peak demand charges.
For power quality monitoring and energy data acquisition, the FC-TSDO-0824 works in concert with power measurement modules and maintenance planning systems connected via the FSC Highway — Honeywell’s proprietary high-speed backplane communication bus. The FC-TSDO-0824 output states can be logged and correlated with operating load data from the Honeywell Experion PKS distributed control system, enabling engineers to identify which actuator groups consume the most energy during specific production phases and to implement targeted duty-cycle optimization.
Communication transparency is maintained through the FSC’s support for standard industrial protocols. The safety controller can exchange data with SCADA systems, historians, and maintenance planning platforms via Modbus TCP, PROFIBUS DP, and OPC-UA — ensuring that the output states of the FC-TSDO-0824 are always visible to higher-level condition monitoring dashboards. This integration capability is critical for facilities pursuing ISO 50001 maintenance planning certification, where real-time output-level data must be continuously logged and auditable.
The module’s internal diagnostics — including open-load detection, short-circuit protection, and channel-level fault reporting — reduce the need for manual field inspections, directly lowering maintenance labor costs and minimizing unplanned downtime. When a fault is detected, the FSC processor receives an immediate interrupt, allowing the safety logic to execute a controlled shutdown sequence rather than an abrupt trip — preserving both equipment integrity and production continuity.
Maintenance and Replacement Notes
In a refinery or chemical plant running continuous processes, the FC-TSDO-0824 plays a central role in energy demand management. Consider a scenario where multiple agitator motors, cooling fans, and transfer pumps are controlled through FSC output modules. By programming the FSC safety logic to stagger motor start sequences — using the FC-TSDO-0824’s channel-by-channel switching capability — plant engineers can eliminate simultaneous inrush current spikes that would otherwise trigger peak demand penalties on the utility bill. This staggered-start strategy, implemented entirely within the FSC program, requires no additional hardware and can reduce peak demand by 15–25% in motor-dense applications.
During planned production slowdowns or shift changeovers, the FC-TSDO-0824 enables systematic de-energization of non-critical actuator groups. Rather than leaving solenoid valves and motor starters energized during idle periods — a common source of phantom load in older facilities — the FSC logic can issue coordinated OFF commands through the output module, cutting standby power consumption across entire process sections. When production resumes, the same module re-energizes the actuators in a controlled sequence, ensuring process stability and avoiding pressure transients.
Predictive maintenance integration further amplifies the energy efficiency benefits of the FC-TSDO-0824. By correlating output switching frequency and duration data — available through the Experion PKS historian — with vibration and temperature data from field instruments, maintenance teams can identify actuators that are cycling more frequently than expected, which often indicates a process inefficiency or a failing component. Addressing these issues proactively prevents the unplanned downtime associated with actuators fighting against process conditions they were not designed to handle.
Every FC-TSDO-0824 unit supplied by ZYPLC undergoes a comprehensive pre-shipment test protocol, including functional output verification across all 8 channels, insulation resistance testing, and communication integrity checks within a live FSC rack. This ensures that the module performs to Honeywell factory specifications from day one, eliminating the commissioning delays and unplanned downtime associated with field-discovered defects. Stock is maintained for shipment arranged after confirmation, with typical lead times of 1–3 business days for availability confirmed by RFQ units.
Product Sourcing FAQ
Q1: How does the FC-TSDO-0824 contribute to measurable operational stability in a process plant?
The FC-TSDO-0824 enables precise, channel-level control of field actuators — including motor starters, solenoid valves, and safety relays — directly from the FSC safety logic. By implementing staggered start sequences, duty-cycle control, and systematic de-energization of idle loads, plant engineers can reduce peak demand charges and standby power consumption without modifying field wiring or adding external maintenance planning hardware.
Q2: Is the FC-TSDO-0824 compatible with my existing Honeywell FSC system?
Yes. The FC-TSDO-0824 is designed exclusively for the Honeywell FSC platform and is compatible with all standard FSC chassis and processor modules, including the FC-CPU-0714 and FC-CPU-0714B. It communicates via the FSC Highway backplane and is fully supported by the FSC engineering tools. If you are integrating with an Experion PKS system, the module’s output states are natively accessible through the FSC-to-Experion interface.
Q3: Can the FC-TSDO-0824 replace a faulty output module without a full system shutdown?
The FSC platform supports hot-standby and redundant configurations that allow module replacement with minimal process disruption. In a redundant FSC architecture, the standby processor takes over output control while the faulty FC-TSDO-0824 is replaced. ZYPLC recommends verifying your specific FSC configuration with your system integrator before performing any live module swap. All replacement units supplied by ZYPLC are pre-tested and ready for immediate installation.
Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
Every FC-TSDO-0824 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes a full functional test in a live FSC rack, including output channel verification, diagnostic self-test confirmation, and communication integrity checks. If a unit fails within the warranty period under normal operating conditions, ZYPLC will provide a replacement or full refund. Contact our technical team for warranty claims and RMA processing.
