Honeywell FC-TSDOL-0424C Safety Digital Output Module | TPS

Honeywell FC-TSDOL-0424C: Industrial Data Link for Safety-Critical Digital Output in TPS Smart Factory Networks

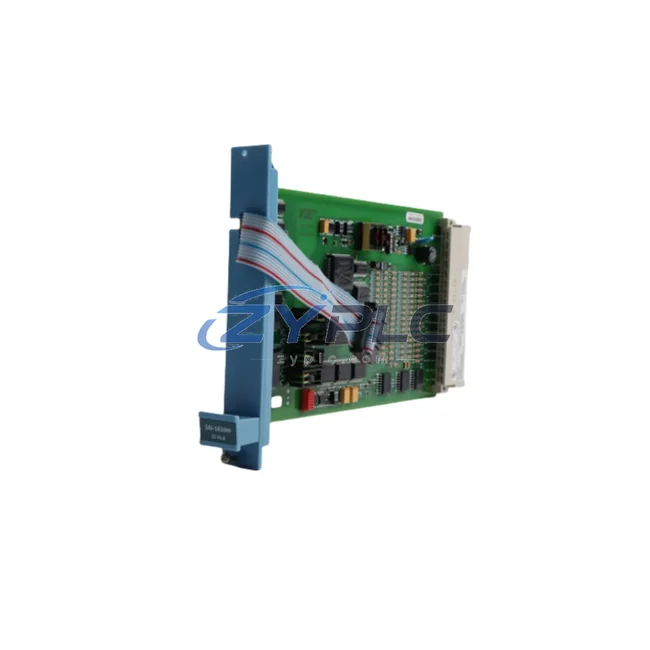

The Honeywell FC-TSDOL-0424C is a SIL-rated Safety Digital Output Module engineered for the TotalPlant Solution (TPS) distributed control architecture. Designed to operate at the intersection of field device control and plant-wide data communication, this module serves as a critical node in the industrial data chain — bridging safety-rated actuator commands from the DCS controller layer down to physical output devices including solenoid valves, motor starters, and emergency shutdown actuators. In smart factory environments where uptime, data integrity, and functional safety are non-negotiable, the FC-TSDOL-0424C delivers deterministic digital output with full diagnostic transparency across the TPS network backbone.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated TPS safety architecture, the FC-TSDOL-0424C operates as the final command executor in a multi-layer data flow that begins at the SCADA or HMI level and terminates at the physical field device. The data journey typically originates in the Honeywell HMIWeb Display Builder or GUS (Global User Station), where operators monitor process variables and issue control commands. These commands are processed by the Honeywell TPS Application Module (AM), which executes the control logic and routes safety-critical output signals through the Universal Control Network (UCN) fieldbus to the I/O subsystem.

Within the I/O cabinet, the FC-TSDOL-0424C receives digital output commands via the TPS backplane bus. It interfaces directly with the Honeywell FC-TSDO-0824 Safety Digital Output family and is designed to work alongside input counterparts such as the FC-TSDIL-0824C Safety Digital Input Module, enabling a complete safety loop from sensor to actuator. For analog process variables feeding into the same safety logic, the FC-TSAI-1620M Analog Input Module provides the upstream signal acquisition layer, converting 4–20 mA transmitter signals into digital values for the AM controller.

The output signals from the FC-TSDOL-0424C drive field devices including solenoid valve banks, motor control center (MCC) contactors, and emergency shutdown (ESD) actuators. In fire and gas (F&G) applications, the module interfaces with Honeywell XNX Universal Transmitter systems and addressable detector networks, ensuring that alarm-triggered shutdown commands are executed within the required SIL response time. The entire data chain — from gas detector signal to ESD valve closure — is logged and time-stamped through the Honeywell PHD (Process Historian Database), enabling post-event analysis and regulatory compliance reporting.

For remote monitoring and diagnostics, the TPS network connects to Honeywell Experion PKS migration gateways, allowing legacy TPS installations to interface with modern DCS platforms and cloud-based SCADA systems. The Honeywell Safety Manager SC can also be integrated into the same safety network, providing a unified safety instrumented system (SIS) layer that communicates with the FC-TSDOL-0424C through certified safety protocols. Edge gateway devices such as the Honeywell Connected Plant Uniformance Suite aggregate real-time I/O data from the TPS network and push it to enterprise MES and ERP systems, completing the digital thread from field device to business intelligence platform.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants running TPS infrastructure is data isolation — the inability to share real-time safety I/O status across different control domains, SCADA platforms, and enterprise systems. The FC-TSDOL-0424C addresses this at the hardware level by providing fully supervised digital output channels with online diagnostic reporting. Each output channel continuously monitors load current, detects open-circuit and short-circuit faults, and reports status back to the TPS Application Module in real time, eliminating the blind spots that cause undetected failures in conventional relay-based output systems.

For plants undergoing protocol modernization, the FC-TSDOL-0424C supports integration with Honeywell’s migration toolsets, allowing TPS safety I/O to be mapped into Experion PKS or third-party SCADA systems via OPC DA/UA gateways without requiring a full system replacement. This preserves the existing SIL certification of the safety loop while enabling modern data visibility. Operators gain access to real-time output status, diagnostic alarms, and maintenance alerts through HMIWeb or third-party HMI platforms, transforming previously isolated safety data into actionable plant intelligence.

Remote diagnostics capability is a key value driver for maintenance teams managing geographically distributed process units. Through the TPS UCN network and connected historian, maintenance engineers can remotely verify output channel health, review fault logs, and schedule predictive maintenance interventions without requiring physical access to the I/O cabinet. This capability directly reduces mean time to repair (MTTR) and supports the transition to condition-based maintenance strategies in smart factory environments.

For production line transparency, the FC-TSDOL-0424C’s diagnostic data feeds into plant KPI dashboards, enabling operations managers to track safety system availability, output channel utilization, and alarm frequency as part of overall equipment effectiveness (OEE) monitoring. System expansion is straightforward — additional FC-TSDOL-0424C modules can be added to existing TPS I/O cabinets without network reconfiguration, supporting phased capacity increases as production demands grow.

Industrial Connectivity FAQ

Q1: What communication protocol does the FC-TSDOL-0424C use, and is it compatible with modern SCADA systems?
The FC-TSDOL-0424C communicates via the Honeywell TPS Universal Control Network (UCN) fieldbus protocol. For integration with modern SCADA platforms, OPC DA/UA gateway modules or Honeywell Experion PKS migration bridges can be used to translate UCN data into standard industrial protocols, enabling full SCADA visibility without compromising the SIL-rated safety loop.

Q2: What is the typical communication latency for safety output commands through the TPS network?
The TPS UCN network is designed for deterministic, low-latency communication in safety-critical applications. Output command execution from the Application Module to the FC-TSDOL-0424C field terminals typically occurs within the configured scan cycle time of the AM controller, which is optimized for SIL 2/3 response time requirements as defined in IEC 61508 and IEC 61511.

Q3: Can the FC-TSDOL-0424C be expanded or replaced without shutting down the entire TPS system?
Module replacement procedures depend on the specific TPS cabinet configuration and safety loop status. In many TPS installations, hot-standby redundancy configurations allow module maintenance with minimal process disruption. Always consult the TPS system documentation and perform a Management of Change (MOC) review before any hardware modification in a live safety system.

Q4: Does the FC-TSDOL-0424C come with a warranty, and has it been tested before shipment?
Yes. Every FC-TSDOL-0424C unit supplied by ZYPLC includes a warranty terms confirmed during quotation and undergoes functional testing prior to shipment. Units are sourced from verified supply channels and shipped via DHL or FedEx with full tracking. For urgent requirements, expedited shipping and same-day dispatch options are available upon request.

—
