Honeywell FC-TSGASH-1624P Industrial Network Interface for Experion PKS Systems

Honeywell FC-TSGASH-1624P Industrial Network Interface for Experion PKS Systems: Bridging the Industrial Data Link

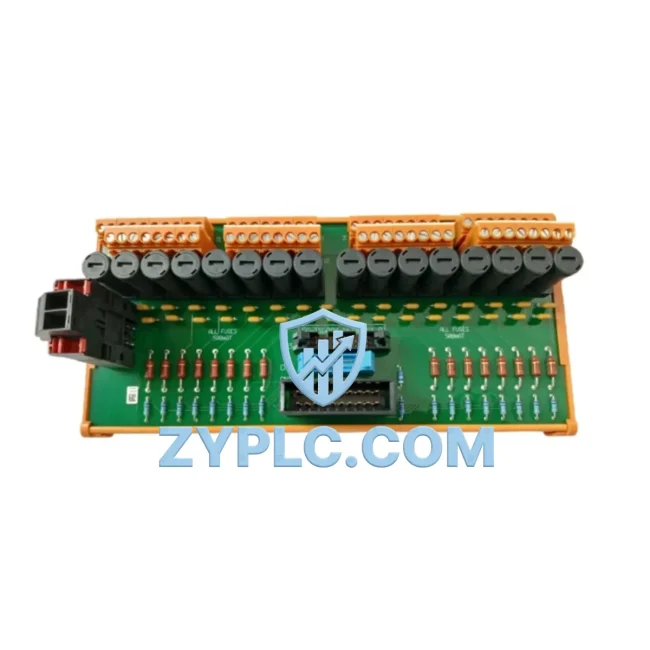

In modern smart factory environments, the integrity of the data link between field devices and supervisory systems determines the efficiency, safety, and scalability of the entire operation. The Honeywell FC-TSGASH-1624P is a 24-channel Digital Input Field Termination Assembly (FTA) engineered specifically for the Experion PKS (Process Knowledge System) distributed control architecture. It serves as a critical node in the industrial data chain — connecting discrete field signals from sensors, limit switches, and digital transmitters directly into the Experion PKS controller network, enabling real-time monitoring, alarm management, and remote diagnostics across the plant floor.

As industrial sites move toward greater connectivity and transparency, the FC-TSGASH-1624P provides the reliable, high-density digital input termination that process engineers and automation integrators depend on. Whether deployed in oil and gas, chemical processing, power generation, or advanced manufacturing, this FTA ensures that every digital signal is accurately captured, cleanly terminated, and faithfully transmitted to the control layer without data loss or communication latency.

Network Communication Table

Connected Automation Data Flow

The FC-TSGASH-1624P sits at the heart of the field-to-controller data pipeline. In a typical Experion PKS deployment, field-level discrete signals — generated by proximity sensors, pressure switches, valve position indicators, and motor run/stop feedback contacts — are wired directly to the FTA’s 24 screw-terminal input channels. From there, the FTA interfaces with the Honeywell FIM4 or FIM8 Field Interface Module, which aggregates I/O data and transmits it over the Experion I/O bus to the C300 Process Controller.

The C300 controller processes the incoming digital states in real time, executing control logic and forwarding process data upstream to the Experion PKS Server and connected HMI stations running Experion Station software. Operators gain live visibility into field device status, enabling immediate alarm response and process intervention. For sites requiring remote access, the Experion PKS architecture supports integration with Honeywell’s OneWireless network and third-party SCADA platforms via OPC-DA/UA gateways, extending the data link beyond the control room to enterprise-level systems.

Within the marshalling cabinet, the FC-TSGASH-1624P works alongside complementary FTAs such as the FC-TSDI-16UNI Universal Digital Input FTA and the FC-SDO-0824 Digital Output FTA, forming a complete I/O termination layer. Analog signals from 4–20 mA transmitters and RTD sensors are handled by the FC-SAI-1620M Analog Input FTA, while the FC-TSGAS-1624 Digital Input FTA provides additional channel capacity for high-density applications. Communication between the FTA layer and the controller backbone is managed through the TC-CCR014 Control Firewall Router and TC-FPCXX2 Fault-Tolerant Power Conditioner, ensuring network stability and power integrity across the entire I/O subsystem.

For applications requiring integration with variable frequency drives (VFDs) and motor control centers, the FC-TSGASH-1624P captures run/fault/ready digital feedback signals from drives such as the Honeywell SmartVFD HVAC series, feeding motor status data into the Experion PKS control loop. Edge gateway devices, including the Honeywell EDGE Connectivity Manager, can further aggregate this data for cloud-based analytics and predictive maintenance platforms, completing the digital thread from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the inability to consolidate signals from diverse field devices, protocols, and control platforms into a unified, actionable data stream. The FC-TSGASH-1624P directly addresses this challenge within the Experion PKS ecosystem.

Protocol Unification: Many industrial sites operate a mix of legacy relay-based I/O, HART-enabled smart instruments, and modern digital fieldbus devices. The FC-TSGASH-1624P provides a standardized termination point for discrete digital inputs, eliminating the signal inconsistencies that arise from ad-hoc wiring practices. When paired with the Experion PKS FIM architecture, it enables seamless protocol translation between field-level discrete signals and the controller’s internal data bus.

Eliminating Data Silos: By integrating directly into the Experion PKS network, the FC-TSGASH-1624P ensures that digital field data is immediately available to all connected systems — from the local HMI panel to the plant-wide SCADA server and beyond. There are no isolated data islands; every digital input state is visible, logged, and actionable across the entire automation hierarchy.

Remote Monitoring and Diagnostics: The Experion PKS platform’s built-in diagnostics capabilities allow maintenance teams to monitor FTA channel health, detect wiring faults, and identify signal anomalies without physical access to the marshalling cabinet. This remote diagnostic capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies that minimize unplanned downtime.

Production Line Transparency: With 24 digital input channels per FTA, the FC-TSGASH-1624P supports high-density signal termination for complex process units. Combined with Experion PKS’s advanced alarming and event management features, it enables operators to achieve full production line transparency — tracking equipment states, interlocks, and safety signals in real time.

System Scalability: The modular architecture of the Experion PKS I/O subsystem allows additional FTAs to be added as production capacity expands. The FC-TSGASH-1624P is fully compatible with the existing Experion PKS cabinet infrastructure, making it straightforward to scale digital input capacity without redesigning the control system architecture.

Industrial Connectivity FAQ

Q1: What communication protocols does the FC-TSGASH-1624P support, and is it compatible with third-party SCADA systems?
The FC-TSGASH-1624P operates within the Honeywell Experion PKS proprietary I/O bus architecture, interfacing with FIM4/FIM8 Field Interface Modules and the C300 Process Controller. For third-party SCADA integration, the Experion PKS platform supports OPC-DA and OPC-UA server interfaces, enabling data exchange with SCADA systems from Wonderware, Ignition, iFIX, and other major vendors. All digital input data captured by the FC-TSGASH-1624P is accessible via these standard industrial communication interfaces.

Q2: How does the FC-TSGASH-1624P ensure network stability and minimize communication latency in high-speed process applications?
The FC-TSGASH-1624P is designed for deterministic, low-latency digital input scanning within the Experion PKS I/O subsystem. The FIM architecture provides hardware-level I/O scanning with cycle times optimized for process control applications. Network stability is further ensured by the fault-tolerant design of the Experion PKS backbone, which supports redundant controller and FIM configurations to eliminate single points of failure in critical process environments.

Q3: Can the FC-TSGASH-1624P be integrated into an existing Experion PKS system without a full system shutdown?
Yes. The modular design of the Experion PKS I/O subsystem supports hot-swap and online configuration capabilities for FTA additions in many deployment scenarios. However, specific installation procedures depend on the existing system configuration and safety requirements. It is recommended to consult the Experion PKS I/O Installation and Configuration Guide and coordinate with your system integrator to plan a safe installation procedure. All FC-TSGASH-1624P units supplied by ZYPLC are pre-tested and shipped with full functional verification documentation.

Q4: What warranty and quality assurance does ZYPLC provide for the FC-TSGASH-1624P?
Every FC-TSGASH-1624P unit supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a comprehensive functional test to verify channel integrity, termination quality, and compatibility with the Experion PKS I/O architecture. ZYPLC maintains verified inventory of Honeywell Experion PKS components, ensuring fast order fulfillment and reliable global shipping to industrial sites worldwide.
