Honeywell FC-TSRO-08UNI Output for FSC

Honeywell FC-TSRO-08UNI Output for FSC: Compatibility and Replacement Notes

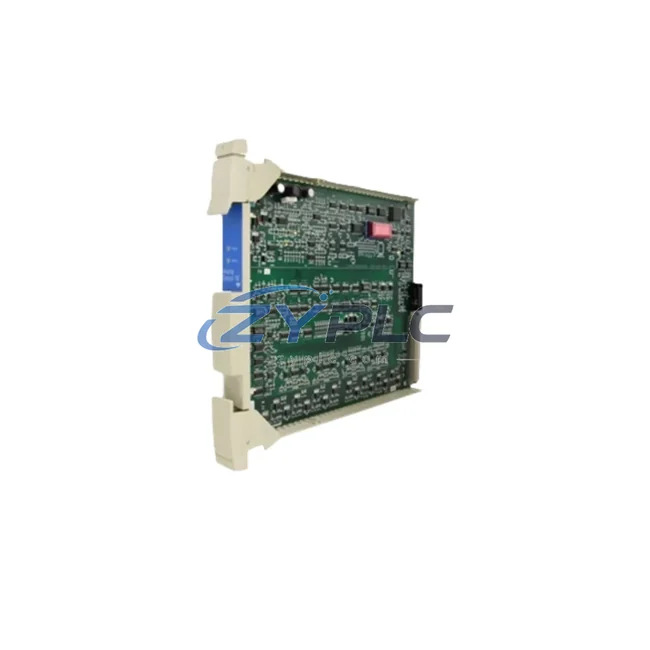

The Honeywell FC-TSRO-08UNI is a dedicated digital output module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) safety system platform. Designed to operate at the intersection of the control layer and the execution layer, this module plays a critical role in translating safety logic decisions into reliable field-level actuator commands. In modern industrial automation environments — spanning oil and gas, petrochemical processing, power generation, water treatment, and advanced manufacturing — the integrity of the output layer is non-negotiable. The FC-TSRO-08UNI addresses this requirement with a robust, diagnostics-capable architecture that supports both SIL 2 and SIL 3 certified safety loops when integrated within a compliant FSC system configuration.

Understanding the FC-TSRO-08UNI requires viewing it not as a standalone component, but as a functional node within a layered automation hierarchy. Its value is realized through its coordination with upstream CPU modules, redundant power supplies, I/O bus backplanes, communication gateways, and downstream field devices. This system integration is what defines its role in a high-availability safety architecture.

Product Specification Table

System Compatibility Notes

The FC-TSRO-08UNI is designed to operate as part of a tightly coordinated FSC system architecture. At the control layer, the FC-CPU04 or FC-CPU04H safety CPU module executes the safety application logic and issues output commands via the internal I/O bus. These commands are routed through the FSC backplane — typically the FC-RACK-08 or FC-RACK-16 chassis — to the FC-TSRO-08UNI, which then drives field-level actuators such as solenoid valves, motor contactors, and emergency shutdown relays.

Redundant power integrity is maintained by the FC-PSU24VDC power supply module, which ensures that both the CPU and output modules receive stable, monitored DC power even under single-fault conditions. For applications requiring hot-standby redundancy, the FC-TSRO-08UNI can be paired with a redundant output module in a 1oo2 or 2oo3 voting architecture, coordinated by the FSC CPU’s redundancy management firmware.

On the input side, the FC-TSDI-16UNI digital input module collects field sensor signals — pressure switches, level sensors, flame detectors — and feeds them into the CPU for logic evaluation. The FC-TSRO-08UNI then acts on the resulting safety decisions, closing or de-energizing output circuits in accordance with the safety instrumented function (SIF) requirements. Analog process data from the FC-TAIM-08UNI analog input module further enriches the control context, enabling the CPU to make nuanced decisions before commanding the output layer.

Communication between the FSC system and the plant DCS or SCADA layer is handled by the FC-GATEWAY-MOD or compatible Modbus/Profibus gateway modules, which relay system health, output status, and diagnostic data to operator workstations and historian servers. The HC900 HMI or third-party SCADA terminals connected via OPC-DA/UA provide operators with real-time visibility into output channel states, enabling rapid fault identification and response. Terminal modules such as the FC-TBIO-08 field termination assembly simplify field wiring and reduce installation errors at the execution layer.

Industrial Application Notes

The FC-TSRO-08UNI finds application across a broad spectrum of safety-critical industries where reliable output actuation is essential to process integrity and personnel safety.

In oil and gas processing and petrochemical plants, the module drives emergency shutdown (ESD) valves and blowdown systems, ensuring that process isolation is achieved within the required response time when a safety instrumented function is triggered. Its diagnostic coverage supports proof-test interval optimization, reducing the operational burden on maintenance teams while maintaining SIL compliance.

In power generation facilities — including thermal, nuclear, and renewable energy plants — the FC-TSRO-08UNI controls turbine trip relays, generator protection contactors, and auxiliary system actuators. Its ability to operate within a redundant FSC architecture ensures that no single-point failure can prevent a required safety action.

For water and wastewater treatment applications, the module manages pump motor starters, valve actuators, and chemical dosing systems, integrating seamlessly with the plant’s SCADA network via the FSC communication gateway. In mining and metallurgical environments, it controls conveyor interlocks, crusher protection systems, and ventilation fan drives, where robust output performance under harsh electrical conditions is paramount.

In pharmaceutical and food-grade manufacturing lines, the FC-TSRO-08UNI supports clean-in-place (CIP) valve sequencing and batch process safety interlocks, where precise output timing and diagnostic traceability are required for regulatory compliance. Across all these applications, the module’s warranty terms confirmed during quotation and ZYPLC’s availability subject to RFQ confirmation availability ensure that replacement and commissioning timelines are met without costly project delays.

Product Compatibility FAQ

Q1: Is the FC-TSRO-08UNI compatible with both new FSC system builds and existing FSC rack expansions?
Yes. The FC-TSRO-08UNI is fully backward-compatible with existing FSC rack infrastructure, including the FC-RACK-08 and FC-RACK-16 chassis. It can be inserted into any available I/O slot without requiring firmware upgrades to the CPU, provided the FSC system software version supports the module’s device descriptor. For new builds, it integrates directly into the FSC system configuration tool, where channel assignments, diagnostic thresholds, and SIF mappings are defined during engineering commissioning.

Q2: How does the FC-TSRO-08UNI support long-term maintenance and proof-test requirements in a SIL-rated architecture?
The module’s built-in online diagnostics continuously monitor output channel continuity, load current, and internal relay health, reporting faults to the FSC CPU without interrupting the safety function. This diagnostic coverage reduces the required manual proof-test frequency, lowering maintenance costs over the system lifecycle. Detailed fault logs accessible via the FSC engineering workstation enable maintenance engineers to identify degraded channels before they impact system availability, supporting a predictive maintenance strategy aligned with IEC 61511 requirements.

Q3: What warranty and supply assurance does ZYPLC provide for the FC-TSRO-08UNI?
ZYPLC provides a warranty terms confirmed during quotation on all FC-TSRO-08UNI units, covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm output channel integrity and communication bus compatibility. ZYPLC maintains availability subject to RFQ confirmation of FSC-series modules to support urgent project requirements, MRO replenishment, and emergency replacement scenarios. Global logistics support ensures rapid delivery to project sites across Asia, Europe, the Middle East, and the Americas.
