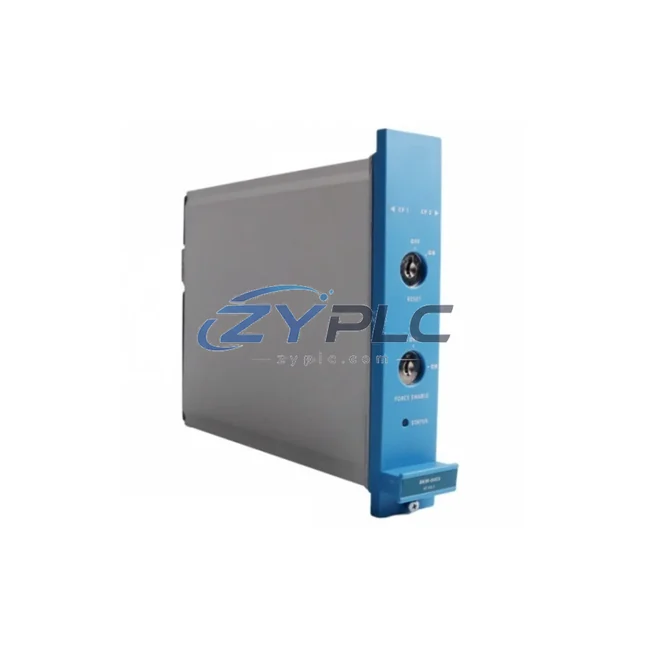

Honeywell FS-BKM-0001 Battery Key Module for FSC

Honeywell FS-BKM-0001 Battery Key Module for FSC: Sustaining Control System Integrity Across Every Layer

In safety-critical automation environments, the reliability of a control system is only as strong as its least-protected component. The Honeywell FS-BKM-0001 Battery Key Module is engineered to serve a precise and indispensable role within the Honeywell FSC (Fail Safe Controller) platform — preserving memory state, enabling secure program retention, and ensuring that the entire safety architecture remains coherent during power transitions, maintenance cycles, and emergency shutdowns. Far from a peripheral accessory, the FS-BKM-0001 is a structural element of the FSC system’s resilience design, operating in close coordination with the CPU, power supply, I/O modules, and communication layers that define modern process safety infrastructure.

The FSC platform is widely deployed across industries where functional safety is non-negotiable: oil and gas processing, chemical plants, power generation, offshore platforms, and water treatment facilities. Within these environments, the FS-BKM-0001 ensures that the FSC CPU — such as the FS-CPU-0001 or FS-CPU-0002 — retains its application program and configuration data even when the primary power supply is interrupted. This battery-backed key module acts as the last line of defense against data loss during unplanned outages, preventing costly re-commissioning and ensuring that the safety logic remains intact and immediately available upon system restart.

Product Specification Table

System Compatibility Notes

The FS-BKM-0001 does not operate in isolation — its value is realized through its integration into a fully coordinated FSC control architecture. At the control layer, the module interfaces directly with the FS-CPU-0001 or FS-CPU-0002 processor, ensuring that the safety application program is preserved across power cycles without requiring manual reload or re-validation. This is critical in SIL-rated environments where any deviation from the validated safety logic must be formally documented and re-approved.

At the power layer, the FS-BKM-0001 works in tandem with the FS-PSU-240516 power supply module, which provides the primary 24VDC rail to the FSC rack. When the FS-PSU-240516 detects a supply interruption, the FS-BKM-0001 seamlessly transitions to battery backup, maintaining CPU memory state without any gap in data integrity. This handoff is transparent to the control logic and requires no operator intervention.

At the I/O layer, the FSC system typically incorporates digital input modules such as the FS-DI-0001 and digital output modules such as the FS-DO-0001, which handle field signals from safety sensors, emergency stop circuits, pressure transmitters, and final control elements. The FS-BKM-0001 ensures that the I/O configuration tables and channel assignments stored in the CPU are never lost, eliminating the risk of I/O remapping errors after a power event.

At the communication layer, the FSC platform connects to higher-level SCADA and DCS systems via gateways such as the FS-COM-0001 communication module, which supports Modbus RTU, PROFIBUS DP, and other industrial protocols. The integrity of the communication configuration — node addresses, baud rates, protocol parameters — is equally protected by the FS-BKM-0001’s memory retention function. This means that after a power restoration, the FSC system reconnects to the SCADA network immediately, without requiring manual reconfiguration of communication parameters.

At the human-machine interface layer, operators monitoring the FSC system through an Experion PKS workstation or a dedicated HMI panel benefit from the FS-BKM-0001’s role in maintaining system continuity. Because the CPU retains its program and I/O mapping, the HMI displays accurate process states immediately upon restart, avoiding the confusion and potential safety risks associated with a system that has lost its configuration. The FS-RLY-0001 relay output module, often used for final element actuation in FSC architectures, also depends on the CPU’s retained logic to correctly initialize its output states upon power-up.

For redundant FSC architectures — common in high-availability applications such as turbine control, compressor protection, and emergency shutdown systems — the FS-BKM-0001 is installed in both the primary and secondary CPU modules. This ensures that failover between the primary and standby controllers does not result in any memory state discrepancy, maintaining seamless redundancy across the entire control system.

Industrial Application Notes

The Honeywell FS-BKM-0001 finds its most critical applications in industries where safety system availability directly impacts operational continuity and regulatory compliance.

In oil and gas processing, FSC-based emergency shutdown (ESD) systems protect wellheads, separators, and pipeline infrastructure. The FS-BKM-0001 ensures that the ESD logic — including valve positions, interlock sequences, and cause-and-effect matrices — is retained across any power interruption, enabling rapid system restart without the need for a full safety validation cycle.

In power generation, FSC systems are used for turbine protection, boiler management, and grid synchronization interlocks. The FS-BKM-0001 supports the CPU’s ability to retain turbine trip logic and protection setpoints, ensuring that the generator protection system is immediately operational after a plant auxiliary power failure.

In chemical and petrochemical plants, process safety management (PSM) regulations require that safety instrumented systems (SIS) maintain their validated configuration at all times. The FS-BKM-0001 supports compliance by ensuring that the FSC CPU’s safety application program is never lost, reducing the risk of a safety system being placed in bypass mode during re-commissioning after a power event.

In water treatment and municipal infrastructure, FSC systems control pump stations, chlorination systems, and overflow protection. The FS-BKM-0001 ensures that these systems restart correctly after grid power fluctuations, maintaining the integrity of the control logic without operator intervention.

In mining and metallurgical operations, where power quality is often variable and equipment operates in harsh environments, the FS-BKM-0001 provides an essential layer of protection against data loss caused by voltage sags, brownouts, and unplanned shutdowns. The module’s robust design ensures reliable operation across the full industrial temperature range, making it suitable for both climate-controlled control rooms and field-mounted enclosures.
