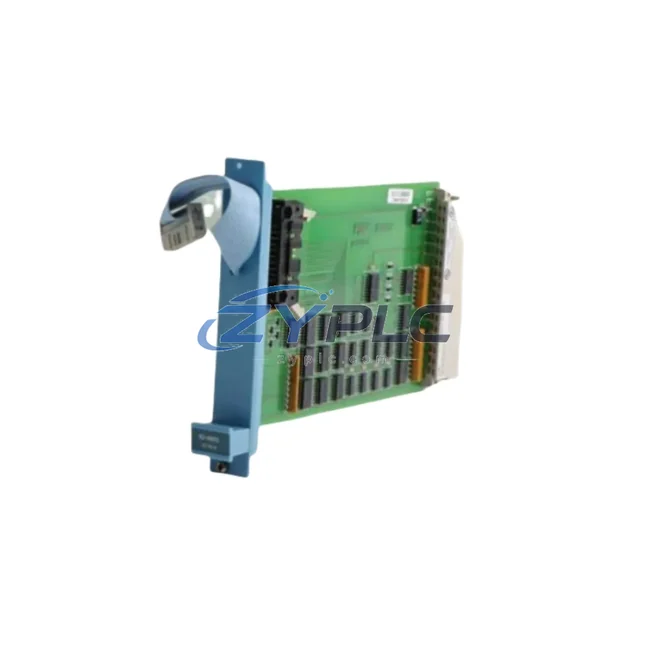

Honeywell FS-IO-0001 I/O Extender for FSC

Honeywell FS-IO-0001 I/O Extender for FSC Safety

The Honeywell FS-IO-0001 is a dedicated I/O Extender Module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) safety system platform — one of the most widely adopted SIL3-certified safety architectures in global process industries. Rather than functioning as a standalone device, the FS-IO-0001 is designed to operate as an integral node within a layered, redundant control system, extending the I/O capacity of the FSC controller rack while maintaining full compliance with IEC 61508 and IEC 61511 functional safety standards. Its role within the control architecture spans the I/O layer, the signal conditioning layer, and the inter-module communication layer, making it a critical component for engineers designing high-availability safety instrumented systems (SIS).

In a complete FSC safety system architecture, the FS-IO-0001 works in close coordination with the FSC Central Processing Unit — typically the FS-CPU-0001 or FS-CPU-0002 — which handles all safety logic execution and diagnostic monitoring. The CPU communicates with I/O extender modules via the FSC internal bus, enabling deterministic signal acquisition and output control across distributed rack configurations. This architecture supports both simplex and redundant CPU configurations, and the FS-IO-0001 is fully compatible with both deployment modes, ensuring that system architects can scale from basic safety loops to fully redundant 1oo2D or 2oo3 voting architectures without replacing field-level hardware.

Power integrity is a foundational requirement in any safety-rated system, and the FS-IO-0001 is designed to operate alongside the FS-PSU-0001 and FS-PSU-0002 power supply modules, which provide regulated, monitored DC power to the FSC rack. In redundant power configurations, dual PSU modules feed the backplane simultaneously, and the FS-IO-0001 draws from this shared power bus with built-in under-voltage detection. This ensures that any power anomaly is immediately flagged at the diagnostic layer before it can propagate to field devices or safety outputs.

At the network and communication layer, the FSC platform supports integration with plant-wide DCS and SCADA systems via the FS-COM-0001 communication gateway module, which handles Modbus RTU, PROFIBUS DP, and optional Ethernet/IP protocol translation. The FS-IO-0001 does not require direct network connectivity — its signals are aggregated by the CPU and forwarded to the communication gateway — but its channel data is fully accessible from the HMI and historian layers through this gateway. This architecture ensures that field signal data from the FS-IO-0001 is available for real-time monitoring, alarm management, and long-term process data logging without compromising the deterministic behavior of the safety loop.

For human-machine interface integration, the FSC system is commonly paired with Honeywell’s FSC HMI Workstation or third-party SCADA platforms via OPC-DA or OPC-UA server interfaces. Operators can monitor the diagnostic status of each FS-IO-0001 channel in real time, including open-circuit detection, short-circuit detection, and out-of-range signal alerts. This level of transparency is essential for maintenance teams operating in high-consequence environments such as offshore platforms, LNG terminals, and chemical processing facilities.

The FS-IO-0001 is mounted on the standard FSC backplane — compatible with the FS-BP-0008 (8-slot) and FS-BP-0016 (16-slot) rack configurations — and communicates with adjacent modules via the internal high-speed bus. The backplane architecture eliminates the need for inter-module wiring, reducing installation complexity and improving signal integrity in electrically noisy industrial environments. Terminal modules such as the FS-TM-0001 field termination assembly are used to connect field cables to the I/O extender, providing a clean separation between the safety system electronics and field wiring for ease of maintenance and hot-swap capability.

In layered automation systems, the FS-IO-0001 occupies the field I/O layer, sitting between the field instruments — pressure transmitters, temperature sensors, solenoid valves, and emergency shutdown actuators — and the safety logic solver. Its role is to accurately digitize analog and discrete field signals, apply configurable input filtering, and pass conditioned data to the CPU within the required response time window. For SIL3 applications, the module supports 1oo1D, 1oo2, and 2oo3 input voting configurations, allowing engineers to implement the appropriate level of redundancy for each safety function without adding external voting relays or logic modules.

From a long-term maintenance perspective, the FS-IO-0001 supports online diagnostics and module-level fault isolation, meaning that a faulty I/O channel can be identified and isolated without shutting down the entire safety system. This capability is particularly valuable in continuous process industries — such as petroleum refining, ethylene production, and power generation — where unplanned shutdowns carry significant economic and safety consequences. Spare module availability is maintained by ZYPLC to support rapid replacement, and all modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation with full traceability documentation.

Product Specification Table

System Compatibility Notes

A complete FSC-based safety system integrating the FS-IO-0001 typically includes the following coordinated components: the FS-CPU-0001 or FS-CPU-0002 safety logic solver as the system brain; the FS-PSU-0001 and FS-PSU-0002 redundant power supply modules ensuring continuous rack power; the FS-BP-0016 16-slot backplane providing the physical and electrical backbone for all modules; the FS-COM-0001 communication gateway for DCS/SCADA integration via PROFIBUS DP or Modbus RTU; the FS-TM-0001 field termination assembly for clean field cable management; and the FS-DO-0001 digital output module for driving solenoid valves and shutdown actuators. Together, these components form a cohesive, SIL3-rated safety instrumented system capable of handling the most demanding process safety applications. The FS-IO-0001 serves as the signal acquisition backbone of this architecture, ensuring that every field signal is accurately captured, diagnostically verified, and delivered to the safety logic solver within the required response time.

Industrial Application Notes

The Honeywell FS-IO-0001 finds application across a broad range of process industries where functional safety and system reliability are non-negotiable. In petroleum refining and petrochemical plants, the module is deployed in emergency shutdown (ESD) systems protecting reactors, distillation columns, and high-pressure pipelines, where SIL3-rated I/O is required to meet IEC 61511 lifecycle requirements. In LNG terminals and gas processing facilities, the FS-IO-0001 supports fire and gas detection systems, integrating signals from flame detectors, gas sensors, and deluge valve actuators into a unified FSC safety architecture. In power generation plants — including thermal, nuclear, and combined-cycle facilities — the module is used in turbine protection systems and boiler management systems, where fast response times and high diagnostic coverage are critical. In water and wastewater treatment facilities, the FS-IO-0001 supports pump protection, chemical dosing control, and overflow prevention systems, providing reliable I/O extension in environments with variable electrical noise. In mining and metallurgical operations, the module is integrated into conveyor safety systems, crusher protection circuits, and ventilation control systems, where rugged performance and long-term reliability are essential. Across all these applications, the FS-IO-0001’s compatibility with the full FSC ecosystem — combined with ZYPLC’s warranty terms confirmed during quotation and global spare parts availability — makes it the preferred choice for system integrators and plant engineers managing long-term safety system lifecycles.

Product Compatibility FAQ

Q1: Is the FS-IO-0001 compatible with both simplex and redundant FSC CPU configurations?
Yes. The FS-IO-0001 is fully compatible with both simplex (single CPU) and redundant (dual CPU) FSC configurations. In redundant CPU architectures, both CPUs communicate with the I/O extender modules via the shared backplane bus, and automatic CPU switchover does not interrupt I/O data acquisition. This makes the FS-IO-0001 suitable for high-availability SIS applications where continuous operation is required even during CPU maintenance or fault recovery.

Q2: Can the FS-IO-0001 be replaced online without shutting down the safety system?
The FSC platform supports module-level hot-swap capability for I/O modules in certain configurations, subject to the system’s safety validation documentation and site-specific procedures. ZYPLC recommends consulting the FSC system manual and your functional safety engineer before performing any online module replacement. All replacement modules supplied by ZYPLC include a warranty terms confirmed during quotation and are tested to factory specifications prior to shipment, ensuring seamless integration with your existing FSC architecture.

Q3: What documentation is provided with the FS-IO-0001 supplied by ZYPLC, and how does the warranty terms confirmed during quotation work?
Every FS-IO-0001 module supplied by ZYPLC is accompanied by a factory test report, traceability documentation, and a warranty terms confirmed during quotation certificate. The warranty covers manufacturing defects and functional failures under normal operating conditions as defined by Honeywell’s FSC system specifications. In the event of a warranty claim, ZYPLC provides rapid replacement support to minimize system downtime. For system integration projects requiring system-level compatibility verification, ZYPLC’s technical team can assist with pre-shipment configuration review and post-installation commissioning support.
