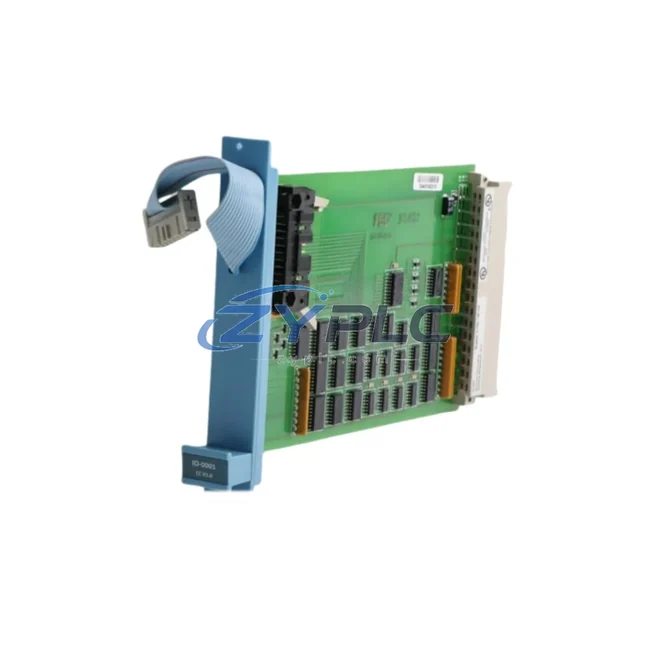

Honeywell FS-IOBUS-CPIO8 Safety I/O for FSC

Honeywell FS-IOBUS-CPIO8 Safety I/O for FSC: Control System Coordination and Upstream-Downstream Synergy

The Honeywell FS-IOBUS-CPIO8 is a dedicated safety I/O module engineered for seamless integration within the Honeywell FSC (Fail-Safe Controller) safety instrumented system architecture. Rather than functioning as a standalone component, the FS-IOBUS-CPIO8 is designed from the ground up to operate as a coordinated node within a multi-layer control hierarchy — connecting field-level process signals to the safety logic solver with deterministic, fault-tolerant performance. In safety-critical environments such as oil and gas, petrochemical processing, power generation, and water treatment, the integrity of the I/O layer directly determines the reliability of the entire safety instrumented function (SIF). The FS-IOBUS-CPIO8 addresses this requirement by providing a certified, bus-connected I/O interface that maintains signal fidelity, supports diagnostic transparency, and enables modular system expansion without compromising SIL-rated performance.

Within the FSC platform, the FS-IOBUS-CPIO8 occupies the I/O layer of the control architecture, sitting between the field instrumentation layer and the central safety logic solver. It communicates over the FSC I/O bus, enabling the CPU module — such as the Honeywell FSC CPU — to read process inputs and issue safety outputs with the cycle-time consistency required for SIL 2 and SIL 3 applications. The module’s bus-based architecture eliminates point-to-point wiring between the logic solver and each I/O card, reducing installation complexity and improving long-term maintainability across large-scale safety systems.

Product Specification Table

System Compatibility Notes

The FS-IOBUS-CPIO8 achieves its full performance potential when deployed as part of a coordinated FSC system architecture. At the logic solver level, the Honeywell FSC CPU module executes the safety application program and communicates with all I/O nodes — including the FS-IOBUS-CPIO8 — over the dedicated I/O bus. This bus architecture supports deterministic scan cycles, ensuring that process variable updates and safety output commands are delivered within the timing constraints defined by the safety requirements specification.

Power integrity is maintained through the Honeywell FSC Power Supply module, which provides regulated 24 VDC to the backplane and all connected I/O modules. In redundant configurations, dual power supply modules operate in parallel, with automatic switchover ensuring uninterrupted operation during a single power supply failure. The FS-IOBUS-CPIO8 benefits directly from this redundant power architecture, as bus-powered I/O modules are sensitive to supply voltage stability during high-demand process events.

For applications requiring redundant I/O capability, the FS-IOBUS-CPIO8 can be paired with a redundant I/O module in a 1oo2 or 2oo3 voting configuration, coordinated by the FSC CPU. This redundancy architecture is particularly relevant in emergency shutdown (ESD) systems and burner management systems (BMS), where a single I/O failure must not result in a spurious trip or a failure to trip. The Honeywell FSC Backplane provides the physical and electrical foundation for this multi-module arrangement, supporting hot-swap capability for maintenance without process interruption.

At the network layer, the FSC system integrates with plant-wide DCS and SCADA platforms through Honeywell FSC Communication Gateway modules, which support protocols such as Modbus RTU, Modbus TCP, and PROFIBUS DP. The FS-IOBUS-CPIO8’s process data is aggregated at the CPU level and made available to the gateway for upstream reporting to the Honeywell Experion PKS DCS or third-party SCADA systems. This integration enables operators to monitor safety system I/O status in real time from the control room HMI without compromising the independence of the safety layer.

At the human-machine interface layer, Honeywell HMI terminals and operator stations display the real-time status of FSC I/O channels, including the FS-IOBUS-CPIO8’s channel diagnostics, fault flags, and process variable values. This visibility supports rapid fault identification during commissioning and reduces mean time to repair (MTTR) during operational incidents. Terminal blocks and Honeywell FSC marshalling panels provide the field wiring interface, connecting field instruments — including pressure transmitters, temperature sensors, and solenoid valves — to the FS-IOBUS-CPIO8’s input and output channels.

Industrial Application Notes

In petrochemical and refinery applications, the FS-IOBUS-CPIO8 is deployed within emergency shutdown systems protecting high-pressure reactors, distillation columns, and storage tank farms. The module’s 8-channel configurable I/O supports a mix of digital inputs from field switches and analog inputs from process transmitters, enabling a single module to serve multiple safety functions within a compact rack footprint. Its TÜV-certified SIL 2/3 capability satisfies the functional safety requirements of IEC 61511, the process industry safety standard.

In power generation facilities — including thermal, combined-cycle, and renewable energy plants — the FS-IOBUS-CPIO8 supports turbine protection systems, boiler safety systems, and generator protection logic. The module’s high diagnostic coverage ensures that latent faults are detected during proof test intervals, maintaining the required probability of failure on demand (PFD) for the overall safety instrumented function.

In water and wastewater treatment plants, the FS-IOBUS-CPIO8 is used in chemical dosing safety systems, pump protection circuits, and overflow prevention logic. Its bus-based architecture simplifies system expansion as treatment capacity grows, allowing additional I/O modules to be added to the FSC rack without rewiring the logic solver or modifying the safety application program structure.

In mining and metallurgical operations, the module supports conveyor safety systems, crusher protection, and ventilation control in underground environments. The FSC platform’s modular architecture — anchored by components like the FS-IOBUS-CPIO8 — enables safety systems to be scaled from small standalone applications to large distributed safety networks spanning multiple process areas.

Across all industries, the FS-IOBUS-CPIO8 contributes to long-term maintenance efficiency through its standardized form factor, consistent bus interface, and compatibility with the broader FSC module ecosystem. Spare parts management is simplified when a single module type — backed by a warranty terms confirmed during quotation and verified pre-shipment testing — can serve multiple roles within the safety architecture.

Product Compatibility FAQ

Q1: Is the FS-IOBUS-CPIO8 compatible with all FSC system generations, and can it be mixed with other FSC I/O modules on the same backplane?
The FS-IOBUS-CPIO8 is designed for the Honeywell FSC platform and communicates over the proprietary FSC I/O bus. It is compatible with FSC backplanes and can be installed alongside other FSC I/O modules — including digital input, digital output, and analog I/O modules — on the same rack, provided the total bus load and power budget remain within the FSC system’s rated capacity. Always verify firmware and hardware revision compatibility with the FSC CPU module in use, as Honeywell periodically releases compatibility matrices for mixed-generation configurations.

Q2: What commissioning steps are required to integrate the FS-IOBUS-CPIO8 into an existing FSC safety system?
Integration of the FS-IOBUS-CPIO8 into an existing FSC system requires configuration of the module’s I/O channel assignments within the FSC engineering tool, followed by a functional test of each channel against the connected field instruments. The FSC CPU automatically detects the module on the I/O bus during system startup, but channel-level configuration — including input type, range, and safety function assignment — must be defined in the safety application program. A full proof test of the affected safety instrumented functions should be conducted after integration to confirm that the SIL rating of the overall system is maintained.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term spare parts management?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions, with pre-shipment testing performed on every unit to verify electrical integrity and bus communication performance. For long-term spare parts management, the FS-IOBUS-CPIO8’s standardized FSC form factor means that a single spare module can serve as a replacement for multiple installed units across the safety system. Our team provides sourcing support for obsolete and long-lead FSC components, ensuring that aging safety systems can be maintained without forced platform migration.
