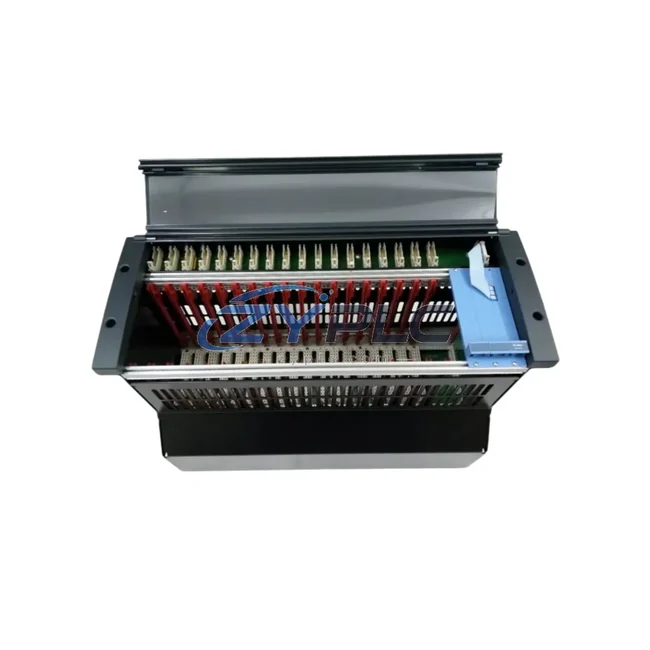

Honeywell FS-IOCHAS-0001S I/O Chassis for FS Series

Honeywell FS-IOCHAS-0001S I/O Chassis for FS Series: Compatibility and Replacement Notes

The Honeywell FS-IOCHAS-0001S is a dedicated Safety I/O Chassis engineered for deployment within the Honeywell Safety Manager FS Series Safety Instrumented System (SIS). In modern industrial automation, no single component operates in isolation. The FS-IOCHAS-0001S is designed from the ground up to serve as the structural backbone of the I/O layer, providing the physical and electrical foundation upon which safety-rated input and output modules are mounted, powered, and communicated with the Safety Manager CPU. Its role in the overall control architecture spans from field signal termination at the I/O layer through to deterministic safety logic execution at the control layer, making it an indispensable element of any FS Series SIS deployment.

Within a layered automation architecture, the FS-IOCHAS-0001S occupies the critical junction between field instrumentation and the safety logic solver. Field devices — including pressure transmitters, temperature sensors, emergency shutdown valves, and flame detectors — terminate their signals through marshalling panels and into the I/O modules seated within this chassis. The chassis provides the backplane communication bus that allows the Safety Manager CPU module, such as the FS-CPU-0001S or FS-CPU-0002S, to poll each I/O slot with deterministic cycle times, ensuring that safety functions are executed within the required response time as defined by the Safety Requirement Specification (SRS).

System architects specifying the FS-IOCHAS-0001S must consider its integration with the broader FS Series platform. The chassis is designed to accept a range of FS Series I/O modules, including digital input modules (FS-DI-0001S), digital output modules (FS-DO-0001S), analog input modules (FS-AI-0001S), and analog output modules (FS-AO-0001S). Each module communicates over the chassis backplane, eliminating the need for individual field wiring between modules and the CPU, thereby reducing wiring complexity, minimizing potential failure points, and improving overall system maintainability. The power supply module, such as the FS-PSU-0001S, mounts directly within the chassis or in an adjacent power rail, providing redundant 24VDC distribution to all seated modules and ensuring that a single power supply failure does not compromise safety function availability.

From a network and communications perspective, the FS-IOCHAS-0001S supports the Safety Manager’s integration into plant-wide DCS and SCADA environments. The Safety Manager CPU communicates upstream via Modbus TCP, PROFIBUS DP, or OPC DA/UA interfaces, allowing process data and safety status information to be transmitted to Honeywell Experion PKS DCS workstations or third-party SCADA systems without compromising the integrity of the safety network. The chassis itself does not introduce additional network latency, as all I/O scanning is handled internally via the backplane bus, preserving the deterministic behavior required for SIL 2 and SIL 3 certified safety functions.

Redundancy is a core design consideration for any SIS, and the FS-IOCHAS-0001S supports Honeywell’s approach to fault-tolerant architecture. In high-availability applications, dual chassis configurations can be deployed with redundant CPU modules and cross-chassis communication links, ensuring that a single chassis fault does not result in a spurious trip or loss of safety function. This architecture is particularly relevant in applications such as offshore platform emergency shutdown systems, refinery fired heater safety systems, and chemical reactor protection systems, where both safety integrity and process availability must be maintained simultaneously.

Product Specification Table

System Compatibility Notes

The FS-IOCHAS-0001S achieves its full value when integrated within a complete Honeywell Safety Manager FS Series control system architecture. A typical SIS deployment built around this chassis includes the following coordinated components:

At the control layer, the FS-CPU-0001S or FS-CPU-0002S Safety Manager CPU module serves as the logic solver, executing the safety application program and managing all I/O scanning via the chassis backplane. The CPU’s deterministic scan cycle ensures that all field signals are processed and safety outputs are actuated within the required response time. For applications requiring CPU redundancy, a dual CPU configuration with automatic failover can be implemented within the same or adjacent chassis, with the FS-IOCHAS-0001S providing the physical backplane that supports this redundant topology.

At the power layer, the FS-PSU-0001S power supply module provides regulated 24VDC to all chassis-mounted modules. Redundant power supply configurations — using two FS-PSU-0001S units in a 1oo2 power architecture — ensure that a single power supply failure does not interrupt safety function execution. The chassis backplane distributes power uniformly to all seated I/O modules, eliminating the need for individual module power wiring.

At the I/O layer, FS-DI-0001S digital input modules receive discrete signals from field devices such as emergency stop pushbuttons, pressure switches, and level switches. FS-DO-0001S digital output modules drive safety-critical actuators including solenoid valves, motor contactors, and alarm annunciators. For process variable monitoring, FS-AI-0001S analog input modules accept 4–20mA signals from transmitters, while FS-AO-0001S analog output modules provide control signals to modulating valves and variable speed drives where required by the safety function.

At the network layer, the Safety Manager CPU communicates with the plant DCS — typically a Honeywell Experion PKS system — via a dedicated safety network interface. This allows process operators to monitor SIS status, acknowledge alarms, and initiate manual shutdowns from the DCS operator workstation without direct interaction with the SIS hardware. The FS-IOCHAS-0001S chassis supports this architecture by providing a stable, electrically isolated backplane environment that prevents network-layer disturbances from propagating into the safety I/O scanning process.

At the human-machine interface layer, Honeywell Safety Manager engineering workstations running Safety Builder configuration software provide the tools necessary to configure, download, and commission the safety application. Maintenance technicians can use the Safety Manager diagnostic interface to perform online module health checks, view I/O channel diagnostics, and verify that all chassis-mounted modules are operating within specification — all without interrupting the running safety application.

Industrial Application Notes

The FS-IOCHAS-0001S is deployed across a wide range of process industries where functional safety and system reliability are non-negotiable requirements.

In oil and gas processing and petrochemical plants, the chassis forms the core of emergency shutdown (ESD) and high-integrity pressure protection systems (HIPPS). It interfaces with wellhead sensors, pipeline pressure transmitters, and ESD valve positioners, executing shutdown logic in response to abnormal process conditions. The SIL 2/SIL 3 capability of the FS Series platform ensures compliance with IEC 61511 requirements for process sector SIS applications.

In power generation facilities — including thermal, combined cycle, and nuclear auxiliary systems — the FS-IOCHAS-0001S supports turbine protection systems, boiler safety systems, and generator protection relays. Its deterministic backplane scanning ensures that protection functions are executed within the millisecond response times required by turbine OEM specifications.

In chemical and pharmaceutical manufacturing, the chassis is used in reactor protection systems, where it monitors temperature, pressure, and flow variables and initiates emergency cooling or feed isolation in response to runaway reaction conditions. The chassis’s support for analog I/O modules makes it well-suited for continuous process variable monitoring in these applications.

In water and wastewater treatment facilities, the FS-IOCHAS-0001S supports pump protection systems, chlorine dosing safety interlocks, and high-level shutdown systems for storage tanks and clarifiers. Its wide operating temperature range and humidity tolerance make it suitable for installation in outdoor control buildings and pump station enclosures.

In mining and metals processing, the chassis is deployed in conveyor protection systems, crusher safety interlocks, and smelter emergency shutdown systems. Its robust backplane design and support for redundant power supplies ensure continuous operation in the high-vibration, high-dust environments typical of mining and metallurgical facilities.

Product Compatibility FAQ

Q1: Is the FS-IOCHAS-0001S compatible with all Honeywell Safety Manager FS Series CPU and I/O modules?
Yes. The FS-IOCHAS-0001S is designed as the standard I/O chassis for the Honeywell Safety Manager FS Series platform. It is compatible with FS-CPU-0001S and FS-CPU-0002S CPU modules, as well as the full range of FS Series I/O modules including FS-DI-0001S, FS-DO-0001S, FS-AI-0001S, and FS-AO-0001S. All modules communicate via the chassis backplane and are configured using Honeywell Safety Builder engineering software. If you are expanding an existing FS Series SIS or replacing a chassis in a running system, please contact our technical team to confirm slot configuration and firmware compatibility before installation.

Q2: Can the FS-IOCHAS-0001S be used in a redundant CPU architecture, and what are the installation requirements?
Yes. The FS Series platform supports redundant CPU configurations, and the FS-IOCHAS-0001S chassis is designed to accommodate this topology. In a redundant architecture, two CPU modules are installed in designated slots within the chassis or across two chassis units, with automatic failover ensuring that a CPU module fault does not interrupt safety function execution. Installation requires careful attention to slot assignment, backplane jumper configuration, and Safety Builder project settings to enable redundancy mode. Our engineering team can provide configuration guidance and commissioning support for redundant FS Series deployments covered under the warranty terms confirmed during quotation.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term maintenance supported for the FS-IOCHAS-0001S?
Every FS-IOCHAS-0001S supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each chassis undergoes functional testing to verify backplane integrity, slot connectivity, and power distribution performance. For long-term maintenance, we recommend maintaining a spare chassis in inventory to support rapid replacement in the event of a hardware fault, minimizing process downtime. Our team can assist with sourcing compatible FS Series modules, providing configuration backup services, and supporting scheduled maintenance activities throughout the operational life of your SIS installation.
