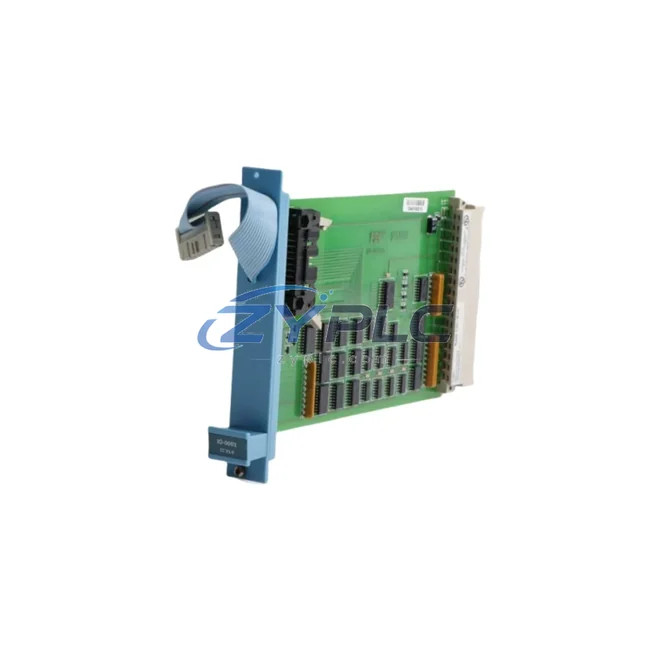

Honeywell FS-SAI-1620M Analog Input for FSC

Honeywell FS-SAI-1620M Analog Input for FSC Safety: Compatibility and Replacement Notes

The Honeywell FS-SAI-1620M is a 16-channel, 24 VDC safety analog input module purpose-engineered for deployment within the Honeywell FSC (Fail-Safe Controller) Safety Manager platform. In modern safety-instrumented systems (SIS), the integrity of the entire control architecture depends not only on the logic solver but on the seamless coordination between field signal acquisition, safety-rated I/O, redundant power distribution, and deterministic communication networks. The FS-SAI-1620M occupies a critical position in this layered architecture, serving as the primary interface between field transmitters and the FSC safety CPU, ensuring that process variables are captured, validated, and delivered with the diagnostic coverage required by IEC 61511 and IEC 61508 functional safety standards.

Within a complete FSC system architecture, the FS-SAI-1620M operates in close coordination with the FSC CPU module (such as the FS-CPS-0800 or FS-CPS-1600), the system backplane, redundant power supply modules (FS-PSU-0024), and the communication gateway modules that bridge the safety network to the plant DCS or SCADA layer. Each analog input channel supports 4–20 mA HART-compatible signals, enabling system integration with intelligent field devices and allowing diagnostic data to flow transparently through the safety architecture without compromising SIL-rated signal paths. This level of integration reduces engineering overhead during commissioning and simplifies long-term maintenance across the full system lifecycle.

The module’s architecture is designed for high-density I/O environments where rack space, wiring economy, and channel-to-channel isolation are equally important. When installed in an FSC I/O rack alongside complementary modules such as the FS-SDO-0824 digital output module, FS-SDI-1620 digital input module, and FS-SAO-0820 analog output module, the FS-SAI-1620M contributes to a unified, diagnostically coherent I/O layer that supports both simplex and redundant system configurations. Redundant I/O architectures, where dual FS-SAI-1620M modules monitor the same field signals through voted logic in the CPU, are commonly deployed in high-demand SIL 2 and SIL 3 applications such as burner management systems, emergency shutdown systems, and high-integrity pressure protection systems.

Product Specification Table

System Compatibility Notes

A robust FSC-based safety architecture integrates the FS-SAI-1620M within a multi-layer control hierarchy. At the control layer, the FSC CPU module (e.g., FS-CPS-0800) executes the safety application logic, processing validated analog values delivered by the FS-SAI-1620M through the system backplane. Redundant CPU configurations use dual processors with cross-checking to ensure that no single point of failure can compromise the safety function, and the analog input data from the FS-SAI-1620M feeds both processors simultaneously in lock-step operation.

At the power layer, redundant FS-PSU-0024 power supply modules provide conditioned 24 VDC to the I/O rack, ensuring that the FS-SAI-1620M and its companion modules — including the FS-SDI-1620 digital input module and FS-SAO-0820 analog output module — maintain continuous operation even during a single power supply failure. The power architecture is designed to support hot-swap replacement of individual supply modules without interrupting the safety function, a critical requirement in continuous-process industries.

At the network and communication layer, FSC gateway modules (such as the FS-GW-MODBUS or FS-GW-PROFIBUS) bridge the safety I/O data from the FSC backplane to the plant-wide DCS or SCADA system, enabling operators to monitor analog process values in real time through HMI stations without creating any data path that could compromise SIL integrity. The HART pass-through capability of the FS-SAI-1620M further allows field device diagnostics — from pressure transmitters, flow meters, and temperature sensors — to be accessed through the asset management layer without additional wiring or intrusive testing.

At the field termination layer, marshalling terminal blocks and FSC-compatible field termination assemblies (FTAs) provide the physical interface between field cables and the FS-SAI-1620M’s input channels. Proper FTA selection ensures that intrinsic safety barriers or galvanic isolators can be incorporated where hazardous area installations require them, maintaining the overall system’s Ex certification and SIL rating. The combination of the FS-SAI-1620M, its associated FTA, and the FSC CPU creates a complete, validated safety loop from field sensor to logic solver.

Industrial Application Notes

The FS-SAI-1620M is deployed across a wide range of process industries where functional safety and system architecture integrity are non-negotiable requirements. In oil and gas upstream and midstream facilities, the module serves as the primary analog input interface for emergency shutdown (ESD) systems, monitoring wellhead pressures, separator levels, and pipeline flow rates against predefined safety limits. Its SIL 2/3 capability ensures that the FSC system can initiate a safe state within the required response time, even under worst-case diagnostic conditions.

In petrochemical and refinery applications, the FS-SAI-1620M is integrated into burner management systems (BMS) and high-integrity pressure protection systems (HIPPS), where it monitors furnace temperatures, fuel gas pressures, and reactor vessel pressures. The module’s high diagnostic coverage and channel-level fault detection ensure that spurious trips are minimized while genuine hazardous conditions are detected and acted upon within the SIL-required probability of failure on demand (PFD) targets.

In power generation and utilities, the module supports turbine protection systems and boiler safety interlocks, where analog signals from vibration sensors, bearing temperature detectors, and steam pressure transmitters must be processed with deterministic timing and high reliability. Water treatment and municipal infrastructure projects also deploy the FS-SAI-1620M in chemical dosing control and pump protection systems, where the FSC platform’s proven track record in safety-critical applications provides the regulatory compliance evidence required by local authorities.

Mining, metals, and minerals processing operations use the FS-SAI-1620M in conveyor protection systems, crusher monitoring, and smelter process control, where the harsh electrical environment demands robust analog input hardware with strong common-mode rejection and EMC immunity. The module’s industrial-grade design, combined with the FSC platform’s extensive global installation base, provides engineering teams with confidence in both the hardware’s performance and the availability of long-term spare parts and technical support.

Product Compatibility FAQ

Q1: Is the FS-SAI-1620M compatible with both simplex and redundant FSC system configurations, and what hardware is required for a redundant analog input architecture?
A: Yes. The FS-SAI-1620M supports both simplex and 1oo2 (one-out-of-two) redundant analog input configurations within the FSC Safety Manager platform. For a redundant architecture, two FS-SAI-1620M modules are installed in the same or adjacent I/O racks, with each module connected to the same field transmitter via a signal splitter or dual-output transmitter. The FSC CPU performs voted comparison of the two analog values, detecting discrepancies that may indicate a failing transmitter or wiring fault. This configuration is fully supported by the FSC system’s built-in diagnostic and voting logic, and no additional third-party hardware is required beyond the standard FSC rack and backplane infrastructure.

Q2: How does the FS-SAI-1620M support system integration with plant asset management systems, and does HART communication affect the SIL rating of the safety loop?
A: The FS-SAI-1620M supports HART pass-through communication, allowing HART-enabled field devices to transmit secondary process variables and diagnostic data to the plant asset management system (AMS) without interrupting the primary 4–20 mA safety signal. This system integration capability is implemented in a manner that preserves the SIL integrity of the safety loop: the HART communication channel is electrically isolated from the safety signal path, and the FSC system’s safety application logic operates exclusively on the validated 4–20 mA analog value. The HART data path is treated as a non-safety maintenance channel, consistent with IEC 61511 guidance on the use of digital communication in SIS applications.

Q3: What does the warranty terms confirmed during quotation cover for the FS-SAI-1620M, and what is the recommended approach for long-term spare parts management in FSC-based safety systems?
A: ZYPLC’s warranty terms confirmed during quotation covers the FS-SAI-1620M against manufacturing defects, functional failures, and performance deviations from the published specification under normal operating conditions. For long-term spare parts management, we recommend maintaining a minimum of one spare FS-SAI-1620M module per four installed modules in critical safety systems, consistent with industry best practice for SIS lifecycle management under IEC 61511 Part 1. Our inventory team supports RFQ sourcing for the FS-SAI-1620M and related FSC platform components — including the FS-SDI-1620, FS-SAO-0820, and FSC power supply modules — to support emergency replacement requirements with short lead times. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for availability confirmation and system-level procurement support.
