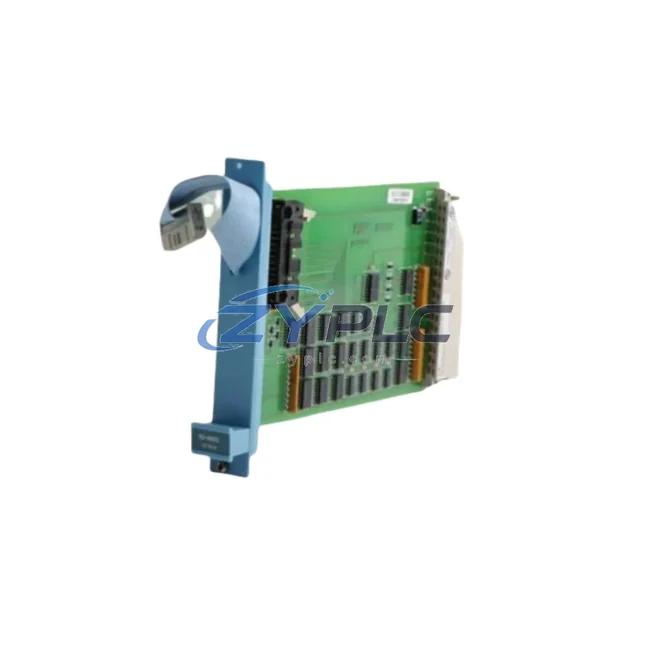

Honeywell FS-SDI-1624 Digital Input for Safety Manager FS

Honeywell FS-SDI-1624 Digital Input for Safety Manager FS

The Honeywell FS-SDI-1624 is a 16-channel serial digital input module engineered for seamless integration within the Honeywell Safety Manager FS Series safety instrumented system (SIS) architecture. Rather than functioning as a standalone component, the FS-SDI-1624 occupies a critical position in the I/O layer of a multi-tier safety control architecture — collecting field-level discrete signals and delivering them with deterministic reliability to the central safety logic solver. In modern process safety environments, where functional safety standards such as IEC 61511 and IEC 61508 govern system design, the selection of each I/O module directly impacts the overall SIL (Safety Integrity Level) rating of the safety loop. The FS-SDI-1624 is designed to meet these demands with precision.

Within a complete Safety Manager FS control system, the FS-SDI-1624 operates in close coordination with the FS-CPU-0014 or FS-CPU-0024 safety logic solver, which serves as the central processing unit responsible for executing the safety application program and managing all I/O communications. The digital input signals acquired by the FS-SDI-1624 — from field devices such as emergency shutdown (ESD) pushbuttons, pressure switches, level switches, and gas detection sensors — are transmitted via the FS Series backplane bus to the CPU module for real-time evaluation against the configured safety logic. This tight integration between the I/O layer and the control layer ensures sub-second response times and eliminates signal ambiguity in critical process conditions.

At the power layer, the FS-SDI-1624 relies on the FS-PSU-0024 or equivalent redundant power supply modules to maintain continuous operation. In high-availability architectures, dual power supply configurations are employed to eliminate single points of failure, ensuring that the digital input module remains energized even during a primary power supply fault. The FS Series chassis and backplane, such as the FS-RCU-0016 remote chassis unit, provide the physical mounting and communication infrastructure that connects the FS-SDI-1624 to the rest of the safety system, supporting both local and remote I/O expansion across geographically distributed process units.

For applications requiring redundant I/O, the FS-SDI-1624 can be deployed in a 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting architecture alongside companion digital input modules, enhancing fault tolerance and diagnostic coverage. This redundancy design is particularly critical in industries such as oil and gas, petrochemical refining, offshore platforms, and LNG terminals, where a spurious trip or a missed dangerous failure can result in significant production loss or safety incidents. The module’s built-in diagnostics continuously monitor channel integrity, reporting faults to the FS-CPU for immediate action and logging in the system event journal.

At the network and communication layer, the Safety Manager FS platform supports integration with Honeywell’s Experion PKS distributed control system (DCS) via the FS-NET-0001 safety network interface module, enabling seamless data exchange between the safety layer and the process control layer. This system integration allows operators at the Experion Station HMI to monitor safety system status, acknowledge alarms, and review safety function states without leaving the unified control environment. The FS-SDI-1624’s channel data is thus visible not only within the safety logic solver but also across the plant-wide control network, supporting informed operational decision-making.

From an engineering and commissioning perspective, the FS-SDI-1624 supports loop checking and channel-by-channel diagnostic testing through the Safety Manager engineering workstation, using Honeywell’s Control Builder F software. Engineers can force individual input channels during pre-startup safety reviews (PSSRs), verify signal integrity against field instrument calibration records, and validate the complete safety function from sensor to final element without interrupting adjacent safety loops. This capability significantly reduces commissioning time and minimizes the risk of human error during the critical pre-startup phase.

For long-term maintenance, the FS-SDI-1624’s hot-swap capability — supported within the FS Series chassis architecture — allows field technicians to replace a faulty module without de-energizing the entire safety system, provided the system is configured with redundant I/O. This feature is invaluable in continuous process industries where planned shutdowns are infrequent and unplanned downtime carries substantial financial and safety consequences. Spare module inventory management is simplified by the module’s standardized form factor, which is compatible across multiple FS Series chassis configurations.

All FS-SDI-1624 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that every unit meets Honeywell’s original manufacturing specifications. Each module undergoes functional verification prior to shipment, and our technical team provides system integration support to assist engineers in configuring the module within their specific Safety Manager FS architecture. Whether you are building a new safety system, expanding an existing installation, or sourcing a replacement module for an operational plant, ZYPLC maintains ready stock of the FS-SDI-1624 to support your project timeline.

Product Specification Table

System Compatibility Notes

The FS-SDI-1624 achieves its full potential when deployed as part of a coordinated Safety Manager FS system architecture. At the control layer, the FS-CPU-0014 or FS-CPU-0024 logic solver processes the 16 digital input channels acquired by the FS-SDI-1624, executing the configured safety functions in accordance with the plant’s Safety Requirements Specification (SRS). For applications requiring analog input acquisition alongside digital inputs, the FS-SAI-1620 analog input module can be installed in adjacent slots within the same FS Series chassis, sharing the same backplane communication bus and CPU resources.

Power integrity is maintained by the FS-PSU-0024 redundant power supply module, which provides regulated 24 VDC to all modules within the chassis, including the FS-SDI-1624. For digital output control — such as energizing solenoid valves or de-energizing motor starters in response to a safety function activation — the FS-SDO-0824 digital output module operates in parallel within the same chassis, completing the input-to-output safety loop. Communication between the Safety Manager FS system and the plant DCS is facilitated by the FS-NET-0001 safety network interface module, which supports Modbus TCP and OPC DA/UA protocols for system integration with Honeywell Experion PKS or third-party SCADA systems.

For remote I/O expansion in large-scale process plants, the FS-RCU-0016 remote chassis unit extends the Safety Manager FS I/O capacity to field junction boxes located up to several hundred meters from the main control room, with the FS-SDI-1624 deployable in remote chassis configurations. At the human-machine interface layer, the Honeywell Experion Station provides operators with a unified view of safety system status, including the real-time state of all 16 input channels monitored by the FS-SDI-1624. Terminal modules and marshalling cabinets equipped with FS Series field termination assemblies (FTAs) provide the physical wiring interface between field instruments and the FS-SDI-1624 input channels, simplifying cable management and reducing installation errors.

Industrial Application Notes

The FS-SDI-1624 is deployed across a wide range of process industries where functional safety is a regulatory and operational requirement. In oil and gas upstream and midstream facilities, the module acquires discrete signals from wellhead ESD valves, high-pressure switches, and flame and gas detectors, feeding the Safety Manager FS logic solver to execute emergency shutdown sequences in compliance with IEC 61511. In petrochemical and refining plants, the FS-SDI-1624 monitors reactor interlock inputs, high-temperature switches, and pump seal failure contacts, providing the safety layer with the real-time field data needed to prevent runaway reactions or equipment damage.

In power generation and utilities, the module is used to monitor turbine protection inputs, boiler safety interlocks, and transformer fault contacts, integrating with the plant’s safety instrumented functions (SIFs) to protect critical rotating equipment. Water and wastewater treatment facilities deploy the FS-SDI-1624 to monitor pump status, valve position feedback, and overflow detection switches, ensuring that safety functions are executed reliably even in the presence of electrical noise from variable frequency drives (VFDs) and other industrial equipment. In mining and metallurgical operations, the module’s robust design and high diagnostic coverage make it suitable for monitoring conveyor belt safety switches, crusher interlock contacts, and ventilation system status inputs in harsh environmental conditions.

For packaging and discrete manufacturing lines, the FS-SDI-1624 provides the safety I/O infrastructure for machine guarding interlocks, light curtain inputs, and emergency stop circuits, supporting the implementation of safety functions in accordance with ISO 13849 and IEC 62061. Across all these applications, the module’s ability to deliver reliable, diagnostically monitored digital input acquisition — combined with its seamless integration into the Safety Manager FS architecture — makes it a preferred choice for safety engineers designing layered automation systems with long operational lifespans.

Product Compatibility FAQ

Q1: Is the FS-SDI-1624 compatible with both the FS-CPU-0014 and FS-CPU-0024 logic solvers, and can it be used in a mixed I/O chassis with analog modules?
Yes. The FS-SDI-1624 is fully compatible with both the FS-CPU-0014 and FS-CPU-0024 CPU modules within the Safety Manager FS Series architecture. It can be installed in any available I/O slot within the FS Series chassis alongside analog input modules such as the FS-SAI-1620 and digital output modules such as the FS-SDO-0824, provided that the total I/O channel count does not exceed the CPU’s configured capacity. Mixed I/O chassis configurations are standard practice in Safety Manager FS installations and are fully supported by Honeywell’s Control Builder F engineering software.

Q2: Can the FS-SDI-1624 be replaced in the field without shutting down the entire safety system?
Hot-swap replacement of the FS-SDI-1624 is supported when the system is configured with redundant I/O, meaning that a second FS-SDI-1624 module is installed in a redundant slot covering the same input channels. In this configuration, the redundant module continues to acquire field signals while the faulty module is removed and replaced, maintaining safety function availability throughout the maintenance operation. For non-redundant I/O configurations, module replacement requires a controlled bypass of the affected safety functions in accordance with the plant’s Management of Change (MOC) and Permit to Work (PTW) procedures. ZYPLC’s warranty terms confirmed during quotation covers all manufacturing defects, and our technical support team can assist with replacement planning and commissioning verification.

Q3: What long-term maintenance considerations apply to the FS-SDI-1624, and how does ZYPLC support ongoing spare parts availability?
Honeywell recommends periodic proof testing of all Safety Manager FS I/O modules, including the FS-SDI-1624, in accordance with the safety function’s required proof test interval (PTI) as defined in the Safety Requirements Specification. Proof testing involves forcing each input channel and verifying that the safety logic solver responds correctly, which can be performed using Control Builder F without interrupting adjacent safety loops. ZYPLC maintains a dedicated inventory of FS-SDI-1624 modules to support both planned maintenance and emergency replacement requirements, with global shipping capability to minimize plant downtime. All modules are supplied with a warranty terms confirmed during quotation and full functional verification documentation.
