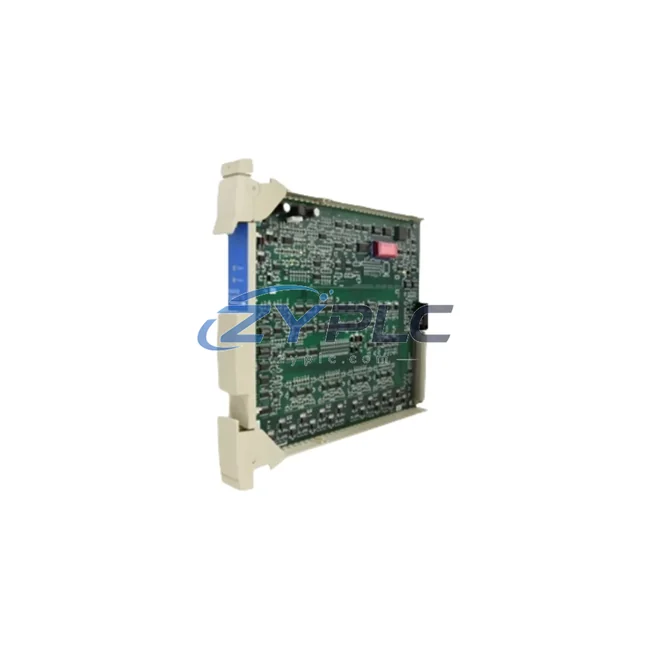

Honeywell FS-SDIL-1608 Safety Input for Safety Manager FS

Honeywell FS-SDIL-1608 Safety Input for Safety Manager FS

In safety-critical industrial automation, every layer of the control architecture must operate with absolute reliability and deterministic response. The Honeywell FS-SDIL-1608 is a 16-channel SIL-rated safety digital input module engineered specifically for the Safety Manager FS platform — Honeywell’s dedicated functional safety controller designed to meet IEC 61508 and IEC 61511 requirements across process industries. Rather than functioning as a standalone component, the FS-SDIL-1608 is conceived as a system-integrated element that anchors the I/O layer of a complete safety instrumented system (SIS), coordinating upstream field signals with the safety logic solver and downstream actuator commands in a coherent, validated architecture.

The FS-SDIL-1608 accepts 16 discrete digital input channels, each capable of reading field-level signals from pressure switches, emergency shutdown (ESD) pushbuttons, flame and gas detectors, valve position feedback sensors, and other safety-rated field devices. These signals are conditioned, validated, and transmitted to the Safety Manager FS CPU — such as the FS-CPU-0800 or FS-CPU-1600 — via the system backplane, ensuring that the logic solver receives clean, diagnostically verified data at every scan cycle. The module’s internal diagnostics continuously monitor channel integrity, detecting open circuits, short circuits, and signal discrepancies before they can propagate into the safety logic layer.

Within the Safety Manager FS chassis, the FS-SDIL-1608 occupies a defined slot on the FS-RIO-0800 or FS-RIO-1600 remote I/O backplane, enabling distributed I/O placement across large process units without compromising signal integrity or diagnostic coverage. This distributed architecture is particularly valuable in facilities such as LNG terminals, offshore platforms, and petrochemical complexes, where field devices may be located hundreds of meters from the central safety controller. The module communicates over the Safety Manager FS internal bus, maintaining synchronization with the FS-PSU-0800 power supply unit and the system’s redundancy management layer.

System architects designing redundant SIS configurations can deploy the FS-SDIL-1608 in voted input arrangements — 1oo2, 2oo3, or 2oo2D — depending on the required Safety Integrity Level and process demand rate. This voting logic is configured within the Safety Manager FS engineering environment and executed by the CPU, while the FS-SDIL-1608 provides the raw channel data with full diagnostic transparency. Integration with FS-SDOL-1608 safety digital output modules and FS-SAIL-0800 analog input modules on the same backplane allows engineers to construct complete cause-and-effect matrices within a single validated platform, reducing inter-system communication complexity and minimizing potential failure modes at system boundaries.

From a network and communications perspective, the Safety Manager FS system — with the FS-SDIL-1608 as part of its I/O complement — interfaces with Honeywell’s Experion PKS distributed control system via the FS-ETH-0800 Ethernet gateway module, enabling supervisory visibility of safety system status without compromising the independence of the safety layer. This architecture satisfies the IEC 61511 requirement for separation between the basic process control system (BPCS) and the SIS, while still providing operators with real-time diagnostic data at the HMI level. Operator workstations running Honeywell’s Safety Builder or Safety Manager configuration tools can monitor FS-SDIL-1608 channel states, diagnostic alarms, and module health indicators without any direct write access to the safety logic.

Installation of the FS-SDIL-1608 follows the Safety Manager FS system’s hot-swap and online replacement procedures, allowing qualified engineers to replace a module during plant operation without initiating a full system shutdown — a critical capability in continuous process industries where unplanned downtime carries significant economic and safety consequences. The module’s mechanical design ensures positive keying within the backplane slot, preventing incorrect module insertion and maintaining wiring integrity through the system’s marshalling and terminal block infrastructure, which may include FS-TBU-0800 terminal base units for field wiring termination.

Long-term maintainability is a core design principle of the FS-SDIL-1608. Honeywell’s Safety Manager FS platform is supported by a global network of certified system integrators and Honeywell Process Solutions service centers, ensuring that spare modules, firmware updates, and engineering support remain available throughout the system’s operational lifecycle — typically 20 to 30 years in process industry applications. ZYPLC maintains availability subject to RFQ confirmation of the FS-SDIL-1608 and associated Safety Manager FS components, providing rapid global dispatch to minimize the risk of extended downtime due to module unavailability. Every unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation, with full traceability documentation available upon request.

Product Specification Table

System Compatibility Notes

The FS-SDIL-1608 achieves its full value when deployed as part of a coordinated Safety Manager FS system architecture. At the logic solver level, the FS-CPU-0800 or FS-CPU-1600 processes the validated input data from the FS-SDIL-1608 and executes the configured safety functions — ESD, fire and gas, burner management, or high-integrity pressure protection — within the deterministic scan cycle of the Safety Manager FS platform. Power integrity across the chassis is maintained by the FS-PSU-0800 redundant power supply unit, which provides conditioned DC power to all backplane-mounted modules including the FS-SDIL-1608.

On the output side, the FS-SDOL-1608 safety digital output module works in direct coordination with the FS-SDIL-1608, translating the CPU’s safety logic decisions into actuator commands — solenoid valve de-energization, motor trip signals, or alarm relay activation. For process variables requiring analog measurement, the FS-SAIL-0800 analog input module occupies adjacent backplane slots, providing 4–20 mA signal acquisition for pressure transmitters, temperature sensors, and flow meters that feed into the same safety logic matrix. The FS-ETH-0800 Ethernet gateway module bridges the Safety Manager FS system to the plant’s supervisory network, enabling Experion PKS integration and remote diagnostic visibility without compromising SIS independence.

Field wiring to the FS-SDIL-1608 is terminated through FS-TBU-0800 terminal base units, which provide a structured, labeled wiring interface that simplifies commissioning, loop testing, and future maintenance activities. In geographically distributed installations, the FS-RIO-1600 remote I/O backplane extends the Safety Manager FS I/O capacity to field junction boxes located close to process equipment, reducing field cable runs and improving signal quality. This complete ecosystem — CPU, power supply, digital input, digital output, analog input, gateway, terminal base, and remote I/O — forms a validated, coherent safety architecture that the FS-SDIL-1608 is specifically designed to inhabit.

Industrial Application Notes

The FS-SDIL-1608 is deployed across a wide range of process industries where functional safety is a regulatory and operational imperative. In oil and gas processing and LNG facilities, the module acquires ESD pushbutton signals, high-high pressure switch inputs, and flame detector status from the process area, feeding these into the Safety Manager FS logic solver to execute platform shutdown, blowdown, or isolation sequences in accordance with IEC 61511 Layer of Protection Analysis (LOPA) requirements. In petrochemical and refinery applications, the FS-SDIL-1608 monitors reactor interlock inputs, compressor surge protection signals, and furnace safety cutout contacts, providing the SIS with the field-level data needed to maintain process integrity during abnormal operating conditions.

In power generation and utilities, the module is used within turbine protection systems and boiler management systems, where fast, reliable digital input acquisition is essential for preventing equipment damage during trip events. Water and wastewater treatment facilities deploy the FS-SDIL-1608 in chemical dosing safety systems and pump protection interlocks, where SIL 2 performance is required to protect personnel and the environment from chemical release or flooding events. In mining and minerals processing, the module supports conveyor safety systems, crusher protection interlocks, and ventilation safety controls in underground and surface operations. Across all these applications, the FS-SDIL-1608’s high diagnostic coverage, SIL-rated performance, and seamless integration within the Safety Manager FS architecture make it the preferred digital input solution for safety engineers and system integrators worldwide.

Product Compatibility FAQ

Q1: Is the FS-SDIL-1608 compatible with both FS-RIO-0800 and FS-RIO-1600 backplanes, and can it be mixed with analog input modules on the same chassis?
Yes. The FS-SDIL-1608 is designed for use with both the FS-RIO-0800 and FS-RIO-1600 backplanes within the Safety Manager FS platform. It can be installed in any available I/O slot alongside FS-SAIL-0800 analog input modules, FS-SDOL-1608 digital output modules, and other Safety Manager FS I/O types. Slot assignment is configured within the Safety Manager FS engineering environment, and the system automatically validates module type against the configured I/O map during startup diagnostics.

Q2: Can the FS-SDIL-1608 be replaced online without shutting down the Safety Manager FS system, and what is the recommended procedure?
The Safety Manager FS platform supports online module replacement for qualified maintenance personnel following Honeywell’s documented hot-swap procedure. Before removing the FS-SDIL-1608, the affected input channels should be placed in a safe state within the safety logic — typically by forcing inputs to their de-energized (safe) state — to prevent spurious safety function activation during the replacement. After inserting the new module, the system performs automatic diagnostic verification before returning the channels to normal operation. ZYPLC recommends maintaining at least one spare FS-SDIL-1608 on-site to minimize replacement time, and all units supplied carry a warranty terms confirmed during quotation.

Q3: What documentation is required to verify that the FS-SDIL-1608 meets SIL 2 requirements for a specific safety instrumented function?
Verification of SIL 2 compliance for a specific safety instrumented function (SIF) requires the module’s PFD (Probability of Failure on Demand) data from Honeywell’s Safety Manual for the FS-SDIL-1608, combined with the SIF’s overall PFD budget as determined by the LOPA study. The Safety Manager FS platform’s TÜV-assessed certification documentation provides the necessary failure rate data (λDD, λDU, λSD, λSU) for inclusion in the SIL verification calculation. ZYPLC can provide full traceability documentation — including certificate of conformity and test records — for every FS-SDIL-1608 unit supplied, supporting the functional safety lifecycle documentation requirements of IEC 61511 Clause 5.
