Honeywell FS-SDOL-0424 Safety Digital Output Module for FSC Systems

Honeywell FS-SDOL-0424 Industrial Network Interface for FSC Systems: Precision Data Links in Safety-Critical Automation

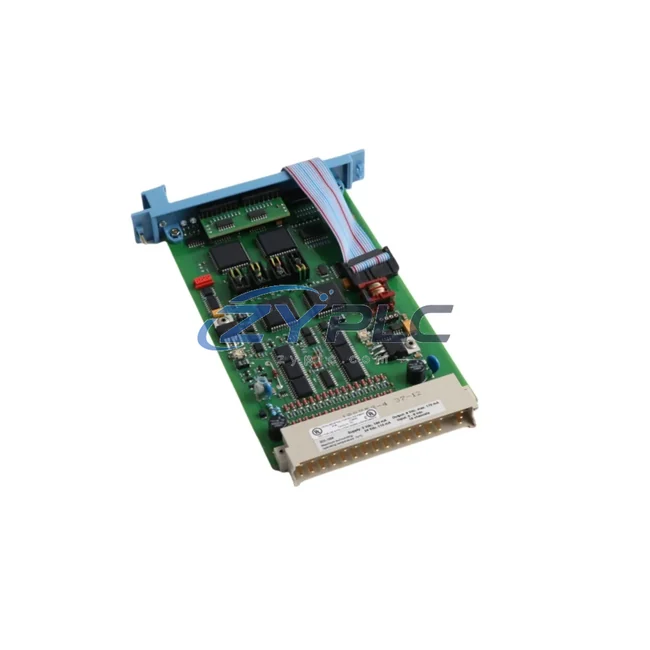

The Honeywell FS-SDOL-0424 is a SIL2-certified Safety Digital Output Module engineered for the Honeywell FSC (Fail-Safe Controller) platform — one of the most trusted safety PLC architectures deployed across oil & gas, petrochemical, power generation, and process manufacturing industries. Designed to bridge the gap between safety logic controllers and field actuators, the FS-SDOL-0424 delivers 24 channels of digital output with deterministic response times, robust fault detection, and seamless integration into industrial communication networks. In the context of smart factory connectivity, this module is not merely an output device — it is a critical node in the industrial data chain that links field-level control signals to supervisory systems, SCADA platforms, and remote diagnostic infrastructure.

At the heart of modern industrial automation lies the challenge of moving data reliably from field devices to control systems and upward to enterprise-level monitoring. The FS-SDOL-0424 addresses this challenge by operating within the FSC backplane architecture, where it communicates with the Honeywell FSC CPU Module via the proprietary FSC bus, ensuring deterministic, high-integrity signal transmission. This internal communication path is the foundation of the safety data loop — from sensor input through logic execution to actuated output — and the FS-SDOL-0424 represents the final, critical link in that chain.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the FS-SDOL-0424’s role requires tracing the full industrial data flow from field device to enterprise system. In a typical process safety installation, field sensors — such as pressure transmitters, flame detectors, and gas analyzers — feed analog and digital signals into Honeywell FSC Digital Input Modules (e.g., FS-SDI-0824), where raw signals are conditioned and passed to the FSC CPU for logic evaluation. The CPU, running IEC 61131-3 safety logic, processes these inputs and generates output commands that are dispatched to the FS-SDOL-0424, which then drives actuators such as solenoid valves, motor starters, and shutdown relays.

This data flow does not exist in isolation. The FSC system communicates upward to supervisory layers through Honeywell FSC Communication Modules — including Profibus DP gateway cards and Modbus RTU/TCP interface modules — which translate the FSC’s internal bus protocol into standard industrial fieldbus formats. This enables the FS-SDOL-0424’s output states, diagnostic data, and fault conditions to be visible in real time on Honeywell Experion PKS DCS workstations or third-party SCADA systems via OPC-DA or OPC-UA servers.

For remote monitoring and diagnostics, the FSC system’s data — including the live status of every FS-SDOL-0424 output channel — can be aggregated by an industrial edge gateway (such as those supporting MQTT or IIoT protocols) and forwarded to cloud-based analytics platforms or MES systems. This creates a seamless data pipeline: field actuator → FS-SDOL-0424 → FSC CPU → communication gateway → SCADA/HMI → edge gateway → enterprise cloud.

In multi-zone safety architectures, the FS-SDOL-0424 may operate alongside Honeywell FSC Analog Output Modules (FS-SAO series) for modulating control valves, and Honeywell FSC Power Supply Modules that ensure uninterrupted operation during grid disturbances. The integration of Honeywell Safety Manager SC as a next-generation FSC successor platform further extends the data connectivity model, supporting modern Ethernet-based safety networks and cybersecurity-hardened communication stacks.

In applications where the FSC system interfaces with variable frequency drives (VFDs) or motor control centers, the FS-SDOL-0424 provides the discrete start/stop and permissive signals that coordinate drive operation with process safety logic. These signals, when combined with drive status feedback captured by FSC input modules, create a closed-loop safety interlock that is fully visible and auditable through the connected SCADA infrastructure.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the condition where safety systems, process control systems, and enterprise networks operate as disconnected silos, each with its own protocol, data format, and access model. The Honeywell FSC platform, with the FS-SDOL-0424 as a key output node, directly addresses this challenge through its layered communication architecture.

Protocol Unification: The FSC’s gateway modules translate between the proprietary FSC bus and standard protocols including Modbus RTU, Modbus TCP/IP, and Profibus DP. This means that the output states of the FS-SDOL-0424 — whether a valve is open or closed, whether a shutdown relay has tripped — are accessible to any SCADA or HMI system capable of reading Modbus registers or Profibus data objects. Protocol fragmentation is eliminated at the gateway layer, not at the field device level.

Remote Monitoring and Alarm Management: With FSC data exposed via standard protocols, operators at remote control rooms or off-site monitoring centers can observe real-time output states, receive alarm notifications for channel faults (open load, short circuit, supply failure), and initiate diagnostic routines without physical access to the control cabinet. This capability is essential for unmanned platforms, remote pipeline stations, and geographically distributed process facilities.

Production Line Transparency: By integrating FSC output data into MES and ERP systems via OPC-UA or MQTT bridges, plant managers gain visibility into safety system activity as part of the broader production data landscape. Shutdown events, partial stroke test results, and output module health indicators become KPIs that inform maintenance scheduling, regulatory compliance reporting, and operational risk management.

System Scalability: The FSC backplane architecture supports modular expansion — additional FS-SDOL-0424 modules can be added to increase output channel count without redesigning the communication infrastructure. This scalability is critical for facilities undergoing capacity expansion or safety system upgrades, where minimizing downtime and preserving existing network topology are paramount.

Pre-Shipment Testing and warranty terms confirmed during quotation: Every FS-SDOL-0424 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including output channel continuity checks, diagnostic self-test validation, and communication interface verification. All units are covered by a warranty terms confirmed during quotation, providing assurance of product integrity and supply chain reliability for maintenance, repair, and operations (MRO) procurement teams.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell FS-SDOL-0424 support for SCADA integration?
The FS-SDOL-0424 itself communicates via the FSC internal backplane bus. For SCADA integration, the FSC system uses dedicated communication gateway modules that support Modbus RTU, Modbus TCP/IP, and Profibus DP. These gateways expose FSC data — including FS-SDOL-0424 output states and diagnostics — to SCADA, HMI, and DCS platforms via standard industrial protocols, enabling seamless integration with Honeywell Experion PKS, Siemens WinCC, Wonderware, and other supervisory systems.

Q2: How does the FS-SDOL-0424 ensure network stability and minimize communication latency in safety-critical applications?
The FSC backplane bus operates with deterministic, fixed-cycle scan times, ensuring that output commands from the CPU are executed by the FS-SDOL-0424 within defined response windows — typically within one scan cycle (configurable from milliseconds to tens of milliseconds depending on system load). This determinism is fundamental to SIL2 compliance, as it guarantees that safety functions are executed within the required process safety time (PST). Network stability is further ensured by the FSC’s redundant power supply architecture and the module’s internal watchdog and self-diagnostic circuits.

Q3: Can the FS-SDOL-0424 be integrated into a modern IIoT or Industry 4.0 architecture?
Yes. While the FS-SDOL-0424 operates within the FSC’s proprietary bus, its data is accessible to IIoT infrastructure through edge gateways that connect to the FSC’s Modbus TCP/IP or OPC-UA interface. These gateways can publish FSC data — including FS-SDOL-0424 channel states, fault flags, and diagnostic counters — to MQTT brokers, cloud platforms, or MES systems, enabling real-time visibility and predictive maintenance analytics without compromising the integrity of the safety network.

Q4: What does the warranty terms confirmed during quotation cover, and how does ZYPLC verify product quality before shipment?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each FS-SDOL-0424 unit undergoes a pre-shipment inspection that includes visual examination, output channel functional testing, and diagnostic self-test verification. Units are shipped with original packaging and, where available, factory test documentation. For MRO and spare parts procurement, ZYPLC supports RFQ sourcing for FSC-series modules to support rapid deployment and minimize plant downtime.
