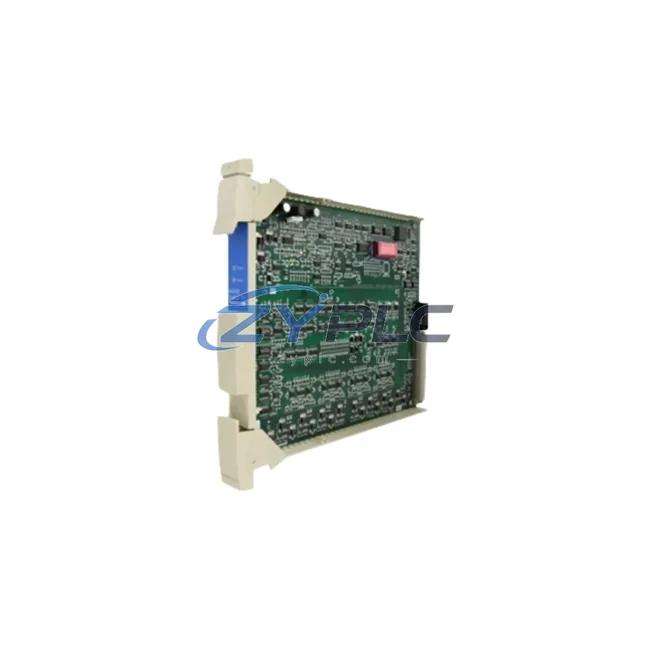

Honeywell FS-SMSB-ST-100 Safety Module FSC

Honeywell FS-SMSB-ST-100 Safety Module FSC: Replacement and Sourcing Information Lines

The Honeywell FS-SMSB-ST-100 is a high-performance Safety Manager Base Module within the proven FSC (Fail-Safe Controller) Series, engineered to deliver deterministic safety logic execution while simultaneously reducing unnecessary energy consumption across industrial control architectures. In process-intensive environments — from petrochemical refineries to power generation facilities — the FS-SMSB-ST-100 acts as the central safety arbitration node, ensuring that energy-consuming field devices such as emergency shutdown valves, motor-driven pumps, and compressor drives are activated only when operationally necessary, eliminating parasitic energy draw from spurious trips or inefficient safety polling cycles.

Every unit shipped from ZYPLC undergoes full functional testing under load conditions, verifying communication integrity, I/O channel response, and power rail stability before dispatch. All units are backed by a warranty terms confirmed during quotation, with verified inventory available for shipment arranged after confirmation to minimize production downtime.

Product Specification Table

System Compatibility and Application

The FS-SMSB-ST-100 does not operate in isolation — its true maintenance planning value emerges when integrated within a layered industrial automation architecture. At the field level, the module interfaces directly with Honeywell FSC I/O modules (such as the FS-SDO-0824 digital output module and FS-SDI-0816 digital input module), which handle the physical switching of high-current field devices. By consolidating I/O management under a single safety logic controller, the system eliminates redundant relay banks and their associated standby power losses.

On the drive side, the FS-SMSB-ST-100 integrates seamlessly with variable frequency drive (VFD) systems — including Honeywell SmartVFD HVAC drives and compatible third-party inverters — through hardwired STO (Safe Torque Off) signals. This allows the safety controller to command motor deceleration ramps rather than abrupt disconnections, preserving motor winding integrity and reducing inrush current events that spike energy demand on the facility power bus.

For process data visibility, the module communicates upstream to Honeywell Experion PKS distributed control system nodes via the Safety Builder engineering environment, enabling real-time energy consumption mapping against safety state transitions. Operators can correlate ESD activation events with energy demand spikes, identifying opportunities to optimize pre-shutdown sequences. Complementing this, Honeywell HC900 hybrid controllers can be deployed in parallel loops to manage non-safety process variables, ensuring that energy-intensive heating, cooling, or compression cycles are coordinated with the safety system’s operational state.

At the HMI layer, Honeywell Experion Station workstations or compatible Siemens SIMATIC HMI panels provide operators with live dashboards displaying safety loop status, I/O channel health, and energy consumption trends. When paired with a Modbus TCP energy meter on the same network segment, the FS-SMSB-ST-100’s state outputs can trigger automated load-shedding routines — cutting non-critical loads during peak demand windows without compromising safety integrity.

Power supply redundancy is maintained through Honeywell FSC Power Supply modules (such as the FS-PSU-0024), which provide hot-swap capability and regulated 24 VDC output with minimal ripple, ensuring the safety manager base module operates within its optimal power envelope at all times. This architecture, from field I/O through drive control to supervisory monitoring, creates a closed-loop maintenance planning system anchored by the FS-SMSB-ST-100.

Maintenance and Replacement Notes

In a typical continuous process plant, safety system inefficiencies account for a measurable share of unplanned energy expenditure. Spurious trips — unintended safety shutdowns caused by sensor noise, communication faults, or logic errors — force emergency shutdown valves to cycle, large motors to restart under full load, and heating systems to recover from cold states. Each such event can consume tens of kilowatt-hours in restart energy alone, compounded by production losses and mechanical wear on actuators and motor windings.

The FS-SMSB-ST-100 addresses this directly through its high-diagnostic-coverage safety logic, which distinguishes genuine process hazards from transient signal anomalies. By reducing spurious trip rates, the module keeps energy-intensive field devices — compressors, pumps, furnace burner management systems — running in their efficient steady-state operating bands rather than cycling through energy-costly start-stop sequences.

Furthermore, the module’s partial stroke testing (PST) capability for ESD valves allows maintenance teams to verify valve operability without full closure, eliminating the need for planned shutdowns that would otherwise require complete system restart sequences. This directly translates to improved equipment utilization rates and reduced maintenance-window energy consumption.

For facilities operating under ISO 50001 maintenance planning frameworks or pursuing carbon reduction targets, the FS-SMSB-ST-100 provides the safety infrastructure foundation that enables maintenance planning initiatives to proceed without compromising functional safety integrity. Production line throughput improves as unplanned downtime decreases, and the predictable scan cycle of the FSC platform allows maintenance planning systems to accurately forecast demand based on safety system state.

ZYPLC maintains availability subject to RFQ confirmation of the FS-SMSB-ST-100 with full pre-shipment functional testing, ensuring that replacement units arrive ready for immediate installation — minimizing the energy and productivity losses associated with extended maintenance windows. Our warranty terms confirmed during quotation covers all verified units, providing procurement teams with the confidence to plan maintenance cycles and spare parts inventory efficiently.

Product Sourcing FAQ

Q1: How does the FS-SMSB-ST-100 contribute to reducing plant energy consumption?
The FS-SMSB-ST-100 reduces unplanned downtime primarily by minimizing spurious safety trips. Each unplanned shutdown forces energy-intensive restart sequences for motors, compressors, and process heaters. By maintaining high diagnostic coverage and stable safety logic execution, the module keeps production assets running in their efficient operating ranges, directly reducing restart-related energy spikes and improving overall equipment effectiveness (OEE).

Q2: Is the FS-SMSB-ST-100 compatible with existing Honeywell FSC and Safety Manager SC systems?
Yes. The FS-SMSB-ST-100 is designed as a base module within the Honeywell FSC Safety Manager platform and is compatible with the broader Safety Manager SC architecture. It supports integration with Honeywell Experion PKS via the Safety Builder engineering tool, and can communicate with third-party systems through Modbus RTU/TCP and PROFIBUS DP protocols. Always verify firmware revision compatibility with your existing system configuration before installation.

Q3: What is the recommended replacement and testing process for this module?
For replacement, the FS-SMSB-ST-100 should be installed in a de-energized safety loop segment following your site’s management of change (MOC) procedure. After installation, perform a full I/O channel verification using the Safety Builder diagnostic environment, followed by a partial stroke test on connected ESD valves before returning the loop to service. All units supplied by ZYPLC are pre-tested under operational conditions, with test records available upon request.

Q4: What does the warranty terms confirmed during quotation cover, and what is the shipment timeline?
The warranty terms confirmed during quotation covers functional defects in the module’s safety logic processing, I/O channel performance, and communication interfaces under normal industrial operating conditions. Units are dispatched from verified inventory, typically within 1-3 business days of order confirmation. Expedited shipment options are available for urgent maintenance requirements. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for lead time confirmation and warranty claim procedures.
