Honeywell FS-TSAI-1620M Analog Input for FSC: Compatibility and Replacement Notes

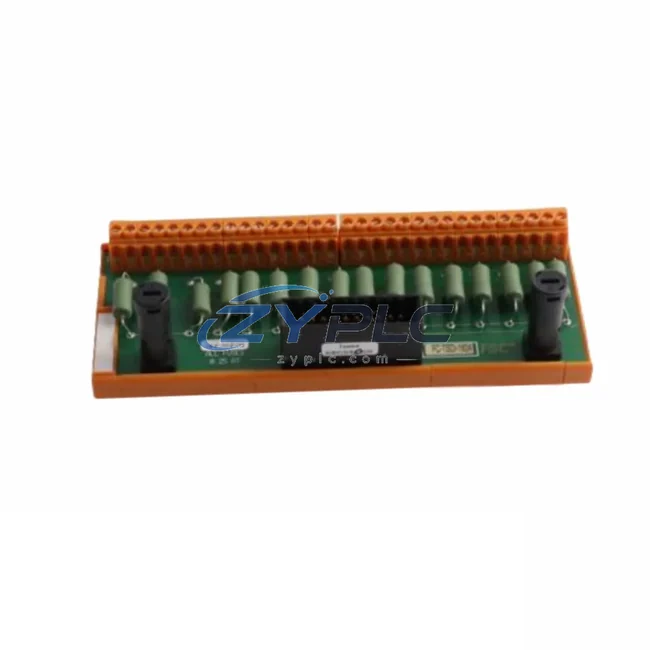

The Honeywell FS-TSAI-1620M is a high-integrity analog input module engineered specifically for the Honeywell FSC (Fail-Safe Controller) safety platform. Within a layered industrial control architecture, this module occupies a critical position at the I/O layer, serving as the primary interface between field instrumentation and the FSC safety CPU. Its role extends far beyond simple signal acquisition — it is a foundational element that determines the accuracy, reliability, and SIL-rated performance of the entire safety instrumented system (SIS). Understanding how the FS-TSAI-1620M integrates across control, I/O, network, power, HMI, and actuator layers is essential for engineers designing or maintaining FSC-based safety architectures in demanding process environments.

At the control layer, the FS-TSAI-1620M interfaces directly with the FSC CPU module — such as the FS-CPU-0760 or FS-CPU-0860 — transferring conditioned analog process values via the FSC backplane bus. The module supports up to 16 single-ended or differential analog input channels, accepting standard 4–20 mA and 1–5 V signals from field transmitters. Each channel is independently monitored for open-circuit, short-circuit, and out-of-range conditions, enabling the CPU to execute safety logic with full diagnostic coverage. This tight integration with the CPU ensures that the FSC system can respond to process deviations within the required safety response time, maintaining SIL 2 or SIL 3 compliance depending on system configuration.

At the I/O layer, the FS-TSAI-1620M is installed on the FSC I/O rack alongside complementary modules such as the FS-TSDO-1620 digital output module, the FS-TSDI-1620 digital input module, and the FS-TSAO-1620 analog output module. This modular architecture allows engineers to configure the I/O layer precisely to match the process requirements of each safety loop, whether for pressure, temperature, flow, or level measurement. The backplane connectivity ensures deterministic data transfer between all I/O modules and the CPU, eliminating the latency and uncertainty associated with external field buses at the safety layer.

Redundancy is a defining characteristic of FSC system design, and the FS-TSAI-1620M fully supports redundant I/O configurations. In high-availability applications — such as offshore platforms, LNG terminals, or nuclear auxiliary systems — dual FS-TSAI-1620M modules can be deployed in a 1oo2 or 2oo3 voting architecture, with the FSC CPU continuously comparing channel values to detect and isolate faults without process interruption. This redundancy extends to the power layer, where the FS-PSU-0760 power supply module provides isolated, monitored DC power to the I/O rack, ensuring that a single power fault does not compromise the integrity of the analog input signals.

At the network layer, the FSC system communicates with the distributed control system (DCS) or SCADA platform via the FS-COM gateway modules, supporting protocols such as Modbus RTU, Modbus TCP, and PROFIBUS DP. The FS-TSAI-1620M’s processed analog values are made available to the DCS operator stations and historian servers through these communication gateways, enabling operators to monitor safety-critical process variables in real time. This system integration between the safety layer and the process control layer is essential for coordinated shutdown management, alarm rationalization, and safety performance monitoring.

The HMI layer interacts with the FSC system through dedicated engineering workstations running Honeywell’s FSC configuration and diagnostic software. Engineers can use these tools to calibrate individual FS-TSAI-1620M channels, review diagnostic logs, and verify that all analog inputs are operating within their specified accuracy bands. This capability is particularly valuable during commissioning and periodic proof testing, where channel-by-channel verification is required to demonstrate SIL compliance. The module’s built-in diagnostics reduce proof test intervals and lower the overall lifecycle cost of the safety system.

In the execution layer, the analog values processed by the FS-TSAI-1620M drive safety logic that ultimately commands actuators such as solenoid valves, motor starters, and emergency shutdown valves. The accuracy and reliability of the analog input data directly determine the quality of the safety function — whether it is a high-pressure shutdown, a high-temperature trip, or a low-flow interlock. By maintaining signal integrity from the field transmitter through the FS-TSAI-1620M to the FSC CPU and on to the final element, the system ensures that every safety function operates as designed, every time.

All FS-TSAI-1620M modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are tested prior to shipment to verify channel accuracy, diagnostic functionality, and backplane communication integrity. Our inventory is sourced from verified supply chains, and each unit is accompanied by full documentation to support installation, commissioning, and regulatory compliance activities.

Product Specification Table

System Compatibility Notes

A complete FSC-based safety architecture built around the FS-TSAI-1620M typically includes the following coordinated components. The FS-CPU-0760 or FS-CPU-0860 safety CPU executes the safety application logic and communicates with all I/O modules via the FSC backplane. The FS-TSU-0760 termination unit provides the field wiring interface for the analog input channels, simplifying installation and enabling hot-swap maintenance without disturbing field cables. The FS-TSDO-1620 digital output module works in tandem with the analog input module to close safety loops — receiving trip commands from the CPU and driving solenoid valves or relay outputs in the execution layer.

The FS-TSDI-1620 digital input module captures discrete process signals — such as valve position feedback, motor run status, and manual trip pushbutton states — that complement the continuous analog measurements provided by the FS-TSAI-1620M. Together, these I/O modules give the FSC CPU a complete picture of the process state. The FS-PSU-0760 power supply module delivers regulated, monitored DC power to the I/O rack, with built-in diagnostics that alert the CPU to power anomalies before they can affect system availability. For redundant power architectures, dual FS-PSU-0760 modules are deployed with automatic switchover.

The FS-COM-0760 communication gateway bridges the FSC safety network and the plant DCS or SCADA system, transmitting analog process values and system health data to operator workstations. In larger installations, the FS-TSAO-1620 analog output module complements the FS-TSAI-1620M by providing 4–20 mA command signals to control valves and variable-speed drives, enabling the FSC system to participate in both safety shutdown and modulating control functions. The overall architecture — CPU, analog input, digital I/O, power supply, communication gateway, and termination units — forms a tightly integrated, diagnostically rich safety platform that supports long-term operation with minimal maintenance intervention.

Industrial Application Notes

The FS-TSAI-1620M is deployed across a wide range of process industries where functional safety is a regulatory and operational requirement. In oil and gas processing and LNG facilities, the module monitors pressure transmitters and temperature sensors on high-pressure separators, compressors, and heat exchangers, providing the analog input data that drives emergency shutdown (ESD) and high-integrity pressure protection (HIPPS) functions. Its SIL 2/3 capability makes it suitable for the most demanding safety loops in these environments.

In petrochemical and refinery applications, the FS-TSAI-1620M is used in burner management systems (BMS) and fired heater safety systems, where accurate flame scanner and fuel pressure inputs are critical to safe combustion control. In power generation — including thermal, combined-cycle, and nuclear auxiliary systems — the module monitors turbine bearing temperatures, lube oil pressures, and cooling water flows, feeding the FSC CPU with the analog data needed to execute turbine protection and reactor auxiliary safety functions.

In water and wastewater treatment plants, the FS-TSAI-1620M monitors chemical dosing rates, tank levels, and pump discharge pressures, supporting safety interlocks that prevent chemical overfeed or pump cavitation. In mining and minerals processing, the module is used in conveyor protection systems and crusher safety circuits, where analog speed and load signals must be processed reliably in dusty, vibration-prone environments. Across all these applications, the module’s robust diagnostic coverage, SIL-rated performance, and compatibility with the broader FSC architecture make it the preferred analog input solution for safety engineers worldwide.

Product Compatibility FAQ

Q1: Is the FS-TSAI-1620M compatible with both the FS-CPU-0760 and FS-CPU-0860 processors, and can it be used in a redundant CPU configuration?
Yes. The FS-TSAI-1620M is fully compatible with both the FS-CPU-0760 and FS-CPU-0860 FSC processor modules and can be used in simplex, dual, or triple-redundant CPU configurations. In redundant architectures, both CPUs read the analog input data from the shared I/O rack simultaneously, enabling bumpless switchover in the event of a CPU fault. The module’s backplane interface supports the FSC’s deterministic communication protocol, ensuring consistent data delivery to all active CPUs.

Q2: What are the installation and commissioning requirements for the FS-TSAI-1620M in a new FSC system build?
Installation requires mounting the module in a compatible FSC I/O rack and connecting field wiring via the FS-TSU-0760 termination unit. Channel configuration — including input type selection, range setting, and diagnostic threshold definition — is performed using Honeywell’s FSC engineering software. During commissioning, each channel should be loop-tested with a calibrated signal source to verify accuracy and diagnostic response. ZYPLC recommends retaining commissioning records as part of the safety case documentation. All modules supplied by ZYPLC are pre-tested and include a warranty terms confirmed during quotation covering manufacturing defects and functional failures.

Q3: How does the warranty terms confirmed during quotation apply, and what long-term maintenance support does ZYPLC provide for the FS-TSAI-1620M?
ZYPLC’s warranty terms confirmed during quotation covers the FS-TSAI-1620M against manufacturing defects and functional failures from the date of shipment. In the event of a warranty claim, ZYPLC provides rapid replacement to minimize system downtime. For long-term maintenance, ZYPLC supports RFQ sourcing for FSC I/O modules to support proof testing cycles, planned replacements, and emergency spares requirements. Our technical team can assist with compatibility verification, channel diagnostics, and integration guidance for both new installations and legacy FSC system upgrades. Contact us at +86 19859288691 or plc.sales@zyplc.com for support.
