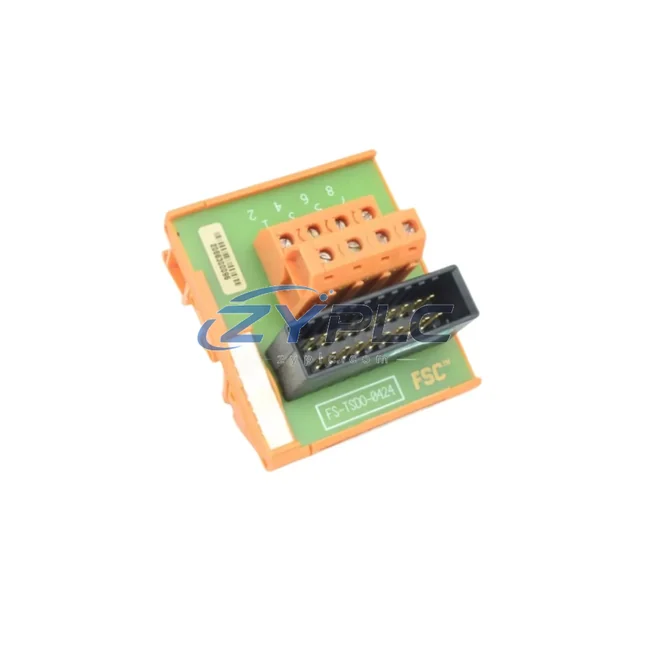

Honeywell FS-TSDO-0424 Safety Digital Output Module for FSC Safety Systems

Honeywell FS-TSDO-0424: Industrial Data Link for FSC Safety System Networks

The Honeywell FS-TSDO-0424 is a SIL2-certified Safety Digital Output Module engineered for mission-critical industrial environments where reliable signal transmission, deterministic response, and fail-safe operation are non-negotiable. Designed as a core component within the Honeywell FSC (Fail-Safe Controller) Safety System, the FS-TSDO-0424 serves as the final control element interface — translating safety-validated logic commands from the safety PLC into precise digital output signals that drive actuators, solenoid valves, motor starters, and emergency shutdown devices across the plant floor.

In modern smart factory architectures, the FS-TSDO-0424 sits at the intersection of safety instrumented systems (SIS) and the broader industrial automation network. It connects upstream to the Honeywell FSC Central Processing Unit via the FSC safety backplane bus, receiving certified output commands with deterministic cycle times. Downstream, it drives field devices through hardwired DO channels rated for 24VDC output, supporting both energize-to-trip and de-energize-to-trip configurations — a critical flexibility for SIL2 loop design in oil & gas, chemical, and power generation facilities.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the FS-TSDO-0424’s role requires tracing the full industrial data chain from sensor to actuator. In a typical SIS loop, field sensors — such as Honeywell STT850 Smart Temperature Transmitters or pressure transmitters communicating over HART protocol — feed analog signals into the Honeywell FS-TAI-HART Analog Input Module, which digitizes and validates the process variable within the FSC safety backplane. The Honeywell FSC CPU Module (FS-CPU-0x) executes the certified safety logic at deterministic scan rates, evaluating trip conditions against configured setpoints.

When a trip condition is confirmed, the CPU issues a validated output command across the FSC backplane to the FS-TSDO-0424, which then de-energizes or energizes the corresponding DO channel to actuate the final element — a solenoid valve, motor contactor, or ESD valve. This entire signal chain, from sensor input to actuated output, is completed within the safety system’s certified response time, ensuring SIL2 loop integrity is maintained end-to-end.

For process data visibility, the FSC system communicates upstream to the Honeywell Experion PKS DCS via the FSC Gateway Module (FS-GATEWAY), which bridges the proprietary FSC safety bus to Modbus TCP or OPC-UA, enabling real-time safety status, alarm states, and diagnostic data to flow into the plant’s SCADA historian (Uniformance PHD) and operator HMI consoles. Remote I/O extensions using Honeywell FSC Remote I/O Modules allow the safety system to reach field junction boxes distributed across large process units without compromising signal integrity or safety certification.

In multi-loop SIS architectures, the FS-TSDO-0424 is often deployed alongside Honeywell FS-TSDI Digital Input Modules for position feedback from actuated valves, and FS-TAO Analog Output Modules for partial stroke testing (PST) of control valves — creating a fully instrumented, self-diagnosing safety loop that supports proof test interval optimization and reduces unplanned shutdowns.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is the coexistence of multiple, incompatible control and safety systems — each operating as a data island. The Honeywell FS-TSDO-0424, as part of the FSC Safety System ecosystem, directly addresses this challenge through its integration with the FSC Gateway, which provides protocol translation between the FSC safety bus and plant-wide Modbus TCP, OPC-DA, and OPC-UA networks.

This gateway capability allows safety system data — including FS-TSDO-0424 output states, channel diagnostics, and trip records — to be surfaced in third-party SCADA platforms, MES systems, and cloud-based industrial IoT dashboards without compromising the safety system’s certified isolation. Plant engineers gain full production line transparency: real-time output status, historical trip logs, and predictive maintenance indicators are all accessible from the control room or remotely via secure VPN connections.

For facilities expanding their SIS coverage, the FSC system’s modular architecture allows additional FS-TSDO-0424 modules to be added to existing racks without system shutdown, supporting phased capacity expansion aligned with production growth. Combined with Honeywell Safety Builder configuration software, engineers can validate new I/O configurations, run simulation tests, and deploy certified logic changes with full audit trail documentation — meeting IEC 61511 lifecycle management requirements.

Every FS-TSDO-0424 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying output channel continuity, diagnostic response, and backplane communication integrity. Units are shipped with a warranty terms confirmed during quotation and are sourced from verified supply channels, ensuring authenticity and traceability for safety-critical applications.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell FS-TSDO-0424 support for SCADA integration?
The FS-TSDO-0424 communicates natively over the FSC safety backplane bus. For SCADA and DCS integration, the FSC Gateway Module translates FSC bus data to Modbus RTU, Modbus TCP, and OPC-DA/UA, enabling seamless connectivity with Honeywell Experion PKS, Emerson DeltaV, Siemens WinCC, and other third-party SCADA platforms without compromising SIL2 certification.

Q2: How does the FS-TSDO-0424 ensure network stability and deterministic output response?
The module operates on the FSC deterministic safety backplane, which guarantees fixed scan cycle times independent of network load. Per-channel diagnostics — including open-circuit, short-circuit, and load fault detection — are executed every scan cycle, with faults reported to the FSC CPU and surfaced to the SCADA historian in real time, ensuring operators receive immediate alarm notification without communication delay.

Q3: Can the FS-TSDO-0424 be integrated into an existing FSC system without a full system shutdown?
Yes. The FSC system supports hot-standby CPU configurations and modular I/O expansion. Adding an FS-TSDO-0424 to an existing rack can be performed during planned maintenance windows with minimal disruption. New module configurations are validated offline using Honeywell Safety Builder before deployment, and all changes are logged with full audit trail for IEC 61511 compliance documentation.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the FS-TSDO-0424?
All FS-TSDO-0424 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including output channel verification, backplane communication check, and diagnostic self-test validation. Units are sourced from verified supply channels with full traceability documentation available upon request.
