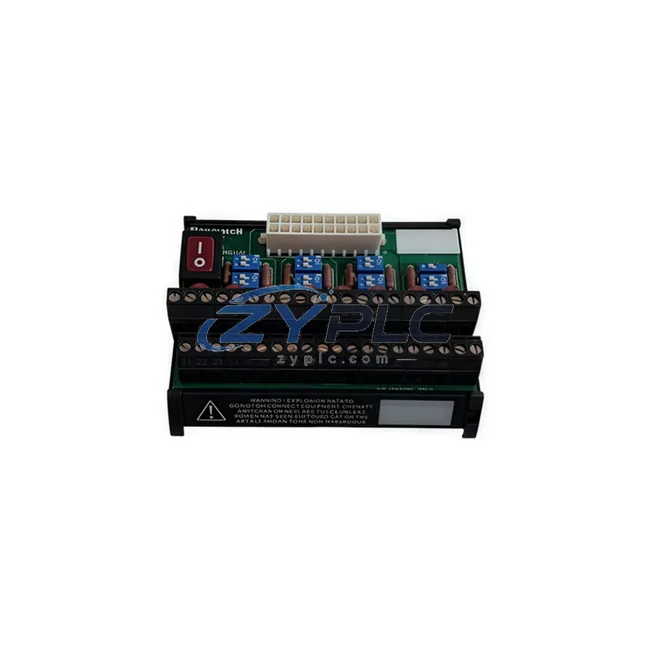

Honeywell HC-EMD730-ESD Redundant Media Kit | ControlEdge HC900

Honeywell HC-EMD730-ESD: Industrial Data Link for ControlEdge HC900 Redundant Network Communication

The Honeywell HC-EMD730-ESD Redundant Media Kit is a mission-critical network communication component engineered for the ControlEdge HC900 process and safety control platform. Designed to eliminate single points of failure in industrial Ethernet backbones, this module ensures uninterrupted data flow between field devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, and upper-level enterprise networks — forming the backbone of a truly connected smart factory.

In modern industrial automation environments, data continuity is non-negotiable. The HC-EMD730-ESD supports dual-path Ethernet redundancy, enabling seamless failover without packet loss or communication interruption. Whether your facility runs Modbus TCP, HART, or proprietary Honeywell FTE (Fault Tolerant Ethernet) protocols, this redundant media kit integrates directly into the HC900 controller chassis to maintain real-time signal integrity across the entire automation data chain.

Compatibility & Integration Notes

Connected Automation Data Flow

The HC-EMD730-ESD sits at the heart of a layered industrial communication architecture. At the field level, Honeywell HC-900 I/O modules — including analog input cards such as the HC-TDIL-0800 and digital output modules like the HC-TDOL-0800 — collect process signals from pressure transmitters, temperature sensors, and flow meters. These signals are aggregated through the HC900 controller backplane and transmitted upstream via the redundant Ethernet media path provided by the HC-EMD730-ESD.

Within the control network, the HC900 controller communicates with Honeywell Experion PKS SCADA servers using FTE protocol, where the redundant media kit ensures that any single cable or switch failure triggers an instantaneous path switchover — maintaining sub-millisecond data continuity. Operators monitoring the plant via Honeywell Station HMI panels or remote engineering workstations receive uninterrupted real-time process data, alarm states, and trend histories without any visible disruption.

For ESD (Emergency Shutdown) applications, the HC-EMD730-ESD integrates with Honeywell Safety Manager SC systems, enabling cross-platform safety data exchange over a segregated ESD network. The redundant media architecture ensures that safety-critical signals — such as high-pressure shutdowns, fire and gas alarms, and emergency valve commands — are transmitted with the highest reliability. This is further reinforced by integration with Honeywell HC-PCCU-USB configuration utilities, which allow engineers to perform remote diagnostics and firmware validation without interrupting live production.

At the network infrastructure layer, industrial managed switches — such as those in the Hirschmann MACH100 or Cisco IE3000 series — form the FTE ring topology that the HC-EMD730-ESD relies upon for redundant path switching. Edge gateways running Honeywell Uniformance PHD historian software collect time-stamped process data from the HC900 network and forward it to cloud-based analytics platforms, enabling predictive maintenance and production optimization across multi-site operations.

Variable frequency drives (VFDs) connected via Modbus TCP to the HC900 controller — such as those in the Honeywell SmartVFD HVAC series — receive speed and torque commands derived from real-time process calculations, with feedback signals routed back through the same redundant Ethernet backbone. This closed-loop data flow, secured by the HC-EMD730-ESD’s dual-path architecture, ensures that motor control, process regulation, and safety interlock functions all operate on a single, unified, and highly available network.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with fragmented communication infrastructures — legacy serial networks running alongside modern Ethernet systems, proprietary protocols that cannot natively exchange data, and safety networks physically isolated from process control networks. The result is data silos: critical process information trapped within individual subsystems, invisible to operators, engineers, and management systems that need it most.

The Honeywell HC-EMD730-ESD directly addresses these challenges within the ControlEdge HC900 ecosystem. By providing a hardware-level redundant Ethernet media path, it eliminates the single-cable failure mode that has historically forced operators to choose between network simplicity and reliability. With the HC-EMD730-ESD installed, the HC900 controller maintains continuous communication with SCADA servers, HMI stations, remote I/O racks, and safety systems — even during active network maintenance or unexpected cable faults.

For facilities expanding their automation footprint, the HC-EMD730-ESD supports seamless system scaling. Additional HC900 controller nodes, remote I/O expansion racks, and new field device clusters can be added to the FTE ring without disrupting existing network traffic. This makes it an ideal solution for phased plant expansions, where new production lines must be integrated into an existing SCADA and DCS infrastructure without costly downtime.

Remote monitoring and diagnostics are further enhanced by the redundant media architecture. Maintenance engineers can access live network health data, port statistics, and failover event logs through the Honeywell Experion PKS network management interface, enabling proactive fault identification before communication degradation affects production. Combined with the warranty terms confirmed during quotation and pre-shipment functional testing performed on every HC-EMD730-ESD unit, plant operators can deploy this module with full confidence in its reliability and long-term performance.

Industrial Connectivity FAQ

Q1: Does the HC-EMD730-ESD support automatic failover without communication interruption?
Yes. The HC-EMD730-ESD is designed for seamless, hitless failover. When a primary Ethernet path fails — due to cable damage, switch failure, or port fault — the module automatically switches to the secondary path with no packet loss and no controller restart required. This ensures continuous data flow to SCADA, HMI, and safety systems.

Q2: Which communication protocols are compatible with the HC-EMD730-ESD?
The HC-EMD730-ESD is optimized for Honeywell FTE (Fault Tolerant Ethernet) protocol and is fully compatible with standard TCP/IP and Modbus TCP networks. It integrates natively with the ControlEdge HC900 controller platform and supports communication with Experion PKS SCADA servers, Safety Manager SC systems, and third-party Ethernet devices.

Q3: Can the HC-EMD730-ESD be used in both process control and emergency shutdown (ESD) networks?
Yes. The -ESD designation specifically indicates that this module is validated for use in Emergency Shutdown System networks, where network reliability and deterministic communication are mandatory. It can be deployed in segregated ESD network segments while maintaining integration with the broader HC900 process control architecture.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every HC-EMD730-ESD unit supplied by ZYPLC undergoes functional verification testing prior to shipment, confirming communication interface integrity, redundant path switching, and compatibility with the HC900 chassis. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions, with technical support available throughout the warranty period.
