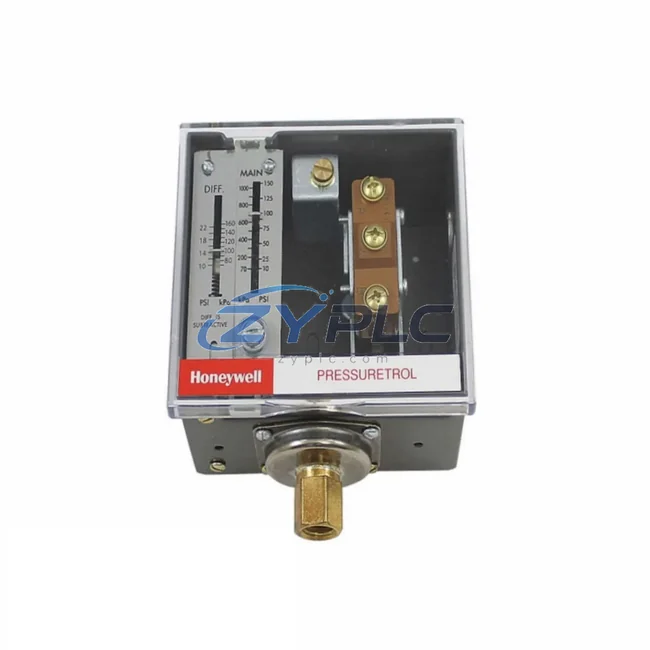

Honeywell L404F1102 Pressuretrol Controller for L404F Series

Honeywell L404F1102 Pressuretrol Controller: Control System and Upstream–Downstream Coordination

The Honeywell L404F1102 Pressuretrol Controller is a precision pressure-sensing and limit-switching device engineered for seamless integration within layered industrial and commercial boiler control architectures. Rather than functioning as a standalone component, the L404F1102 occupies a critical position within the control hierarchy — bridging the sensing layer and the burner control layer — ensuring that steam pressure remains within safe operational thresholds while coordinating with upstream and downstream system elements to maintain process continuity, system safety, and long-term operational reliability.

In a complete boiler control system, the L404F1102 works in concert with the primary burner controller, such as the Honeywell R8184G Protectorelay Oil Burner Control or the Honeywell R7184B Electronic Oil Primary, to govern burner firing sequences based on real-time pressure feedback. When steam pressure rises beyond the L404F1102’s high-limit setpoint, the controller interrupts the burner circuit, preventing overpressure conditions that could compromise system integrity. This pressure-based interlock is a foundational element of any safe and code-compliant steam heating architecture.

At the control layer, the L404F1102 interfaces with zone control panels and programmable logic controllers that manage multi-zone heating distribution. In systems utilizing the Honeywell S8600H Intermittent Pilot Module or the Honeywell S8610U Universal Intermittent Pilot Module, the L404F1102 provides the pressure-limit signal that prevents ignition attempts under unsafe pressure conditions. This coordination between the ignition control module and the pressure limit controller is essential for maintaining burner safety sequences in compliance with ANSI Z21 and EN 298 standards.

From an I/O and signal flow perspective, the L404F1102 generates a discrete on/off output signal derived from its bellows-actuated pressure sensing mechanism. This signal feeds directly into the burner control circuit, and in more advanced architectures, may be monitored by a building automation system (BAS) or SCADA platform via a relay interface module. Integration with Honeywell T775 Electronic Remote Temperature Controllers or similar multi-input controllers allows operators to correlate pressure events with temperature trends, enabling predictive maintenance scheduling and reducing unplanned downtime.

The power layer of the system typically includes a 24VAC control transformer, such as the Honeywell AT72D1683 Transformer, which supplies low-voltage power to the control circuit in which the L404F1102 operates. Proper transformer sizing is critical: the cumulative burden of the pressuretrol, zone valves, and relay coils must remain within the transformer’s VA rating to prevent voltage sag and nuisance tripping. In redundant system designs, a secondary transformer circuit with automatic switchover capability ensures that the pressure limit function remains active even during primary power supply maintenance.

At the network and communication layer, while the L404F1102 itself operates as a hardwired discrete device, its output can be integrated into networked control architectures through the use of Honeywell XL15C or XL50 controllers, which accept digital input signals from field devices and transmit status data over BACnet or LonWorks protocols to a central building management system. This system integration capability allows facility engineers to monitor pressuretrol status, log pressure events, and configure alarm thresholds remotely — significantly reducing the need for on-site diagnostic visits.

For human-machine interface (HMI) applications, the L404F1102’s operational status can be displayed on panel-mounted indicators or integrated into touchscreen HMI platforms. Operators can view real-time pressure limit status, acknowledge alarms, and review historical pressure event logs — all of which contribute to a more transparent and maintainable control system architecture.

In terms of system expandability, the L404F1102 is designed to coexist with additional limit and operating controls within the same boiler control panel. A typical multi-control configuration may include the L404F1102 as the high-limit pressuretrol, a separate operating pressuretrol such as the Honeywell L404F1369 for normal cycling control, a low-water cutoff relay, and a manual reset high-limit aquastat. This layered limit control strategy provides multiple independent safety barriers, ensuring that no single component failure can result in an unsafe system condition.

From a maintenance and lifecycle perspective, the L404F1102’s robust bellows-actuated mechanism and sealed enclosure design minimize the risk of pressure sensing drift over time. Routine commissioning involves verifying the setpoint calibration against a calibrated reference gauge, confirming the differential setting, and testing the circuit interruption function under controlled conditions. With a warranty terms confirmed during quotation covering manufacturing defects and component failures, the L404F1102 represents a reliable long-term investment for system integrators and facility maintenance teams who require consistent pressure limit performance across multi-year operational cycles.

Inventory availability and supply chain continuity are critical considerations for industrial control system projects. ZYPLC maintains dedicated stock of the L404F1102 and compatible Honeywell L404F Series components to support both new installation projects and emergency replacement scenarios, minimizing system downtime and ensuring that engineering teams can source verified components without extended lead times.

Product Specification Table

System Compatibility Notes

The L404F1102 achieves its full architectural value when deployed as part of a coordinated control system. In a typical steam boiler control panel, the L404F1102 operates alongside the Honeywell R8184G Protectorelay Oil Burner Control, which manages the burner ignition and flame supervision sequence. The pressuretrol’s output signal serves as a permissive input to the burner control circuit: when pressure exceeds the setpoint, the L404F1102 opens its contact, de-energizing the burner control and halting the firing sequence.

For systems utilizing gas-fired burners, the Honeywell S8600H Intermittent Pilot Module or Honeywell S8610U Universal Intermittent Pilot Module performs the ignition sequencing function, with the L404F1102 providing the pressure-limit interlock in series with the thermostat and zone control circuits. In multi-zone systems, Honeywell V8043 Series zone valve actuators distribute steam to individual heating zones, with the zone valve end switches providing feedback to the zone control panel to confirm valve position before burner firing is permitted.

The Honeywell AT72D1683 Control Transformer supplies the 24VAC power required by the control circuit, while the Honeywell R845A Relay provides the switching interface between the low-voltage control circuit and the line-voltage burner motor circuit. In redundant architectures, a Honeywell L4006A Aquastat Controller may be installed in parallel as a secondary high-limit device, providing an independent safety barrier against overpressure and overtemperature conditions. For systems requiring remote monitoring, a compatible BAS gateway module can aggregate discrete input signals from the L404F1102 and other field devices, transmitting consolidated status data to a central SCADA or BMS platform.

Industrial Application Notes

The Honeywell L404F1102 finds application across a broad spectrum of industrial and commercial process environments where steam pressure management is a critical safety and operational requirement.

In manufacturing and process industries, the L404F1102 is deployed in steam-heated process vessels, autoclaves, and heat exchangers where precise pressure limit control is essential for product quality and worker safety. The controller’s reliable bellows-actuated mechanism ensures consistent setpoint performance across thousands of operating cycles, reducing the risk of pressure-related process upsets.

In power generation and district heating applications, the L404F1102 serves as a secondary pressure limit device in auxiliary boiler systems, providing an independent safety interlock that complements the primary boiler safety valve and pressure transmitter. Its hardwired discrete output ensures that the pressure limit function remains active even during network communication failures, maintaining system safety in degraded operating modes.

In petrochemical and refinery environments, the L404F1102 is used in steam tracing and steam jacketing systems where maintaining steam pressure within defined limits is critical for preventing product solidification or thermal degradation. The controller’s UL-listed and CSA-certified design ensures compliance with facility safety standards and insurance requirements.

In water treatment and municipal utility facilities, the L404F1102 controls steam pressure in boiler systems used for sludge drying, chemical dosing, and building heating. Its robust construction and sealed enclosure provide reliable performance in the humid and corrosive environments typical of water treatment plant boiler rooms.

In food processing and packaging operations, the L404F1102 ensures that steam pressure in cooking, sterilization, and cleaning-in-place systems remains within validated process limits, supporting HACCP compliance and food safety certification requirements.

Product Compatibility FAQ

Q1: Is the Honeywell L404F1102 compatible with both oil-fired and gas-fired boiler control systems?
Yes. The L404F1102 is a pressure-sensing limit controller that operates independently of the fuel type. Its SPST normally-closed contact output is compatible with both oil burner primary controls such as the Honeywell R8184G and gas valve control circuits managed by the Honeywell S8600H or S8610U ignition modules. The controller’s 120VAC electrical rating is consistent with standard North American boiler control panel wiring practices, and its 1/8 inch NPT steam connection is compatible with standard boiler pressure tapping configurations.

Q2: How does the L404F1102 integrate into a BACnet or LonWorks building automation system for remote monitoring?
The L404F1102 itself is a hardwired discrete device and does not natively communicate over digital fieldbus protocols. However, its contact output can be wired to a digital input module on a BACnet or LonWorks controller — such as the Honeywell XL15C or XL50 — which reads the contact state and transmits it as a binary input object to the building management system. This system integration approach allows facility operators to monitor pressuretrol status, configure alarm notifications, and log pressure event histories without modifying the hardwired safety circuit. The warranty terms confirmed during quotation covers the L404F1102 unit itself; integration hardware is covered under the respective manufacturer’s warranty.

Q3: What commissioning steps are required when replacing an L404F1102 in an existing boiler control system, and how does the warranty terms confirmed during quotation apply?
When replacing an L404F1102, the commissioning procedure should include: (1) isolating the boiler from the steam system and depressurizing to zero PSI; (2) removing the existing pressuretrol from the 1/8 inch NPT steam pigtail connection; (3) installing the replacement L404F1102 with appropriate pipe thread sealant; (4) restoring system pressure and verifying the setpoint calibration against a calibrated reference gauge; (5) confirming the differential setting and testing the circuit interruption function by allowing pressure to rise to the setpoint under controlled conditions; and (6) documenting the commissioning results in the system maintenance log. The warranty terms confirmed during quotation covers manufacturing defects and component failures identified during normal operation. Warranty claims should be initiated through ZYPLC’s technical support team at plc.sales@zyplc.com or +86 19859288691.
