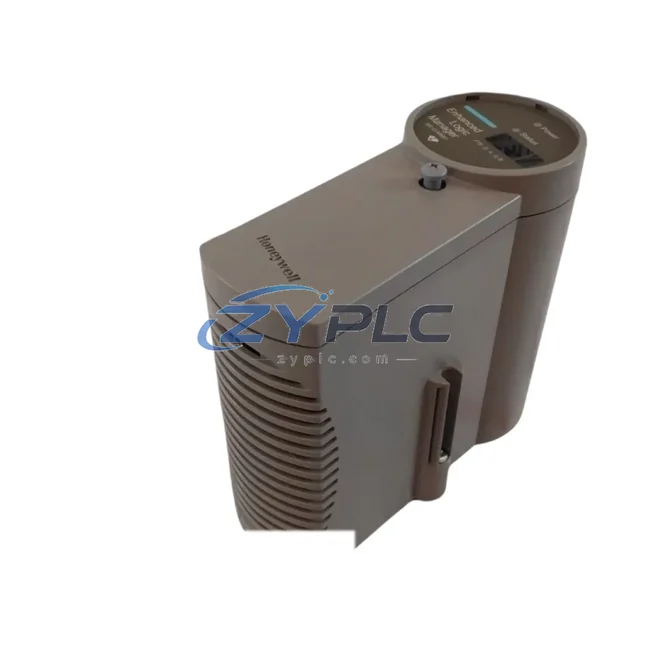

The Honeywell MC-ELMMS1 (part number 51454552-175) is a dedicated Logic Manager module engineered for deployment within Honeywell’s Safety Manager (SM) platform — one of the most widely adopted Safety Instrumented System (SIS) architectures in global process industries. Rather than functioning as a standalone component, the MC-ELMMS1 is designed to operate as an integral node within a layered, redundant safety control architecture, coordinating signal processing, safety logic execution, and cross-layer communication across the full control hierarchy.

In modern industrial automation, safety system architecture is defined by the seamless interaction between the control layer, I/O layer, network layer, power layer, human-machine interface layer, and the field execution layer. The MC-ELMMS1 occupies the critical control layer position, executing SIL 2/3-capable safety logic while maintaining deterministic scan cycles and fail-safe output behavior. Its integration with the broader Safety Manager platform ensures that upstream process data from field transmitters and sensors — routed through Honeywell SM I/O modules such as the MC-TAIH12 analog input module and MC-TDID12 digital input module — is processed with the precision and reliability demanded by IEC 61511 and IEC 61508 functional safety standards.

The module interfaces directly with the Safety Manager chassis backplane, enabling high-speed internal communication with peer logic modules, power supply units such as the MC-PSMA1 redundant power supply, and communication gateway modules including the MC-ESMFK1 Ethernet Safety Manager communication module. This backplane-level integration eliminates external wiring complexity between safety logic and I/O subsystems, reducing potential failure points and simplifying system validation during Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT).

From a network architecture perspective, the MC-ELMMS1 supports integration with Honeywell’s Fault Tolerant Ethernet (FTE) network infrastructure, enabling peer-to-peer safety communication between redundant Safety Manager controllers and upstream DCS platforms such as Honeywell Experion PKS. This allows the safety layer to exchange process data and alarm states with the control layer without compromising the independence required by functional safety standards. In architectures where the Safety Manager operates alongside Honeywell C300 process controllers or Experion HS stations, the MC-ELMMS1 ensures that safety logic remains isolated yet fully observable from the operator HMI layer.

Redundancy is a core design principle of the Safety Manager platform, and the MC-ELMMS1 is fully compatible with 1oo2D (one-out-of-two with diagnostics) and 2oo3 (two-out-of-three) voting architectures. In high-availability applications such as emergency shutdown systems (ESD), burner management systems (BMS), and high-integrity pressure protection systems (HIPPS), the module can be deployed in redundant controller pairs, with automatic bumpless transfer ensuring continuous safety function execution during module replacement or firmware updates. This hot-swap capability, combined with the module’s online diagnostic reporting, significantly reduces planned maintenance downtime and supports the long-term operational integrity of safety-critical installations.

Field-level execution is managed through the Safety Manager’s distributed I/O subsystem, where the MC-ELMMS1 coordinates output commands to final control elements including solenoid valve drivers, motor control relays, and safety-rated actuator interfaces. The module’s output logic is validated against the configured cause-and-effect matrix on every scan cycle, ensuring that process deviations trigger the correct protective actions within the required response time. Integration with Honeywell’s Safety Builder engineering environment allows control engineers to configure, simulate, and validate the full safety logic offline before deployment, reducing commissioning risk in live plant environments.

Across industries including oil and gas, petrochemical refining, power generation, water treatment, pharmaceutical manufacturing, and mining, the MC-ELMMS1 has established a proven track record as a reliable logic execution platform within complex, multi-loop safety architectures. Its compatibility with the full Safety Manager module ecosystem — including the MC-ESMFK1 communication module, MC-PSMA1 power supply, MC-TAIH12 analog input, MC-TDID12 digital input, and MC-TDOD12 digital output modules — ensures that system architects can design, expand, and maintain their safety infrastructure using a consistent, validated hardware platform without introducing cross-vendor compatibility risks.

For engineering teams managing long-term plant safety system lifecycles, the availability of the MC-ELMMS1 through ZYPLC’s industrial component supply network provides a reliable source for both new project builds and replacement procurement. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional verification and full traceability documentation available upon request. ZYPLC maintains ready stock of Safety Manager platform components to support urgent shutdown maintenance, planned turnaround projects, and phased system expansion programs.

Product Specification Table

System Compatibility Notes

The MC-ELMMS1 achieves its full architectural value when deployed as part of a coordinated Safety Manager system. In a typical ESD or BMS architecture, the module operates alongside the MC-PSMA1 redundant power supply module, which provides dual-feed power conditioning to the safety chassis, ensuring uninterrupted logic execution during utility power disturbances. The MC-ESMFK1 Ethernet Safety Manager communication module connects the safety controller to the plant-wide FTE network, enabling real-time data exchange with Honeywell Experion PKS C300 process controllers and Experion HS operator stations without violating safety system independence requirements.

On the I/O layer, the MC-ELMMS1 processes signals routed through MC-TAIH12 analog input modules — handling 4–20 mA process variable inputs from pressure transmitters, flow meters, and temperature sensors — and MC-TDID12 digital input modules, which capture discrete signals from position switches, valve feedback contacts, and emergency stop circuits. Protective output commands are issued through MC-TDOD12 digital output modules, driving solenoid valves, motor starters, and safety relay interfaces in the field execution layer.

For applications requiring expanded I/O capacity, the Safety Manager chassis supports additional MC-TAOH04 analog output modules for modulating control valve positioners within the safety loop. In redundant controller configurations, a second MC-ELMMS1 module operates in hot-standby mode, with the MC-ESMFK1 communication fabric synchronizing logic states between primary and standby controllers on every scan cycle. This architecture ensures bumpless transfer with zero safety function interruption during planned module maintenance or unplanned hardware faults.

Industrial Application Notes

In oil and gas processing facilities, the MC-ELMMS1 serves as the core logic executor for emergency shutdown systems protecting wellhead equipment, separator trains, and gas compression stations. Its SIL 3-capable architecture meets the functional safety requirements of API 14C and IEC 61511 for offshore and onshore production environments.

In petrochemical and refining plants, the module is deployed within HIPPS (High Integrity Pressure Protection Systems) architectures, where it executes 2oo3 voting logic on pressure transmitter inputs to initiate fast-acting isolation valve closure before process pressure exceeds design limits — protecting downstream equipment and personnel from catastrophic overpressure events.

In power generation facilities, including gas turbine and steam turbine plants, the MC-ELMMS1 integrates with turbine protection systems, coordinating with vibration monitoring modules and speed sensors to execute automatic turbine trip sequences within the required response time windows defined by OEM safety specifications.

In water and wastewater treatment plants, the module manages chemical dosing interlock logic and pump protection sequences, ensuring that safety functions remain operational even during DCS communication failures — a critical requirement for facilities operating under environmental compliance mandates.

In mining and mineral processing operations, the MC-ELMMS1 supports conveyor belt protection systems, crusher interlock logic, and ventilation safety controls in underground environments where system reliability directly impacts personnel safety and regulatory compliance.

Product Compatibility FAQ

Q1: Is the MC-ELMMS1 51454552-175 compatible with existing Honeywell Safety Manager chassis and I/O modules already installed in my plant?
Yes. The MC-ELMMS1 is designed for direct installation into the standard Honeywell Safety Manager chassis backplane. It is compatible with the full range of SM I/O modules including MC-TAIH12, MC-TDID12, MC-TDOD12, and MC-TAOH04, as well as the MC-PSMA1 power supply and MC-ESMFK1 communication modules. No chassis modification or additional interface hardware is required for integration into existing Safety Manager architectures.

Q2: Can the MC-ELMMS1 be replaced online without shutting down the safety system, and how does this affect the warranty terms confirmed during quotation coverage?
The MC-ELMMS1 supports hot-swap replacement in redundant controller configurations, allowing the module to be removed and replaced while the standby controller maintains continuous safety function execution. The warranty terms confirmed during quotation provided by ZYPLC covers the replacement unit from the date of shipment and applies to both new project installations and maintenance replacement scenarios. Pre-shipment functional verification is included with all warranty-covered units.

Q3: What engineering tools are required to configure and validate the MC-ELMMS1 within a new or expanded Safety Manager architecture?
Configuration and validation of the MC-ELMMS1 is performed using Honeywell’s Safety Builder engineering environment, which supports offline logic development, cause-and-effect matrix configuration, simulation, and SIL verification reporting. For system expansion projects, ZYPLC can provide module datasheets, hardware revision documentation, and compatibility matrices to support engineering teams during the design and FAT phases. Contact ZYPLC’s technical team for project-specific configuration support.
