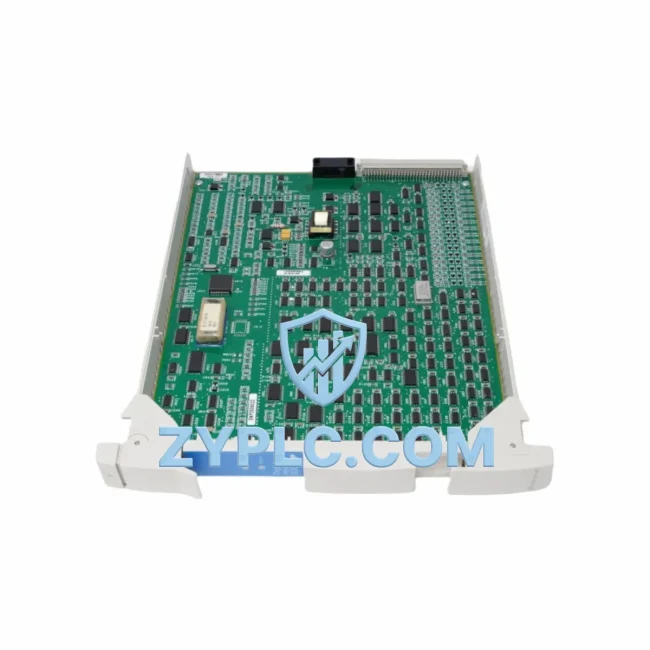

Honeywell MC-PDOY23 Industrial Network Interface for Experion PKS Systems

Honeywell MC-PDOY23 Industrial Network Interface for Experion PKS Systems

The Honeywell MC-PDOY23 Digital Output Relay Module is a precision-engineered I/O interface designed for seamless integration within the Experion PKS (Process Knowledge System) Distributed Control System architecture. As a critical node in the industrial data chain, the MC-PDOY23 bridges the gap between high-level control logic and field-level actuators, enabling reliable, real-time command execution across complex process environments. Whether deployed in oil and gas refineries, chemical processing plants, power generation facilities, or advanced manufacturing lines, this module delivers the deterministic output performance that modern smart factories demand.

In today’s industrial landscape, the integrity of the data link between the controller and the field device is non-negotiable. The MC-PDOY23 serves as the authoritative relay output point within the Honeywell C300 Controller-based architecture, translating digital control signals into hardwired relay contact closures. This ensures that actuators, motor starters, solenoid valves, and alarm annunciators receive precise, low-latency commands — a fundamental requirement for process safety and operational continuity.

Network Communication Table

Connected Automation Data Flow

Understanding the MC-PDOY23’s role requires tracing the full industrial data flow from the upper control layer down to the physical field device. At the top of the hierarchy, the Honeywell Experion PKS Server running on a redundant Windows-based platform communicates with the Honeywell C300 Process Controller via the FTE (Fault Tolerant Ethernet) network — a dual-ring, deterministic Ethernet backbone that guarantees sub-millisecond failover. The C300 Controller, acting as the primary execution engine, processes control logic and issues digital output commands to the MC-PDOY23 through the Series C I/O backplane bus.

The MC-PDOY23 then converts these digital commands into hardwired relay contact closures, directly actuating field devices such as motor control center (MCC) starters, solenoid valve coils, and process shutdown relays. Alongside the MC-PDOY23, the Honeywell MC-PAIH03 Analog Input Module and MC-PAOY22 Analog Output Module handle continuous process variable acquisition and control signal generation, while the MC-PDIY22 Digital Input Module feeds back field device status — valve open/closed, motor run/stop — into the C300 for closed-loop verification.

At the network layer, the Honeywell FTE Switch (FTESW) provides the redundant Ethernet switching fabric that connects the C300 Controllers, I/O Link Interface Modules (IOLIM), and the Experion PKS Server. The IOLIM serves as the critical bridge between the FTE network and the Series C I/O backplane, ensuring that commands issued to the MC-PDOY23 traverse a fully redundant, fault-tolerant communication path. For SCADA integration, the Experion PKS Server exposes process data via OPC-DA and OPC-UA interfaces, enabling upstream systems — including third-party SCADA platforms, MES (Manufacturing Execution Systems), and historian databases — to consume real-time relay status and output command data.

In remote monitoring scenarios, the Honeywell EPLCG (Experion PKS LAN/WAN Communication Gateway) extends the data reach beyond the local control network, enabling remote engineers and operations centers to monitor relay output states, acknowledge alarms, and perform remote diagnostics without physical access to the field cabinet. This capability is further enhanced by integration with Honeywell Uniformance PHD historian, which archives relay switching events, output command timestamps, and fault records for long-term process analysis and regulatory compliance reporting.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is the fragmentation of control data across incompatible systems and protocols. The MC-PDOY23, as part of the Honeywell Experion PKS ecosystem, directly addresses these data isolation problems through a combination of standardized backplane communication, FTE network redundancy, and open OPC connectivity.

Protocol Unification: In facilities where legacy Honeywell TDC 3000 or PlantScape systems coexist with modern Experion PKS infrastructure, the MC-PDOY23 operates within a unified I/O architecture that supports protocol bridging via the Experion PKS migration tools. This eliminates the need for standalone protocol converters and reduces the risk of signal integrity loss during protocol translation.

Eliminating Data Silos: By connecting field relay outputs directly to the Experion PKS data highway, the MC-PDOY23 ensures that every relay switching event — whether a valve actuation, motor start command, or emergency shutdown signal — is immediately visible to the SCADA layer, the historian, and the alarm management system. There are no data silos; every output state is a live, queryable data point within the unified process information architecture.

Remote Monitoring and Diagnostics: The MC-PDOY23 supports module-level diagnostics accessible through the Experion PKS Control Builder and Station HMI. Maintenance engineers can remotely query module health, channel-level output status, and fault codes without interrupting process operations. This remote diagnostic capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies.

Production Line Transparency: In smart factory deployments, the MC-PDOY23’s relay output data feeds directly into MES and ERP integration layers via OPC-UA, providing production supervisors with real-time visibility into actuator states, interlock conditions, and process shutdown events. This transparency enables data-driven decision-making and supports continuous improvement initiatives.

System Scalability: The modular architecture of the Experion PKS Series C I/O system allows facilities to expand relay output capacity by adding additional MC-PDOY23 modules to existing I/O cabinets without controller reconfiguration. This plug-and-play scalability supports phased capacity expansion and minimizes capital expenditure for growing operations.

Outgoing Inspection and Stock Availability: Every MC-PDOY23 unit supplied by ZYPLC undergoes a rigorous pre-shipment functional test, including relay contact continuity verification, backplane communication handshake testing, and visual inspection for physical integrity. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains ready stock of the MC-PDOY23 to support urgent MRO (Maintenance, Repair, and Operations) requirements, with DHL and FedEx express shipping available for global delivery.

Industrial Connectivity FAQ

Q1: What communication protocol does the Honeywell MC-PDOY23 use to interface with the C300 Controller?
The MC-PDOY23 communicates with the Honeywell C300 Process Controller via the Series C I/O backplane bus, which operates under the Experion PKS proprietary I/O Link protocol. At the network level, the C300 connects to the Experion PKS Server via FTE (Fault Tolerant Ethernet), a dual-ring deterministic Ethernet architecture that provides automatic failover in under one millisecond, ensuring uninterrupted relay output command delivery even during network segment failures.

Q2: Is the MC-PDOY23 compatible with third-party SCADA systems and OPC clients?
Yes. While the MC-PDOY23 itself interfaces directly with the Experion PKS backplane, its output data is exposed to third-party SCADA systems and OPC clients through the Experion PKS Server’s built-in OPC-DA and OPC-UA server capabilities. This allows relay output states and switching events to be consumed by any OPC-compliant SCADA platform, historian, or MES system without additional protocol conversion hardware.

Q3: How does the MC-PDOY23 support network stability and fault tolerance in critical process environments?
The MC-PDOY23 benefits from the inherent redundancy of the Experion PKS FTE network architecture. The dual-ring FTE topology ensures that a single cable or switch failure does not interrupt relay output command delivery. Additionally, the Series C I/O system supports redundant I/O Link Interface Modules (IOLIM), providing a fully redundant communication path from the C300 Controller to the MC-PDOY23. Module-level watchdog timers ensure that relay outputs default to a safe state in the event of a communication timeout.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the MC-PDOY23?
ZYPLC provides a 12-month warranty on all MC-PDOY23 units, covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a comprehensive functional test including relay contact continuity checks, backplane communication verification, and physical inspection. Units are packaged in anti-static ESD-safe materials and shipped via DHL or FedEx express with full tracking. Expedited shipping options are available for urgent MRO and emergency replacement requirements.
