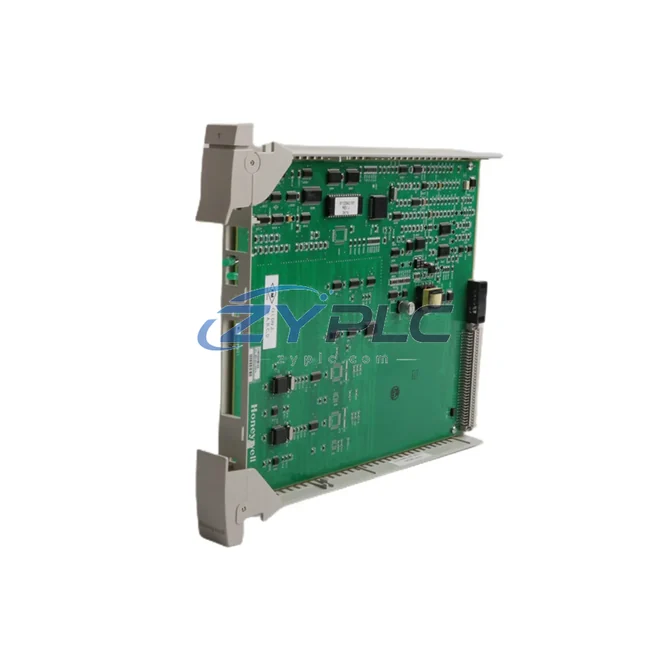

Honeywell MC-PRHM01 51404109-175 Redundancy Module for C300 Systems

Honeywell MC-PRHM01 51404109-175: Industrial Data Link Redundancy for Smart Factory C300 Systems

The Honeywell MC-PRHM01 (Part No. 51404109-175) is a high-availability Redundancy Module engineered for the Honeywell Experion PKS C300 Distributed Control System (DCS). In modern smart factory environments where uninterrupted data flow between field devices, PLC controllers, remote I/O, HMI panels, SCADA platforms, and upper-level MES systems is mission-critical, the MC-PRHM01 serves as the backbone of fault-tolerant industrial network communication. By enabling seamless controller redundancy switchover without process interruption, this module ensures that real-time data acquisition, protocol conversion, and network transmission remain continuous across the entire automation data chain.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Honeywell Experion PKS architecture, the MC-PRHM01 51404109-175 operates at the heart of the controller redundancy pair, synchronizing real-time process data between the primary and secondary C300 Controller Modules at all times. Field signals originating from pressure transmitters, flow meters, temperature sensors, and valve positioners are collected through Honeywell CIOM-A Series Remote I/O modules and transmitted via the FTE (Fault Tolerant Ethernet) backbone to the C300 controller pair. The MC-PRHM01 ensures that both controllers maintain identical process state data, enabling a bumpless, sub-second switchover in the event of a primary controller fault — with zero data loss and no disruption to the SCADA data stream.

Upstream, the Experion PKS server communicates with Honeywell Experion Station HMI workstations and third-party SCADA systems via OPC DA/UA gateways, providing operators with real-time process visualization, alarm management, and trend analysis. The MC-PRHM01 redundancy link guarantees that the HMI and SCADA layers always receive consistent, uninterrupted data from the active controller — a critical requirement in continuous process industries such as oil refining, chemical production, and power generation.

For sites integrating legacy Modbus RTU or PROFIBUS DP field devices, Honeywell HC900 Hybrid Controllers or dedicated protocol gateway modules bridge the communication gap, converting legacy signals into FTE-compatible data packets that flow seamlessly into the C300 architecture. Similarly, Honeywell Safety Manager SC systems interface with the Experion PKS network through dedicated safety network interfaces, ensuring that safety-instrumented system (SIS) data is visible at the SCADA level without compromising the integrity of the safety loop. Variable frequency drives (VFDs) and motor control centers equipped with PROFIBUS DP or Modbus TCP communication cards feed drive status, speed references, and fault diagnostics into the C300 I/O subsystem, enabling closed-loop control and remote diagnostics from the Experion operator station.

Edge computing nodes and Honeywell Connected Plant gateways further extend the data chain by aggregating process historian data from the Experion PKS server and pushing it to cloud-based analytics platforms, enabling predictive maintenance, KPI dashboards, and remote diagnostics accessible from any location. The MC-PRHM01 redundancy module is the silent guarantor of this entire data chain — ensuring that no single controller failure can interrupt the flow of information from the plant floor to the enterprise level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in large-scale process plants is data isolation — the fragmentation of process information across incompatible control systems, legacy field buses, and proprietary communication protocols. The Honeywell MC-PRHM01 51404109-175 directly addresses this challenge by enabling a fully redundant C300 controller pair that acts as a unified data aggregation and distribution node within the Experion PKS network.

Without controller redundancy, a single controller failure can create an immediate data blackout — SCADA screens go stale, alarm systems lose their data source, and operators are forced to rely on manual field readings. The MC-PRHM01 eliminates this risk by maintaining a continuously synchronized shadow controller that assumes control within milliseconds of a primary fault, ensuring that real-time monitoring, alarm feedback, and remote diagnostics remain fully operational throughout the switchover event.

For plants undergoing digital transformation, the MC-PRHM01 also supports production line transparency by enabling the C300 controller pair to serve as a stable, high-availability data source for MES integration, OEE calculation, and energy management systems. By removing the risk of controller-level data interruption, plant engineers can confidently deploy advanced analytics, predictive maintenance algorithms, and remote diagnostic tools without fear of data gaps caused by controller downtime. System expansion is equally straightforward — additional C300 controllers, CIOM-A remote I/O racks, and FTE network switches can be added to the Experion PKS architecture without disrupting existing redundant controller pairs, making the MC-PRHM01 a future-proof investment for growing industrial facilities.

Industrial Connectivity FAQ

Q1: What is the switchover time of the Honeywell MC-PRHM01 redundancy module during a controller fault?
The MC-PRHM01 enables bumpless redundancy switchover, typically completing the transition from primary to secondary C300 controller in under one second, with no interruption to process control outputs or SCADA data streams. This ensures that real-time monitoring and alarm systems remain fully operational during the switchover event.

Q2: Is the MC-PRHM01 51404109-175 compatible with third-party SCADA and HMI systems?
Yes. The Honeywell Experion PKS C300 architecture, supported by the MC-PRHM01 redundancy module, communicates with third-party SCADA and HMI platforms via OPC DA/UA, Modbus TCP, and other standard industrial protocols. This ensures broad system compatibility and supports integration with existing plant automation infrastructure without requiring proprietary software.

Q3: How does the MC-PRHM01 support network stability in high-noise industrial environments?
The MC-PRHM01 operates over the Honeywell FTE (Fault Tolerant Ethernet) backbone, which uses dual-ring network topology to provide inherent network redundancy at the communication layer. This architecture ensures that even in the event of a cable fault or network switch failure, the redundancy link between the C300 controller pair remains active, maintaining network stability and uninterrupted data transmission.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the MC-PRHM01 51404109-175?
All Honeywell MC-PRHM01 51404109-175 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo pre-shipment functional testing to verify communication integrity, redundancy link operation, and hardware condition. Availability is confirmed via RFQ for shipment arranged after confirmation, with global shipping support. For pricing, lead time, and technical consultation, contact ZYPLC directly.
