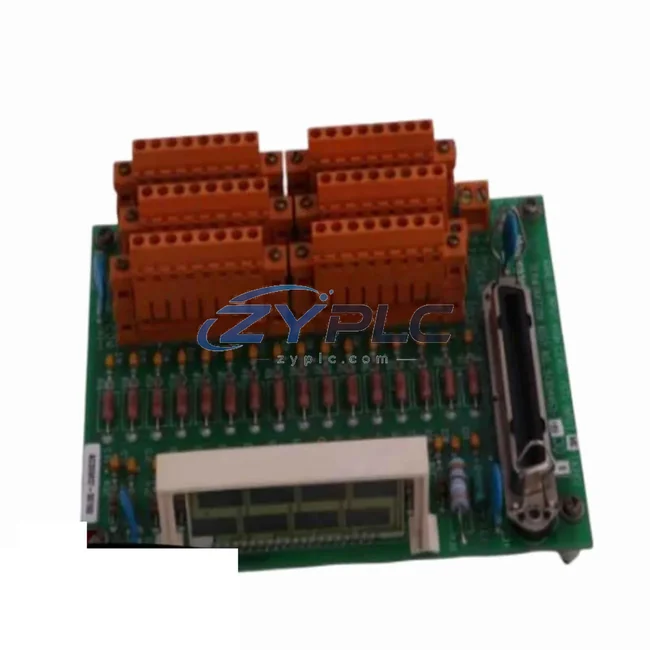

Honeywell MC-TAIH02 51304453-150 Analog Input Module C300

Honeywell MC-TAIH02 51304453-150: Industrial Data Link for C300 DCS Analog Signal Networks

The Honeywell MC-TAIH02 (Part No. 51304453-150) is a high-density Analog Input Module engineered for the Experion PKS C300 Distributed Control System. Designed to serve as a critical node in the industrial data acquisition chain, this module bridges field-level instrumentation — including 4–20 mA transmitters, RTDs, thermocouples, and HART-enabled sensors — with the C300 controller’s real-time processing engine. In smart factory environments where signal integrity, protocol compatibility, and deterministic data delivery are non-negotiable, the MC-TAIH02 delivers the analog front-end performance that modern process automation demands.

With 8 configurable analog input channels and native HART (Highway Addressable Remote Transducer) protocol support, this module enables simultaneous process variable acquisition and secondary diagnostic data retrieval from intelligent field devices. Each channel can be independently configured for current or voltage input ranges, making it adaptable across diverse sensor types deployed in chemical processing, oil and gas, power generation, and pharmaceutical manufacturing environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Experion PKS architecture, the MC-TAIH02 sits at the foundation of the analog data acquisition layer. Field instruments — such as Honeywell STT850 Smart Temperature Transmitters or third-party Rosemount 3051 pressure transmitters — connect directly to the module’s input terminals, delivering 4–20 mA process signals alongside HART diagnostic frames. The module conditions and digitizes these signals before forwarding structured data packets upstream to the Honeywell C300 Controller (MC-PDOX01) via the CIOM-A Series C I/O Link bus.

The C300 controller aggregates inputs from multiple I/O modules — including the MC-TAOH02 Analog Output Module for closed-loop control and the MC-TDID12 Digital Input Module for discrete status signals — and executes control strategies at scan rates aligned with process dynamics. Processed data is then transmitted across the Fault Tolerant Ethernet (FTE) network to the Experion PKS server, where it feeds the Honeywell Station (HMIWeb Display Builder) for operator visualization and the Experion SCADA platform for supervisory monitoring and historian logging.

For remote I/O expansion in distributed plant layouts, the MC-TAIH02 can be deployed alongside Honeywell IOLIM (I/O Link Interface Module) nodes, extending the C300’s reach to field junction boxes without additional controller hardware. In multi-loop control scenarios, the module works in concert with MC-TAOM04 Analog Output Modules and MC-TDOD08 Digital Output Modules to complete the signal chain from sensor to actuator. Edge gateway devices — such as Honeywell’s Experion Edge nodes — can further aggregate HART diagnostic data from the MC-TAIH02 for cloud-based predictive maintenance analytics, closing the loop between field instrumentation and enterprise-level asset management systems.

Variable frequency drives (VFDs) and motor control centers receiving setpoint commands from the C300 rely on the analog output chain that begins with accurate input acquisition at the MC-TAIH02 level. Any drift, noise, or channel fault at the input stage propagates through the entire control loop — underscoring the module’s role as a precision anchor in the automation data flow.

Solving Data Isolation in Industrial Sites

Legacy DCS installations frequently suffer from data isolation — islands of instrumentation that cannot communicate with modern SCADA or MES platforms due to protocol fragmentation, aging I/O hardware, or proprietary bus architectures. The MC-TAIH02 addresses this challenge directly within the Honeywell Experion PKS ecosystem by providing a standardized, HART-capable analog input interface that integrates seamlessly with both legacy field wiring and modern digital infrastructure.

Plants migrating from older TDC 3000 or PlantScape systems to Experion PKS can leverage the MC-TAIH02 as part of a phased I/O migration strategy, reusing existing 4–20 mA field wiring while gaining access to HART secondary variables — flow totals, sensor diagnostics, device status — that were previously invisible to the control system. This eliminates the need for costly field rewiring while dramatically expanding the data available for process optimization and predictive maintenance.

For production line transparency, the module’s per-channel HART communication enables continuous device health monitoring without interrupting process control. Operators can remotely interrogate connected transmitters for calibration status, sensor degradation indicators, and loop integrity data — all surfaced through the Experion PKS alarm management system and forwarded to SCADA dashboards for trend analysis. Remote diagnostics reduce unplanned downtime by enabling maintenance teams to identify failing instruments before process upsets occur, supporting a shift from reactive to condition-based maintenance strategies.

System expansion is equally straightforward: additional MC-TAIH02 modules can be added to existing CIOM-A carriers without controller reconfiguration, supporting incremental capacity growth as production lines scale. The module’s hot-swap capability — supported within the Experion PKS redundancy framework — ensures that I/O expansion or replacement does not require process shutdowns, maintaining continuous data flow to SCADA and historian systems throughout the maintenance window.

Industrial Connectivity FAQ

Q1: Does the MC-TAIH02 support HART communication on all 8 channels simultaneously?
Yes. The MC-TAIH02 supports HART pass-through on all 8 analog input channels simultaneously. Each channel can independently communicate with HART-enabled field devices, retrieving secondary process variables and diagnostic data without interrupting the primary 4–20 mA signal used for process control. This enables comprehensive device health monitoring across all connected instruments in parallel.

Q2: Is the MC-TAIH02 compatible with third-party SCADA systems beyond Honeywell Experion PKS?
The MC-TAIH02 is natively designed for the Honeywell Experion PKS C300 platform and communicates via the proprietary CIOM-A Series C I/O Link bus. Integration with third-party SCADA systems (such as Wonderware, iFIX, or Ignition) is achieved through the Experion PKS OPC DA/UA server, which exposes all I/O data as standard OPC tags accessible to any compliant SCADA or historian platform. Direct third-party bus connection is not supported.

Q3: What is the network transmission latency for analog signals processed by the MC-TAIH02?
Within the Experion PKS C300 architecture, analog input scan periods are configurable from 100 ms to 1 second depending on control strategy requirements. The CIOM-A bus delivers deterministic, low-jitter data transfer to the C300 controller, ensuring that time-critical process loops — such as pressure or flow control — receive fresh input data within the configured scan interval. FTE network latency from controller to server is typically sub-10 ms under normal plant network conditions.

Q4: What warranty and pre-shipment testing does the MC-TAIH02 carry?
Every MC-TAIH02 (51304453-150) unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing prior to shipment. Testing verifies channel-level signal conditioning, HART communication integrity, bus interface operation, and power supply performance. Units are shipped with test documentation available upon request. Availability is confirmed via RFQ for same-week dispatch to minimize production downtime for urgent replacement requirements.
