Honeywell MC-TAMT04 51305890-175 Thermocouple Input Terminal Board for TDC 3000 Systems

Honeywell MC-TAMT04 51305890-175: Industrial Data Link for TDC 3000 Smart Factory Networks

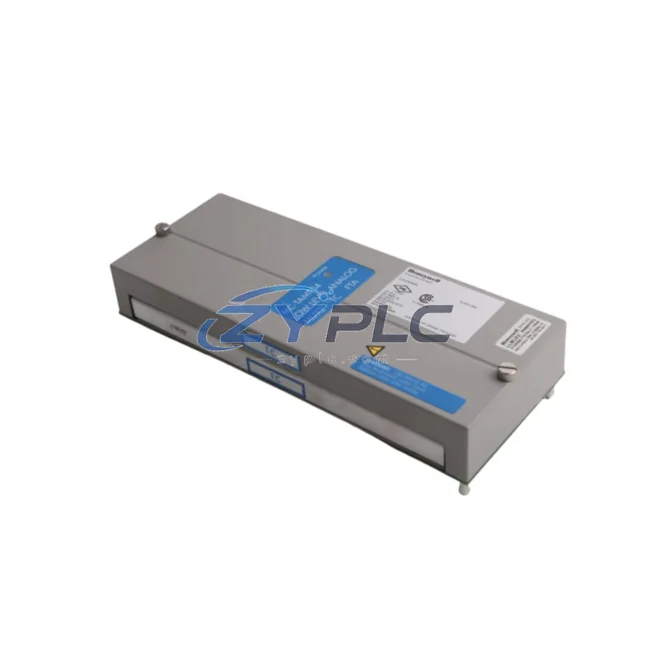

The Honeywell MC-TAMT04 (P/N 51305890-175) is a precision Thermocouple Input Terminal Board engineered for the TDC 3000 Distributed Control System (DCS). In modern smart factory environments, reliable signal acquisition at the field level is the foundation of every data-driven decision. This terminal board serves as the critical interface between thermocouple sensors on the plant floor and the higher-level control and monitoring architecture — bridging raw temperature signals into structured, actionable process data across the entire automation network.

Deployed across refining, petrochemical, power generation, and advanced manufacturing facilities, the MC-TAMT04 ensures that thermocouple signals are accurately conditioned, converted, and transmitted into the TDC 3000 data highway with minimal latency and maximum fidelity. Its role in the data chain extends from the sensor junction box all the way to SCADA dashboards and historian servers, making it indispensable for real-time process visibility and closed-loop control.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the MC-TAMT04’s value requires tracing the full data flow it enables within a TDC 3000 architecture. At the field level, thermocouples embedded in reactors, heat exchangers, furnaces, and pipelines generate millivolt-range signals that represent critical process temperatures. These signals are routed through marshalling panels to the MC-TAMT04 terminal board, where cold junction compensation and signal linearization are applied before the data is digitized and passed to the Honeywell MC-PAIH03 or compatible analog input modules residing in the High-Performance Process Manager (HPPM) or Process Manager (PM) chassis.

Within the PM chassis, the digitized temperature values are processed by the Honeywell MC-PDOY22 or equivalent output modules for closed-loop control actions — for example, modulating a control valve via a Honeywell MC-TAOY22 analog output terminal board. The control decisions are then communicated upstream via the UCN (Universal Control Network) to the Network Interface Module (NIM), which bridges the UCN to the Local Control Network (LCN). On the LCN, operator stations running Honeywell TDC 3000 US (Universal Station) software display real-time temperature trends, alarm states, and control loop status to plant operators.

For facilities integrating TDC 3000 with modern SCADA platforms, an OPC DA/UA gateway — such as those provided by Kepware or Honeywell’s own connectivity solutions — bridges the LCN historian data into supervisory systems like Honeywell Uniformance PHD or third-party platforms including OSIsoft PI and Wonderware InTouch. Remote I/O extensions using Honeywell MC-RLYA22 relay output modules or FOUNDATION Fieldbus linking modules further extend the data reach to distributed field devices, variable frequency drives (VFDs), and smart transmitters across the plant network.

This end-to-end connectivity — from thermocouple signal through the MC-TAMT04, into the PM, across the UCN/LCN, and up to SCADA and MES layers — is what makes the MC-TAMT04 a cornerstone of TDC 3000 data infrastructure. Every temperature reading it captures feeds into alarm management, advanced process control (APC), maintenance planning, and predictive maintenance workflows that define Industry 4.0 operations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — where field-level measurements remain trapped within proprietary control networks, invisible to enterprise systems and remote monitoring platforms. The MC-TAMT04, as part of the TDC 3000 ecosystem, directly addresses this challenge by providing a standardized, reliable signal entry point that feeds into Honeywell’s well-documented communication architecture.

Facilities operating mixed-generation equipment often face protocol fragmentation: newer smart sensors speaking HART or FOUNDATION Fieldbus alongside legacy thermocouple loops. The MC-TAMT04 handles the legacy thermocouple side with precision, while companion modules and gateway solutions handle protocol translation — ensuring that no temperature data point is left isolated from the control and monitoring network. This unified data collection approach eliminates blind spots on the production line, enabling true process transparency.

For remote monitoring and diagnostics, the TDC 3000 architecture supported by the MC-TAMT04 allows plant engineers to access real-time temperature data, configure alarm thresholds, and perform loop diagnostics from centralized operator stations or remote HMI clients — without requiring physical presence at the field device. This capability is critical for facilities with geographically distributed assets, hazardous area restrictions, or lean maintenance teams.

System scalability is another key advantage. As production capacity expands, additional MC-TAMT04 boards can be added to existing PM chassis slots, extending thermocouple input capacity without requiring new control infrastructure. This modular expansion model protects capital investment and reduces integration risk when scaling smart factory operations.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify signal conditioning accuracy, channel integrity, and backplane communication — ensuring that every MC-TAMT04 arrives ready for immediate installation and commissioning.

Industrial Connectivity FAQ

Q1: What communication protocols does the MC-TAMT04 support within the TDC 3000 system?
The MC-TAMT04 operates within Honeywell’s proprietary TDC 3000 communication architecture, interfacing with the Data Hiway and Universal Control Network (UCN). It does not communicate independently over Ethernet or Modbus; instead, it feeds conditioned thermocouple data into the Process Manager, which then communicates upstream via UCN to the LCN and connected SCADA/HMI systems.

Q2: How is network stability ensured when using the MC-TAMT04 in a live production environment?
The TDC 3000 platform is designed for high-availability industrial operation. The MC-TAMT04 terminal board is a passive signal conditioning and interface component with no active network switching, minimizing failure points. Redundant PM configurations and UCN ring topologies further ensure that a single module issue does not disrupt overall network communication or process control continuity.

Q3: Can the MC-TAMT04 be integrated with modern SCADA or MES platforms?
Yes. While the MC-TAMT04 itself interfaces with the TDC 3000 DCS, the data it feeds into the system can be accessed by modern SCADA, historian, and MES platforms via OPC DA/UA gateways connected to the LCN or via Honeywell Uniformance PHD. This allows temperature data from legacy thermocouple loops to be incorporated into real-time dashboards, KPI reporting, and predictive analytics workflows.

Q4: What warranty and testing standards apply to ZYPLC-supplied MC-TAMT04 units?
All MC-TAMT04 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional performance. Each unit undergoes pre-shipment inspection and functional verification, including channel signal conditioning checks and backplane interface testing. Availability is confirmed via RFQ for shipment arranged after confirmation via DHL or FedEx with full traceability documentation.
