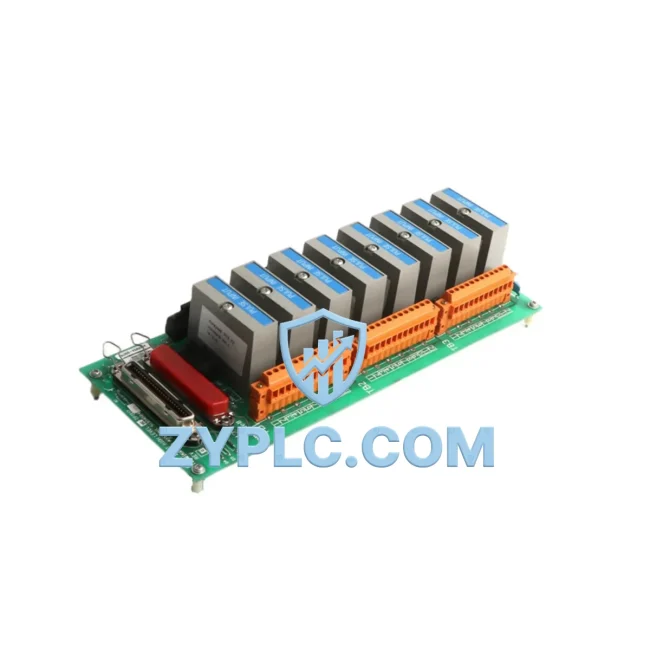

HONEYWELL MC-TPIX12 51304084-175 UCN Pulse Input Module for TotalPlant Systems

HONEYWELL MC-TPIX12 51304084-175: Industrial Data Link for TotalPlant Smart Factory Networks

The HONEYWELL MC-TPIX12 51304084-175 is a high-performance UCN (Universal Control Network) Pulse Input Module engineered for Honeywell’s TotalPlant Series distributed control systems. Designed to bridge field-level pulse signals from flow meters, turbine sensors, and rotary encoders directly into the TotalPlant DCS backbone, this module serves as a critical node in the industrial data chain — converting raw pulse counts into structured process data that flows seamlessly to SCADA platforms, HMI workstations, and upper-level MES systems.

In modern smart factory environments, the integrity of signal acquisition at the field device layer determines the reliability of every downstream decision. The MC-TPIX12 51304084-175 addresses this challenge by providing stable, high-resolution pulse capture over the UCN communication bus, ensuring that data from custody transfer meters, batch counters, and speed sensors reaches the TotalPlant controller with minimal latency and zero signal degradation.

Compatibility & Integration Notes

Connected Automation Data Flow

Within a TotalPlant DCS architecture, the MC-TPIX12 51304084-175 sits at the intersection of field instrumentation and process control logic. Pulse signals originating from Honeywell SmartLine flow transmitters, turbine flowmeters, and magnetic pickup sensors are captured by the module’s 12 input channels and transmitted over the UCN bus to the Honeywell PM (Process Manager) or HPM (High-Performance Process Manager) controller. From there, the processed data propagates through the TotalPlant network to the Honeywell Universal Station (US) or GUS (Global User Station) HMI, where operators monitor real-time flow totals, batch accumulations, and speed readings.

For facilities running hybrid control architectures, the MC-TPIX12 integrates alongside Honeywell MC-TAIX12 Analog Input Modules and MC-TDIY22 Digital I/O Modules, enabling a unified I/O strategy across the TotalPlant cabinet. When connected to a Honeywell UCN Coax Tap or UCN Repeater, the module extends network reach across large plant footprints without signal loss. Data collected by the MC-TPIX12 feeds directly into Honeywell Experion PKS SCADA servers via the TotalPlant network bridge, enabling historians, alarm management systems, and advanced process control (APC) applications to consume pulse-derived process variables in real time.

In batch manufacturing environments, the MC-TPIX12 works in concert with Honeywell Batch Manager software and Recipe Manager modules to track ingredient totals and trigger batch phase transitions based on accumulated pulse counts. For energy management applications, pulse data from utility meters — electricity, steam, compressed air — is routed through the module to Honeywell Energy Manager or third-party SCADA platforms via OPC-DA/OPC-UA gateways, completing the data chain from field device to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — where pulse signals from field instruments remain trapped at the I/O level, invisible to SCADA historians, MES platforms, and remote monitoring systems. The MC-TPIX12 51304084-175 directly resolves this by providing a structured UCN communication path that makes pulse data available across the entire TotalPlant network.

Protocol Unification: Plants operating mixed I/O environments — combining analog 4–20 mA signals, digital discrete I/O, and pulse inputs — often struggle with fragmented data collection. The MC-TPIX12 standardizes pulse acquisition within the UCN protocol framework, eliminating the need for external pulse-to-analog converters or standalone pulse counters that create additional points of failure.

Remote Monitoring and Diagnostics: With pulse data flowing through the UCN bus to the TotalPlant network, remote operations centers can monitor flow totals, detect meter anomalies, and receive alarm notifications without physical access to the field cabinet. This capability is essential for unmanned substations, offshore platforms, and geographically distributed process plants where on-site intervention is costly and time-consuming.

Production Line Transparency: By integrating pulse-based flow and speed data into the SCADA historian, plant managers gain full visibility into production throughput, equipment utilization, and energy consumption — enabling data-driven decisions on maintenance scheduling, production optimization, and capacity planning.

System Scalability: The modular architecture of the TotalPlant I/O subsystem allows additional MC-TPIX12 modules to be added to existing UCN segments as measurement points expand, supporting plant growth without requiring controller replacement or network redesign.

Industrial Connectivity FAQ

Q1: What communication protocol does the MC-TPIX12 51304084-175 use, and is it compatible with modern SCADA systems?
The MC-TPIX12 operates on Honeywell’s UCN (Universal Control Network) protocol, which is the native communication bus of the TotalPlant DCS (TPS/TDC 3000) platform. Integration with modern SCADA systems such as Honeywell Experion PKS, Wonderware System Platform, or third-party OPC-compliant historians is achieved through the TotalPlant network bridge or OPC gateway servers, enabling real-time data exchange without protocol conversion at the field level.

Q2: How does the MC-TPIX12 handle communication latency in high-speed pulse counting applications?
The module is designed for deterministic UCN bus communication, with scan cycle times aligned to the TotalPlant controller’s execution rate. For high-frequency pulse inputs such as turbine meters or high-speed encoders, the module’s hardware pulse accumulation registers capture counts between scan cycles, ensuring no pulse events are lost even when the UCN bus is under load. This makes it suitable for custody transfer metering and precision batch control applications.

Q3: Can the MC-TPIX12 51304084-175 be used in a mixed I/O cabinet alongside other TotalPlant modules?
Yes. The MC-TPIX12 is fully compatible with the TotalPlant I/O subsystem and can be installed in the same I/O Link cabinet alongside MC-TAIX12 Analog Input Modules, MC-TDIY22 Digital I/O Modules, and MC-PAOY22 Analog Output Modules. The UCN bus arbitration ensures all modules share the network without interference, and the TotalPlant controller manages I/O scanning across all module types within a single configuration environment.

Q4: What warranty and quality assurance does ZYPLC provide for the MC-TPIX12 51304084-175?
Every MC-TPIX12 51304084-175 unit supplied by ZYPLC is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify UCN communication integrity, pulse channel response, and module identification. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, configuration, and network integration queries.
