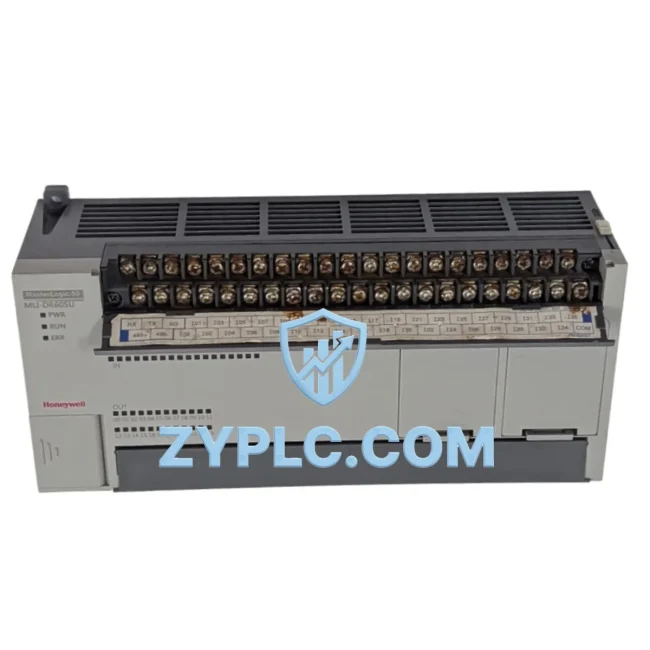

Honeywell MLI-DR60SU Industrial Network Interface for Experion PKS Systems

Honeywell MLI-DR60SU Industrial Network Interface for Experion PKS Systems: Precision Digital Relay Output for Smart Factory Data Links

The Honeywell MLI-DR60SU is a 60-point Digital Relay Output Module engineered for seamless integration within the Honeywell Experion PKS (Process Knowledge System) distributed control architecture. Designed to bridge the gap between high-level supervisory systems and field-level actuators, the MLI-DR60SU delivers deterministic relay switching across 60 discrete output channels, making it a cornerstone component in industrial automation networks where signal integrity, protocol consistency, and real-time responsiveness are non-negotiable.

In modern smart factory environments, the data chain begins at the sensor level and must flow without interruption through field devices, I/O modules, controllers, and up to SCADA and MES platforms. The MLI-DR60SU occupies a critical node in this chain — converting digital control commands from the Experion PKS controller into reliable relay contact closures that drive motors, solenoids, alarms, and safety interlocks. Its architecture supports high-density output consolidation, reducing panel footprint while maintaining full diagnostic visibility from the control room.

Network Communication Table

Connected Automation Data Flow

The MLI-DR60SU operates as a high-density relay output node within the Honeywell Experion PKS control network. In a typical smart factory deployment, field signals originate from distributed sensors and transmitters — including pressure, temperature, and flow devices — which feed into remote I/O assemblies and then into the Experion PKS backplane via modules such as the Honeywell MLI-AI16SU analog input module and the MLI-DI32SU digital input module. These input signals are processed by the Honeywell C300 Process Controller, which executes control logic and issues discrete output commands to the MLI-DR60SU.

The MLI-DR60SU then closes or opens relay contacts to actuate field devices — motor starters, solenoid valves, alarm horns, and safety shutdown systems — completing the control loop from data acquisition to physical action. Simultaneously, the Experion PKS server aggregates all I/O status data and presents it to operators via the Honeywell Station HMI, where real-time process visualization, alarm management, and trend analysis are performed. For facilities running multi-vendor environments, the Honeywell Experion PKS gateway modules enable OPC-UA and Modbus TCP bridging, allowing SCADA platforms such as Wonderware or iFIX to consume live relay status data from the MLI-DR60SU without protocol conversion bottlenecks.

In larger installations, the MLI-DR60SU is rack-mounted alongside the Honeywell MLI-DO32SU digital output module and the MLI-AO08SU analog output module, forming a comprehensive mixed I/O chassis that supports both discrete and continuous control within a single Experion PKS cabinet. Power distribution to the I/O chassis is managed by dedicated Honeywell system power supplies, ensuring stable 24VDC rail voltage across all relay output channels even under full-load switching conditions. For remote field cabinets, the Honeywell IOLIM (I/O Link Interface Module) extends the Experion PKS backplane over fiber or copper to satellite I/O enclosures, maintaining deterministic communication latency below 10ms across the entire relay output network.

Edge computing nodes and industrial IoT gateways can subscribe to relay output state changes via the Experion PKS OPC server, enabling predictive maintenance algorithms to correlate relay switching frequency with actuator wear patterns. This data flow — from the MLI-DR60SU relay contact through the Experion PKS historian to cloud analytics platforms — represents the full digital thread of smart factory connectivity that modern industrial operations demand.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control data across incompatible protocols and isolated subsystems. Legacy relay output modules often lack diagnostic transparency, leaving maintenance teams unable to determine whether a relay has failed, a field device is faulted, or a control command was never issued. The Honeywell MLI-DR60SU addresses this directly through its deep integration with the Experion PKS diagnostic framework, which provides channel-level fault detection, open-circuit alarming, and relay cycle count monitoring — all accessible from the Experion PKS operator station without requiring physical inspection of the field cabinet.

For plants transitioning from legacy DCS platforms to modern Experion PKS architectures, the MLI-DR60SU supports phased migration strategies. Existing relay wiring can be re-terminated to the MLI-DR60SU terminal blocks without rewiring field devices, preserving capital investment while gaining full Experion PKS network visibility. This approach eliminates data silos by bringing previously unmonitored relay outputs into the unified Experion PKS data highway, where their status is logged, alarmed, and available for SCADA trending.

Remote monitoring and diagnostics are further enhanced through the Experion PKS remote engineering station, which allows control engineers to view relay output status, force outputs for commissioning, and review historical switching logs from any networked workstation. For multi-site operations, the Experion PKS server replication feature synchronizes relay output data across geographically distributed control rooms, enabling centralized production transparency and coordinated alarm response. The MLI-DR60SU thus transforms isolated relay switching actions into networked, auditable, and remotely manageable data events — a fundamental requirement for Industry 4.0 compliance and smart factory certification.

Every MLI-DR60SU unit supplied by ZYPLC undergoes pre-shipment functional testing, including relay coil energization verification, contact resistance measurement, and backplane communication handshake confirmation. This ensures that the module arrives ready for immediate rack installation and system commissioning, minimizing site downtime and reducing integration risk.

Industrial Connectivity FAQ

Q1: What communication protocol does the Honeywell MLI-DR60SU use, and is it compatible with third-party SCADA systems?
The MLI-DR60SU communicates via the Honeywell Experion PKS proprietary backplane bus and is natively managed by the C300 Process Controller. For third-party SCADA integration, the Experion PKS platform provides OPC-DA and OPC-UA server interfaces, enabling systems such as Wonderware InTouch, Ignition, and iFIX to read relay output status data in real time without additional protocol converters.

Q2: What is the typical communication latency for relay output commands from the Experion PKS controller to the MLI-DR60SU?
Within the Experion PKS backplane architecture, relay output command execution latency is deterministic and typically below 10ms from controller scan cycle completion to relay contact closure. This performance is maintained across full 60-channel load conditions, making the MLI-DR60SU suitable for time-critical interlock and safety shutdown applications.

Q3: Can the MLI-DR60SU be expanded or integrated into a larger Experion PKS network without system downtime?
Yes. The Experion PKS architecture supports hot-standby controller configurations and redundant I/O paths, allowing additional MLI-DR60SU modules to be added to the I/O chassis during scheduled maintenance windows with minimal process disruption. The Experion PKS configuration studio automatically discovers new I/O modules upon rack insertion, streamlining system expansion without requiring full controller restarts.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the MLI-DR60SU?
All MLI-DR60SU modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including relay coil verification, contact resistance measurement, and Experion PKS backplane communication confirmation. Shipment is via DHL or FedEx with full export documentation, and our technical team provides post-delivery commissioning support upon request.
