Honeywell MMX-10M Input Module Minitrend

Honeywell MMX-10M Input Module for Minitrend Automation

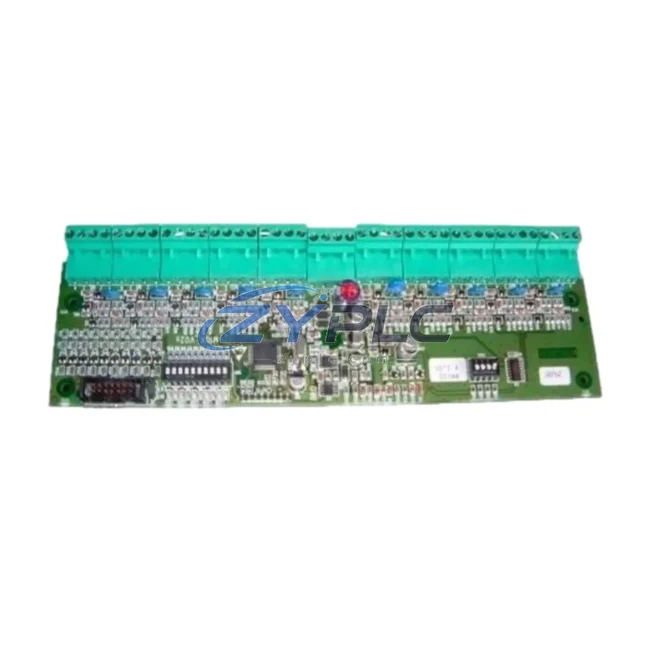

The Honeywell MMX-10M is a high-efficiency 10-channel input module engineered for the Minitrend series of paperless recorders. In modern industrial environments where energy accountability is no longer optional, the MMX-10M delivers precise, real-time signal acquisition that forms the backbone of any industrial automation system. By capturing accurate process variables — including temperature, voltage, current, and flow — across up to 10 independent channels, this module enables plant engineers to identify unplanned downtime at the source, optimize motor drive scheduling, and reduce idle-state power consumption across entire production lines.

Unlike generic data acquisition hardware, the MMX-10M is purpose-built for the Honeywell Minitrend GR and Minitrend QX recorder platforms, ensuring seamless integration with existing control infrastructure. Its compact DIN-rail-compatible form factor minimizes panel space while maximizing channel density, making it ideal for retrofit projects in legacy facilities where energy efficiency upgrades must coexist with existing wiring and cabinet layouts.

Product Specification Table

System Compatibility and Application

The MMX-10M does not operate in isolation — it is most effective when deployed as part of a layered industrial automation ecosystem. In a typical energy-optimized plant layout, the module feeds live process data into the Honeywell Minitrend GR recorder, which aggregates multi-channel readings and generates trend logs used by energy managers to benchmark consumption against production output. When paired with a Honeywell HC900 hybrid controller, the acquired signals can trigger closed-loop control actions — for example, reducing the setpoint of a Honeywell UDC3500 universal digital controller during off-peak production windows to cut heating energy by 15–25%.

On the drive side, variable frequency drives such as the Honeywell SmartVFD HVAC or compatible third-party drives receive speed reference signals derived from the MMX-10M’s flow and pressure readings, enabling dynamic motor speed adjustment that eliminates fixed-speed overconsumption. This is particularly impactful in pump and fan applications where affinity laws mean a 20% speed reduction yields nearly 50% operational stability. The Honeywell ControlEdge PLC can further orchestrate these drive commands based on production schedule data, ensuring motors ramp down automatically during planned idle periods rather than running at full load unnecessarily.

For facilities using distributed I/O architectures, the MMX-10M integrates naturally alongside Honeywell Experion I/O modules and communicates upstream via standard industrial protocols supported by the Minitrend platform. Power quality data captured by the module can be forwarded to Honeywell Energy Manager software for site-wide energy dashboards, enabling facility managers to correlate machine-level consumption with utility billing data. Where Modbus RTU or Modbus TCP communication is required, the Minitrend QX’s built-in communication ports allow the MMX-10M’s data to be polled by SCADA systems or Honeywell Experion PKS distributed control systems without additional gateways.

HMI visibility is equally important: operators monitoring production via a Honeywell Trend Manager Suite workstation can view live and historical MMX-10M channel data overlaid with energy KPIs, enabling shift-level decisions about load balancing and equipment scheduling. This closed-loop visibility — from sensor input through drive control to HMI display — is what transforms the MMX-10M from a simple data acquisition card into a strategic maintenance planning tool.

Maintenance and Replacement Notes

Consider a mid-scale pharmaceutical manufacturing facility running three continuous batch reactors. Each reactor relies on precise temperature control across multiple zones, with heating elements consuming significant electrical power around the clock. Without granular input monitoring, energy managers have no visibility into which zones are over-heating relative to process requirements, and heating elements run at full capacity regardless of actual thermal demand.

By installing the MMX-10M across each reactor’s temperature measurement points and connecting the module to the Minitrend GR recorder, the facility gains 10-channel simultaneous temperature trending with 1-second resolution. Analysis of the trend data reveals that two of the three reactors consistently overshoot their setpoints by 8–12°C during the first 90 minutes of each batch cycle — a pattern invisible without multi-point logging. Correcting the PID parameters in the associated UDC3500 controllers, informed by the MMX-10M’s data, reduces average heating energy per batch by an estimated 18%.

In a food processing line, the same module monitors conveyor motor current draw alongside oven temperature, enabling the plant’s energy team to identify that the conveyor motor runs at full speed even when the oven is in warm-up mode — a period when no product is present. Integrating the MMX-10M’s current signal into the ControlEdge PLC logic allows the conveyor drive to be automatically throttled during warm-up, reducing motor load during non-productive periods by up to 30%.

Predictive maintenance benefits are equally significant. By trending motor current signatures over time through the MMX-10M’s universal input channels, maintenance teams can detect early signs of bearing wear or winding degradation — conditions that cause motors to draw progressively more current before failure. Catching these anomalies weeks in advance allows scheduled maintenance during planned downtime rather than emergency repairs during production, reducing both repair costs and unplanned unplanned downtime from inefficient degraded equipment.

All units are tested prior to shipment, supplied with full documentation, and backed by a warranty terms confirmed during quotation. Stock is maintained for prompt dispatch, supporting both planned project timelines and urgent replacement requirements.

Product Sourcing FAQ

Q1: How does the MMX-10M contribute to measurable operational stability on the production floor?
The MMX-10M provides the real-time, multi-channel process data that makes unplanned downtime visible. By logging temperature, current, voltage, and flow signals simultaneously across 10 channels, it enables engineers to identify overconsumption patterns — such as overheating zones, idle-state motor loads, or inefficient drive scheduling — that would otherwise remain hidden in aggregate utility bills. The data it provides directly informs PID tuning, drive speed optimization, and load-shedding strategies.

Q2: Is the MMX-10M compatible with my existing Minitrend recorder, and can it be added to a running system?
The MMX-10M is designed specifically for the Honeywell Minitrend GR and Minitrend QX recorder platforms. It slots into the recorder’s expansion bay and is recognized automatically upon installation, with no firmware changes required in most configurations. Adding the module to a running system is typically possible during a brief scheduled maintenance window without full system shutdown.

Q3: Can the MMX-10M replace a faulty input module from an older Minitrend installation?
Yes. The MMX-10M is the current production input module for the Minitrend series and is backward-compatible with earlier Minitrend GR configurations. When replacing a faulty module, channel configuration is retained in the recorder’s memory, minimizing recommissioning time. We recommend verifying firmware version compatibility before installation; our technical team can advise based on your recorder’s serial number.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every MMX-10M unit undergoes functional testing prior to dispatch, verifying channel integrity, signal accuracy, and communication with the Minitrend platform. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. Warranty claims are supported directly; contact our team with the unit serial number and fault description to initiate the process.
