Honeywell MS8120A1205 Actuator for MS8120

Honeywell MS8120A1205 Actuator for MS8120

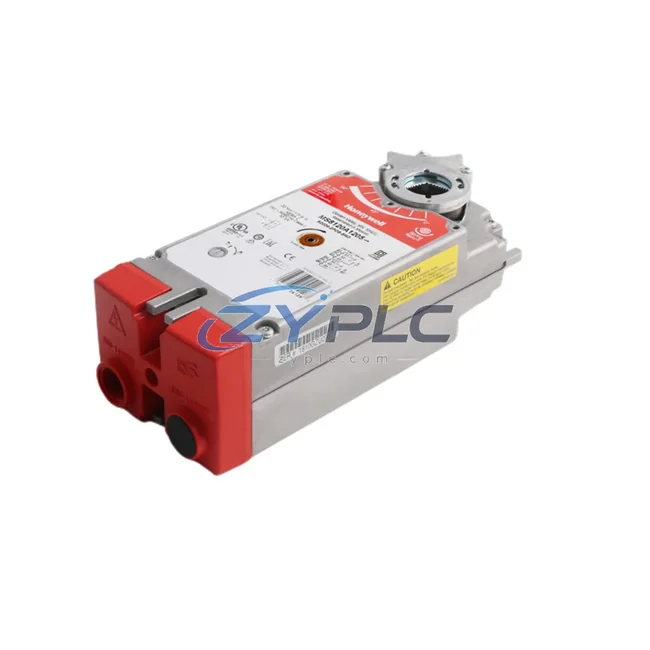

The Honeywell MS8120A1205 S2024-2POS-SW2 Direct Coupled Actuator is a precision-engineered execution-layer component designed to operate within layered building automation and HVAC control architectures. Rather than functioning as a standalone device, this actuator is conceived as an integral node within a coordinated control system — one that spans the supervisory control layer, field controller layer, I/O distribution layer, network communication layer, and the physical execution layer where dampers and valves are driven. In modern building automation systems (BAS), the reliability of the execution layer is directly tied to the consistency of the entire control hierarchy, and the MS8120A1205 is built to uphold that standard.

Within a typical HVAC control architecture, the MS8120A1205 receives 2-position switching commands from a field controller or direct digital control (DDC) unit. These commands originate from supervisory logic executed at the BAS server or building management system (BMS) level, travel through the network communication layer — commonly via BACnet/IP, Modbus RTU, or LON — and are translated into discrete output signals at the controller’s I/O module. The actuator then converts these electrical signals into precise mechanical torque, driving damper blades or valve stems to their commanded positions. This signal flow — from supervisory intent to physical execution — must be seamless, and the MS8120A1205 is rated to sustain this cycle reliably across thousands of operating hours.

The S2024-2POS-SW2 variant designation indicates a 24 VAC/VDC power supply compatibility, 2-position (open/close) control mode, and an integrated auxiliary switch (SW2) that provides position feedback to the upstream controller. This feedback loop is critical for system-level diagnostics: the controller can confirm actuator travel completion, detect mechanical faults, and trigger alarms or redundancy protocols without manual inspection. In redundant HVAC architectures — such as those used in data centers, pharmaceutical cleanrooms, or hospital operating theaters — this feedback capability supports automatic failover and continuous system monitoring.

The MS8120A1205 is designed for direct coupling to HVAC damper shafts, eliminating the need for mechanical linkages and reducing installation complexity. Its spring-return mechanism ensures that in the event of a power failure, the damper returns to a defined safe position — a critical safety feature in smoke control, pressurization, and emergency ventilation systems. This fail-safe behavior is coordinated with the upstream power supply module and the controller’s output logic, ensuring that the entire control chain responds predictably to abnormal conditions.

Product Specification Table

System Compatibility Notes

The MS8120A1205 does not operate in isolation — its performance is a function of the entire control system architecture surrounding it. In a well-engineered HVAC or BAS installation, this actuator is coordinated with a range of upstream and parallel components that together define system behavior, reliability, and maintainability.

At the supervisory layer, a Honeywell WEBs AX or EXCEL 5000 building controller manages zone-level logic, setpoint scheduling, and alarm management. Commands are distributed to field-level DDC controllers — such as the Honeywell Excel 10 or XL50 — which handle local PID loops and discrete output sequencing. The MS8120A1205 receives its 2-position command from the digital output (DO) channel of these controllers, typically through a relay output module or a triac output card rated for 24 VAC loads.

On the I/O layer, terminal modules and wiring centers — such as Honeywell’s Q7055 or equivalent field wiring accessories — consolidate actuator wiring and provide a structured interface between the controller cabinet and field devices. Proper terminal block organization reduces commissioning time and simplifies fault isolation during maintenance cycles. The SW2 auxiliary switch output of the MS8120A1205 is wired back to a digital input (DI) channel on the controller, enabling closed-loop position confirmation.

The power supply layer is equally critical. A 24 VAC class 2 transformer — typically a Honeywell AT72D or equivalent — provides isolated, regulated power to the actuator. In larger systems, a centralized 24 VAC distribution panel feeds multiple actuators across an air handling unit (AHU) or VAV box network, with individual fusing per circuit to prevent a single actuator fault from disrupting the entire zone. Alongside the MS8120A1205, companion actuators such as the Honeywell MS4109F1210 (floating control) or MS7520A2007 (modulating) may be deployed on parallel damper sections, allowing staged or proportional airflow control within the same duct system.

At the network layer, BACnet/IP or Modbus TCP gateways — such as the Honeywell PUB600 or a third-party protocol converter — bridge the field controller network to the enterprise BMS. This connectivity enables remote monitoring of actuator status, energy consumption trending, and predictive maintenance scheduling based on actuator cycle counts. The MS8120A1205’s auxiliary switch feedback is mapped as a BACnet binary input object, visible to operators at the HMI workstation or SCADA display.

For human-machine interface (HMI) integration, Honeywell’s EBI (Enterprise Buildings Integrator) or a third-party SCADA platform displays real-time damper positions, fault states, and override commands. Operators can issue manual open/close commands during commissioning or emergency scenarios, with the actuator responding within its rated travel time. This HMI-to-execution-layer transparency is essential for rapid fault diagnosis and system optimization.

Industrial Application Notes

The MS8120A1205 S2024-2POS-SW2 finds application across a broad spectrum of building and process automation environments where reliable 2-position damper control is required.

In commercial HVAC systems — including office buildings, shopping centers, and hotels — this actuator controls outside air dampers, return air dampers, and exhaust dampers within air handling units. Its spring-return fail-safe ensures that outside air dampers close automatically during fire alarm events, preventing smoke migration between zones. The 2-position control mode simplifies controller programming and reduces the risk of actuator hunting or instability compared to modulating alternatives in on/off applications.

In pharmaceutical manufacturing and cleanroom environments, the MS8120A1205 is used to control pressurization dampers that maintain differential pressure between classified zones. The auxiliary switch feedback is logged by the BAS for regulatory compliance, providing a timestamped record of damper position changes that supports GMP (Good Manufacturing Practice) documentation requirements.

In data center cooling infrastructure, this actuator controls economizer dampers and bypass dampers in precision air conditioning units. Its IP54 protection rating ensures reliable operation in environments with elevated humidity or airborne particulates from cooling tower proximity. The spring-return mechanism guarantees that cooling airflow is maintained or safely redirected in the event of a controller or power supply fault.

In district heating and cooling plants, the MS8120A1205 controls isolation dampers on air-side economizers and heat recovery units. Coordinated with modulating valve actuators on the water side, it enables integrated free-cooling strategies that reduce mechanical cooling energy consumption during favorable ambient conditions.

Product Compatibility FAQ

Q1: Is the MS8120A1205 S2024-2POS-SW2 compatible with third-party DDC controllers and BAS platforms?
A: Yes. The MS8120A1205 operates on standard 24 VAC/VDC discrete output signals, making it compatible with any DDC controller or BAS platform that provides a 24 VAC digital output channel. The SW2 auxiliary switch is a dry-contact output that can be wired to any digital input module regardless of brand. No proprietary protocol or driver is required, ensuring broad interoperability across Honeywell, Siemens, Johnson Controls, Schneider Electric, and other BAS ecosystems.

Q2: How does the spring-return mechanism affect system architecture design and wiring?
A: The spring-return feature means the actuator requires power to hold its commanded position (energize-to-open or energize-to-close, depending on configuration). System designers must account for this in the power supply sizing — the transformer must sustain continuous load for all energized actuators simultaneously. In redundant architectures, an uninterruptible power supply (UPS) or dual-feed power distribution panel is recommended to maintain actuator position during brief power interruptions, preventing unnecessary damper cycling that could disrupt zone pressure balance.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported for installed systems?
A: The warranty terms confirmed during quotation covers manufacturing defects, electrical component failures, and mechanical faults under normal operating conditions from the date of shipment. For installed systems, warranty claims are processed with reference to the original purchase documentation and installation date. ZYPLC supports RFQ sourcing for MS8120A1205 units to support rapid warranty replacement, minimizing system downtime. For critical applications, we recommend maintaining one spare actuator per AHU or per ten field devices as part of a proactive inventory strategy. Contact our technical team at plc.sales@zyplc.com for warranty registration and replacement logistics.
