HONEYWELL MU-TAIH02 51304453-100 DCS Termination Board for TotalPlant Systems

HONEYWELL MU-TAIH02 51304453-100 Industrial Network Interface for TotalPlant Systems: Bridging Field Signals to Smart Factory Data Links

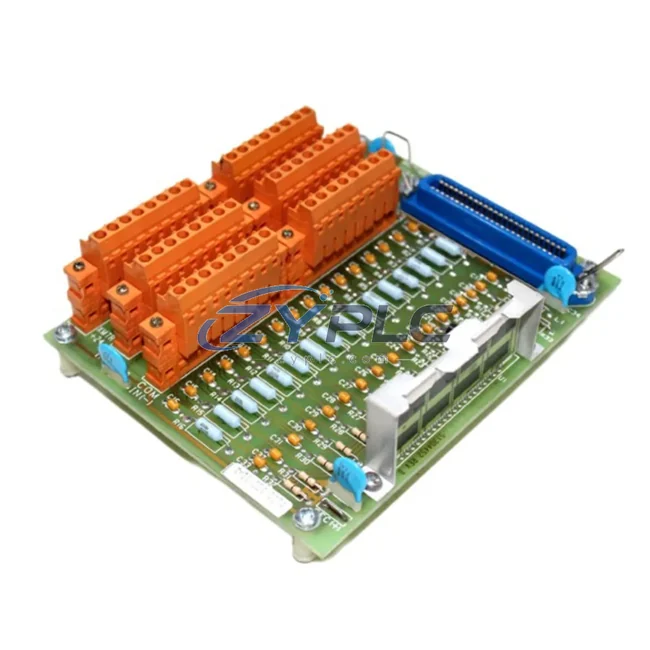

The HONEYWELL MU-TAIH02 51304453-100 is a high-level analog input termination board engineered for the TotalPlant Solution (TPS) Distributed Control System (DCS) platform. Designed to serve as a critical junction between field instrumentation and the process control network, this termination board enables reliable signal conditioning, channel isolation, and structured data routing from physical sensors to the supervisory layer. In modern industrial environments where data integrity and network continuity are non-negotiable, the MU-TAIH02 51304453-100 delivers the connectivity backbone that smart factories depend on.

Whether deployed in oil and gas refineries, chemical processing plants, power generation facilities, or advanced manufacturing lines, this module ensures that analog signals from transmitters, flow meters, pressure sensors, and temperature probes are accurately captured, conditioned, and forwarded to the TotalPlant controller infrastructure without signal degradation or communication latency.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated TotalPlant DCS architecture, the MU-TAIH02 51304453-100 sits at the heart of the field-to-control data pipeline. Field instruments — including Honeywell STT850 Smart Temperature Transmitters, pressure transducers, and level sensors — output 4–20 mA analog signals that are wired directly to the MU-TAIH02 termination board. From there, the conditioned signals are passed through the backplane to the Honeywell HPM (High-Performance Process Manager), which executes the control logic and forwards process values upstream.

The HPM communicates over the Universal Control Network (UCN) to the Honeywell NIM (Network Interface Module), which bridges field-level data to the Local Control Network (LCN). On the LCN, Honeywell AM (Application Module) and HM (History Module) nodes aggregate real-time process data, making it available to operator consoles running Honeywell’s GUS (Global User Station) or modern TPS HMI workstations. This structured data flow enables operators to monitor analog process variables — flow rates, temperatures, pressures, and levels — with sub-second update cycles across the plant network.

For plants integrating legacy TPS infrastructure with modern SCADA platforms, the MU-TAIH02 51304453-100 pairs effectively with Honeywell’s PHD (Process Historian Database) server, which collects time-stamped process data from the LCN and makes it accessible to OPC-DA or OPC-UA clients. This allows third-party SCADA systems, MES platforms, and cloud-based analytics engines to consume real-time and historical analog data without disrupting the DCS control loop. Remote I/O extensions using Honeywell RHMUX (Remote Hardwired Multiplexer) modules can further expand the reach of the termination network to field junction boxes located hundreds of meters from the main control room.

In drive-intensive applications, analog feedback signals from variable frequency drives (VFDs) and motor control centers are routed through the MU-TAIH02 board, providing the HPM with real-time speed, torque, and current feedback for closed-loop control. Safety instrumented systems (SIS) interfacing with Honeywell FSC (Fail Safe Controller) modules can also reference analog process values forwarded from the MU-TAIH02 to validate safe operating conditions and trigger protective actions when thresholds are exceeded.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in mature process plants is data isolation — the condition where field instruments, DCS controllers, historian servers, and SCADA systems operate in disconnected silos, preventing operators and engineers from gaining a unified view of plant performance. The HONEYWELL MU-TAIH02 51304453-100 directly addresses this challenge by providing a standardized, reliable termination point that ensures every analog field signal is properly captured and made available to the broader control and information network.

Protocol fragmentation is a common root cause of data isolation. When field devices use different signal standards — 4–20 mA, HART, or proprietary analog formats — without a properly configured termination board, signal integrity degrades and data gaps appear in the historian and SCADA displays. The MU-TAIH02 resolves this by providing a consistent high-level analog input interface that the HPM can reliably scan, ensuring no process variable is lost between the field and the control layer.

Remote monitoring and diagnostics are increasingly critical in modern plant operations. With the MU-TAIH02 properly installed and integrated into the TPS network, engineers can use Honeywell’s Control Builder or Station tools to remotely interrogate channel status, verify signal ranges, and diagnose wiring faults without dispatching field technicians. This capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies that minimize unplanned downtime.

Production line transparency — the ability to see real-time process data across every unit operation — is a core requirement for smart factory initiatives. By ensuring that analog signals from every field instrument are reliably terminated and forwarded through the TPS data highway, the MU-TAIH02 51304453-100 enables plant-wide dashboards, real-time KPI tracking, and automated alarm management that drive operational efficiency and regulatory compliance.

System expansion is also simplified. As plants add new process units or upgrade instrumentation, additional MU-TAIH02 boards can be installed in existing HPM cabinets to extend analog input capacity without replacing the controller infrastructure. This modularity protects capital investment and allows phased digital transformation without production interruption.

Industrial Connectivity FAQ

Q1: What communication protocols does the HONEYWELL MU-TAIH02 51304453-100 support?
The MU-TAIH02 51304453-100 is designed for high-level analog input termination within the Honeywell TotalPlant Solution DCS. It supports standard 4–20 mA analog signals and is compatible with HART-enabled field devices in passive mode. Data is forwarded to the HPM controller via the TPS backplane and subsequently transmitted over the UCN and LCN networks to SCADA, historian, and HMI systems using TotalPlant proprietary communication protocols.

Q2: How does this termination board ensure network stability and signal integrity?
The MU-TAIH02 provides channel-level isolation and signal conditioning that protects against ground loops, electrical noise, and common-mode interference common in industrial field environments. Its robust termination design ensures stable, repeatable analog readings that the HPM can rely on for closed-loop control. The board is engineered to operate continuously in harsh industrial conditions, supporting 24/7 process control without signal drift or communication interruption.

Q3: Is the MU-TAIH02 51304453-100 compatible with modern SCADA and HMI systems?
Yes. When integrated into a TotalPlant DCS architecture, the MU-TAIH02 feeds analog process data through the HPM and LCN to Honeywell PHD historian and OPC servers, making real-time and historical data accessible to any OPC-DA or OPC-UA compatible SCADA or HMI platform. This enables seamless integration with modern supervisory systems, MES, and cloud analytics without modifying the field wiring or DCS control logic.

Q4: What warranty and quality assurance does ZYPLC provide for this module?
All HONEYWELL MU-TAIH02 51304453-100 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify channel integrity, signal conditioning performance, and backplane communication before dispatch. We maintain RFQ-confirmed sourcing for fast global fulfillment via DHL and FedEx, with full export documentation support for international customers.
