Honeywell MU-TAIH12 51304337-100 Analog Input Module for TDC 3000 Systems

Honeywell MU-TAIH12 51304337-100: Industrial Data Link for TDC 3000 Smart Factory Systems

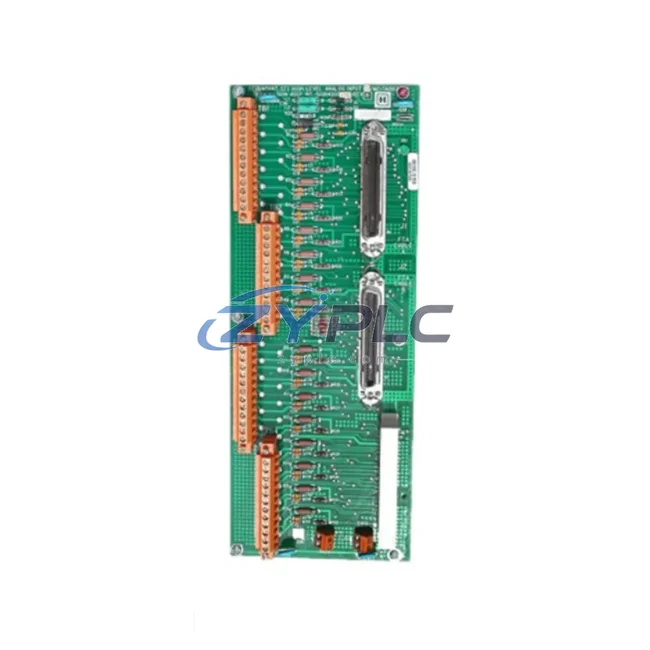

The Honeywell MU-TAIH12 51304337-100 is a high-precision Analog Input Board engineered for the TDC 3000 Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level instrumentation — including thermocouples, RTDs, pressure transmitters, and 4–20 mA sensors — with the upper-layer control and supervisory network. In modern smart factory environments where real-time signal fidelity and uninterrupted data flow are non-negotiable, the MU-TAIH12 51304337-100 delivers the analog acquisition performance that process engineers and automation integrators depend on.

As industrial sites evolve toward fully connected architectures, the role of a reliable analog input module extends far beyond simple signal conversion. The MU-TAIH12 integrates seamlessly into the TDC 3000 Universal Control Network (UCN), enabling continuous data streaming from field devices to the Honeywell Process Manager (PM) and onward to SCADA and HMI layers. This connectivity ensures that every process variable — temperature, pressure, flow, and level — is captured, digitized, and transmitted with minimal latency across the plant network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated TDC 3000 environment, the MU-TAIH12 51304337-100 sits at the foundation of the analog signal acquisition layer. Field instruments — such as Honeywell STT850 Smart Temperature Transmitters and Rosemount 3051 pressure transmitters — feed 4–20 mA or thermocouple signals directly into the MU-TAIH12 input channels. These signals are conditioned, digitized, and passed through the TDC 3000 backplane to the Honeywell High-Performance Process Manager (HPM), which executes control logic and regulatory loops in real time.

From the HPM, process data travels across the Local Control Network (LCN) to the Honeywell Universal Station (US) or Global User Station (GUS) — the HMI layer where operators monitor live process variables, acknowledge alarms, and issue setpoint changes. Simultaneously, the LCN gateway interfaces with upper-level SCADA systems, enabling historians such as the Honeywell PHD (Process History Database) to archive time-stamped process data for trend analysis, compliance reporting, and remote diagnostics.

For sites requiring protocol bridging between the TDC 3000 UCN and modern Ethernet-based networks, the Honeywell Application Module (AM) or third-party OPC-DA/UA gateways — such as the Kepware KEPServerEX — are deployed alongside the MU-TAIH12 to ensure seamless data handoff to MES and ERP platforms. In multi-loop control scenarios, the MU-TAIH12 works in concert with the Honeywell MU-TAOX12 Analog Output Board and MU-TDID12 Digital Input Board, forming a complete I/O subsystem within the HPM chassis. Remote I/O extensions using Honeywell RHMUX modules further expand the reach of the analog acquisition network to distributed field junction boxes, reducing cabling costs while maintaining signal integrity across long distances.

Edge computing nodes and industrial IoT gateways — such as the Moxa MGate MB3000 series — can be integrated downstream to aggregate MU-TAIH12 data streams and forward them to cloud-based analytics platforms, enabling predictive maintenance and maintenance planning at the enterprise level. This end-to-end data flow — from sensor to cloud — demonstrates the MU-TAIH12’s role not merely as an input card, but as a foundational element of the smart factory data architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is data isolation — the inability to move process information freely between field devices, control systems, and supervisory platforms. The Honeywell MU-TAIH12 51304337-100 directly addresses this challenge by providing a standardized, high-integrity analog acquisition interface within the TDC 3000 ecosystem.

Protocol Unification: Many industrial sites operate a mix of legacy 4–20 mA instrumentation alongside newer HART-enabled smart devices. The MU-TAIH12’s multi-signal input capability allows both signal types to coexist within the same I/O chassis, eliminating the need for separate signal conditioning hardware and reducing panel complexity.

Breaking Down Data Silos: By feeding clean, digitized analog data into the TDC 3000 UCN, the MU-TAIH12 ensures that process variables are available to all authorized consumers on the network — from local HPM control loops to remote SCADA dashboards — without manual data transcription or isolated data islands.

Remote Monitoring and Diagnostics: When integrated with the Honeywell PHD historian and OPC gateway infrastructure, the MU-TAIH12 enables remote engineers to access live and historical process data from any location, supporting remote fault diagnosis, performance benchmarking, and regulatory compliance without requiring on-site presence.

Production Line Transparency: Real-time analog data from the MU-TAIH12 feeds directly into operator displays and alarm management systems, giving production teams full visibility into process deviations, equipment health, and operating load — enabling faster response times and reducing unplanned downtime.

System Scalability: The modular architecture of the TDC 3000 HPM chassis allows additional MU-TAIH12 boards to be installed as process expansion demands grow, without requiring changes to the existing control network topology. This plug-and-play scalability protects capital investment and simplifies future plant expansions.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell MU-TAIH12 51304337-100 support?
The MU-TAIH12 communicates natively over the Honeywell UCN (Universal Control Network) and Data Hiway within the TDC 3000 platform. For integration with modern Ethernet-based SCADA or MES systems, an OPC-DA/UA gateway or Honeywell Application Module (AM) is used to bridge the UCN to standard industrial Ethernet protocols, ensuring compatibility with third-party supervisory systems.

Q2: How does the MU-TAIH12 ensure network stability and data integrity in high-noise industrial environments?
The MU-TAIH12 is designed with hardware-level signal isolation and filtering to reject common-mode noise from variable frequency drives, high-voltage switchgear, and other EMI sources common in process plants. The TDC 3000 UCN employs deterministic token-passing communication, ensuring predictable, low-latency data delivery even under heavy network load — a critical requirement for closed-loop process control.

Q3: Can the MU-TAIH12 51304337-100 be expanded or integrated into a larger SCADA or DCS architecture?
Yes. The MU-TAIH12 is fully compatible with the TDC 3000 HPM chassis expansion architecture, allowing multiple boards to be added as I/O requirements grow. At the supervisory level, the TDC 3000 LCN connects to Honeywell Experion PKS or third-party SCADA platforms via OPC gateways, enabling enterprise-wide data integration without replacing existing field wiring or control logic.

Q4: What quality assurance and warranty coverage is provided with the MU-TAIH12 51304337-100?
Every MU-TAIH12 51304337-100 unit supplied by ZYPLC undergoes pre-shipment functional testing, including analog channel verification, backplane communication checks, and visual inspection for component integrity. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Availability is confirmed via RFQ for shipment arranged after confirmation, with full export documentation and compliance support for international shipments.
