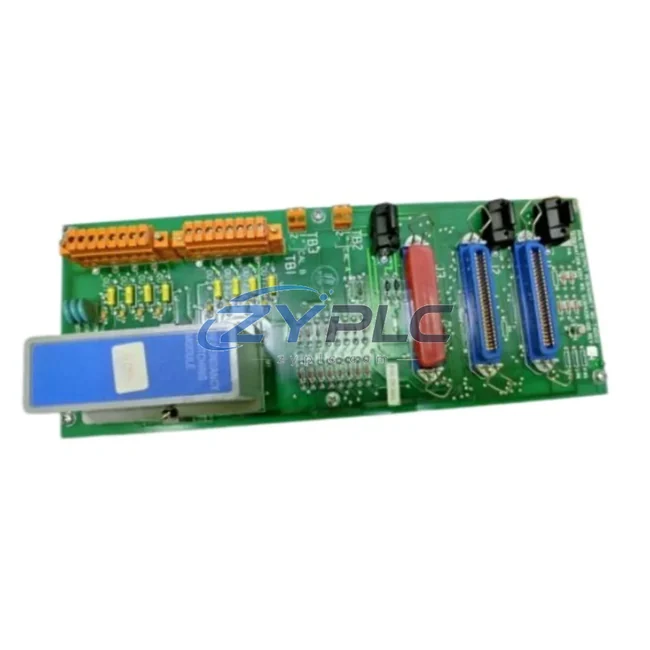

Honeywell MU-TAOX12 51304335-100 Analog Output Module for TDC 3000 Systems

Honeywell MU-TAOX12 51304335-100: Industrial Data Link for TDC 3000 Systems

The Honeywell MU-TAOX12 51304335-100 is a high-performance Analog Output Redundancy Board engineered for the TDC 3000 Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, this module bridges the gap between field-level actuators and upper-layer control networks — enabling seamless signal transmission, protocol-compliant communication, and real-time process visibility across complex smart factory environments.

In modern industrial sites, the demand for uninterrupted data flow from field devices to SCADA and HMI layers has never been greater. The MU-TAOX12 51304335-100 answers this challenge by delivering precision analog output signals that drive control valves, variable frequency drives (VFDs), and other final control elements with sub-millisecond response accuracy. Its redundancy architecture ensures that even in the event of a primary channel fault, the backup path activates instantly — eliminating downtime and protecting process integrity.

Compatibility & Integration Notes

Connected Automation Data Flow

The MU-TAOX12 51304335-100 sits at the heart of a layered industrial communication architecture. At the field level, sensors and transmitters — including Honeywell ST3000 Smart Transmitters and pressure/temperature field instruments — feed process variables upward through the TDC 3000’s UCN backbone. The MU-TAOX12 receives setpoint commands from the Honeywell AM (Application Module) and translates them into precise 4–20 mA analog signals dispatched to final control elements such as control valves and variable frequency drives.

Within the TDC 3000 cabinet, the MU-TAOX12 works in close coordination with the Honeywell MU-TAIX12 Analog Input Board — together forming a closed-loop control pair that continuously reads process feedback and adjusts output accordingly. The Honeywell MU-TDPR12 Power Supply Module provides stable DC power to the output board, while the Honeywell MU-TBMR12 Termination Board serves as the wiring interface between the module and field cabling, reducing installation complexity and improving signal integrity.

At the network layer, the TDC 3000’s Local Control Network (LCN) carries real-time data between the MU-TAOX12, the Honeywell NIM (Network Interface Module), and the Universal Station (US) — the operator HMI console where process engineers monitor live analog trends, configure alarm thresholds, and execute remote setpoint changes. For plants migrating toward modern architectures, the Honeywell Experion PKS C300 Controller can interface with legacy TDC 3000 assets via the Honeywell Series C I/O Link, preserving existing MU-TAOX12 investments while enabling OPC-UA and Ethernet-based SCADA connectivity.

In SCADA-integrated environments, the analog output data generated by the MU-TAOX12 is aggregated by historian servers and visualized on Honeywell Uniformance PHD or third-party SCADA platforms via OPC-DA/OPC-UA gateways. This enables plant-wide KPI dashboards, predictive maintenance alerts, and remote diagnostic access — all driven by the reliable, low-latency analog signals that the MU-TAOX12 delivers across the process network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is protocol fragmentation — where field devices, controllers, and upper-layer systems speak different communication languages, creating data silos that impede real-time decision-making. The MU-TAOX12 51304335-100 directly addresses this by operating natively within the Honeywell UCN/LCN protocol stack, ensuring that analog output commands are transmitted without translation overhead or latency penalties.

For plants operating mixed-generation equipment, the MU-TAOX12’s compatibility with TDC 3000 gateway modules allows it to participate in hybrid network topologies — where legacy 4–20 mA field loops coexist with modern HART, FOUNDATION Fieldbus, or PROFIBUS PA instruments. By maintaining a standardized analog output interface, the board enables gradual system modernization without requiring wholesale replacement of field wiring or instrumentation.

Remote monitoring and diagnostics are further enhanced through the TDC 3000’s built-in fault detection and alarm propagation mechanisms. When the MU-TAOX12 detects an output channel fault — such as an open-loop condition or signal out-of-range — it immediately triggers an alarm at the Universal Station HMI and logs the event to the historian, enabling maintenance teams to respond proactively before process upsets occur. This closed-loop alarm feedback architecture is essential for achieving production line transparency and meeting IEC 61511 functional safety requirements in process industries.

System scalability is another key advantage. The modular design of the TDC 3000 platform allows additional MU-TAOX12 boards to be installed in existing cabinets as process expansion demands grow — without disrupting live production. Combined with hot-standby redundancy, this makes the MU-TAOX12 a future-proof investment for refineries, chemical plants, power generation facilities, and other continuous process industries.

Industrial Connectivity FAQ

Q1: What communication protocols does the MU-TAOX12 51304335-100 support?
The MU-TAOX12 operates natively on Honeywell’s UCN (Universal Control Network) and LCN (Local Control Network) protocols within the TDC 3000 DCS platform. For integration with modern SCADA systems, it can interface via OPC-DA or OPC-UA gateways connected to the TDC 3000 NIM or Experion PKS migration modules.

Q2: How does the redundancy feature ensure network stability?
The MU-TAOX12 supports hot-standby redundancy, meaning a secondary output board monitors the primary channel continuously. Upon detection of a primary channel fault, switchover occurs automatically within milliseconds — ensuring uninterrupted analog output to field devices and preventing process upsets caused by controller communication loss.

Q3: Can the MU-TAOX12 integrate with modern SCADA and HMI systems?
Yes. While the MU-TAOX12 is a native TDC 3000 component, its data can be surfaced to modern SCADA platforms (including Honeywell Uniformance PHD, Wonderware, and iFIX) via OPC-compliant gateways. For full Ethernet-based integration, the Honeywell Experion PKS migration path provides a validated upgrade route that preserves existing MU-TAOX12 hardware.

Q4: What quality assurance and warranty coverage is provided?
Every MU-TAOX12 51304335-100 unit supplied by ZYPLC undergoes pre-shipment functional testing, including analog output channel verification, redundancy switchover simulation, and communication loop integrity checks. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and operational failures, with technical support available throughout the warranty period.
