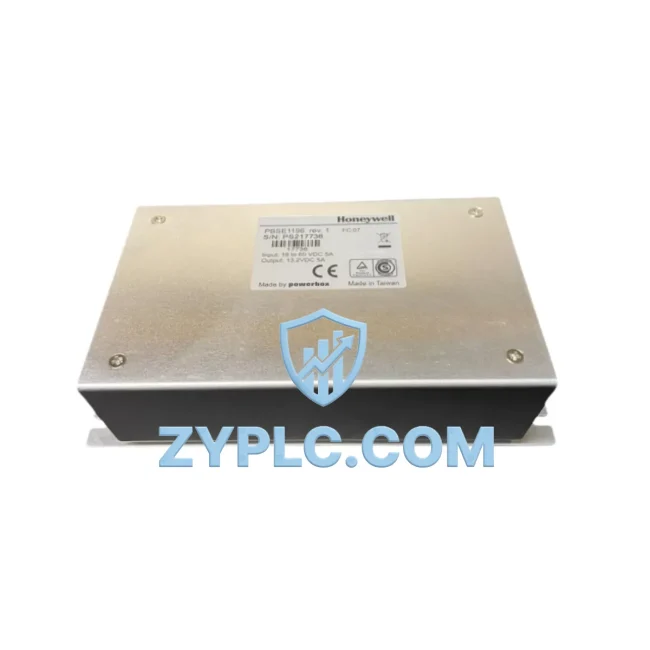

Honeywell PBSE1196 Power Supply for FSC: Control Layer Backbone for Safety-Critical Systems

The Honeywell PBSE1196 is a dedicated power supply module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) and Safety Manager platform — one of the most widely adopted safety instrumented system (SIS) architectures in global process industries. Rather than functioning as a standalone component, the PBSE1196 is designed from the ground up to serve as the electrical foundation of a layered, redundant control system architecture. Its role spans the power layer, directly supporting the operational integrity of the control layer, I/O layer, communication layer, and field execution layer simultaneously.

In a complete FSC system deployment, the PBSE1196 works in close coordination with the FSC Central Processing Unit — typically the FSC CPU module — which governs all safety logic execution and diagnostic routines. The power supply must deliver stable, conditioned DC voltage to the CPU backplane without interruption, as any transient or dropout can trigger a system-wide safe-state response. The PBSE1196 is rated to meet these demands under continuous industrial operating conditions, including environments with high electromagnetic interference, wide ambient temperature variation, and demanding duty cycles common in oil and gas, petrochemical, and power generation facilities.

System architects frequently pair the PBSE1196 with a second power supply module — such as the PBSE1120 — in a 1oo2 (one-out-of-two) redundant power configuration. This redundancy architecture ensures that a single power supply failure does not interrupt system operation or compromise the safety function. Both modules feed the same backplane simultaneously, with automatic load sharing and seamless failover. This design is consistent with IEC 61508 and IEC 61511 requirements for SIL 2 and SIL 3 rated safety loops, where power availability is a critical element of the overall probability of failure on demand (PFD) calculation.

At the I/O layer, the PBSE1196 supports the power requirements of digital input modules, digital output modules, and analog I/O cards installed across the FSC rack system. These modules — including standard FSC DI/DO cards and FSC AI modules — rely on the power supply for both logic-level power and field-side loop power distribution. Stable power delivery at this layer is essential for accurate signal conditioning, particularly in 4–20 mA analog loops where voltage fluctuation directly affects measurement accuracy and control response.

The communication layer of the FSC architecture — including Modbus RTU gateways, PROFIBUS DP communication modules, and Ethernet-based Safety Manager interface cards — also depends on the power infrastructure provided by the PBSE1196. Communication modules that bridge the FSC system to the distributed control system (DCS) or SCADA layer require clean, regulated power to maintain protocol timing and data integrity. Any power instability at this layer can result in communication timeouts, false diagnostics, or loss of supervisory visibility — all of which increase operational risk in safety-critical environments.

From a human-machine interface perspective, the PBSE1196 supports the broader system architecture that feeds engineering workstations and operator panels connected to the Safety Manager platform. Operators monitoring process safety functions through Honeywell Safety Manager HMI software or third-party SCADA systems depend on the underlying power architecture to maintain real-time data availability. The PBSE1196 contributes to this continuity by ensuring that the backplane and communication infrastructure remain energized and stable throughout all operating modes, including startup, normal operation, and controlled shutdown sequences.

At the execution layer, field devices — including solenoid valves, motor control relays, and emergency shutdown (ESD) actuators — receive their command signals from FSC output modules that are powered through the backplane supplied by the PBSE1196. The reliability of these final control elements is directly linked to the quality and continuity of the power supply. In ESD applications, where a de-energize-to-trip (DTT) architecture is standard, the PBSE1196 must maintain output voltage within specification even during fault conditions, ensuring that the FSC system can execute a controlled safe-state transition without power-related interference.

For system integrators and maintenance engineers, the PBSE1196 offers straightforward installation within the standard FSC rack and backplane assembly. The module is hot-swappable in redundant configurations, allowing replacement during live system operation without requiring a process shutdown — a critical advantage in continuous process industries where unplanned downtime carries significant financial and safety consequences. Diagnostic LEDs on the module front panel provide immediate visual indication of power status, fault conditions, and redundancy health, simplifying both commissioning and routine maintenance inspections.

Long-term spare parts availability is a key consideration for any safety system investment. ZYPLC maintains dedicated inventory of the PBSE1196 and compatible FSC system components, including FSC backplane assemblies, FSC terminal modules, and FSC relay output cards, to support both planned maintenance cycles and emergency replacement requirements. All units supplied by ZYPLC are covered by a 12-Month Warranty, with pre-shipment functional testing and full traceability documentation available upon request.

The PBSE1196 is suitable for deployment across a broad range of industrial sectors, including upstream and downstream oil and gas, LNG terminals, chemical and petrochemical plants, power generation facilities, water and wastewater treatment systems, and mining and minerals processing operations. In each of these environments, the module performs the same fundamental role: providing the electrical foundation upon which a reliable, certifiable, and maintainable safety instrumented system can be built and sustained over its full operational lifecycle.

Product Specification Table

System Compatibility Notes

A complete FSC-based safety instrumented system built around the PBSE1196 typically includes the following coordinated components across all system layers. At the control layer, the FSC Central Processing Unit (CPU) executes all safety logic and diagnostic functions, relying on the PBSE1196 for uninterrupted backplane power. The PBSE1120 serves as the redundant partner module, forming a 1oo2 power architecture that eliminates single-point power failure risk. At the I/O layer, FSC digital input (DI) modules and FSC digital output (DO) modules process field signals from sensors, switches, and actuators, while FSC analog input (AI) modules handle 4–20 mA process measurement loops. The FSC backplane and rack assembly provides the physical and electrical interconnect between all modules, with the PBSE1196 feeding regulated DC power across all backplane slots. At the communication layer, PROFIBUS DP gateway modules and Modbus RTU interface cards bridge the FSC system to the plant DCS or SCADA infrastructure, maintaining real-time data exchange and alarm management. FSC terminal modules and relay output cards at the field interface layer provide the final connection point between the safety system and field-mounted ESD valves, motor starters, and shutdown actuators. Together, these components form a fully integrated, SIL-certified control architecture in which the PBSE1196 plays the foundational power role.

Industrial Application Notes

The PBSE1196 is deployed across a wide range of process industries where safety instrumented systems are mandated by regulatory requirements and operational risk assessments. In oil and gas upstream and midstream facilities, the module powers FSC systems that manage wellhead ESD, pipeline isolation, and compressor protection functions. In LNG terminals and gas processing plants, it supports high-availability safety architectures where redundant power is a baseline design requirement. In petrochemical and chemical manufacturing, the PBSE1196 enables continuous operation of reactor safety systems, pressure relief logic, and toxic gas detection interlocks. In power generation facilities — including thermal, combined-cycle, and renewable energy plants — it supports turbine protection and generator ESD systems. In water and wastewater treatment, the module powers FSC systems managing pump protection, chemical dosing interlocks, and overflow prevention logic. In mining and minerals processing, it supports conveyor protection, crusher ESD, and ventilation safety systems in environments with high dust loading and wide temperature variation. Across all these applications, the PBSE1196 delivers the electrical stability and redundancy that safety-critical automation demands.

Product Compatibility FAQ

Q1: Is the PBSE1196 compatible with both the FSC and Safety Manager platforms, and can it be used in mixed-generation system architectures?
The PBSE1196 is designed for the Honeywell FSC platform and is fully compatible with Safety Manager system configurations that share the FSC backplane and rack infrastructure. In mixed-generation architectures where legacy FSC hardware is integrated with newer Safety Manager components, the PBSE1196 continues to function as the power layer foundation, provided the backplane and rack assembly are compatible. System integrators should verify backplane revision compatibility and consult Honeywell FSC system documentation for specific mixed-configuration guidelines before deployment.

Q2: How does the 1oo2 redundant power architecture with the PBSE1196 and PBSE1120 affect overall system SIL rating and PFD calculation?
In a 1oo2 redundant power configuration, both the PBSE1196 and PBSE1120 supply the backplane simultaneously with automatic load sharing. A single module failure does not interrupt system operation, and the FSC CPU continues executing safety logic without interruption. This architecture significantly reduces the contribution of the power supply to the overall system PFD, supporting SIL 2 and SIL 3 safety loop certifications under IEC 61508 and IEC 61511. Detailed PFD values for the power supply subsystem should be obtained from Honeywell’s FSC system safety manual for use in formal SIL verification calculations.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term spare parts planning?
All PBSE1196 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing, and full traceability documentation is available upon request to support quality management and regulatory audit requirements. For long-term spare parts planning, ZYPLC maintains dedicated inventory of PBSE1196 modules and compatible FSC system components, including backplane assemblies, terminal modules, and I/O cards, to support both scheduled maintenance intervals and emergency replacement scenarios. Contact our technical team for volume pricing, lead time commitments, and long-term supply agreements.
