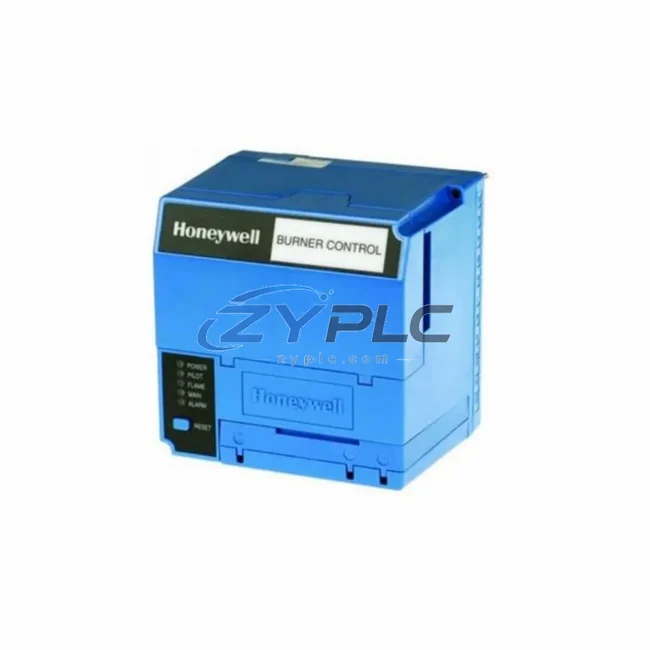

The Honeywell RM7850A1027 is a flame-safeguard burner control relay module engineered for seamless integration within the RM7800 Series burner management system architecture. Rather than functioning as a standalone device, the RM7850A1027 occupies a critical position within a layered industrial automation hierarchy — coordinating signal flow between the combustion control layer, the safety interlock layer, the I/O interface layer, and the supervisory control layer. In process industries where combustion reliability directly impacts production continuity, personnel safety, and regulatory compliance, the RM7850A1027 delivers the system-level consistency, redundancy capability, and long-term maintainability that modern plant engineers demand.

Designed as the core relay module for the RM7800 platform, the RM7850A1027 interfaces directly with the RM7800L or RM7800G primary control chassis, accepting plug-in installation without requiring additional wiring harnesses. This modular architecture allows maintenance teams to replace or upgrade the relay module independently of the primary control, significantly reducing mean time to repair (MTTR) and minimizing unplanned downtime in continuous-process environments such as petrochemical plants, power generation facilities, and district heating systems.

Product Specification Table

System Compatibility Notes

The RM7850A1027 achieves its full performance potential when deployed within a coordinated RM7800 system architecture. At the primary control layer, the RM7800L or RM7800G chassis provides the sequencing logic and safety timing functions, while the RM7850A1027 relay module executes the physical switching of pilot valves, main fuel valves, and ignition transformers in precise synchronization with the control sequence. This separation of logic and power switching enhances both diagnostic clarity and field-replacement efficiency.

At the operator interface layer, the S7800A1142 Keyboard Display Module connects directly to the RM7800 chassis, providing real-time burner status, lockout history, and diagnostic fault codes — enabling operators to identify relay-level faults without removing the module from service. For multi-burner installations, the R7847 or R7848 Flame Amplifier modules extend the flame detection capability of the system, feeding validated flame signals back to the RM7850A1027 relay logic for safe sequencing decisions.

Power supply integrity is maintained through dedicated 120 VAC distribution panels with surge suppression, ensuring that relay coil actuation remains stable even during grid transients common in heavy industrial environments. In redundant burner management architectures, a secondary RM7800 control with a parallel RM7850A1027 module can be configured for hot-standby operation, with automatic switchover logic managed at the DCS or safety PLC layer — such as a Honeywell Safety Manager or a Siemens S7-300F safety CPU.

At the field device layer, the RM7850A1027 drives gas valve actuators, oil burner ignition systems, and combustion air damper actuators through its relay contacts, while receiving permissive signals from pressure switches, flow switches, and temperature limit controllers wired into the safety interlock chain. The Q7800B Subbase provides the terminal block interface between field wiring and the RM7800 chassis, simplifying installation and enabling module swap without disturbing field wiring — a critical advantage during scheduled maintenance windows in continuous-process plants.

Industrial Application Notes

In power generation and district heating applications, the RM7850A1027 is deployed in boiler burner management systems where combustion reliability is directly tied to grid stability and heat supply continuity. The module’s precise sequencing — pre-purge, pilot ignition, main flame establishment, and post-purge — ensures that boiler startups comply with EN 746 and NFPA 85 combustion safety standards, reducing the risk of furnace explosions and regulatory non-compliance.

In petrochemical and refinery environments, the RM7850A1027 supports fired heater burner management in process heaters, reformers, and crude distillation units. Its compatibility with self-check UV flame scanners and its SIL 2-capable architecture make it suitable for Safety Instrumented System (SIS) integration, where the burner management function must be validated against IEC 61511 process safety requirements.

In food processing and pharmaceutical manufacturing plants, the RM7850A1027 controls direct-fired air heaters and steam boilers that supply process heat to dryers, sterilizers, and clean-in-place (CIP) systems. The module’s plug-in design and warranty terms confirmed during quotation coverage support the strict preventive maintenance schedules required by FDA and GMP facility standards, where unplanned downtime directly impacts product batch integrity.

In mining and metallurgical operations, the RM7850A1027 is integrated into ore drying kilns, smelting furnace burner systems, and ladle preheating stations. The module’s wide operating temperature range and robust relay output ratings ensure reliable performance in the high-ambient-temperature, high-vibration environments characteristic of mineral processing facilities.

Product Compatibility FAQ

Q1: Is the RM7850A1027 directly interchangeable with other RM7850 variants in an existing RM7800 installation?
The RM7850A1027 is a specific variant within the RM7850 relay module family, differentiated by its internal configuration for particular flame detector types and valve proving sequences. Before substituting an RM7850A1027 into an existing installation, engineers should verify compatibility with the installed RM7800L or RM7800G primary control firmware version and the specific Q7800B subbase wiring configuration. ZYPLC provides pre-shipment compatibility verification as part of its sourcing service, and all units are covered under a warranty terms confirmed during quotation from the date of shipment.

Q2: Can the RM7850A1027 be integrated into a DCS or safety PLC architecture for remote monitoring and alarm management?
Yes. The RM7800 platform supports integration with supervisory systems through the S7800A DataLink communication module, which provides Modbus or proprietary network connectivity to DCS platforms such as Honeywell Experion PKS, Emerson DeltaV, or Yokogawa CENTUM VP. Alarm and lockout status from the RM7850A1027 relay module can be mapped to DCS alarm management systems, enabling centralized burner health monitoring across multi-burner plant configurations. system integration of the RM7850A1027 within the plant’s alarm rationalization framework is strongly recommended during commissioning.

Q3: What is the recommended maintenance strategy for the RM7850A1027 in a continuous-process plant with limited shutdown windows?
The plug-in modular design of the RM7850A1027 supports a condition-based maintenance strategy where relay modules are inspected during scheduled burner outages and replaced on a time-based or cycle-count basis. ZYPLC recommends maintaining at least one spare RM7850A1027 module on-site for critical burner applications, supported by our warranty terms confirmed during quotation and global inventory availability. For plants operating under IEC 61511 SIS requirements, the proof-test interval for the burner management system — including the RM7850A1027 relay module — should be defined in the Safety Requirements Specification (SRS) and validated during commissioning and periodic functional safety audits.
