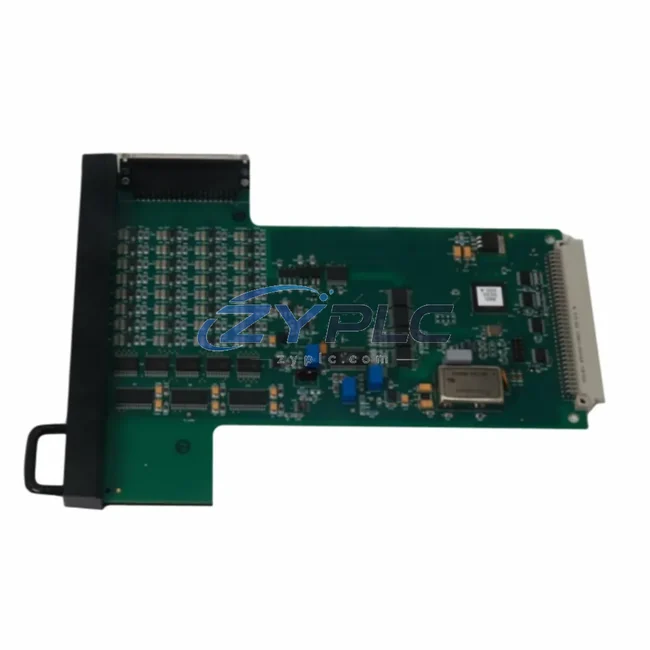

Honeywell RTP-3015/00 I/O Module for RTP-3000

Honeywell RTP-3015/00 I/O Module for RTP-3000

The Honeywell RTP-3015/00 is a precision-engineered analog I/O module designed for seamless integration within the RTP-3000 Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the RTP-3015/00 occupies a critical position within a layered automation hierarchy — bridging the field signal layer and the control processing layer to ensure deterministic data acquisition, signal conditioning, and real-time feedback to the central processing unit. Its role in the overall system architecture makes it indispensable for engineers designing high-availability, fault-tolerant control environments across process industries.

In a complete RTP-3000 control system, the RTP-3015/00 operates in close coordination with the RTP-3000 CPU module, which handles all logic execution and scan-cycle management. The I/O module receives conditioned analog signals from field transmitters — including pressure, temperature, flow, and level instruments — and converts them into digital values that the CPU processes in real time. This tight coupling between the I/O layer and the control layer is fundamental to achieving the sub-100ms scan times that demanding process applications require. The RTP-3015/00 supports this architecture by providing stable, low-drift signal conversion with high channel density, reducing the number of modules required per rack and simplifying cabinet layout.

At the backplane level, the RTP-3015/00 interfaces directly with the RTP-3000 series rack and backplane assembly, sharing a common communication bus with other I/O modules, power supply modules, and communication gateway cards. This shared backplane architecture enables the system to maintain synchronized data exchange across all installed modules without introducing latency or bus contention. Engineers integrating the RTP-3015/00 into an existing RTP-3000 rack can leverage hot-swap capability, allowing module replacement during live system operation without interrupting the control loop — a critical feature for continuous process plants where unplanned shutdowns carry significant operational cost.

From a redundancy design perspective, the RTP-3015/00 supports dual-redundant configurations when paired with a redundant CPU module and redundant power supply units within the RTP-3000 platform. In redundant deployments, the primary and secondary I/O modules maintain synchronized channel states, enabling bumpless transfer in the event of a primary module fault. This architecture is particularly valued in safety-critical applications such as turbine control, compressor surge protection, and reactor temperature management, where signal continuity is non-negotiable. The module’s compatibility with the RTP-3000 redundancy framework ensures that system architects can design fully redundant I/O layers without requiring third-party hardware or custom firmware modifications.

Network and communication integration is handled through the RTP-3000 communication gateway modules, which translate the internal backplane data into standard industrial protocols including Modbus TCP, PROFIBUS DP, and OPC DA/UA. The RTP-3015/00’s data is made available to SCADA systems, historian servers, and HMI terminals through these gateway modules, enabling operators to monitor real-time process values, configure alarm thresholds, and generate trend reports without direct interaction with the I/O hardware. This layered communication architecture ensures that the RTP-3015/00 contributes to system-wide data transparency while maintaining the deterministic performance of the control loop.

At the human-machine interface layer, operators interact with the data produced by the RTP-3015/00 through compatible HMI panels and SCADA workstations connected to the RTP-3000 network. Engineering workstations running the RTP-3000 configuration software allow technicians to map individual I/O channels, configure scaling parameters, set engineering unit conversions, and define fault response behaviors — all without requiring physical access to the module during normal operation. This software-defined configuration approach reduces commissioning time and supports remote diagnostics, which is increasingly important in geographically distributed plant environments.

For long-term maintenance and lifecycle management, the RTP-3015/00 is supported by ZYPLC’s inventory supply chain, ensuring that replacement modules are available for aging RTP-3000 installations without requiring full system migration. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional testing performed on each module to verify channel accuracy, communication integrity, and backplane compatibility. This warranty coverage provides procurement engineers and plant maintenance teams with the confidence to specify the RTP-3015/00 as a long-term spare or direct replacement in existing RTP-3000 architectures.

Product Specification Table

System Compatibility Notes

The RTP-3015/00 achieves its full performance potential when deployed as part of a coordinated RTP-3000 system architecture. At the processing core, the RTP-3000 CPU module executes the control logic and manages scan-cycle timing for all connected I/O modules, including the RTP-3015/00. Power distribution across the rack is handled by the RTP-3000 Power Supply Module, which provides regulated DC power to the backplane and all installed modules, with optional redundant PSU configurations for high-availability deployments.

Signal termination between field instruments and the RTP-3015/00 is managed through RTP-3000 series terminal modules and marshalling panels, which provide a structured wiring interface that simplifies field cable management and reduces the risk of wiring errors during commissioning. For applications requiring digital I/O alongside analog channels, the RTP-3000 Digital I/O Module can be installed in adjacent rack slots, sharing the same backplane bus and CPU scan cycle as the RTP-3015/00.

Network connectivity between the RTP-3000 control system and plant-level SCADA or DCS networks is provided by the RTP-3000 Ethernet Communication Gateway, which translates backplane data into Modbus TCP or OPC UA formats accessible to historian servers and operator workstations. In safety-instrumented system (SIS) applications, the RTP-3015/00 may operate alongside Honeywell Safety Manager modules, with data exchange managed through hardwired I/O or certified communication interfaces to maintain SIL compliance.

For drive and actuator control applications, the analog output channels of the RTP-3015/00 interface directly with variable frequency drives (VFDs) and electro-pneumatic positioners, providing 4–20 mA setpoint signals that regulate motor speed, valve position, and damper angle. At the operator interface layer, Honeywell HMI terminals and SCADA workstations display real-time channel values sourced from the RTP-3015/00, enabling operators to monitor process trends, acknowledge alarms, and initiate manual overrides without interrupting the automated control loop.

Industrial Application Notes

The RTP-3015/00 is deployed across a wide range of process industries where reliable analog signal management is essential to safe and efficient operation. In oil refinery and petrochemical plants, the module manages temperature and pressure signals from reactor vessels, heat exchangers, and distillation columns, providing the RTP-3000 CPU with the real-time data required to maintain product quality and prevent runaway conditions. Its hot-swap capability is particularly valued in continuous process environments where planned maintenance windows are limited.

In power generation facilities — including thermal, combined-cycle, and hydroelectric plants — the RTP-3015/00 supports turbine control systems by processing speed, vibration, and bearing temperature signals with the low-latency performance required for protective relay coordination. The module’s redundancy compatibility ensures that control system availability meets the stringent uptime requirements of grid-connected generation assets.

For water and wastewater treatment plants, the RTP-3015/00 manages flow, pH, dissolved oxygen, and turbidity signals across multiple treatment stages, enabling the RTP-3000 system to implement closed-loop dosing control and automated backwash sequences. Its wide operating temperature range and industrial-grade construction make it suitable for both indoor control room installations and outdoor field enclosures in water utility environments.

In mining and mineral processing applications, the module handles signals from conveyor load cells, crusher vibration sensors, and flotation cell level transmitters, supporting the RTP-3000 system’s role in coordinating complex multi-stage processing circuits. The module’s channel density and backplane integration reduce the number of control cabinets required in remote mine site installations, lowering both capital cost and ongoing maintenance burden.

For packaging and discrete manufacturing lines, the RTP-3015/00 provides analog feedback from servo drives, tension controllers, and web guiding systems, enabling the RTP-3000 platform to maintain precise speed and position synchronization across multi-axis production equipment. Its compatibility with the RTP-3000 communication gateway allows production data to be forwarded to MES and ERP systems for real-time OEE monitoring and quality traceability.

Product Compatibility FAQ

Q1: Is the RTP-3015/00 compatible with existing RTP-3000 racks and backplanes without hardware modification?
Yes. The RTP-3015/00 is designed for direct installation into standard RTP-3000 series racks using the existing backplane connector and bus architecture. No hardware modification or adapter is required. Channel mapping and scaling parameters are configured through the RTP-3000 engineering workstation software, which automatically recognizes the module upon installation and populates the I/O configuration database. This plug-and-configure approach significantly reduces commissioning time in both new installations and module replacement scenarios.

Q2: Can the RTP-3015/00 be used in a redundant I/O architecture, and what is required to implement it?
Yes. The RTP-3015/00 supports redundant I/O configurations when paired with a redundant RTP-3000 CPU module and dual power supply units. In a redundant deployment, two RTP-3015/00 modules are installed in mirrored rack positions, with the primary module actively processing field signals and the secondary module maintaining a synchronized channel state. In the event of a primary module fault, the system performs a bumpless transfer to the secondary module without interrupting the control loop. Implementing redundancy requires the RTP-3000 redundancy license and appropriate rack configuration — ZYPLC’s technical team can assist with architecture validation prior to procurement.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for aging RTP-3000 installations?
All RTP-3015/00 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects, channel performance failures, and backplane communication faults identified under normal operating conditions. Prior to shipment, each module undergoes functional testing to verify analog channel accuracy, signal linearity, and backplane communication integrity. For aging RTP-3000 installations where OEM support has been discontinued, ZYPLC maintains a dedicated inventory of tested RTP-3000 series modules to support ongoing spare parts requirements. Customers can contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com to confirm stock availability and lead times.
