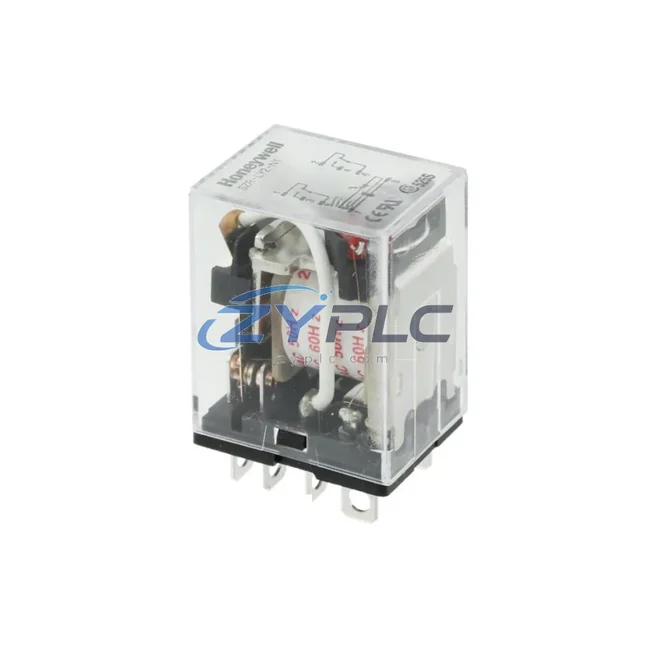

Honeywell SZR-LY2-N1 110VAC Relay for SZR-LY2

Honeywell SZR-LY2-N1 110VAC Relay: Control System and system integration

In modern industrial automation, every component within a control system must be selected not only for its individual electrical performance but for its role within the broader system architecture. The Honeywell SZR-LY2-N1 110VAC is a general-purpose electromechanical relay engineered to serve as a reliable switching interface within layered PLC and DCS control environments. Its 110VAC coil voltage rating positions it as a natural fit for North American and Asian industrial power distribution standards, while its compact plug-in form factor ensures compatibility with standard relay sockets used across Honeywell, Omron, and third-party relay base systems.

When designing a control cabinet for a manufacturing line, water treatment facility, or power substation, engineers must consider how each relay integrates with the upstream controller and downstream actuator. The SZR-LY2-N1 operates as a signal isolation and amplification device between the PLC digital output module and field devices such as solenoid valves, motor starters, and indicator lamps. Its double-pole double-throw (DPDT) contact configuration provides two independent switching circuits per relay, enabling both control and feedback signal routing within a single component footprint.

Product Specification Table

System Compatibility Notes

The SZR-LY2-N1 110VAC does not operate in isolation — it functions as a critical node within a coordinated control architecture. In a typical PLC-based automation system, the control layer is anchored by a CPU module such as the Honeywell HC900 Hybrid Controller or a Siemens S7-300 series processor. These controllers issue discrete output signals through their digital output (DO) modules, which in turn energize relay coils to switch field-level loads. The SZR-LY2-N1 serves precisely this interface role, providing galvanic isolation between the low-voltage logic signals from the DO module and the higher-voltage field circuits.

At the I/O layer, the relay works alongside terminal modules and marshalling panels. Components such as the Honeywell 900RIO Remote I/O module or Phoenix Contact FLKM terminal blocks are commonly deployed in the same cabinet, routing signals from field instruments through the relay switching contacts to actuators. The SZR-LY2-N1’s DPDT configuration allows one relay to simultaneously control a load and provide a status feedback signal back to the controller’s digital input (DI) module — a feature that simplifies wiring and reduces cabinet footprint.

At the power layer, the relay coil is typically driven from a 110VAC control power bus, often sourced from a control power transformer (CPT) or a dedicated UPS system. In redundant architectures, dual power supplies such as the Honeywell 900P01 Power Supply or equivalent units feed separate bus bars, ensuring that relay coil power is maintained even during a primary supply failure. This redundancy is essential in safety-critical applications such as emergency shutdown (ESD) systems and fire and gas (F&G) panels.

At the network and communication layer, the SZR-LY2-N1 itself is a hardwired device, but it operates within systems that rely on Modbus RTU, PROFIBUS DP, or EtherNet/IP for supervisory communication. The relay’s switching status is typically monitored via auxiliary contacts wired back to DI modules, with status data transmitted to the SCADA or DCS via the network layer. In Honeywell Experion PKS or Yokogawa CENTUM VP environments, relay status points are mapped as discrete input tags within the historian and alarm management system.

At the HMI layer, operators monitor relay states through graphical displays on Siemens TP700 Comfort panels, Weintek cMT series HMIs, or web-based SCADA clients. Alarm conditions triggered by relay failures or unexpected state changes are surfaced through these interfaces, enabling rapid operator response. The SZR-LY2-N1’s fast operate and release times (≤20ms) ensure that control actions are reflected accurately and promptly in the HMI display.

At the execution layer, the relay’s output contacts drive solenoid valves, motor control center (MCC) contactors, pilot lights, and audible alarms. In process control applications, the relay may interface with a Danfoss VLT or ABB ACS series variable frequency drive (VFD) enable circuit, providing a hardwired interlock that prevents drive startup under unsafe conditions. This layered approach — from CPU to relay to actuator — ensures system-wide consistency, traceability, and maintainability throughout the asset lifecycle.

Industrial Application Notes

The Honeywell SZR-LY2-N1 110VAC relay finds application across a wide range of industrial sectors where 110VAC control power is standard and reliable discrete switching is essential.

In manufacturing and assembly lines, the relay is used to control conveyor motor starters, pneumatic cylinder solenoids, and safety gate interlocks. Its 10A contact rating accommodates the inrush currents associated with small motor loads, while its sealed housing protects against the dust and coolant mist common in machining environments.

In electrical power distribution and substation automation, the SZR-LY2-N1 serves as an auxiliary relay in protection and control panels. It interfaces between numerical protection relays (such as Schneider Electric Sepam or GE Multilin units) and circuit breaker trip coils, providing the necessary current amplification and contact multiplication required in switchgear applications.

In petrochemical and refinery process control, the relay is deployed in motor control centers and junction boxes where 110VAC control power is distributed from a central control power transformer. Its high dielectric strength (2,000VAC coil-to-contact) ensures reliable isolation in environments where ground faults and transient overvoltages are a concern.

In water and wastewater treatment facilities, the relay controls pump motor starters, valve actuators, and chemical dosing systems. Its wide ambient temperature range (-40°C to +70°C) ensures reliable operation in outdoor pump stations and underground wet wells.

In mining and metallurgical processing, the relay is used in conveyor control systems, crusher interlocks, and ventilation fan controls. Its mechanical life of ≥10,000,000 operations ensures long service intervals even in high-cycle applications.

In packaging and material handling systems, the SZR-LY2-N1 controls reject gates, label applicators, and accumulation conveyor zones. Its fast switching speed supports high-throughput production lines where relay response time directly affects product quality and line efficiency.

Product Compatibility FAQ

Q1: Is the Honeywell SZR-LY2-N1 110VAC compatible with standard DIN rail relay sockets, and can it be used as a direct replacement in existing Honeywell SZR-LY2 series installations?
A: Yes. The SZR-LY2-N1 is designed for use with standard 8-pin octal relay sockets compatible with the SZR-LY2 series footprint. It can be used as a direct plug-in replacement in existing installations without rewiring, provided the socket pin configuration and coil voltage match. Always verify the socket contact rating and coil voltage before substitution to ensure full system compatibility.

Q2: How does the SZR-LY2-N1 support redundant control architectures, and what considerations apply when integrating it into safety-rated systems?
A: In redundant architectures, the SZR-LY2-N1 can be deployed in parallel relay configurations where two relays share a common load, with each relay driven by an independent control power source. For safety-rated applications (SIL 1 or SIL 2), the relay should be used in conjunction with a safety-rated PLC output module and a relay monitoring circuit that detects contact welding or coil failure. ZYPLC recommends consulting the system safety requirements specification (SRS) before deploying this relay in functional safety applications.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability for the SZR-LY2-N1?
A: The warranty terms confirmed during quotation covers manufacturing defects and premature failure under normal operating conditions. ZYPLC maintains availability subject to RFQ confirmation of the SZR-LY2-N1 110VAC and related SZR-LY2 series components to support long-term maintenance programs. For planned maintenance shutdowns, ZYPLC can provide batch quotations and expedited shipping to minimize downtime. Contact our technical team for application-specific support, cross-reference verification, and volume pricing.
