Honeywell TC-IAH161 Analog Input Module for TPS Systems

Honeywell TC-IAH161 Industrial Data Link: Smart Factory Analog Signal Gateway for TPS Systems

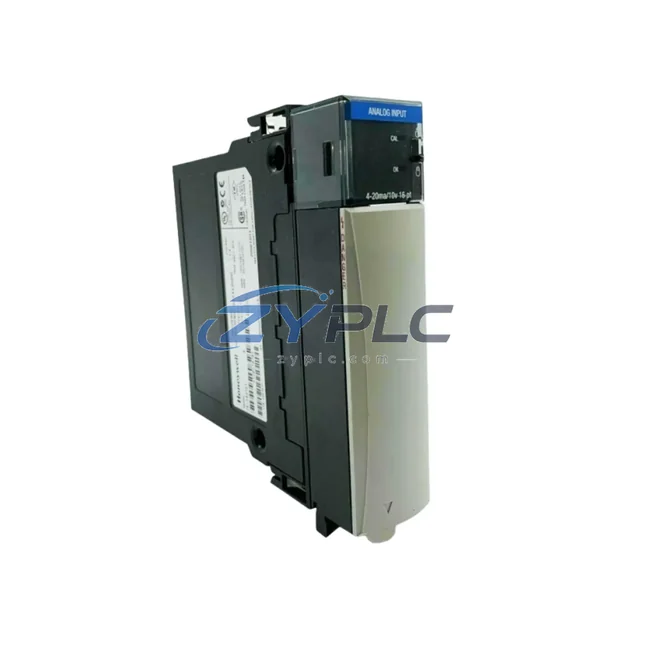

The Honeywell TC-IAH161 is a 16-channel analog input module engineered for the TPS (TotalPlant Solution) Distributed Control System. As a critical node in the industrial data chain, the TC-IAH161 bridges field-level analog signals — from thermocouples, RTDs, pressure transmitters, and flow sensors — into the high-speed digital communication backbone of the TPS DCS architecture. In smart factory environments where real-time data integrity is non-negotiable, this module delivers the signal fidelity, protocol compatibility, and network stability that modern industrial automation demands.

Designed for continuous process industries including petrochemical, power generation, pharmaceutical, and advanced manufacturing, the TC-IAH161 serves as the foundational analog acquisition layer that feeds live process data upward through the control hierarchy — from field instruments to PLC controllers, SCADA platforms, HMI workstations, and enterprise MES systems. Its role in eliminating data isolation at the field level makes it indispensable for any facility pursuing full production transparency and remote diagnostic capability.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the TC-IAH161 sits at the origin of the data flow chain. Field instruments — including Honeywell STT850 Smart Temperature Transmitters, Honeywell ST 800 pressure transmitters, and third-party 4–20 mA loop-powered sensors — feed analog signals directly into the TC-IAH161’s 16 input channels. The module performs high-resolution analog-to-digital conversion and transmits structured process data onto the TPS Local Control Network (LCN), where it becomes immediately available to the Honeywell AM (Application Module) and NIM (Network Interface Module) for real-time control logic execution.

From the LCN, process values propagate to the Honeywell Universal Control Network (UCN), connecting field controllers with the plant-wide supervisory layer. The Honeywell HPM (High-Performance Process Manager) aggregates data from multiple TC-IAH161 modules across process units, enabling coordinated multi-loop control strategies. Simultaneously, the Honeywell GUS (Global User Station) and operator HMI workstations receive live analog values for real-time visualization, trend analysis, and alarm management.

For facilities integrating legacy TPS infrastructure with modern Ethernet-based systems, the Honeywell ControlEdge HC900 Hybrid Controller or a third-party OPC-UA gateway can bridge TPS data streams to SCADA platforms such as Wonderware System Platform, Ignition SCADA, or Honeywell Experion PKS. This integration path enables the TC-IAH161’s analog data to reach enterprise-level MES and ERP systems, supporting production KPI dashboards, energy monitoring, and predictive maintenance analytics.

Remote I/O expansion is supported through Honeywell TC-CCR014 / TC-CCR016 redundant controller modules, which can manage multiple TC-IAH161 cards within a single TPS cabinet. For drive-level integration, variable frequency drives (VFDs) with analog feedback outputs connect directly to TC-IAH161 input channels, enabling closed-loop speed and torque monitoring without additional protocol conversion hardware. Edge computing nodes — such as industrial edge gateways running IIoT middleware — can subscribe to OPC-UA data published from the TPS network, extending the TC-IAH161’s data reach to cloud-based analytics platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy field devices speaking proprietary analog languages that cannot be natively understood by modern digital control systems. The Honeywell TC-IAH161 directly addresses this by providing a standardized, high-fidelity analog acquisition interface within the TPS DCS framework, converting diverse field signals into a unified digital data stream that the entire control hierarchy can consume.

Data silos are eliminated when the TC-IAH161 feeds structured process values into the TPS LCN, making real-time analog data available simultaneously to local controllers, HMI operators, SCADA historians, and remote diagnostic tools. Facilities that previously relied on manual data collection or isolated panel meters can now achieve full production line transparency — every temperature, pressure, flow, and level reading is timestamped, logged, and accessible from any authorized workstation on the plant network.

Remote monitoring and diagnostics become practical when TC-IAH161 data is exposed through OPC-UA or Modbus TCP gateways to plant-wide SCADA systems. Maintenance engineers can monitor analog channel health, detect sensor drift, and receive predictive fault alerts without physical access to the field cabinet. This capability is especially valuable in hazardous process areas where minimizing human entry reduces both safety risk and operational cost.

System scalability is a core design principle of the TPS platform. Additional TC-IAH161 modules can be added to existing TPS cabinets as process expansion demands grow, without requiring changes to the control network architecture. This modular approach protects capital investment and allows phased smart factory upgrades — integrating new process units, adding remote I/O nodes, or extending SCADA coverage — without system-wide reconfiguration.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying channel-by-channel analog accuracy, communication integrity on the TPS LCN, and module self-diagnostics. Each TC-IAH161 is backed by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for shipment arranged after confirmation via DHL Express or FedEx International Priority to global destinations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell TC-IAH161 support, and can it integrate with non-Honeywell SCADA systems?
The TC-IAH161 communicates natively over the Honeywell TPS Local Control Network (LCN) and Universal Control Network (UCN) using Honeywell’s proprietary high-speed protocol. Integration with third-party SCADA platforms — including Ignition, Wonderware, and iFIX — is achieved through OPC-DA or OPC-UA gateway modules (such as the Honeywell NIM or third-party OPC servers), which translate TPS data into standard industrial protocols accessible by any OPC-compliant SCADA client.

Q2: How does the TC-IAH161 ensure network stability and data accuracy in high-noise industrial environments?
The TC-IAH161 features galvanic isolation on all 16 analog input channels, suppressing common-mode noise and ground loop interference common in industrial field wiring. Its 16-bit ADC delivers high-resolution signal conversion, and the TPS LCN employs deterministic token-passing communication to guarantee consistent, low-latency data delivery even under heavy network load. Redundant controller configurations using paired TC-CCR014/TC-CCR016 modules further ensure uninterrupted data flow during single-point failures.

Q3: Can the TC-IAH161 be expanded as our facility adds new process units or remote I/O nodes?
Yes. The TPS DCS architecture supports modular expansion — additional TC-IAH161 modules can be installed in existing or new TPS I/O cabinets and registered to the control network without disrupting active process control. This scalability makes the TC-IAH161 suitable for phased smart factory rollouts, where new production lines or remote monitoring points are added incrementally over time.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the TC-IAH161?
Every Honeywell TC-IAH161 supplied by ZYPLC is functionally tested prior to shipment, including analog channel accuracy verification, LCN communication handshake testing, and module diagnostic self-check. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Availability is confirmed via RFQ for same-day or next-business-day dispatch via international express courier to customers worldwide.
