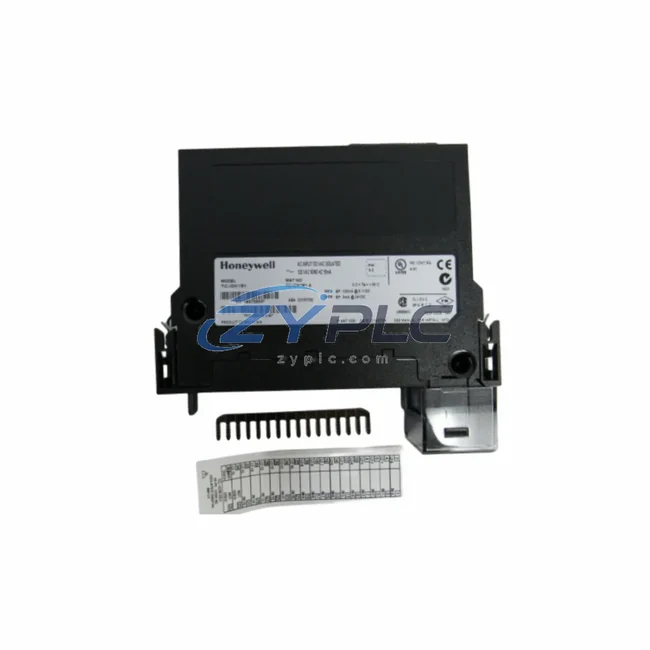

Honeywell TC-IDK161 Isolated Input Module for TPS Systems

Honeywell TC-IDK161 Industrial Network Interface for TPS Systems: Precision Data Link for Smart Factory Connectivity

The Honeywell TC-IDK161 is a high-performance Isolated Input Module engineered for the TotalPlant Solution (TPS) Distributed Control System platform. Designed to serve as a critical node in industrial data acquisition networks, the TC-IDK161 bridges field-level instrumentation with upper-layer control and monitoring systems — enabling seamless, noise-immune signal transmission across complex process environments. Whether deployed in oil and gas, chemical processing, power generation, or advanced manufacturing, this module delivers the electrical isolation, channel density, and protocol compatibility demanded by modern smart factory architectures.

In today’s industrial landscape, data integrity begins at the point of signal acquisition. The TC-IDK161 accepts analog input signals from field transmitters, thermocouples, RTDs, and pressure sensors, converting and isolating them before forwarding structured process data upstream through the TPS backplane. This galvanic isolation architecture eliminates ground loops and common-mode interference — a persistent challenge in large-scale plant environments where signal cables run alongside high-voltage power conductors and variable frequency drives.

Compatibility & Integration Notes

Connected Automation Data Flow

The TC-IDK161 sits at the foundation of a layered industrial communication architecture. At the field level, process sensors — including Honeywell STT850 Smart Temperature Transmitters and ST 800 SmartLine Pressure Transmitters — deliver raw analog signals to the module’s isolated input channels. The TC-IDK161 conditions and digitizes these signals, passing structured data through the TPS I/O backplane to the Honeywell TC-CCR014 Controller Card, which executes real-time PID control loops and process logic.

Within the TPS cabinet, the TC-IDK161 operates alongside complementary I/O modules such as the Honeywell TC-ODK161 Isolated Output Module and the Honeywell TC-IAH161 Analog Input Module, forming a complete field interface layer. Data aggregated at the controller level is then transmitted over the Honeywell Local Control Network (LCN) — a high-speed, deterministic plant network — to the Honeywell Universal Station (US) and History Module (HM), where operators monitor trends, configure alarms, and access historical process data through the TPS HMI environment.

For plants integrating TPS with modern SCADA platforms, the Honeywell TC-PRS021 Power Supply Module and network gateway components facilitate data bridging to OPC DA/UA servers, enabling third-party SCADA systems such as Wonderware InTouch or Ignition to consume live process values from TC-IDK161-connected field devices. This integration path supports plant-wide data visibility without requiring full DCS migration.

In multi-loop control scenarios, the TC-IDK161 feeds signal data to Honeywell TDC 3000 Advanced Process Manager (APM) nodes, where model predictive control (MPC) algorithms optimize throughput and energy consumption across interconnected process units. Remote I/O extensions using Honeywell TC-FXX132 Field Termination Assemblies allow the TC-IDK161 to interface with field junction boxes located hundreds of meters from the main control room, maintaining signal integrity through shielded, isolated transmission paths.

At the edge, data from the TC-IDK161 can be routed through industrial protocol gateways — such as Moxa MGate or HMS Anybus gateways — to Modbus TCP, PROFIBUS DP, or EtherNet/IP networks, enabling integration with third-party PLCs, variable frequency drives, and remote monitoring platforms. This multi-protocol connectivity ensures the TC-IDK161 remains a viable data source even in hybrid automation environments where legacy DCS infrastructure coexists with modern IIoT edge computing nodes.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in large-scale process plants is data fragmentation — where field instruments, DCS controllers, PLCs, and SCADA systems operate in isolated silos, preventing operators from achieving a unified view of plant performance. The Honeywell TC-IDK161 directly addresses this challenge by providing a reliable, isolated signal acquisition layer that feeds clean, conditioned data into the TPS control network.

In plants where aging instrumentation generates noisy or inconsistent signals, the TC-IDK161’s per-channel galvanic isolation eliminates cross-channel interference and ground loop currents that can corrupt process readings and trigger false alarms. This signal integrity foundation is essential for accurate SCADA trending, alarm management, and regulatory compliance reporting.

For facilities undergoing digital transformation, the TC-IDK161 supports a phased modernization approach: existing TPS infrastructure can be retained and extended while new IIoT edge gateways and cloud-connected monitoring platforms are layered on top. This protects capital investment in proven DCS hardware while enabling the real-time analytics, remote diagnostics, and predictive maintenance capabilities demanded by Industry 4.0 initiatives.

Remote diagnostics capabilities — accessible through the TPS HMI and third-party OPC-connected SCADA platforms — allow maintenance engineers to monitor channel health, detect signal drift, and identify failing field instruments without physical site visits. This reduces mean time to repair (MTTR), minimizes unplanned downtime, and supports continuous production transparency across multi-site operations.

System expansion is straightforward: additional TC-IDK161 modules can be installed in existing TPS I/O cabinets to increase channel count as process requirements grow, without disrupting active control loops. Each module undergoes factory acceptance testing (FAT) prior to shipment, and all units supplied by ZYPLC are verified for functionality and covered by a warranty terms confirmed during quotation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell TC-IDK161 support?
The TC-IDK161 communicates natively over the Honeywell TPS backplane bus protocol, integrating directly with TPS and TDC 3000 DCS platforms. For connectivity to external networks such as Modbus TCP, PROFIBUS DP, or EtherNet/IP, protocol gateway devices are used to bridge TPS data to third-party SCADA, HMI, or PLC systems without modifying the core DCS architecture.

Q2: How does the TC-IDK161 ensure network stability and signal integrity in electrically noisy environments?
Each input channel features galvanic isolation, which physically separates field wiring from the DCS backplane electronics. This prevents ground loops, common-mode voltage interference, and transient surges from corrupting process data — ensuring stable, accurate signal transmission even in environments with heavy motor drives, welding equipment, or high-voltage switchgear nearby.

Q3: Can the TC-IDK161 be integrated with modern SCADA and HMI platforms?
Yes. Through OPC DA/UA server interfaces connected to the TPS network, the TC-IDK161’s process data can be consumed by modern SCADA platforms including Wonderware, Ignition, and iFIX, as well as HMI systems from Siemens, Rockwell, and other vendors. This enables real-time monitoring, alarm management, and historical trending without replacing existing TPS hardware.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the TC-IDK161?
All Honeywell TC-IDK161 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional verification testing to confirm channel integrity, isolation performance, and backplane communication before dispatch. Availability is confirmed via RFQ for shipment arranged after confirmation to minimize project lead times.
